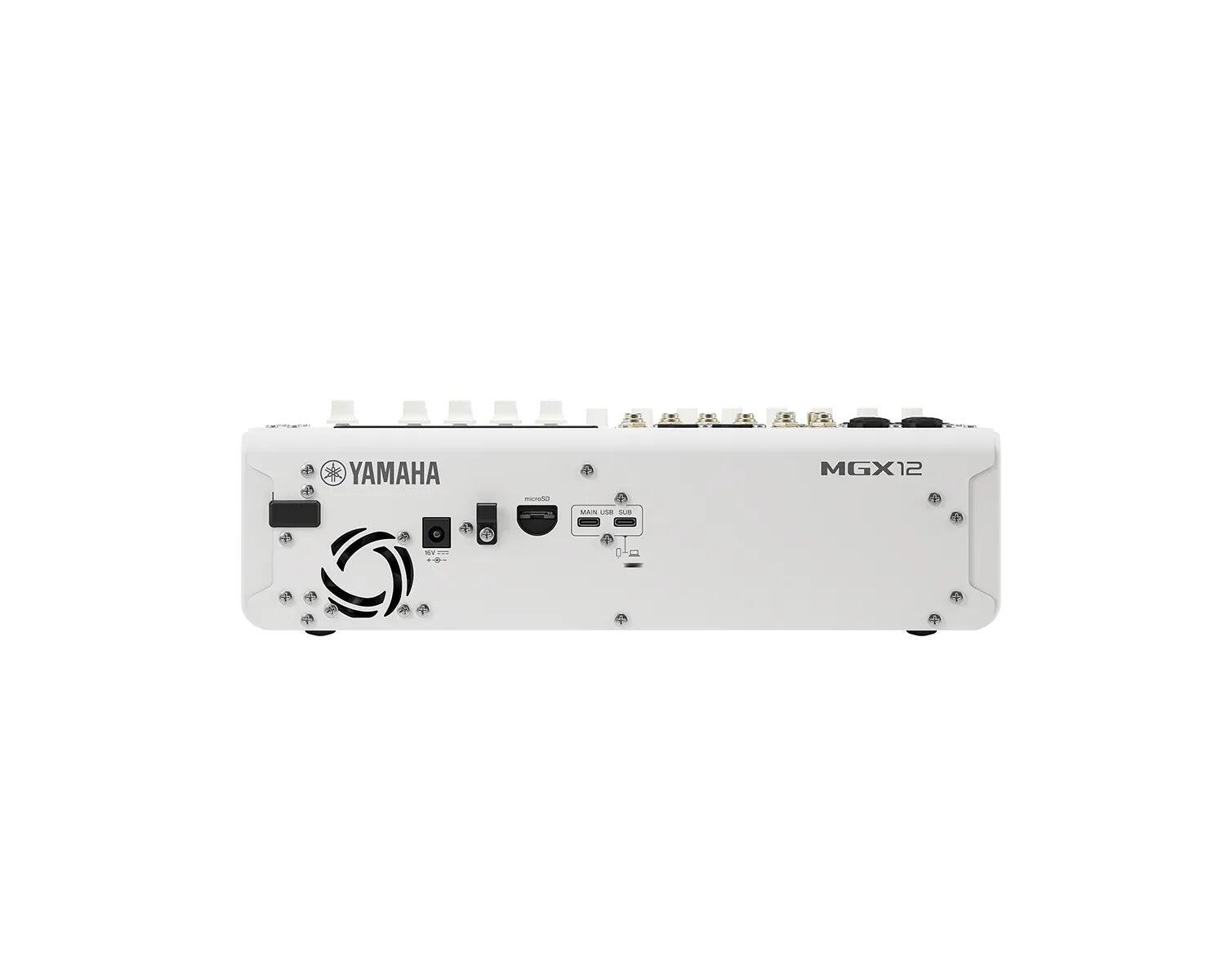

Yamaha MGX12 W 12 Ch Mixing Console 4 Combo Line - WHITE

SKU: MGX12W
Yamaha

Yamaha MGX12W 12-Ch Mixing Console 4 Combo Line - Black

The MGX series compact digital mixing console features versatile capabilities and portability for a wide range of applications. Offering superb sound quality, intuitive and fast setup and operation, and professional-level features.

Product Features

• White
• 11 + 1 fader configuration (non-motorized fader)
• A 4.3-inch touchscreen with five control knobs
• Input mixing channels: 4 mono + 4 stereo + 1 Sound Pad + 2FX return
• Busses: 1 STEREO, 8 MIX + 2 FX + 1 CUE
• Local Inputs: 4 Combo (Mic/Line), 4 TRS (Line), 4 RCA (Line)
• Local Outputs: 2 XLR, 6 TRS Phone, 4 Headphones
• USB MAIN: 18 inputs / 18 outputs (32-bit / 96 kHz)
• USB SUB: 2 inputs / 2 outputs (16-bit / 48kHz)
• microSD Card: 16-track recording / 2-track playback (24-bit / Up to 96 kHz)
• Bluetooth Audio Input: 2 inputs (Bluetooth 5.0, A2DP)
• Built-in DSP processor for professional sound and latency-free monitoring
• Assistive features: Auto Gain, Clip Safe, Simple / Standard mode, Scene Recall
• Included accessories: Start Guide, Safety Guide, Steinberg Software License Card (Cubase AI, WaveLab Cast, Basic FX Suite, Steinberg Plus), AC Power Adapter (PA-300)

Product Specifications

• Sampling frequency rate:  44.1 kHz – 96 kHz
• Signal delay:  Less than 0.4 ms (INPUT to STEREO OUT @ Fs=96 kHz)
• Frequency Response:  +0.0 / -0.5 dB 20 Hz to 20 kHz, reference to the nominal output level @1 kHz, Input Gain= Min.
• Dynamic Range:  125 dB typ., DAC to STEREO OUT, 115 dB typ., INPUT to MAIN OUT, Input Gain=Min.
• Total Harmonic Distortion:  Less than 0.002% 20 Hz to 20 kHz@+4 dBu, MIC INPUT to STEREO OUT, Input Gain=Min.
• Crosstalk:  -120 dB, adjacent INPUT/ STEREO OUT channels, Input Gain= Min. @1 kHz
• Gain Range:  86 dB
• Power Requirements:  DC16 V/2.4 A, PA-300 AC power adapter (100 V-240 V, 50 Hz/60 Hz)
• Power Consumption:  38.4 W
• Accessories:  RK-MHX12 (Mixer Accessory)
• Operating Temperature:  0 to 40 °C
• Storage Temperature:  -20 to 60 °C

I/O Connectors

• Analog Input:  4 Combo (Mic/Line), 4 TRS (Line), 4 RCA (Line)
• Analog Output:  2 XLR, 6 TRS
• USB TO HOST:  2 (USB Type-C, MAIN: 32-bit/ SUB: 16-bit)
• Phones:  4 TRS (100 mW+100 mW @40 Ohm)
• Power:  1 (Barrel type, DC power IN)
• MicroSD Card Slot:  1
• Bluetooth:  1 Bluetooth audio input (Bluetooth 5.0, A2DP)
• HDMI:  N/A

User Interface

• 4.3-inch touch screen
• 12 x 60mm fader
• 12 x SEND knob
• 5 x rotary encoder (4 x screen knob, 1 x “TOUCH AND TURN”

Recording & Playback

• USB (MAIN):  18-track recording, 18-track playback
• USB (SUB):  2-track recording, 2-track playback
• MicroSD Card:  up to 16-track recording, 2-track playback

Hum and Noise Level

• Equivalent Input Noise:  -128 dBu typ., Input Gain= Max.
• Residual Output Noise:  -108 dBu, ST main off

Dimensions

• Width: 335 mm (13.2")
• Height:  96 mm (3.8")
• Depth:  319 mm (12.6"
• Weight:  3.9 kg (8.6 lb)

Mixing Capacity

• Input Channels:  4 mono + 4 stereo + 1 Sound Pad + 2 FX
• Mix Buses:  8 (mono)
• Stereo Buses:  1
• FX Buses:  2
• Cue Buses: 1

On-board Processors (DSP)

• Gate
• Compressor
• EQ
• Sweet Spot Morphing Channel Strip (Comp and EQ)
• Guitar Amp Classics (Amp Simulator)
• Pitch Fix (Voice Changer)
• Ducker
• Multi-band Compressor
• Compander
• Delay
• REV-X (Reverb)

What's in the Box?

• White MGX12
• Start guide
• Safety guide
• Steinberg Software License Card x2(Cubase AI + WaveLab Cast, Steinberg Plus)
• Basic FX Suite license card
• AC Power Adapter (PA-300 including power cord)
