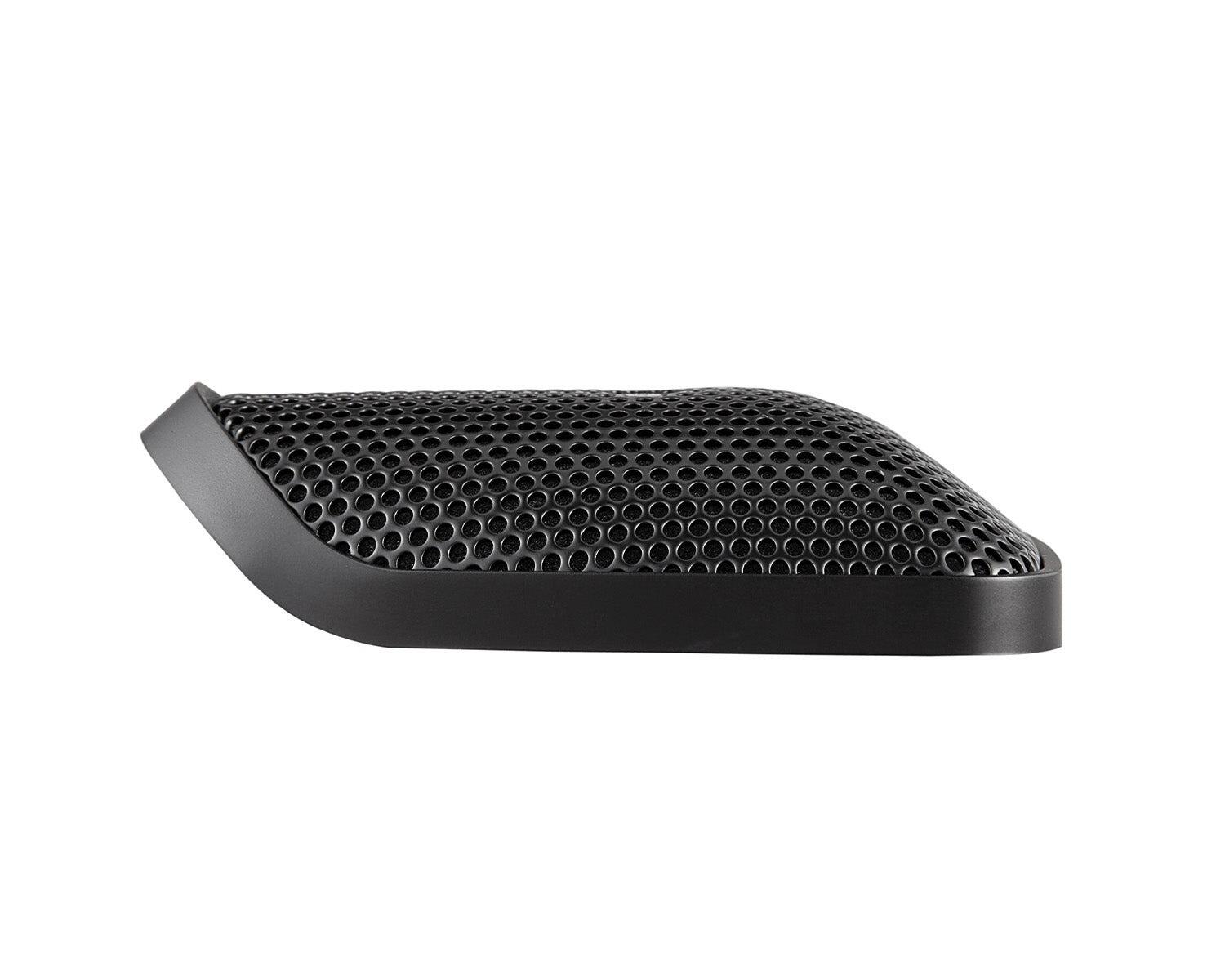

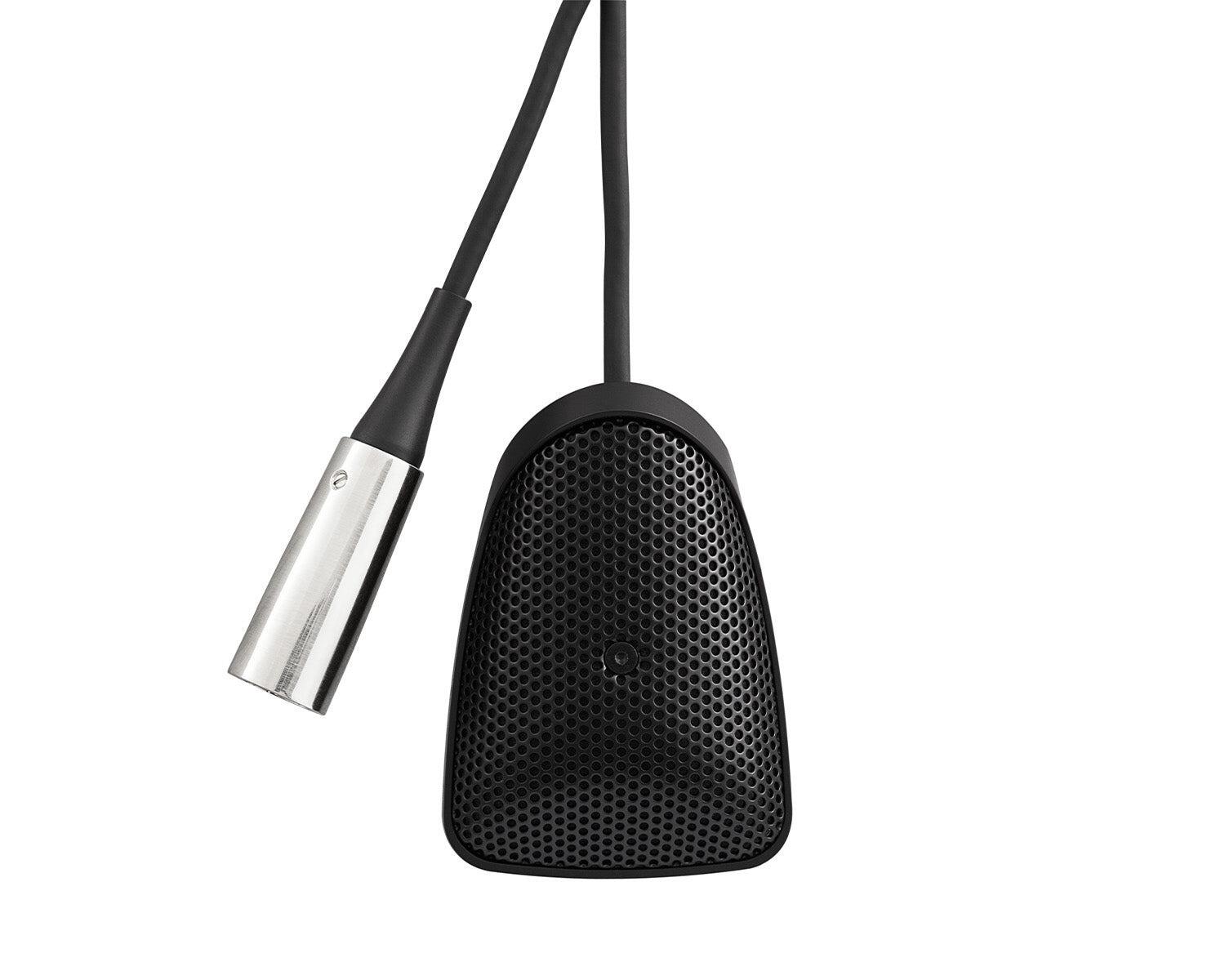

Shure CVB-B/O Omni Condenser Boundary Microphone Black, XLR Connector

SKU: CVB-B/O
Shure

Shure CVB-B/O Omni Condenser Boundary Microphone Black, XLR Connector

The Shure Centraverse CVB is a professional boundary electret condenser microphone for use in desktop installed sound reinforcement applications. Available in cardioid and omnidirectional polar patterns and black or white colour options, its low-profile design fits seamlessly within any design aesthetic.

• Omnidirectional Polar Pattern
• Black Finish
• Attached 12 ft XLR cable
• Commshield® interference immunity
• Guards against unwanted RF Interference from portable wireless devices (smartphones, etc.)
• High resistance to intense nearby radio signals
• Cartridge Type: Electret Condenser
• Frequency Response: 70–16000 Hz
• Polar Pattern: Omnidirectional
• Output Impedance: 180 Ω
• Sensitivity (at 1 kHz , open circuit voltage): –28 dBV/Pa(40 mV)
• Maximum SPL (1 kHz at 1% THD): 117 dB SPL
• Signal to Noise Ratio (referenced at 94 dB SPL): 74 dB
• Dynamic Range: 97 dB
• Self Noise (equivalent SPL, A-weighted, typical): 20 dB SPL
• Common Mode Rejection (10 Hz to 100 kHz): >45 dB
• Preamplifier Output Clipping Level (1% THD): -6 dBV
• Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
• Power Requirements: 11–52 V DC, 2.0 mA
• Environmental Requirements: Operating Temperature Range: -18 to 57 °C (0 to 135 °F) Relative Humidity: 0 to 95%
