Audio Technica Omni Condenser 3-Pin Flush-Mount Boundary Microphone - Audio Technica
roll over the image to zoom in
Audio Technica Omni Condenser 3-Pin Flush-Mount Boundary Microphone
SKU:
ES945O/XLR
Please allow 3-5 working days for Delivery
Audio Technica
Audio Technica Omni Cond 3-Pin Flush-Mount Boundary Mic
With its low-profile design that mounts unobtrusively in tabletops, ceilings or panels for minimum visibility, the ES945O/XLR omnidirectional condenser boundary microphone provides clear, highly intelligible audio that is perfect for conferencing, recording, monitoring and other demanding sound pickup applications.
Protected by a rugged all-metal case with a two-layer perforated grille, the microphones omnidirectional polar pattern affords a 360, pickup angle, while its UniGuard, RFI-shielding technology provides outstanding rejection of radio frequency interference (RFI). The microphone also offers IPX4 water resistance to protect it from splashes of water.
The ES945O/XLR is equipped with a self-contained power module with an XLRM-type output connector, eliminating the need for an external power module. The microphone is available in black (ES945O/XLR) and white (ES945WO/XLR), and comes with a pair of rubber isolators for optional mechanical isolation from the mounting surface.
- Designed for surface-mount applications such as conferencing, recording, monitoring and other demanding sound pickup applications
- Low-profile element provides uniform omnidirectional polar pattern with 360, acceptance angle
- Mounts unobtrusively in tabletops, ceilings and panels
- IPX4 water resistance protects the microphone from splashes of water
- Self-contained power module with XLRM-type output connector
- Rugged all-metal case with a two-layer perforated grille
- Rubber Isolators provide mechanical dampening of mounting-surface vibration
- Requires 11V to 52V DC phantom power
- UniGuard, RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
- Available in two colors: black (ES945O/XLR) and white (ES945WO/XLR)
- RoHS compliant?free from all substances specified in the EU directive on hazardous substances
| Element | Fixed-charge back plate, permanently polarized condenser |
|---|---|
| Polar Pattern | Omnidirectional |
| Frequency Response | 60-15,000 Hz |
| Open Circuit Sensitivity | -33 dB (0 dB = 1V/Pa, 1 kHz) |
| Output Impedance | 100 ohms |
| Maximum Input Sound Level | 130 dB SPL (1 kHz at 1% THD) |
| Dynamic Range | (Typical) 109 dB (1 kHz at max SPL) |
| Signal-to-Noise Ratio | 73 dB (1 kHz at 1 Pa, A-weighted) |
| Power Requirements | 11-52V DC, 2 mA |
| Weight | 62 g (2.2 oz) |
| Dimensions | 69.0 mm (2.72) long, 28.0 mm (1.10) head diameter |
| Output Connector | 3-pin XLRM-type |
| Accessories Included | Rubber isolator (x 2), nut |
reward points
Related Products...
Audio Technica ES947WC/XLR Cardioid Condenser 3-Pin Flush-Mount Boundary Microphone White
View details
Audio Technica Cardioid Condenser 5-Pin Flush-Mount Boundary Microphone w/ Switch
View details
Audio Technica ESW Series Boundary Microphone Transmitter DECT Technology
View details
AKG PCC160 Boundary Layer Microphone
View details

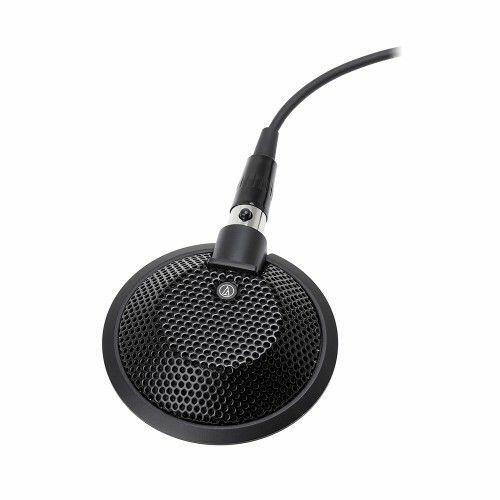

Audio Technica U841R Omnidirectionalectional Boundary Microphone
View details

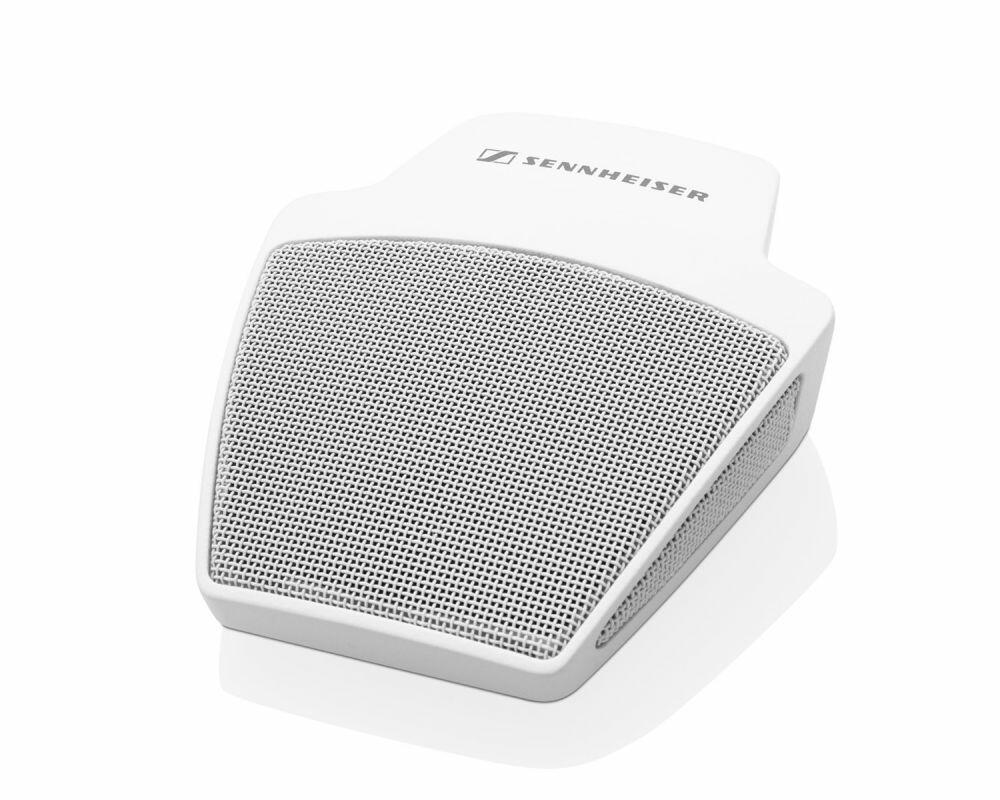

Sennheiser MEB 114 W Boundary microphone, cardioid, 3-pin mini xlr
View details
AKG PCC170 Boundary Layer Microphone
View details
W Audio Boundary Microphone
View details
Audio Technica U851Rb Cardioid polar pattern Boundary Microphone, Black
View details

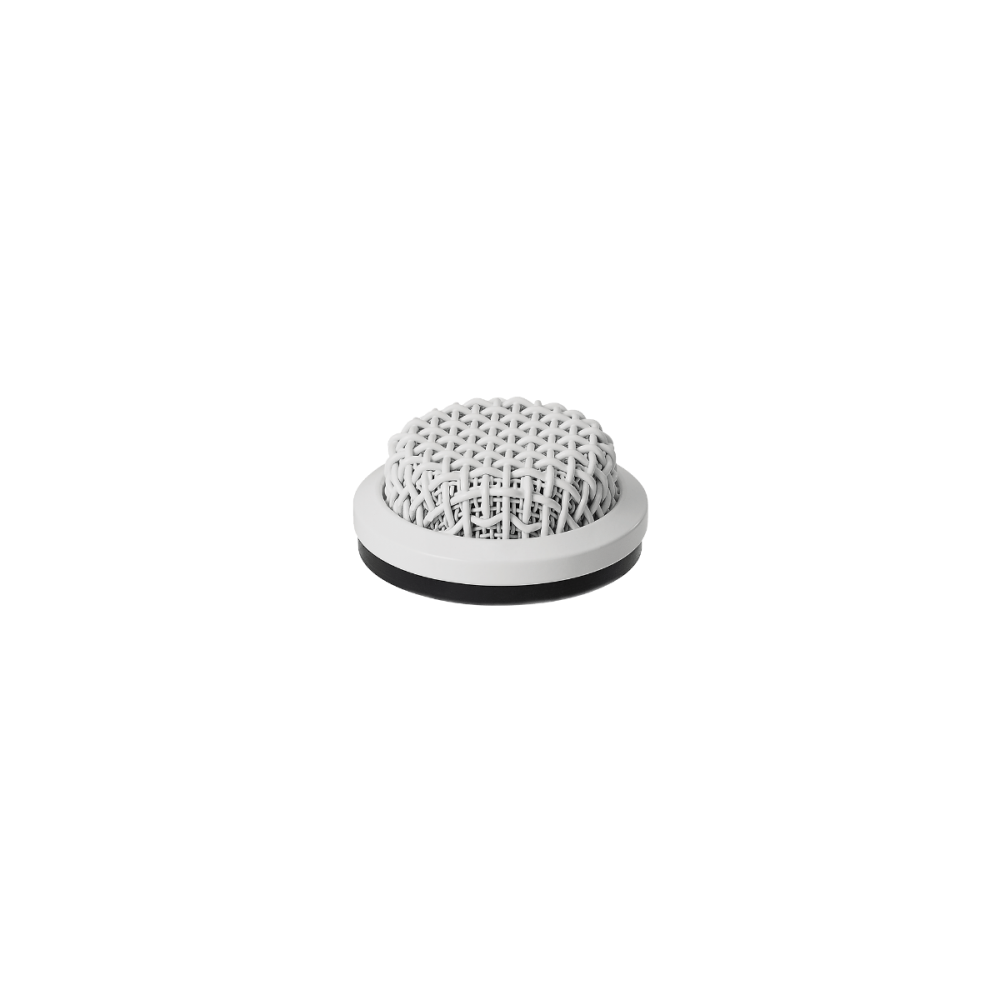

Audio Technica ES945WO/TB3 Miniature Omni Condenser 3-Pin Flush-Mount Boundary Microphone
View details
AKG PZM10 - Boundary Layer Microphone
View details
AKG PZM10-LL Line-Level Boundary Layer Microphone
View details
Shure CVB-B/O Omni Condenser Boundary Microphone Black, XLR Connector
View details
AKG C562 CM Boundary Layer Microphone
View details

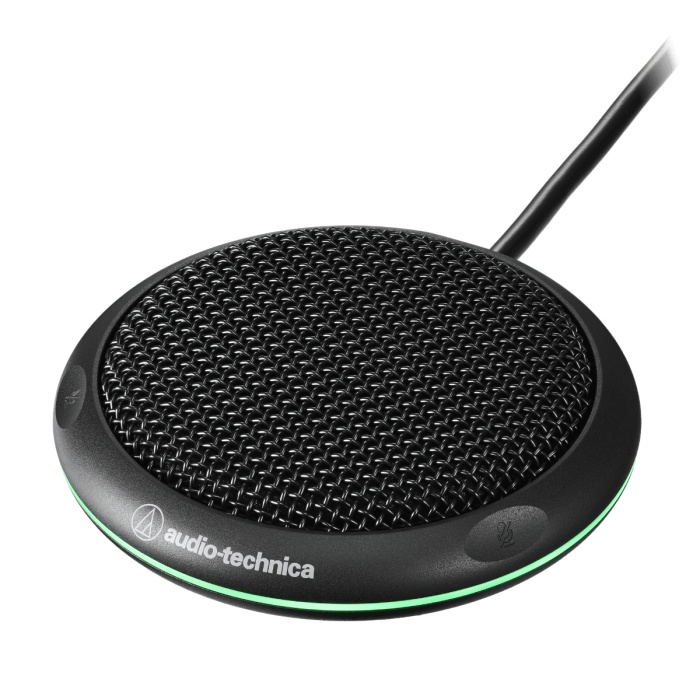

Audio Technica ES964 Boundary Microphone Array
