Neutrik PowerCON B-type Chassis Connector Grey NAC3MPB-1

SKU: CONN04
Neutrik

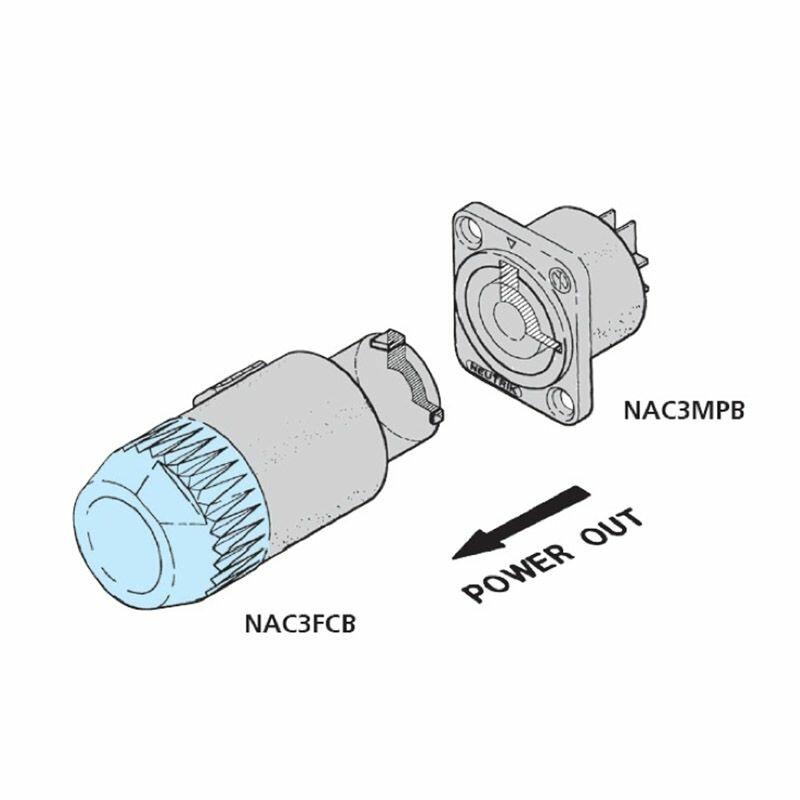

Chassis connector, power-out, 3/16'' flat tab terminals, grey.The powerCON is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. Attention: The powerCON is a connector without breaking capacity, i.e. the powerCON should not be connected or disconnected under load or live!

Features

Locking 20A / 250V AC appliance coupler, 3 contacts for line, neutral and premating safety ground, Powerin (blue) and powerout (grey) versions with different keying to avoid the possibility of intermating, Fast and easy twist lock latching system, Extremely robust and reliable, Ergonomic design, User friendly latch design for easy handling, Unique Neutrik chuck type strain relief, UL, cUL recognized components, VDE certified, SEV approved, Branded with unique hologram guarantees genuine and authentic Neutrik product

Specification:
Number of electronical contacts: 2 + PE, Rated current per contact: 20A rms, Rated voltage: 250V AC, Terminals: 3/16'' flat tab
