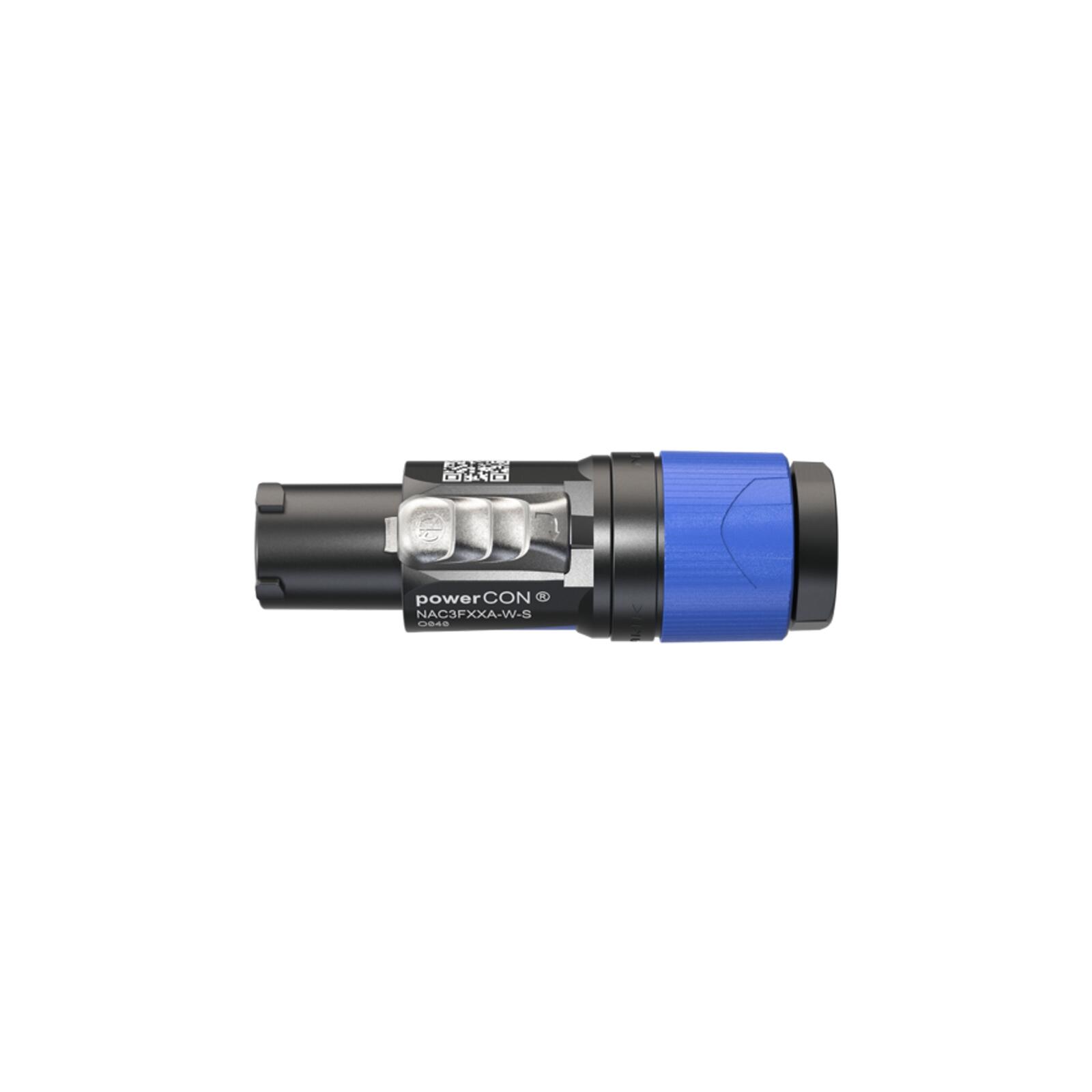

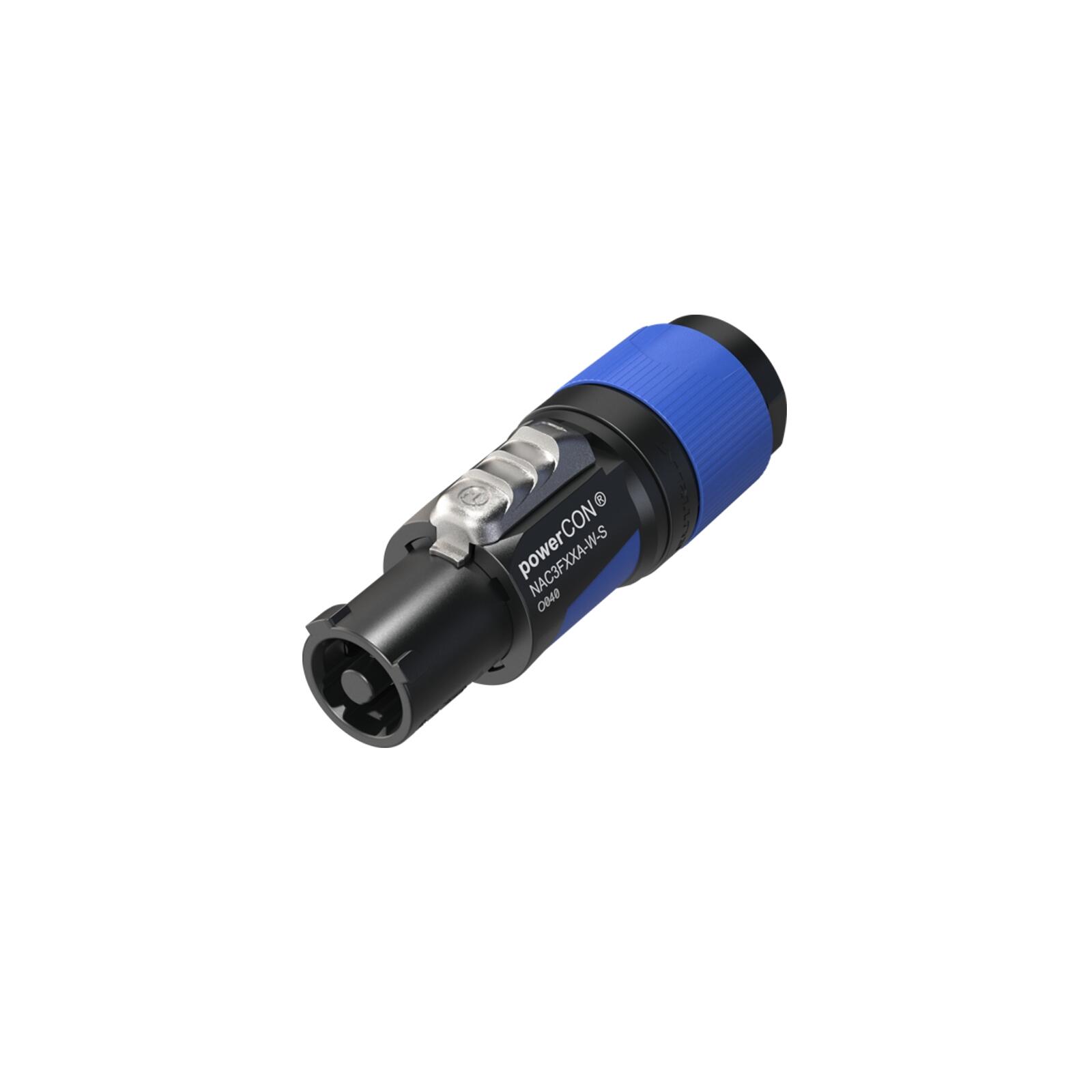

Neutrik PowerCON NAC3FXXA-W-S, A-type Cable Connector, 6mm to 12mm Cable Diameter

SKU: CONN1220
Neutrik

Locking AC mains connector, keyed and colour coded (blue) for power-in, screw terminal assembly, for cable diameters 6-12mm. The powerCON FXXA/FXXB is a single phase (3 conductor) lockable power connector with Circuit Breaking Capability when mated with powerCON XX Series receptacles. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed to guarantee a safe power connection.

Features

• Manufacturers part code: NAC3FXXA-W-S
• Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
• Locking 20A / 250V AC appliance coupler
• 3 contacts for line, neutral and premating safety ground
• Easy to assemble because the strain relief locks with the insert mechanically and aligns with the housing
• Easy and reliable twist lock system
• Ergonomic design with slip-proof two-component moulded housing
• Superior NEUTRIK quality standard, extremely robust and reliable
• Improved kink protection by two-component bushing
• Unique NEUTRIK locking bushing and strain relief for cable diameters 6mm to 12mm

• IEC EN 60320-1 / UL 60320-1 / CSA C22.2 No. 60320-1 certified, thus accepted as a component for cord sets acc. to IEC 60799 / UL 817 and equipment acc. to IEC 62368-1
• Contact resistance: ≤2mΩs
• Dielectric strength: >3kVac (after mating cycles)
• Insulation resistance: >10GΩs (initially)
• Overall cable diameter: 6-12mm
• Wire size: 1.5-2.5mm²
• Temperature range: -33°C to +80°C
• Protection class: IP20
