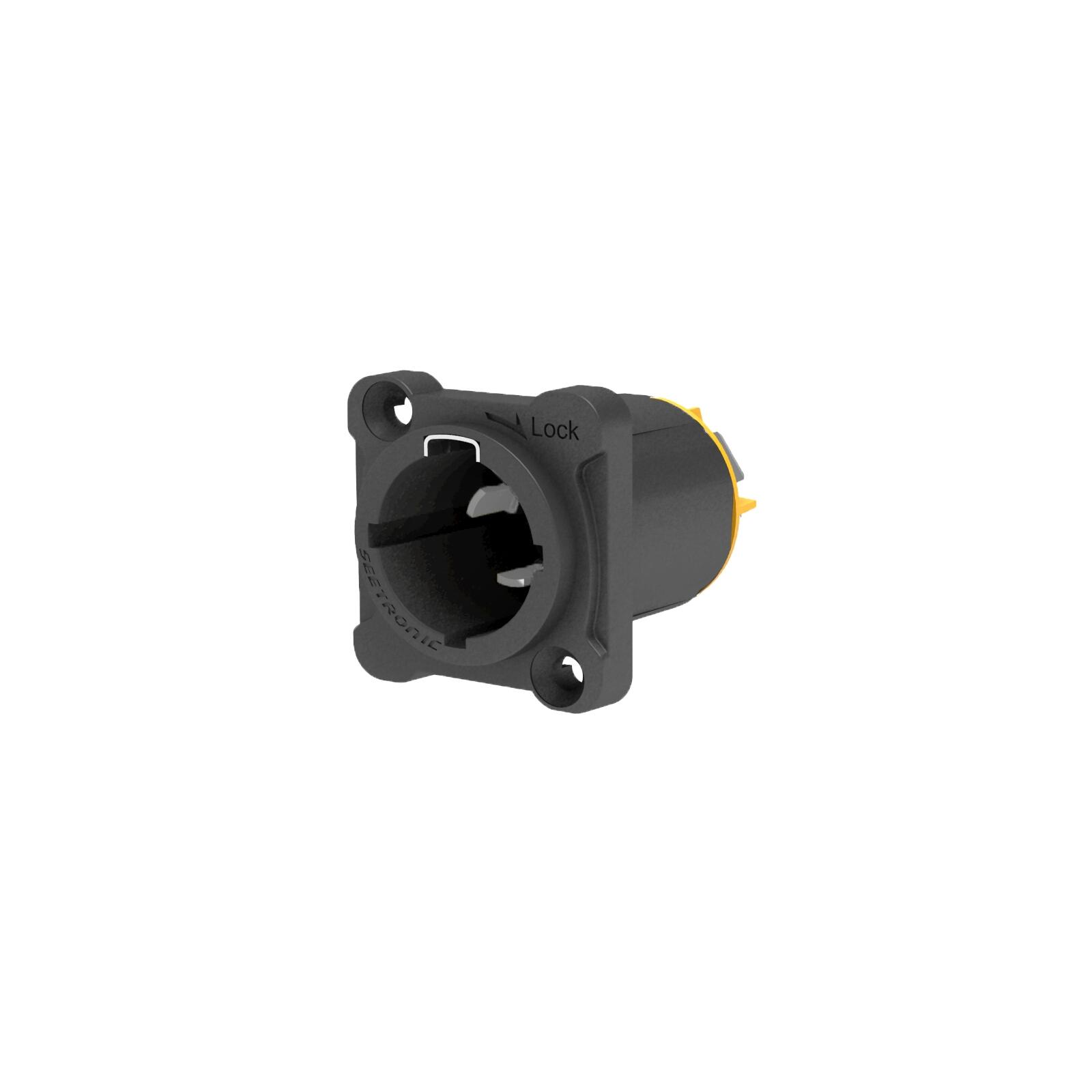

Neutrik PowerCON TRUE1 Chassis Connector NAC3MPX-TOP

SKU: CONN103
Neutrik

The powerCON TRUE1 TOP is a locking 16 A true mains connector for indoor or outdoor applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. The connector can be connected or disconnected under load or live, ideal for use in the harsh and demanding environment applications of entertainment equipment like PA systems, LED screens or lighting.

Features

Chassis mount power inlet connector, 1/4'' flat tab terminals, Heavy duty sealed power connector for harsh and demanding environment, Outdoor protection according to IP65 and UL50E enclosure type 4 (in mated condition or in combination with the rubber sealing cover SCNACFPX), Uses high impact UVresistant materials, True mains connector with breaking capacity (CBC), Lockable 16 A single phase connector (USA: 20A), Easy and reliable twist lock system, Extremely robust and reliable, Unique Neutrik cable retention, ENEC certified according to IEC 60320

Specification:
Wire size: 2.5 mm, Number of electronical contacts: 2+PE, Rated current per contact: 16A rms (USA: 20 A), Rated voltage: 250 V ac
