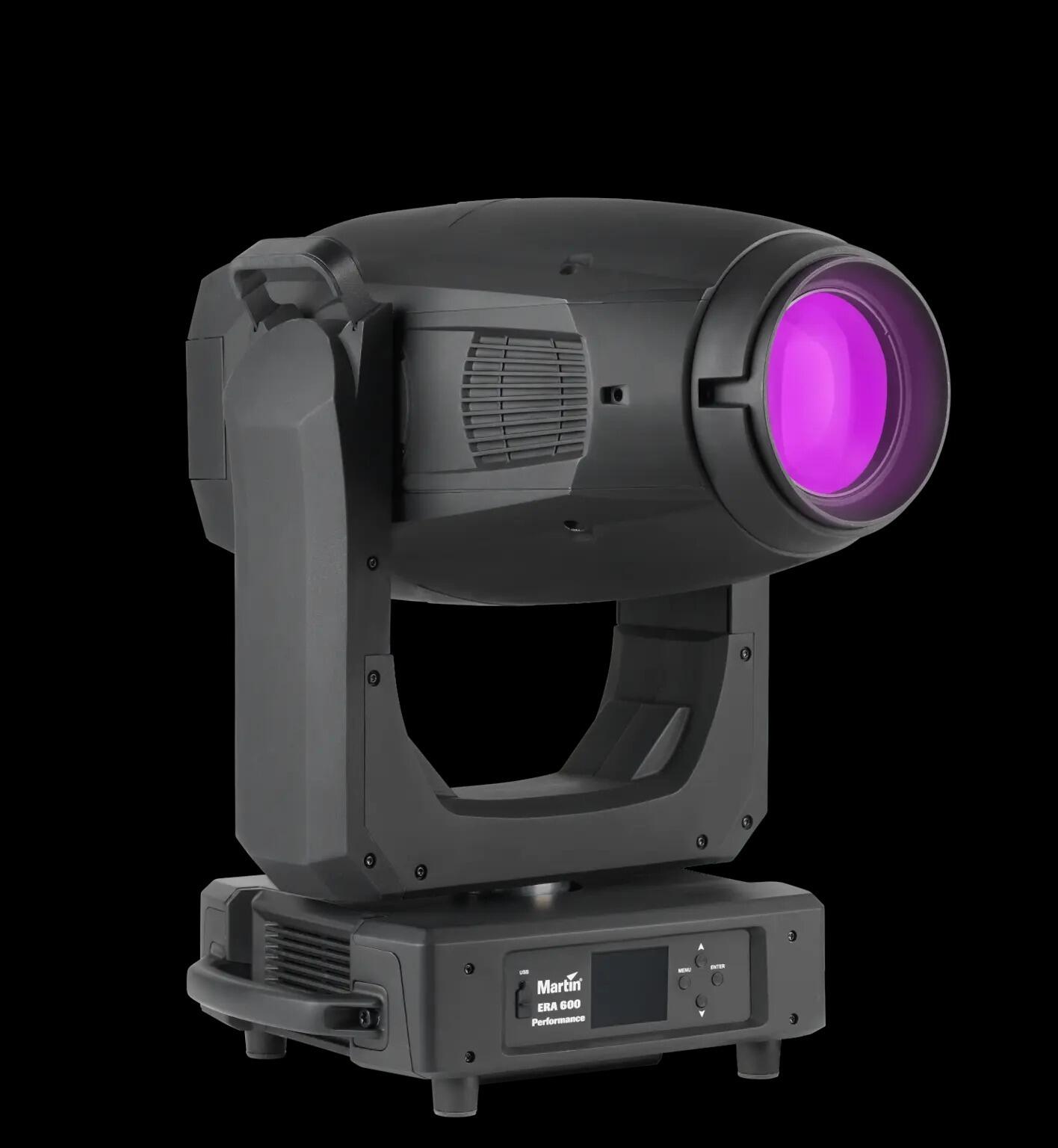

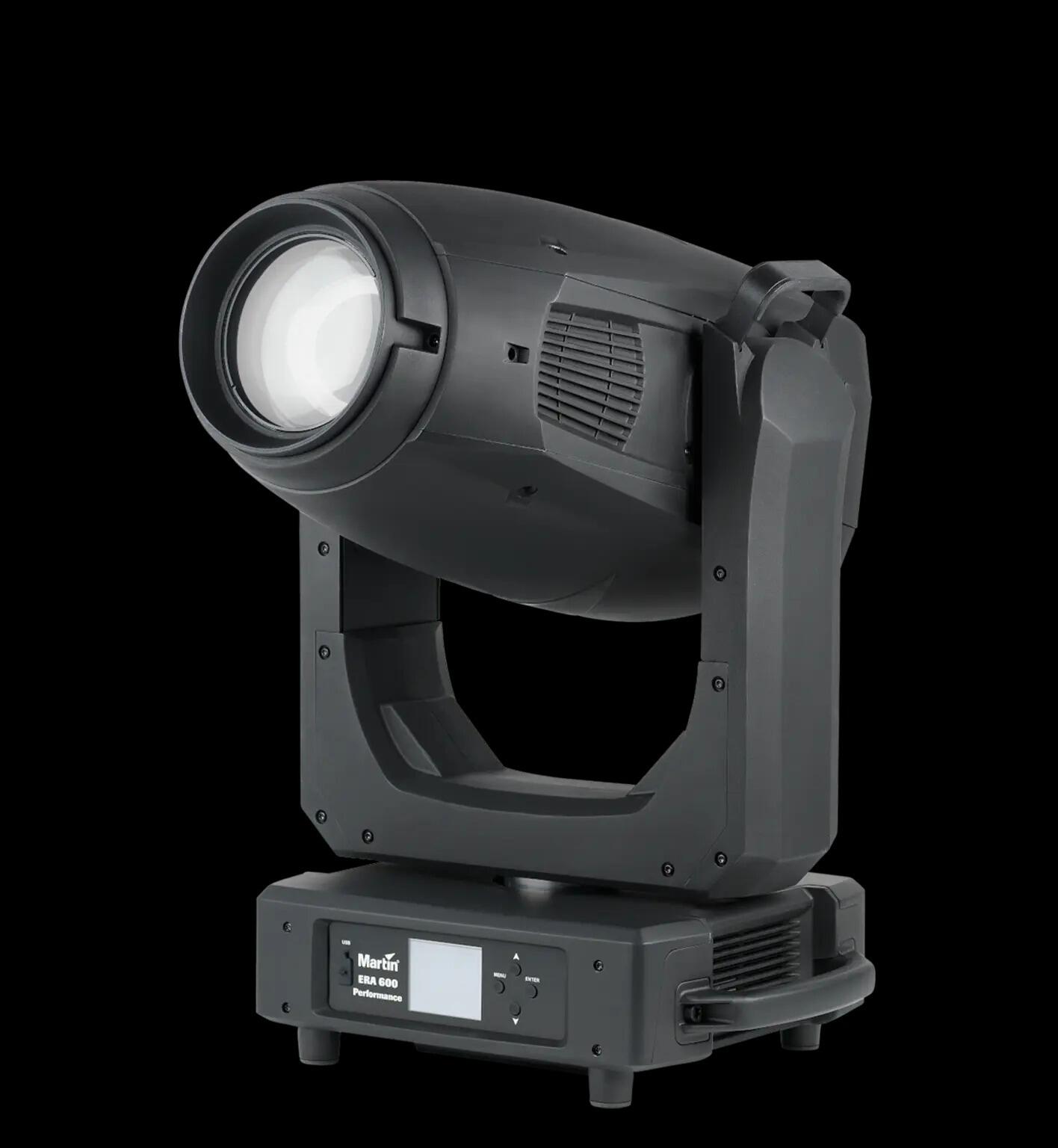

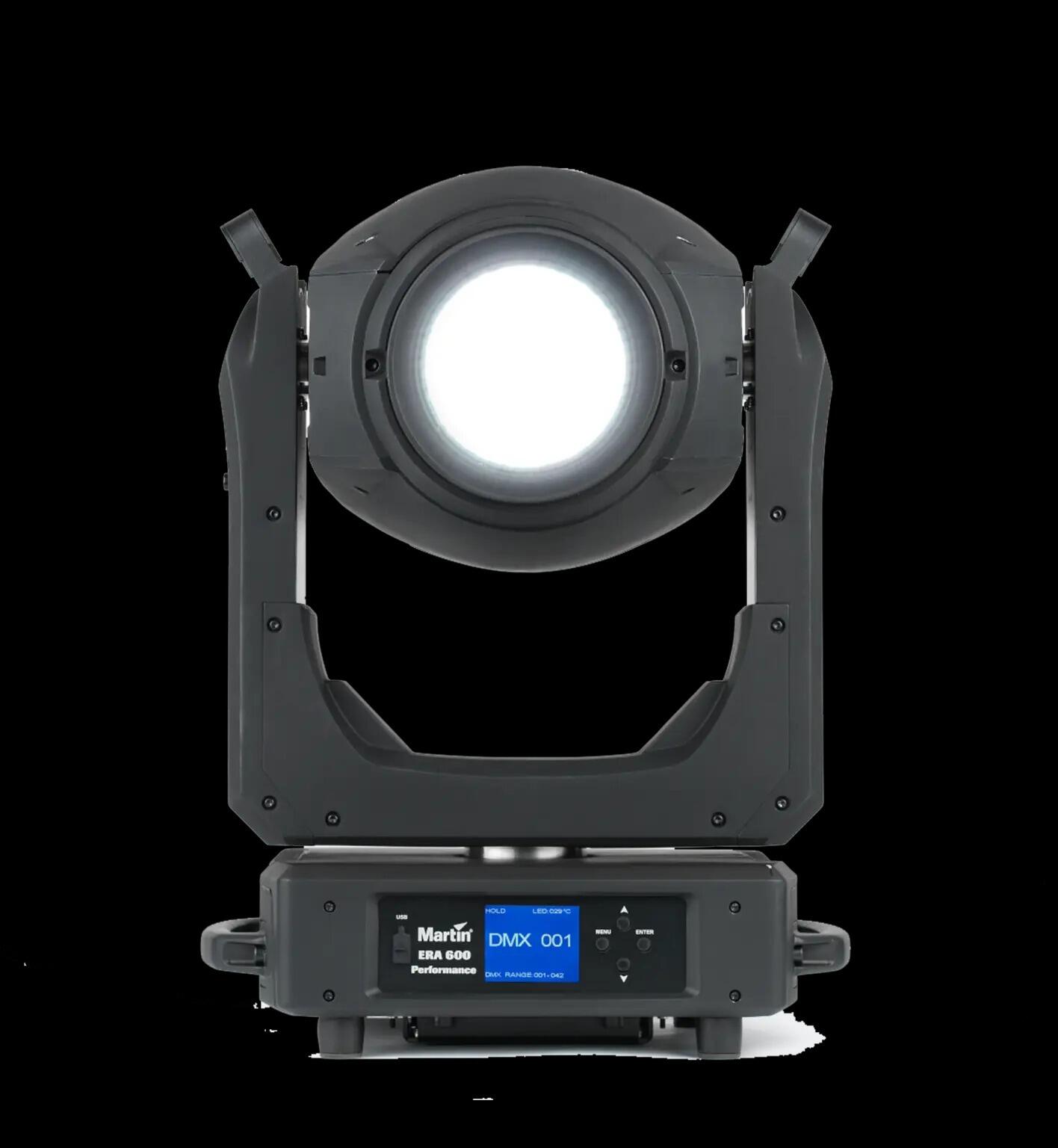

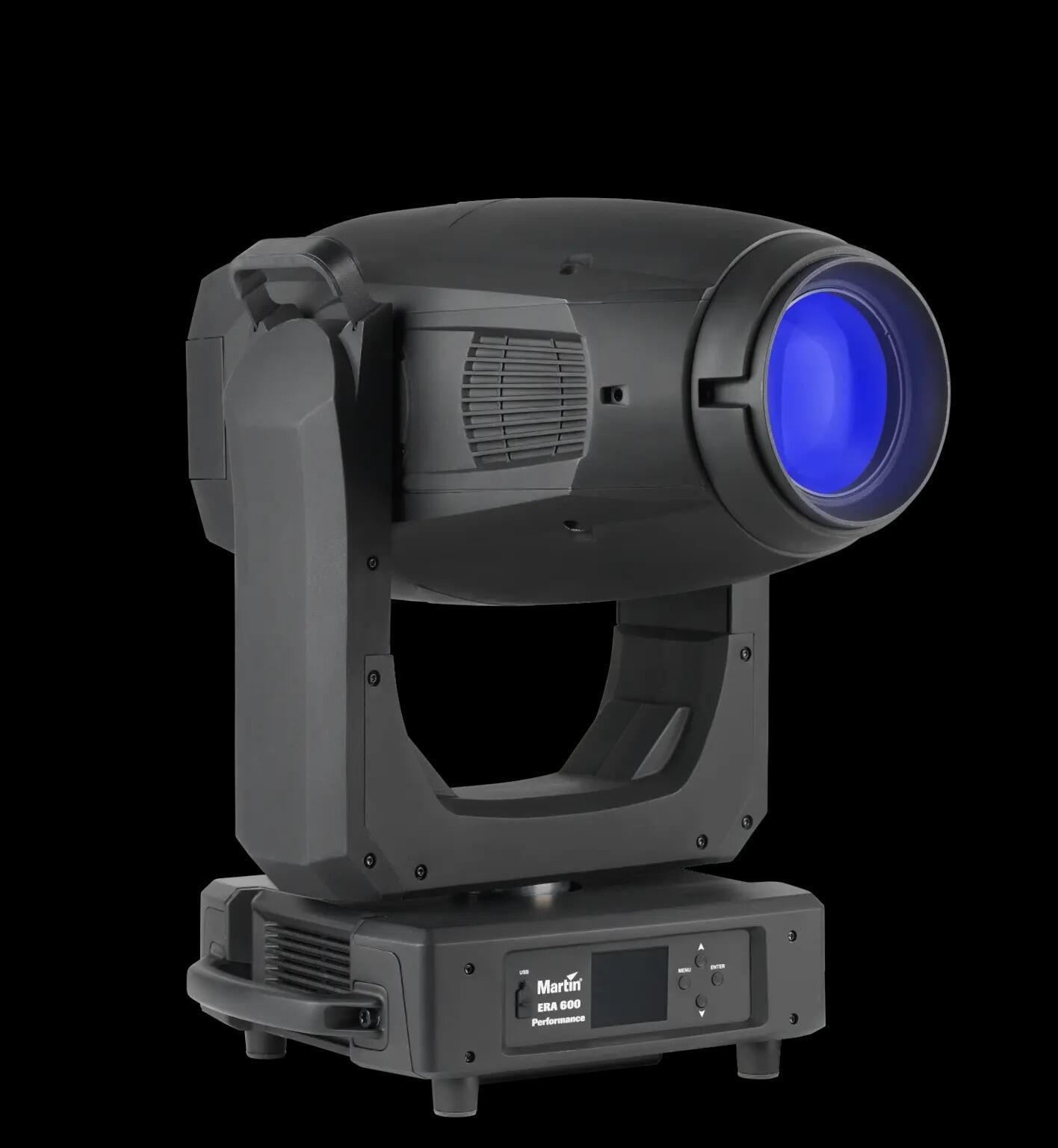

Martin ERA 600 Performance 550W LED-based profile with framing and CMY color mixing - Black

SKU: MAR1773
Martin Professional

Designed to fulfill the demand for a bright, compact, tour-worthy moving head, the Martin ERA 600 Performance combines a feature-loaded, rugged, yet cost-efficient profile for entertainment and rental applications.

It features a highly efficient 550W white LED engine that produces a bright, sharp 6,500K image projection with a flat field. Additional benefits include 1:8 zoom, electronic dimming and strobe, full CMY color mixing and separate color wheel, variable color temperature control, animation wheel, iris for beam adjustment and fixed and rotating gobo wheels, loaded with user-favorite gobos from the renowned Martin MAC range that include a wide variety of effects, especially when combined with the two included rotating prisms and soft frost filter.

The ERA 600 Performance includes a full curtain framing system which offers lighting designers a high degree of flexibility to achieve precise looks on stage.

Perfect for larger stage and live productions, the Martin ERA 600 Performance is ideal for a long list of scenarios, requiring a bright, yet truly versatile LED profile that offers near limitless design and usage potential.

£10,095.96
£11,877.60
View video
Earn0
reward points
Add To Your Wishlist

Oh No! This product is out of stock. Would you like to know when it's avaliable again?

  • Product Features
    • Bright 550 watt / 6,500K LED light source
    • 19,000 lumen output
    • Crisp optics with flat field
    • 1:8 Fast zoom
    • CMY color mixing - Vibrant color mixing with a superior palette of colors matching the MAC range
    • Linear CTO – Daylight to tungsten CCT control and expansion of the CMY palette
    • 7-slot color wheel –for added color choice and split color effects
    • Full Curtain Framing blades with +/- 60° rotation of entire system for flexible shape generation
    • 7 rotating/indexing gobos – All renowned Martin glass gobos
    • 8 static gobos for great morphing effects
    • Animation wheel with continuous bi-directional rotation
    • Two prisms - 4-facet and linear – rotation and index control for dynamic effects
    • Heavy frost – A light frost leaves gobo artwork visible with a beautiful soft edge.
    • Compact and low weight design
  • Technical Specification

    PhysicalWeight: 32.3 kg (71.3 lbs)Minimum center-to-center distance in side-by-side installation: 660 mm (26.0 in.)Length (head): 544 mm (21.5 in.)Length (base): 416 mm (16.4 in.)Width (base): 290 mm (11.4 in.)Width (across yoke): 390 mm (15.4 in.)Height (head straight up): 734 mm (28.9 in.)Height (maximum): 745 mm (29.4 in.)

    Dynamic EffectsColor mixing: CMY, independently variable 0-100%Color wheel: 7 color filters plus openGobo animation: Animation wheel, indexing, continuous rotation with variable speed and directionRotating gobo wheel: 7 gobos plus open, wheel rotation, gobo rotation, indexing and shakeStatic gobo wheel: 8 gobos plus open, wheel indexing, rotation and shakeIris: 0-100%Zoom: MotorizedColor temperature control: Variable 6500 - 2700 KFraming: Rotatable framing module, +/-60°, with 4 individually controllable full framing blades with variable angle and position.Prism: 2 rotating/indexing prisms (4-facet circular prism and 6-facet linear)Frost: Heavy Frost - for wash effectsElectronic dimming: 0 - 100%, four dimming curve optionsElectronic shutter effect: Strobe effect, pulse effects, instant open and blackoutPan: 540°, coarse & fine control and speedTilt: 260°, coarse & fine control and speedFocus: Motorized

    Control and ProgrammingControl options: DMXSetting and addressing: Control panel with backlit LCD display16-bit control: Dimming, CMY, CTO, Zoom, Focus, Pan and TiltDMX channels: 41DMX compliance: USITT DMX512/1990RDM compliance: ANSI/ESTA E1.20Transceiver: Opto-isolated RS-485

    OpticsFront lens diameter: 120 mm (4.75 in.)Zoom range: 6° - 45° (1:7.5)Light source: 550 W LED engineMinimum LED lifetime: 20000 hours (to >70% luminous output)*Binning: Tight color and flux binning*Manufacturer´s figure obtained under manufacturer´s test conditions

    Photometric Data

    Light engine luminous output: 37,000 lumens

    LED refresh rate : 3600 Hz

    Standard

    Fixture luminous output: 19,000 lumens

    CRI (Color Rendering Index): >70

    CQS (Color Quality Scale): >67

    TM-30 Rf (IES TM-30-15 Fidelity Index): >65

    TM-30 Rg (IES TM-30-15 Gamut Index): >96

    TLCI (Television Lighting Consistency Index): >45

    CCT: 6800 K (+/- 250 K)

    Peak Luminous Intensity: 1,102,000 cd

    With Optional CRI Boost Filter

    Fixture luminous output: 13,000 lumens

    CRI (Color Rendering Index): >79

    CQS (Color Quality Scale): >74

    TM-30 Rf (IES TM-30-15 Fidelity Index): >75

    TM-30 Rg (IES TM-30-15 Gamut Index): >98

    TLCI (Television Lighting Consistency Index): >56

    CCT: 6500 K (+/- 250 K)

    Peak Luminous Intensity: 783,000 cd


    * All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.

    Lamp

    ConstructionHousing: High-impact flame-retardant thermoplasticColor: BlackProtection rating: IP 20

    GobosMaximum image diameter: 19.0 mm (0.75 in.)Gobo material: Borofloat 33External diameter: 23.0 mm +0 / -0.2 mm (0.906 in. +0 / -0.008 in.)Maximum gobo thickness: 1.1 mm (0.04 in.)Coating: Heavy matted aluminum

    InstallationMounting points: 2 pairs of 1/4-turn points for 106 mm (4.17 in.) center-to-center omega bracketsLocation: Dry location only, must be fastened to surface or structureOrientation: AnyMinimum distance to combustible materials: 0.2 m (8 in.)Minimum distance to illuminated surfaces: 2.0 m (6.6 ft.)

    ConnectionsDMX and RDM data in/out: 5-pin locking XLRAC mains power input.: Neutrik TRUE1 socket, accepts TRUE1 NAC3FX-W (TOP) connectorAC mains power throughput : Neutrik TRUE1 socket, accepts TRUE1 NAC3MX-W (TOP) connector

    Electrical

    AC power: 100-240 V AC nominal, 50/60 Hz
    Power supply unit: Auto-ranging electronic switch mode
    Typical half-cycle RMS inrush current at 230 V, 50 Hz: 21.8 A
    Power Factor: 0.99 @ 120 V , 0.97 @ 230 V
    Typical current draw: 6.5 A @ 120 V , 3.2 A @ 230 V *
    Power Consumption
    Maximum: 856 W
    Typical: 778 W *
    Idle: 64 W *
    * Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
    Typical: full output white, no effects moving, regulated fan speed.
    Idle: no output, no effects moving, regulated fan speed.

    ThermalCooling: Forced air (temperature regulated, low noise)Maximum ambient temperature (Ta max.): 40° CMinimum ambient temperature (Ta min.): 0° CMaximum surface temperature, steady state, at 40° C ambient: 75° C (167° F)Total heat dissipation (calculated, +/- 10%): 2660 BTU/hr.

    Acoustic DataSound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output): 46.1 dB(A)Sound Pressure Level (LpA) @ 1 m (constant fan mode ultra low): 39.1 dB(A)

    EnvironmentalRoHS: CompliantREACH: CompliantWEEE: CompliantProposition 65: CompliantEfficacy (max output): 25.4 lm/WLWR*: 588 lm/kg (266 lm/lb)

    LWR = Lumen-to-Weight Ratio

    ApprovalsGlobal CB Certification/IECEE: IEC 60598-2-17 (IEC 60598-1)EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493EU EMC: EN 55015; EN 55032; EN 55035; EN 61000-3-2,-3; EN 61547US safety: UL 1573US EMC: FCC Part 15 Class BCanadian safety: CSA C22.2 No. 166Canadian EMC: ICES-003 Class B, ICES-005 Class BAustralia/NZ: RCM

    Included ItemsTwo omega brackets with 1/4 turn fasteners for rigging clamp attachment: 2 x P/N 91602001
