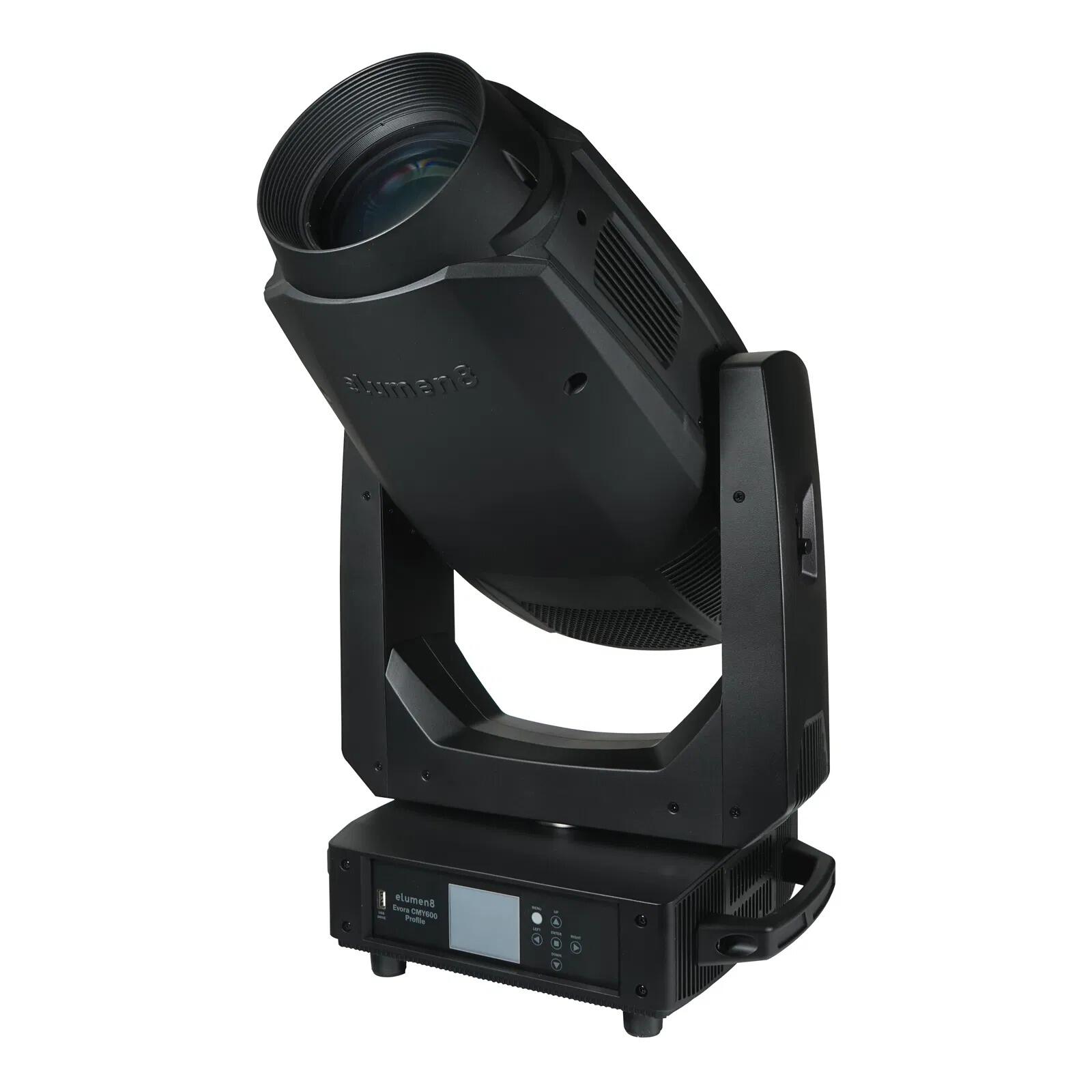

eLumen8 Evora CMY600 Profile
SKU:
ELUM703
eLumen8
The eLumen8 Evora CMY600 Profile is a high-performance, tour-grade moving head designed for professional stage, touring, and rental applications. Featuring a powerful 600W LED (6,500K), this fixture delivers an immense 46,000-lumen source output, ensuring outstanding brightness and clarity for any production.
Equipped with a 4-blade rotatable framing system, 9°-46° motorised zoom, focus, and iris, the CMY600 Profile allows precise beam shaping and versatile control over projection. The fixture offers CMY colour mixing, a variable CTO flag, and an additional 7-colour wheel, providing endless creative possibilities for designers.
With replaceable static and rotating gobos, an animation wheel, 5-facet linear and 4-facet circular prisms, and a variable frost filter, this moving head delivers a wide range of dynamic effects. The fixture is flicker-free with an adjustable refresh rate, making it ideal for live performances, TV, and film applications.

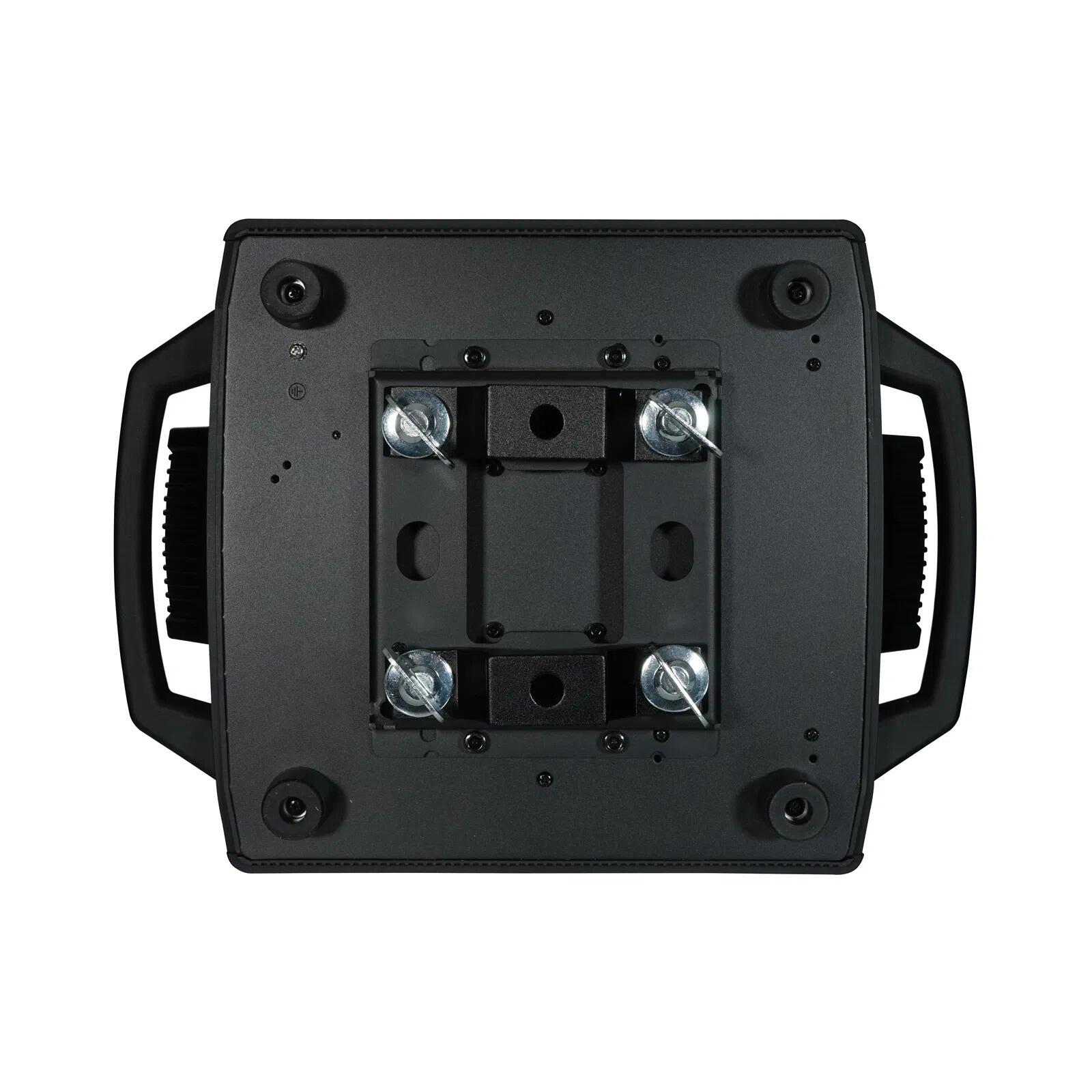

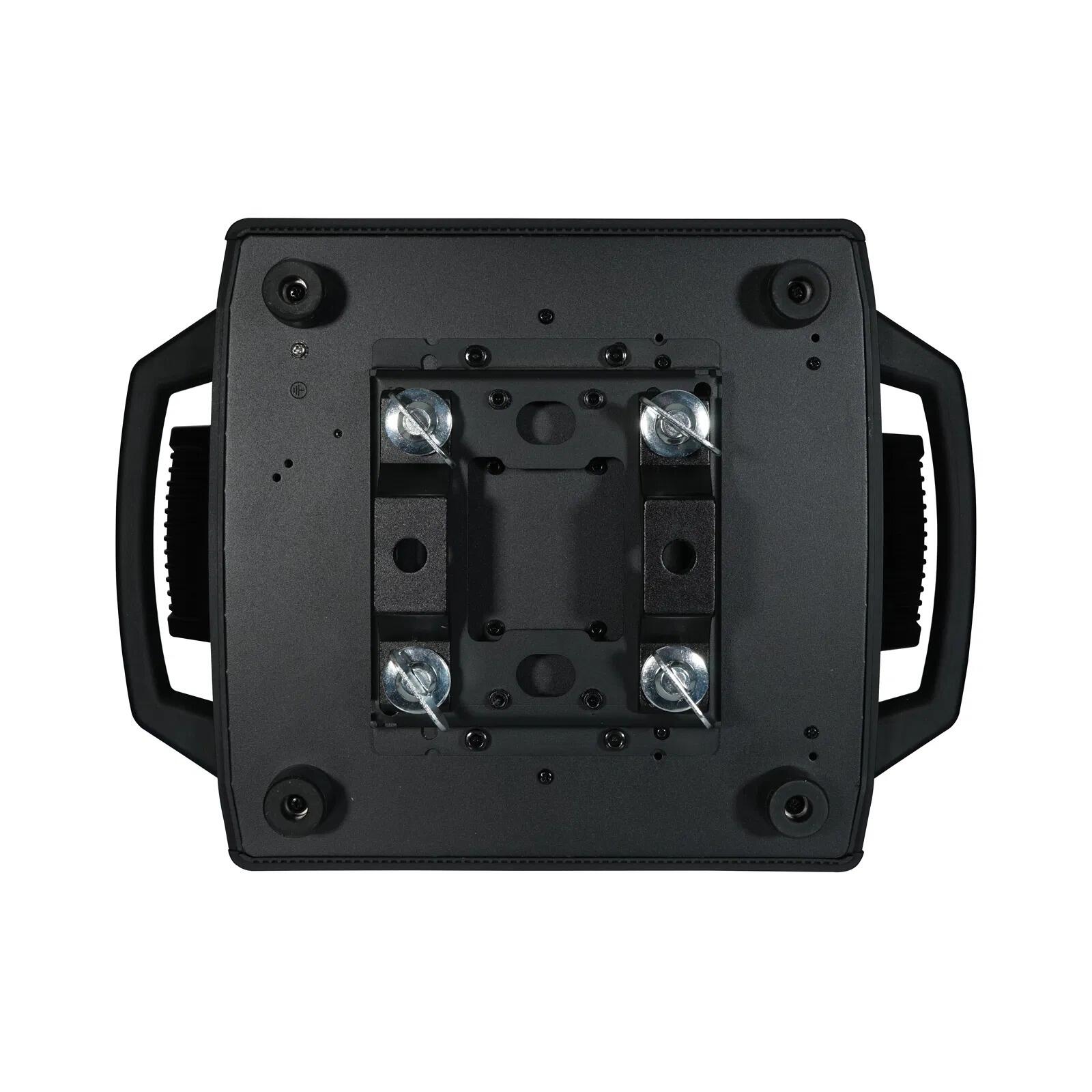

Control is seamless with multiple protocol options, including DMX, RDM, Kling-Net, Art-NET, and sACN, along with wireless DMX (W-DMX Sweden) for ultimate flexibility. Built for durability, the Evora CMY600 Profile includes a pan/tilt transit lock, temperature-controlled fans, and quick-release omega clamps for efficient rigging.
- Product Features
- 2-year warranty
- 600W white LED (6,500K)

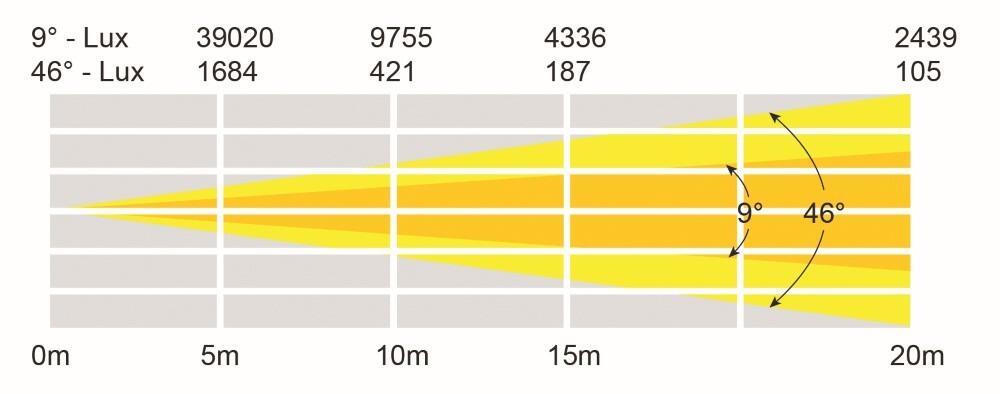

- Adjustable beam angle: 9°-46°
- CRI: 72
- Motorised zoom, focus, and iris
- 4 rotating framing shutters with ±45° rotation

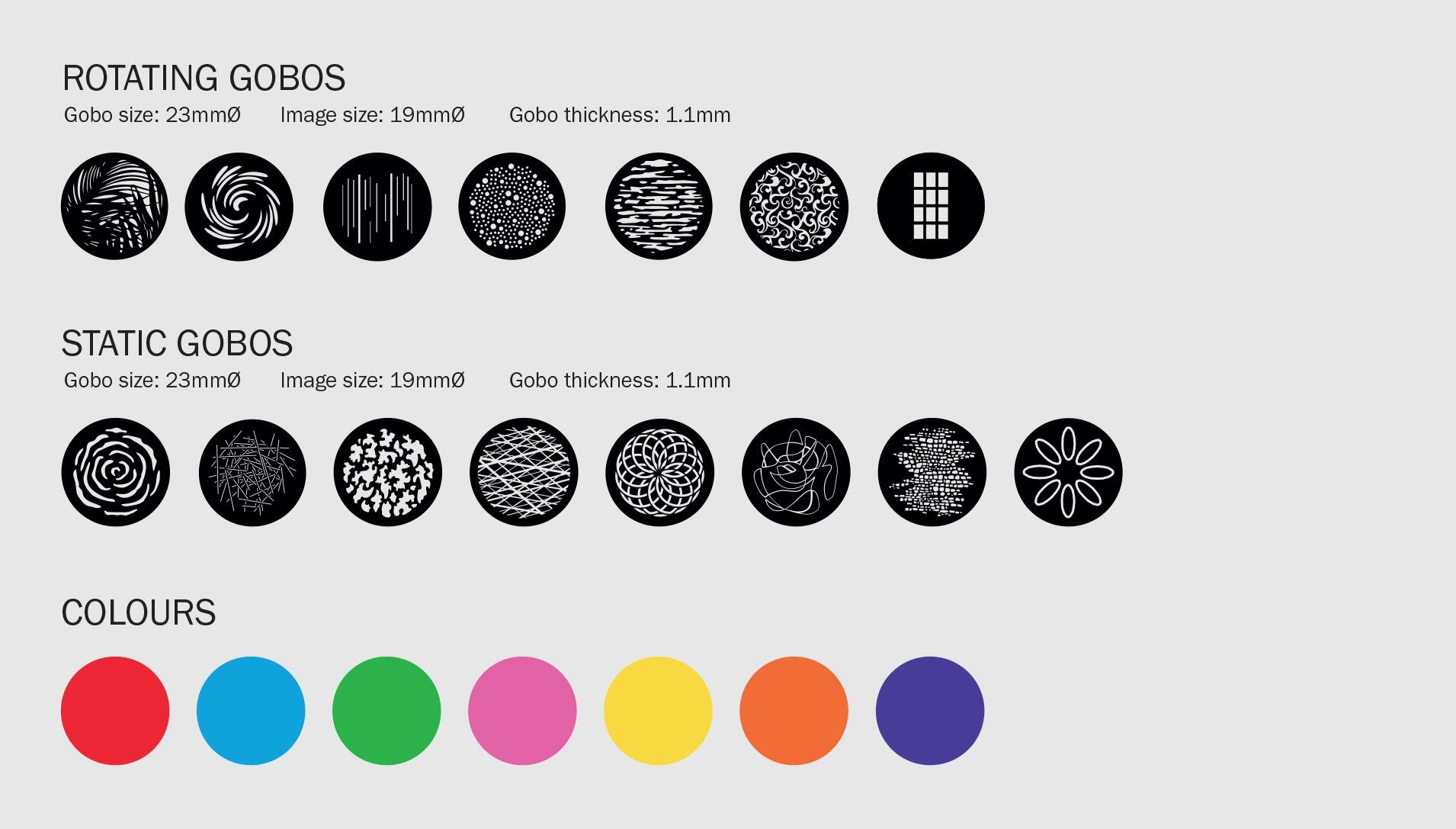

- Rotating and static gobo wheels (replaceable gobos)
- Animation wheel for dynamic projection effects
- CMY colour mixing + variable CTO flag
- 7-colour wheel
- 5-facet linear and 4-facet circular rotating prisms
- Variable frost filter (0-100%)
- DMX, Kling-Net, Art-NET, sACN, and RDM control
- Wireless DMX (W-DMX Sweden transceiver)
- Multiple dimming modes and variable strobe
- Pan/tilt auto correction and transit lock

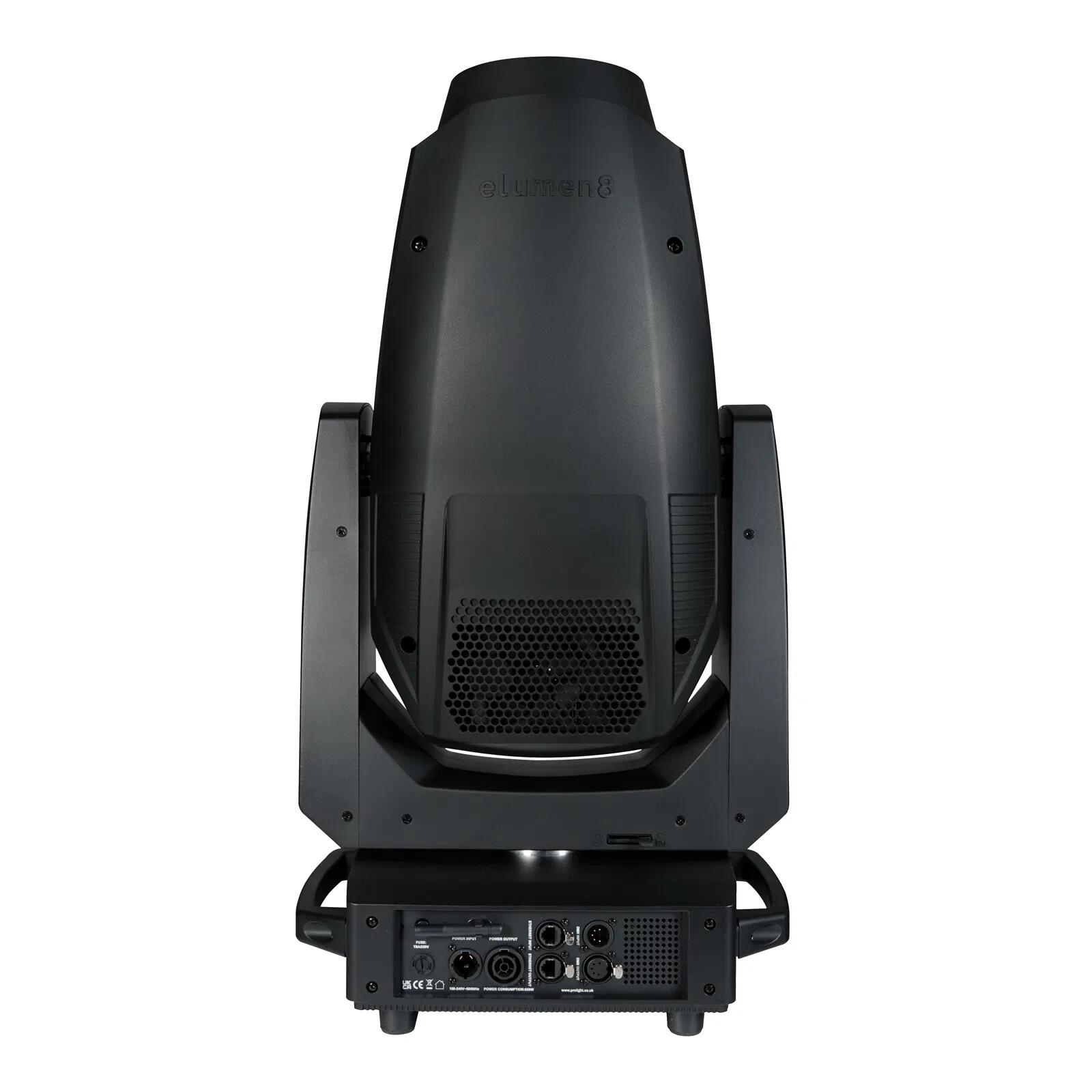

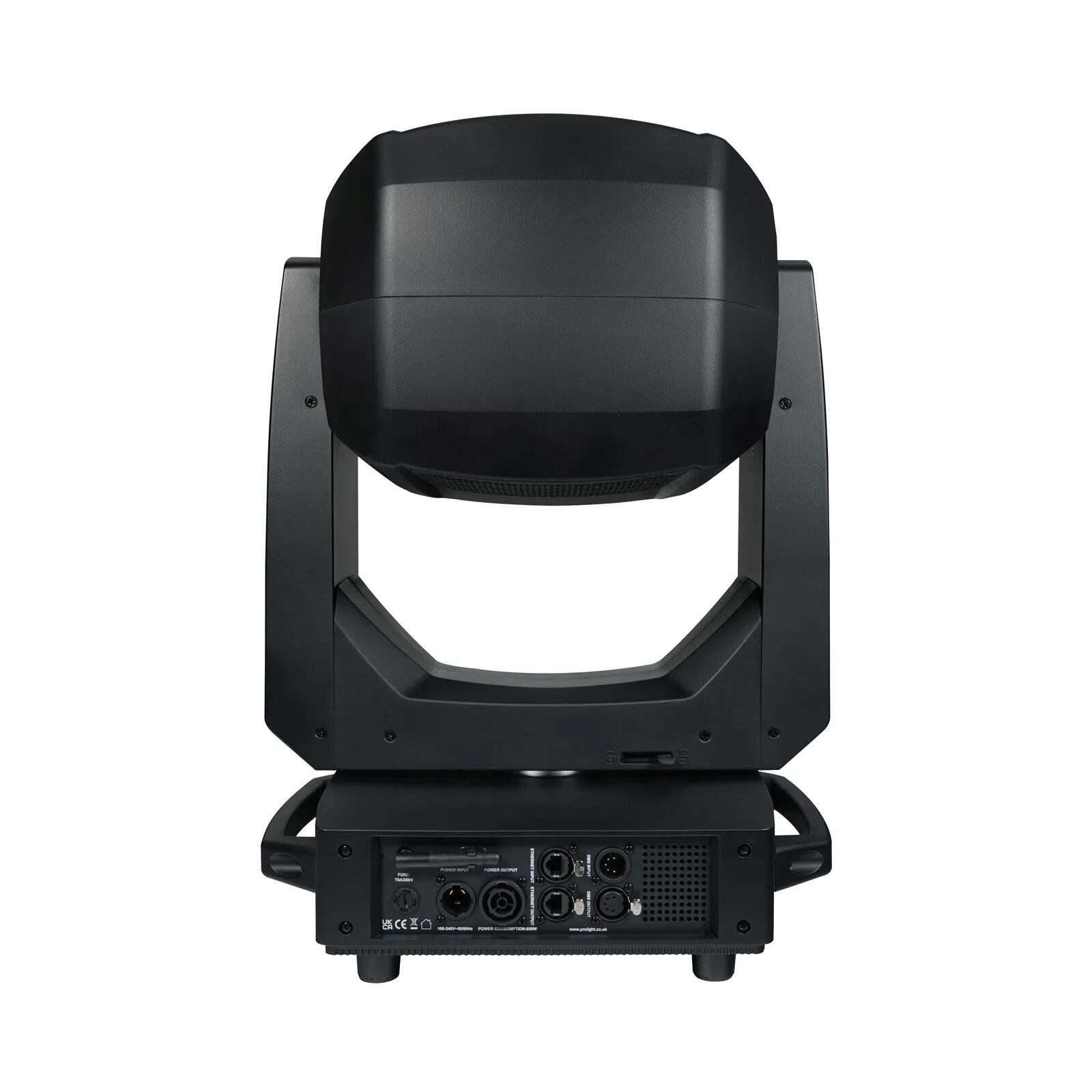

- powerCON TRUE1, 5-Pin XLR, and etherCON connections

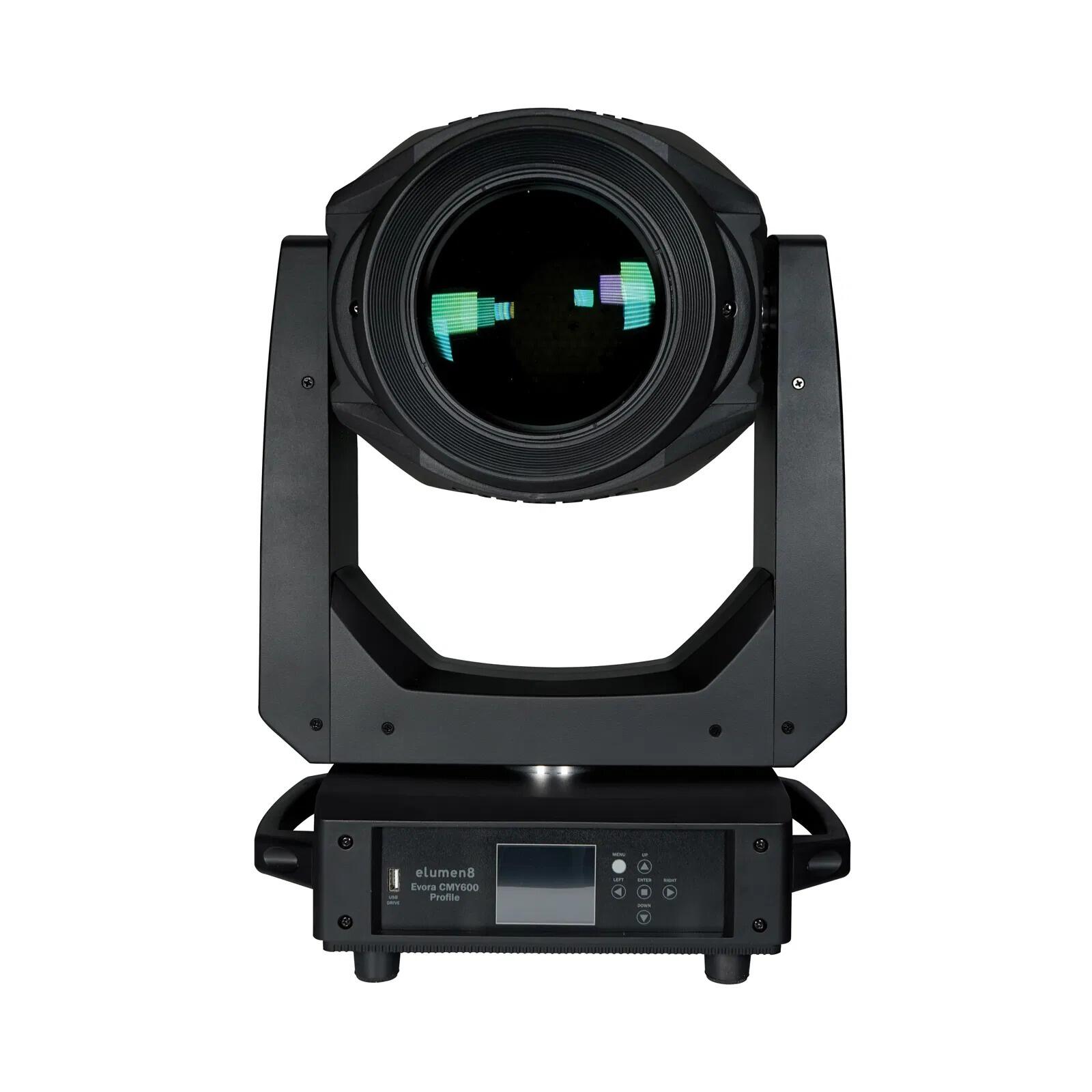

- 6-button menu with 2.7” LCD display
- USB port for firmware updates
- Temperature-controlled fans
- Technical Specification
Specification Power Consumption 659W Power Supply 100-240V, 50/60Hz Fuse T8A 250V Noise Level 37.8dBA @ 1m (Low Speed)
45.6dBA @ 1m (Auto Speed)
51.8dBA @ 1m (High Speed)Dimensions 720mm X 390mm X 288mm Weight 31kg - Downloads
