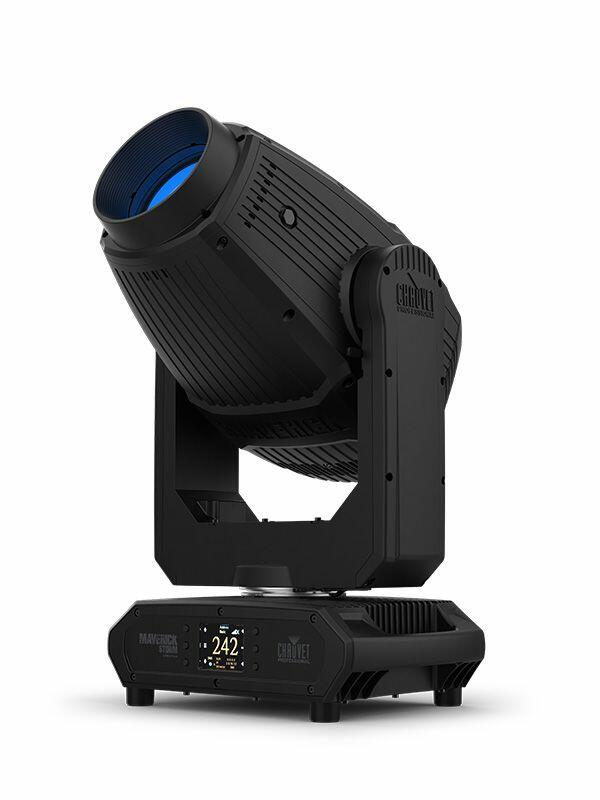

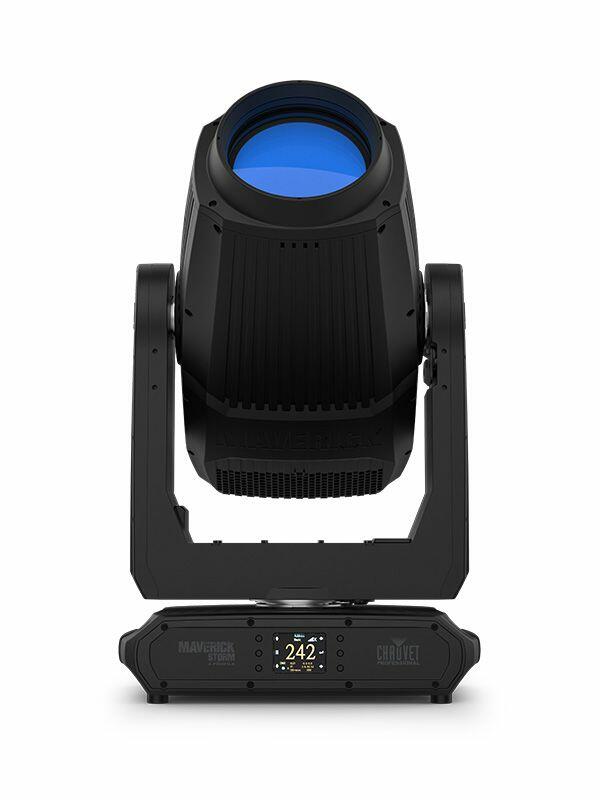

Chauvet Professional Maverick Storm 4 Moving Head Profile (IP65)

SKU: CHAUPRO MAVERICKSTORM4PROFILE
Chauvet Professional

Chauvet Professional Maverick Storm 4 Profile (IP65 rated)

Maverick Storm 4 Profile moving head brings indomitable long throw performance to even the largest venues. Its ambitious design launches over 60,000 lumens across incredible distances with commanding brightness. Built to outshine, this Maverick brings more to your show than its long throw. Master the art of domination with a sophisticated variable CMY+CTO system that delivers fantastic color rendering. Double down on crisp gobos to create complex looks with two rotating gobo wheels, two prisms, two frost filters, and an animation wheel to add even more texture. Sharp shutter framing, smooth iris and 8.5:1 zoom complete a Maverick that delivers key light and high energy kinetic effects, in an advanced IP65 alloy body that carries SunShield tech inside to protect optical components from any solar ingress through its audacious 188mm front lens.

T A GLANCE

• Fully featured, compact and lightweight IP65 1,250 W LED yoke profile fixture including CMY + CTO color mixing, a 4-blade framing shutter system with rotation, a color wheel, 8.5:1 zoom, 2 prisms (5 facet round and linear, 2 rotating gobo wheels, integrated sun shield

• 16-bit dimming of master dimmer for smooth control of fades

• Variable CMY + CTO color mixing system to create a wide pallet of colors

• CRI and CTB filters on color wheel for added flexibility

• Two rotating, indexing and interchangeable slot and lock gobo wheels

• An animation wheel for kinetic textured effects

• DMX, WDMX, sACN, and Art-Net for full flexibility of control options

• RDM control over DMX for fixture reporting

• 6.4 to 58.3 zoom range for variable beam sizes

• Iris, 5-facet round and linear prisms and 2 frosts (light and medium) for beam control

• True 1 compatible power input

• Integrated sun shield for protecting the optical path from sunlight when the fixture is off

• Three setup menu presets and preset sync for cross loading to multiple like fixtures for easy shop setup

• USB slot for software uploads

• Battery backup display with auto-rotate depending on fixture orientation

Optical

• Light Source: ?1 LEDs (CW) 1,250 W, (4 A), 7500 K, 50,000 hours life expectancy?
• Colour Temperature (at full): ?6813 K
• CRI: ?69.9
• CRI with CRI Filter: ?88.3
• Front Lens Diameter: ?188 mm
• Beam Angle: ?5.6 to 48
• Field Angle: ?6.6 to 54.4
• Cutoff Angle 7.1 to 56.8
• Zoom Range: ?5.6 to 56.8?
• Lumens Source: ?94,000
• Lumens Output: ?59,168
• Illuminance (5.6) 134,034 lux @ 5 m
• Illuminance (54.4) 4,241 lux @ 5 m?
• Selectable PWM: ?600 Hz, 1,200 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

Dynamic Effects

• Pan and Tilt: ?540/270
• Pan and Tilt Ranges: ?540, 360, 180 pan/270, 180, 90 tilt
• Colours: ?6 (including CRI and CTB filters) + white, split colours, continuous scroll at variable speeds
• Colours: ?CMY flags, CTO flag
• Gobos (1): ?6 + open (glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
• Gobos (2): ?6 + open (glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
• Gobo Size: ?Gobo Wheel 1 (rotating): ?30 mm (outside), 25 mm (image), 1.1 mm (max. thickness)
• Gobo Size: ?Gobo Wheel 2 (rotating): ?30 mm (outside), 25 mm (image), 1.1 mm (max. thickness)
• Framing Shutters: ?4 Blades, each with dual axis movement, Full blackout.?
• Framing Shutter rotation: ?+/- 60 rotation.
• Dimmer: ?Electronic
• Shutter/Strobe: ?Electronic
• Zoom: ?Motorized
• Focus: ?Motorized
• Frost: ?Motorized
• Iris: ?Motorized
• Prism: ?5 Linear Facets, motorized, rotating
• Prism: ?5 Circular Facets, motorized, rotating
• Strobe Rate: ?0 to 20 Hz
• Move-in-Black: ?Yes
• Dim Curves: ?4

Connections

• Power Connection: ?Seetronic Powerkon IP65
• Power Input/Output: ?Seetronic Powerkon IP65
• Data Connectors: ?5-pin IP rated XLR, Neutrik IP rated RJ45 Connectors in/out?
• Cable Length (power): ?5 ft (1.5 m)

Control

• Control Protocol: ?Art-Net, DMX, RDM, W-DMX, sACN?
• DMX Channels: ?38 or 55
• Art-Net Channels: ?38 or 55
• Modes/Personalities: ?2 personalities (38, 55)

Electrical

• Input Voltage: ?100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: ?1780 W, 15.07 A @ 120 V, 60 Hz
• Power and Current: ?1760 W, 7.79 A @ 230 V, 50 Hz

Construction / Physical

• Dimensions: ?18.3 x 11.93 x 32.91 in (465 x 303 x 836 mm)
• Weight: ?102.5 lb (46.5kg)
• Exterior Colour: ?Black
• Housing Material: ?Aluminium diecast, High-impact flame retardant polymer, Steel
