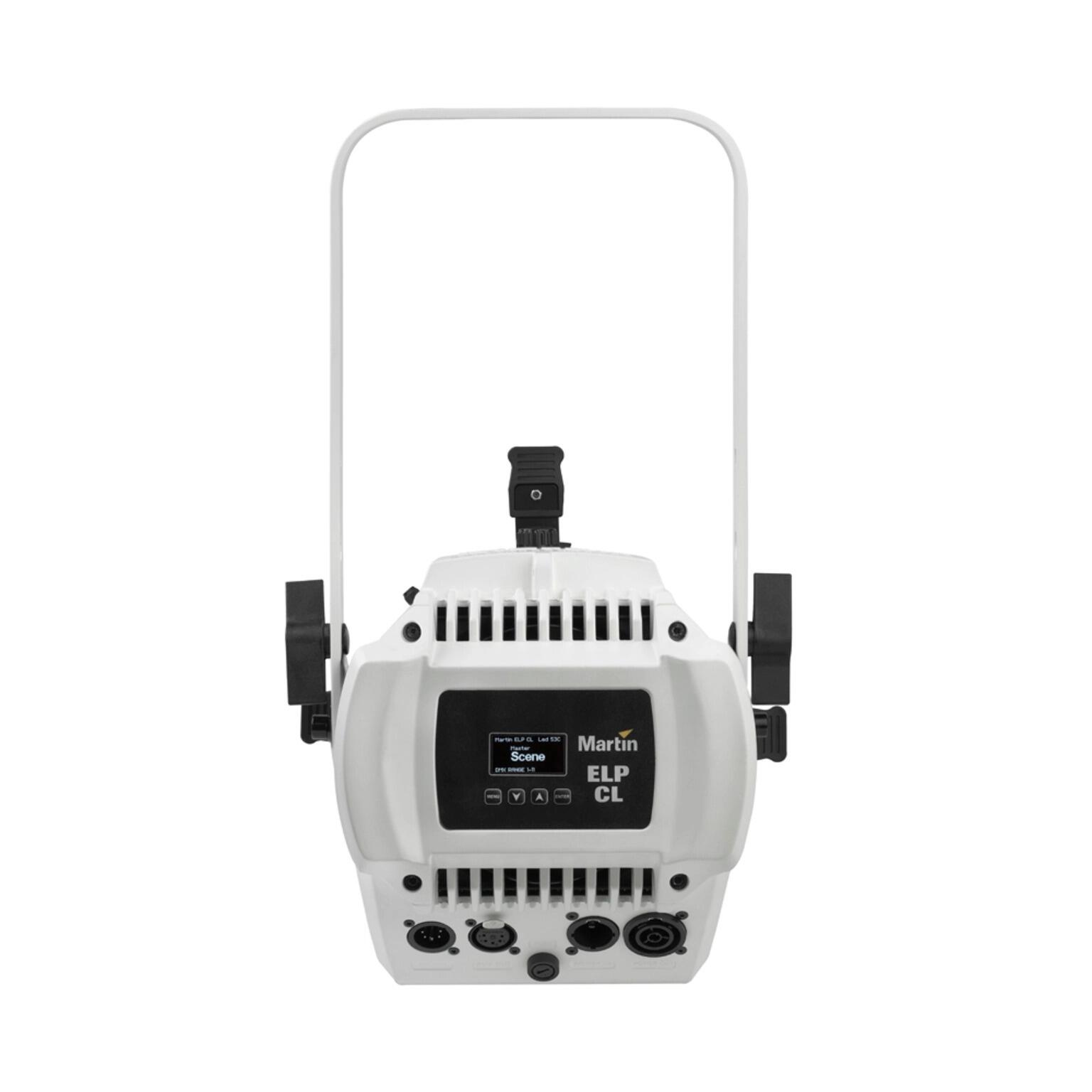

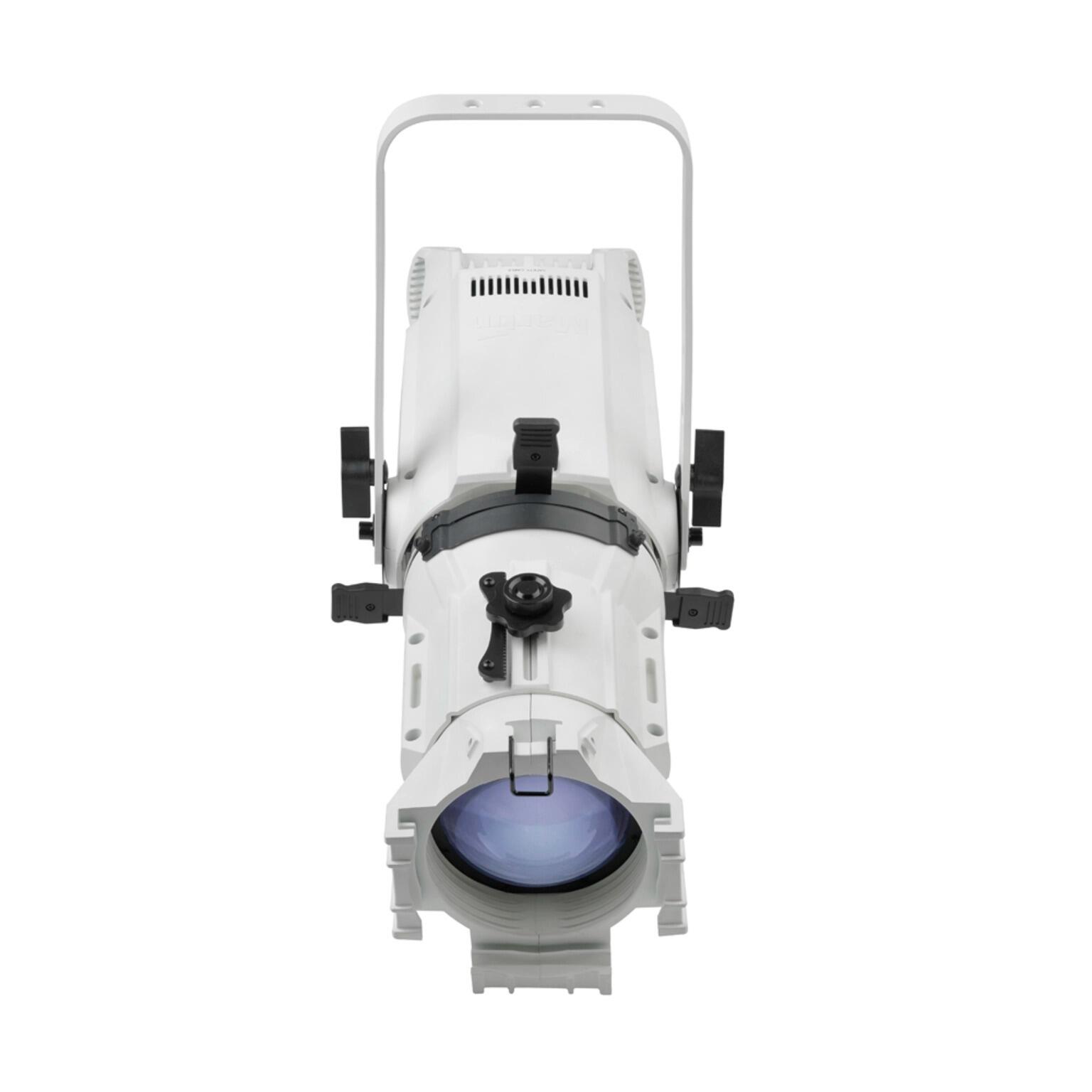

Martin ELP-CL Full color LED ellipsoidal profile - White BODY ONLY

SKU: MAR1801
Martin Professional

Martin ELP CL (Color) LED ellipsoid fixtures deliver the class-leading luminance, output and vivid color rendering that you’ve come to expect from Martin. Ergonomic Danish engineering offers advances in lighting functionality that include the highly efficient gear-based Fine Focus—an industry first; and Fast Focus which allows focusing of the fixture without data flowing to it. ELP also offers 16-bit dimming with 4 selectable curves and 26 color presets that match industry-standard color filters. ELP fixtures can be configured with one of four Martin lens tubes in 19, 26, 36 and 50-degree beam angles and are compatible with third-party lens tubes along with a wide range of accessories including gel frames and gobos for flexibility in lighting design and inventory management.

Superior output, optics and color rendering, combined with unparalleled ease-of-use and convenience, make Martin ELP CL the leading Color LED ellipsoidal fixture in its class. ELP Zoom Lenses expand the versatility of the line with two industry-standard beam ranges and two housing color variants available in 15-30 degree and 25-50 degree beam ranges, in black or white housing.

Martin recommends using official Martin-branded ELP accessories for the highest possible performance. While we strive to ensure compatibility with third-party accessories, we cannot guarantee optimal performance and recommend that the user makes an evaluation of such an accessory before purchasing.


Lens sold separately.

£2,177.70
£2,562.00
View video
Earn0
reward points
Add To Your Wishlist

Oh No! This product is out of stock. Would you like to know when it's avaliable again?

  • Product Features
    • Impressive light output rating of 6,900 lumens (in High Output mode).
    • Superior CRI rating of 90 (in High Quality mode).
    • Revolutionary focus and functionality—industry’s first gear-driven Fine Focus, Fast Focus for data-free focusing, and more.
    • Compatible with universal accessories—use existing lens tubes, gel frames, gobo holders and rotators
    • 15-30 degree and 25-50 degree beam Zoom lenses available in black and white
    • Advanced optics engineered in Denmark
    • RGBAL Luxeon Rebel LED engine delivers vibrant, saturated colors
    • 26 color presets match industry-standard filters
    • 16-bit dimming with 4 selectable dimming curves
    • Flicker-free operation
    • 5-pin DMX/RDM and Neutrik True1 In/Thru connectivity
  • Technical Specification
    • PhysicalLength: 648 mm (25.5 in.)Width: 259 mm (10.2 in.)Height: 254 mm (10 in.), 427 mm (16.8 in.) with bracketWeight: 7.7 kg (17 lbs) body only
      Dynamic EffectsColor mixing: RGBLAColor Temperature Range: 2000-10000KColor selection: 26 color presetsElectronic dimming: 0–100%, Four dimming curve optionsStrobe and pulse effects: Variable speed and action, random strobeElectronic shutter effect: Instant open and blackout
      Control and ProgrammingControl options: DMX, stand-aloneSetting and addressing: Control panel with OLED display or via RDM16-bit control: Intensity, CTC, RGBLADMX channels: 1/10/17PWM: 600-2400 HzStandalone programming: Control panel with OLED displayDMX compliance: USITT DMX512-ARDM compliance: ANSI/ESTA E1.20Transceiver: Opto-isolated RS-485
      OpticsLight source: 91 X RGBAL Luxeon Rebel LEDs (19 Red, 24 Green, 12 Blue, 24 Lime, 12 Amber)Minimum LED lifetime: 30,000 hours (to >70% luminous output)*Color temperature: 2000-10000KLens tube options: 19°, 26°, 36°, 50°Zoom Lens Tube Options: 15–30° and 25–50°Binning: Tight color and flux binningCalibration: White Point Color Calibration*Figure obtained under manufacturer's test conditions
      Photometric Data

      Light engine luminous output: 20,000 lumensHigh Output ModeFixture luminous output: 6,900 lumensCRI (Color Rendering Index): >85CQS (Color Quality Scale): >90TM-30 Rf (IES TM-30-15 Fidelity Index): >84TM-30 Rg (IES TM-30-15 Gamut Index): >111TLCI (Television Lighting Consistency Index): >85CCT: 5500 K (+/- 250 K)High Quality ModeFixture luminous output: 5,900 lumensCRI (Color Rendering Index): >90CQS (Color Quality Scale): >87TM-30 Rf (IES TM-30-15 Fidelity Index): >84TM-30 Rg (IES TM-30-15 Gamut Index): >106TLCI (Television Lighting Consistency Index): >87CCT: 6000 K (+/- 250 K)
      * All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.

      ConstructionHousing: Die-cast aluminumColor: Black or white variantProtection rating: IP20
      Gobos and Color FrameGobo size : A size, 100 mm OD, 75 mm image*, B size, 86 mm OD, 64.5 mm image*Color frame size: 159 X 159 mm (6.25 X 6.25 in.)*Gobo holder not included
      InstallationMounting: Adjustable bracketLocation: Indoor use onlyOrientation: AnyMinimum distance to combustible materials: 0.2 m (0.7 ft.)Minimum distance to illuminated surfaces: 0.5 m (1.6 ft.)
    • ConnectionsAC power in, thru: Neutrik PowerCON TRUE1DMX and RDM data in/out: 5-pin locking XLR
      Electrical

      AC power: 100-240 V AC nominal, 50/60 Hz
      Power supply unit: Auto-ranging electronic switch mode
      Typical half-cycle RMS inrush current at 230 V, 50 Hz: 15.0 A
      Power Factor: 0.99 @ 110 V , 0.96 @ 208 V , 0.95 @ 230 V / 240 V
      Typical current draw: 2.4 A @ 110 V , 1.3 A @ 208 V / 230 V , 1.1 A @ 240 V *
      Power Consumption
      Typical: 259 W *
      Idle: 5 W *
      * Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
      Typical: full output white, no effects moving, regulated fan speed.
      Idle: no output, no effects moving, regulated fan speed.

      ThermalCooling: Forced air (temperature-regulated, low noise)Maximum ambient temperature (Ta max.): 40° C (104° F)Minimum ambient temperature (Ta min.): 0° C (32° F)Total heat dissipation (calculated, +/- 10%): 1000 BTU/hr. (at full intensity, full white)
      EnvironmentalRoHS: CompliantREACH: CompliantWEEE: CompliantProposition 65: CompliantEfficacy (max output): 28 lm/WLWR*: 896 lm/kg (406 lm/lb)

      LWR = Lumen-to-Weight Ratio

      ApprovalsGlobal CB Certification/IECEE: IEC 60598-2-17 (IEC 60598-1)EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493EU EMC: EN 55015; EN 55032; EN 55103-2; EN 61000-3-2,-3; EN 61547US safety: UL 1573US EMC: FCC Part 15 Class BCanadian safety: CSA C22.2 No. 166Canadian EMC: ICES-003 Class B, ICES-005 Class BAustralia/NZ: RCM
      Included Items

      Power input cable (0.75mm2, 18 AWG), bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.)
      Mounting bracket
      User manual
