Luci Della Ribalta Suono 10/28 PLUS Profile Spot 650W Black

SKU: LDR10604020

Call for Lead Times and latest Deals

LDR Luci Della Ribalta

Compact and high-specification 300/500W/650W profile spotlight with a double-condenser zoom focus optical system to provide crisp projection of gobos and a flat beam between 10degrees and 28degrees. Features include a rotating gate, zoom controls on teflon sleeves, hinged lamp tray and double microswitch interlock for safe lamp replacement. A gel frame, safety guard and 4 beam shutters are all included as standard.

650W lamp (not supplied)

Beam style: Well defined

flat field profile projector

Optical system: Double condenser with variable zoom

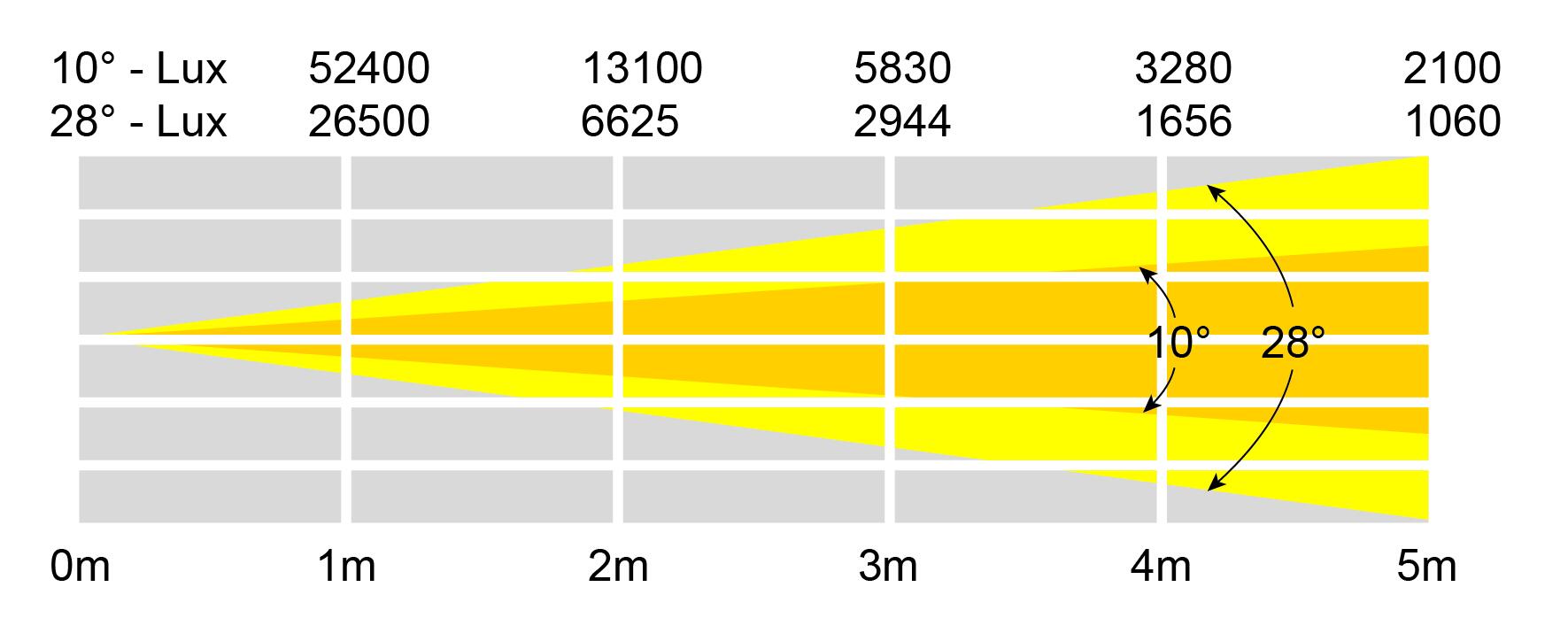

Adjustable beam angle: 10 Degree 28 Degree

Focus adjustment: Slide zoom controls on side (diameter and softness)

Working position: Max. tilting ?70 Degree from horizontal

Beam shaping: 4 shutters supplied and optional iris diaphragm

Lamp base: GY9.5

Lamp types:

300W 230V M38 2950K 2000 hrs

500W 230V T18 3000K 360 hrs / T25 3000K 360 hrs / M40 2950K 2.000 hrs

650W 230V T26 3050K 600 hrs / T27 3050K 600 hrs

300W 120V CP81 FKW 3200K 50 hrs

650W 120V CP89 FKR 3200K 200 hrs

Positional adjustment single rimclamp tilt lock

Autodisconnect doublepole microswitch

Gobo size: M/D

metal

Rotating gate with 4 shutters

3 accessory runner slots

125 x 125mm gel frame (DIN standard) supplied

Mounting bracket

Captive power connection

Power cable to bare ends included

Construction: Extruded aluminium and sheet steel

Power supply: 230/240V AC

Dimensions: 280 x 210 x 340mm

Weight: 7.5kg
