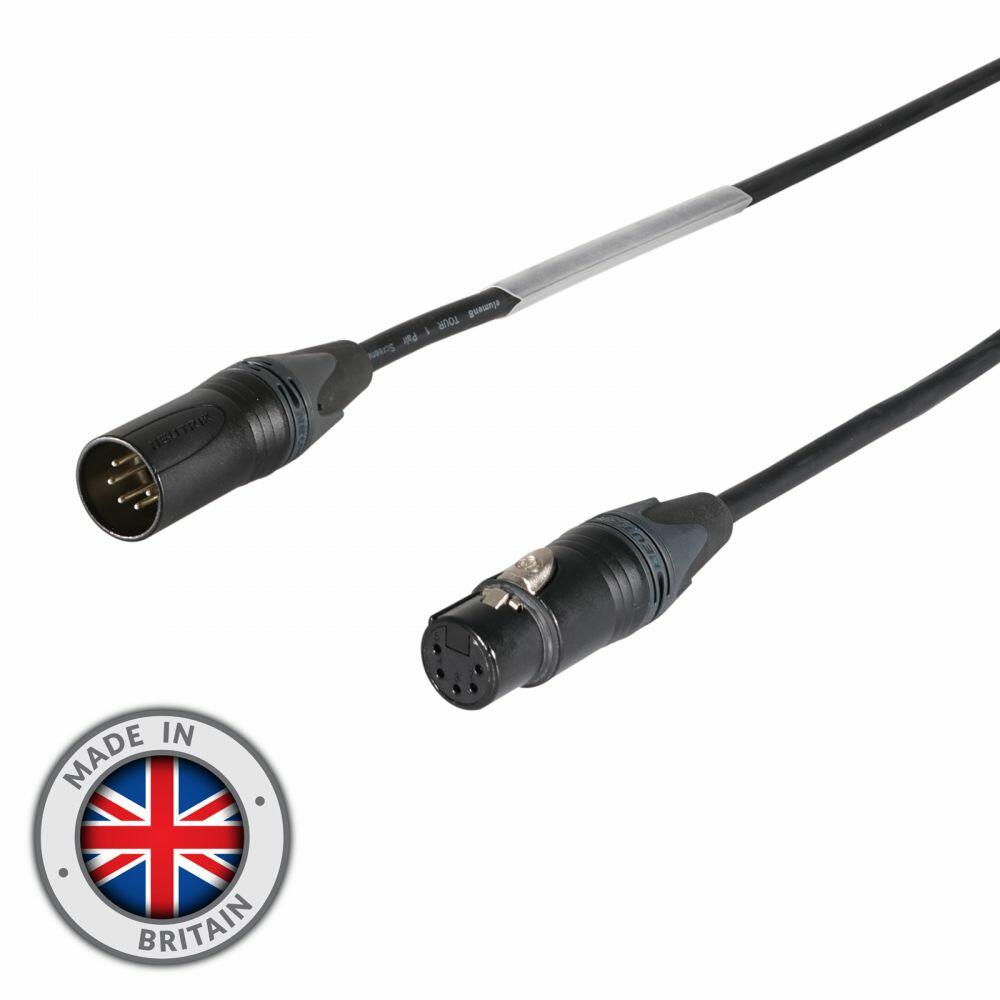

DAP DMX/AES-EBU cable 20m - 5p - REAN XLR/M 5P to XLR/F 5P - DAP

DAP FLR08 - DMX/AES-EBU 5 Pin Rean DMX Lead - 20m

roll over the image to zoom in

DAP FLR08 - DMX/AES-EBU 5 Pin Rean DMX Lead - 20m

DAP DMX/AES-EBU cable 20m - 5p - REAN XLR/M 5P to XLR/F 5P

SKU: FLR0820
DAP

The DAP FLR08 is a professional-grade 20-metre DMX/AES-EBU cable engineered for reliable and high-performance digital signal transmission. Built with DAP’s DIG-110 110-ohm digital cable and fitted with premium Rean RC5 connectors, this cable delivers low-impedance, interference-free connectivity essential for demanding lighting and audio environments.

The DIG-110 features a durable braided shield to ensure minimal signal loss and maximum protection from interference. The RC5 connectors offer silver-plated contacts for optimal signal clarity and a sleek, black zinc housing that combines durability with a professional appearance. For added convenience, each cable includes a transparent heat-shrink label sleeve for clear identification and a hook-and-loop fastener to keep your setup neat and organized.

Whether you’re working on stage, in the studio, or during live events, the FLR08 20m provides dependable, high-quality connections you can trust over extended distances.

£31.69
£42.25
Earn0
reward points
Add To Your Wishlist

Oh No! This product is out of stock. Would you like to know when it's avaliable again?

  • Product Features

    • Professional-Grade Cable: Built for reliable DMX and AES/EBU digital signal transmission in demanding environments.

    • 20-Metre Length: Ideal for extended cable runs in stage setups, studios, and live event productions.

    • DIG-110 110-Ohm Cable: Ensures low-impedance, interference-free signal flow with minimal loss.

    • Rean RC5 Connectors: Premium 5-pin connectors with silver-plated contacts for optimal signal clarity.

    • Braided Shielding: Offers robust protection against interference and signal degradation.

    • Black Zinc Housing: Durable, professional appearance suited for any high-end setup.

    • Transparent Label Sleeve: Easy cable identification with included heat-shrink label area.

    • Hook-and-Loop Fastener: Keeps cables tidy and organized during transport and storage.

  • Technical Specification
    Specification
    Connector 1XLR 5 Pin
    Connector 2XLR 5 Pin
    Brand ConnectorsREAN
    Impedance110 Ohms
    Cable Length20m
    Pins5
    Conductor Resistance110 Ohms/km
    Conductor Capacitance35 pF/m
    Capacity Inner Conduct. Shield/Inner Conduct.52 pF/m
    Wire Connection3 mm2
    Outer Cable Diametre7mm
    Outer Isolation TypePE
    Contact TypeSilver Plated
    1st ShieldAluminium Foil
    2nd ShieldBraided Tinned Copper
    Shield Resistance12.5 Ohms/km
    Filler MaterialPaper
    Conductors4
    Conductor ConstructionStranded Core
    Maximum Ambient Temperature60 Degrees C
    Minimum Ambient Temperature-20 Degrees C
    IP RatingIP20
    MaterialCopper, PE
    ColourBlack
    Weight1.708kg
