Chauvet Professional Rogue R2X Wash Moving Head

Chauvet Professional Rogue R2X Wash Moving Head - Chauvet Professional

Name: Chauvet Professional Rogue R2X Wash Moving Head
Brand: Chauvet Professional
SKU: CHAUPRO ROGUER2XWASH
Price: 1897.2 GBP
Availability: InStock

roll over the image to zoom in

Chauvet Professional Rogue R2X Wash Moving Head
SKU: CHAUPRO ROGUER2XWASH
Chauvet Professional

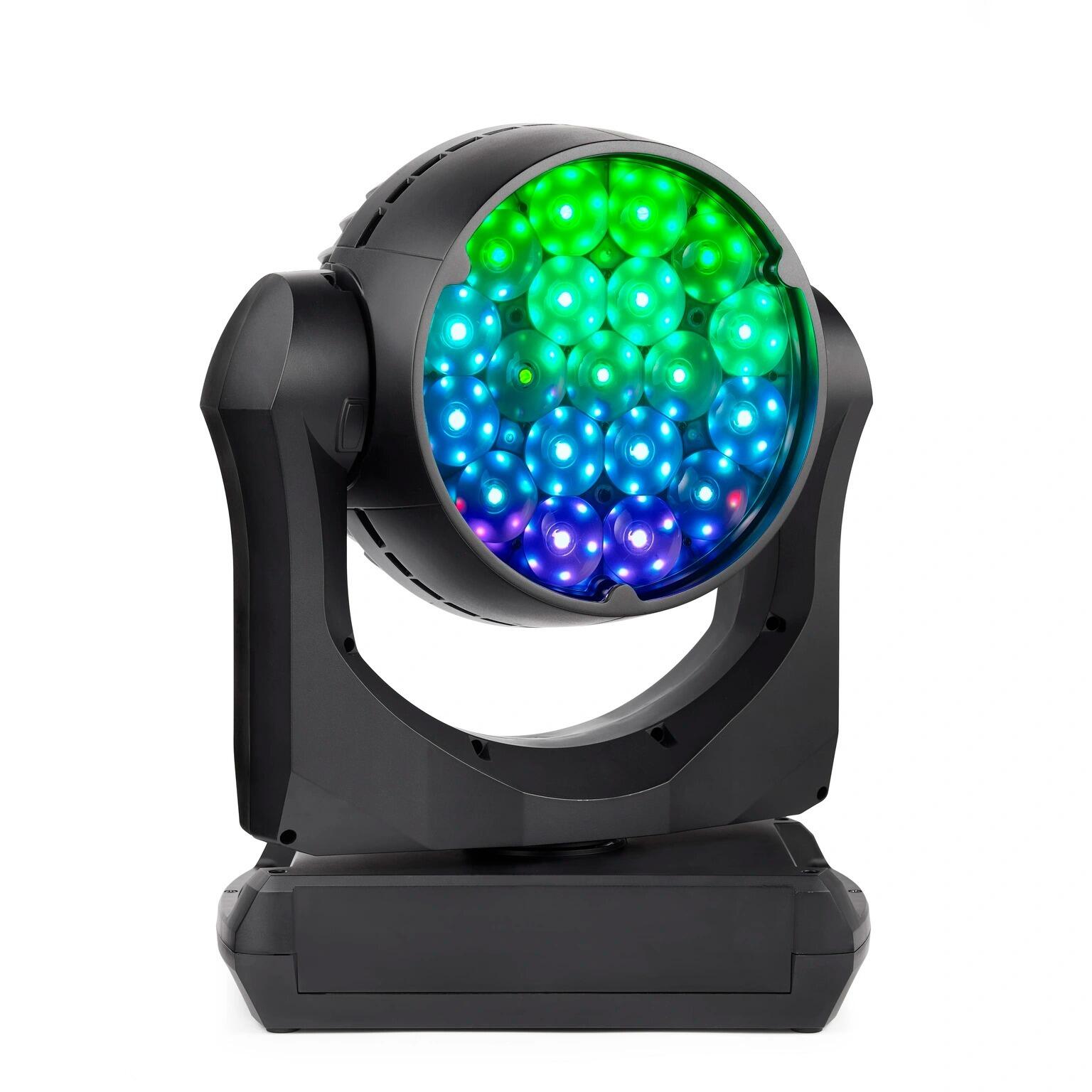

Rogue R2X Wash is a valuable addition to rental and production inventories. Durable and dependable, this moving wash workhorse produces a bright, powerful light and offers five zones of LED control to pixel map its 19 (25 W) RGBW quad-LEDs. A standout zoom range of 7.3 to 64.3 gives it the spread to cover even the largest areas. Smooth color mixing, simple and complex DMX channel profiles and powerCON in and out are just some of the other features that make this fixture a standout performer in any setting.

Fully featured RGBW LED yoke wash fixture with LED zone control and zoom
16-bit dimming of master dimmer as well as individual colors for smooth control of fades
19 RGBW LEDs, 25 W each
3- and 5-pin DMX input/output connections
5 zones of LED control for pixel mapping control
Unique lens design for excellent color blending
Fast, smooth pan and tilt movement
RDM enabled for remote addressing and troubleshooting
Selectable LED maximum output to match legacy Rogue R2 Washes
Selectable PWM options for camera operation
6 distinct dimming modes for advanced control
Omega mounting bracket fits all Rogue and Maverick fixtures
Easy to read OLED display with simple, effective menu options
Simple and complex DMX channel profiles for programming versatility

OPTICAL
- Light Source: 19 LEDs (quad-colour RGBW) 25 W, (1.5 A), 50,000 hours life expectancy
- Colour Temperature (range): 2800 to 10000 K
- Beam Angle: 8 to 30
- Field Angle: 12 to 49
- Zoom Angle: 12 to 49
- Lumens Source: 10,300
- Lumens Output: 7,300
- Illuminance (12): 10,000 lux @ 5 m
- Illuminance (49): 840 lux @ 5 m
- PWM Frequency: 1,200 Hz
DYNAMIC EFFECTS
- Pan and Tilt: 540/230
- Pan and Tilt Ranges: 180, 360, 540 pan/90, 180, 230 tilt
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Zoom: Motorized
- Strobe Rate: 0 to 20 Hz
- Standalone Colour Mixing: Yes
- Colour Temperature Presets: Yes
- Dim Curves: 4
- Built-in Automated Programs: Yes
- Customizable Programs: No
- Recall Custom Programs: No
CONSTRUCTION / PHYSICAL
- Dimensions: 8.58 x 12.05 x 15.67 in (218 x 306 x 398 mm)
- Weight: 22.8 lb (10.3 kg)
- Exterior colour: Black
- Housing Material: High-impact flame-retardant polymer
CONNECTIONS
- Power Connection: Edison (Local) plug to Neutrik powerCON
- Power Input: Neutrik powerCON
- Power Output: Neutrik powerCON
- Data Connectors: 3- and 5-pin XLR
- Cable Length (power): 5 ft (1.5 m)
CONTROL
- Control Protocol: DMX, RDM
- DMX Channels: 15, 17, 22, 33, 54, or 56
- Modes/Personalities: 8 personalities (15CH, 17CH, 22CH, 33CH, 33CH MS, 54CH, 54CH MS or 56CH)
ELECTRICAL
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power Linking: 4 units @ 120 V; 8 units @ 208 V; 9 units @ 230 V
- Power and Current: 346 W, 2.8 A @ 120 V, 60 Hz
- Power and Current: 337 W, 1.6 A @ 208 V, 60 Hz
- Power and Current: 342 W, 1.4 A @ 230 V, 50 Hz
CERTIFICATIONS / QUALIFICATIONS
- CE, MET
- IP Rating: IP20, dry location
