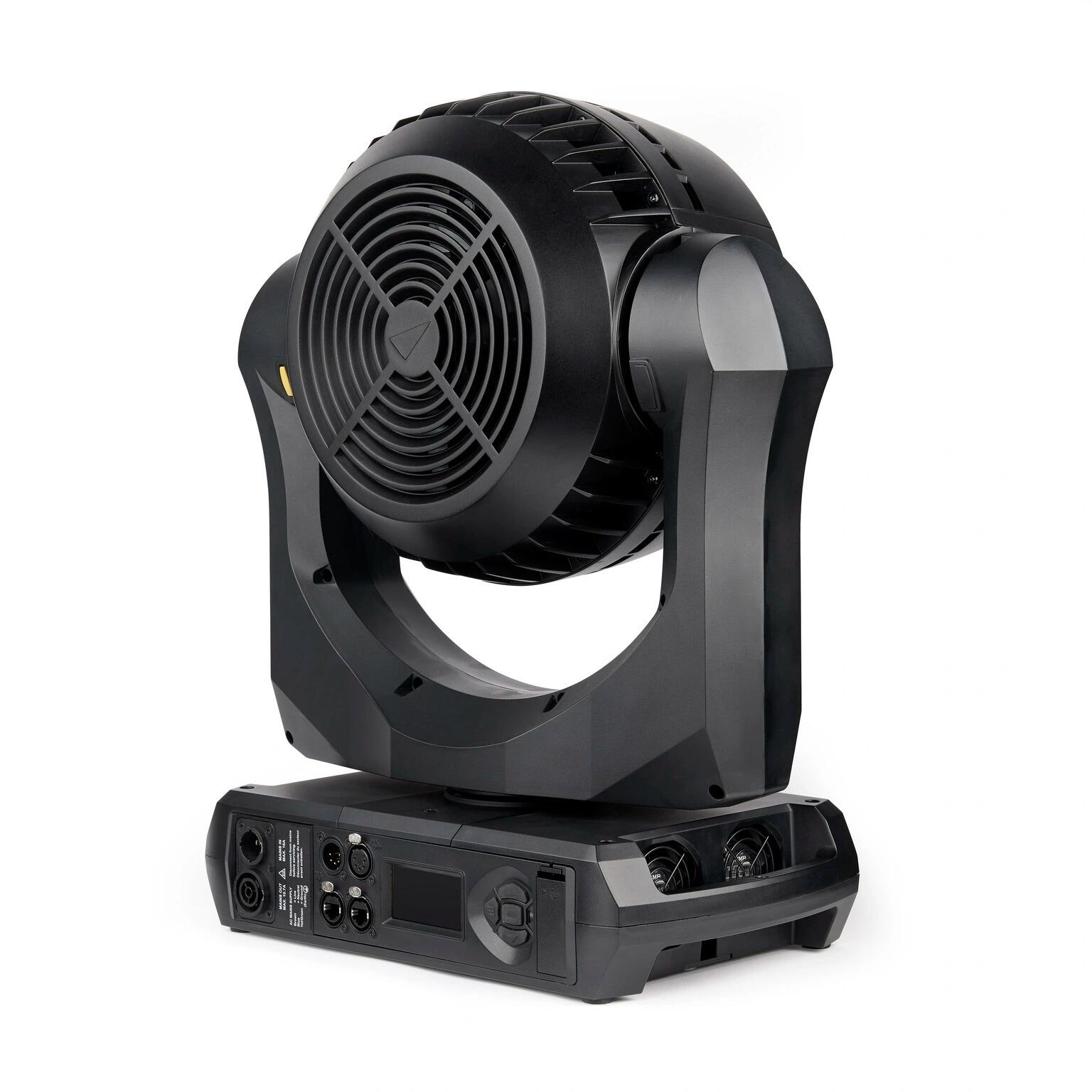

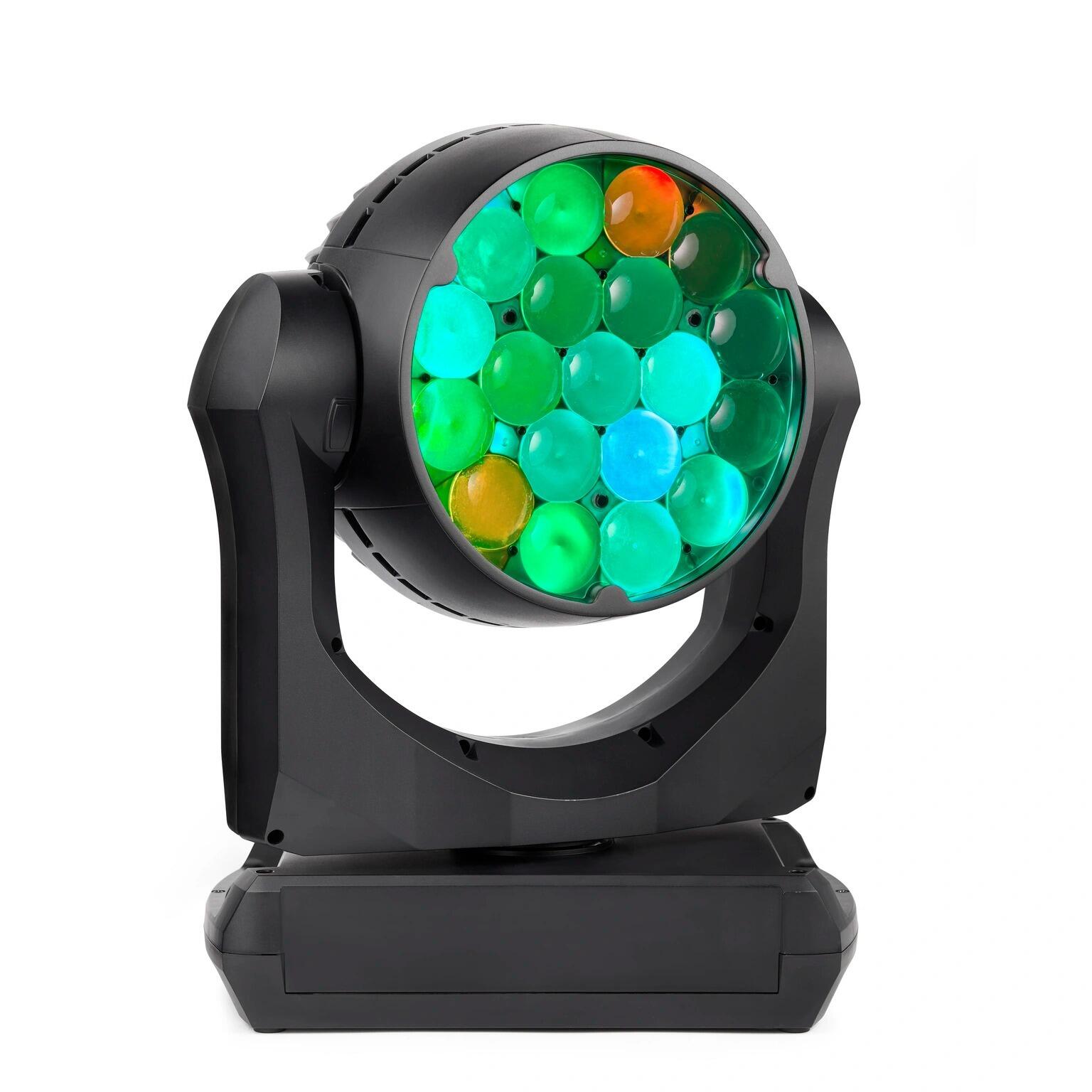

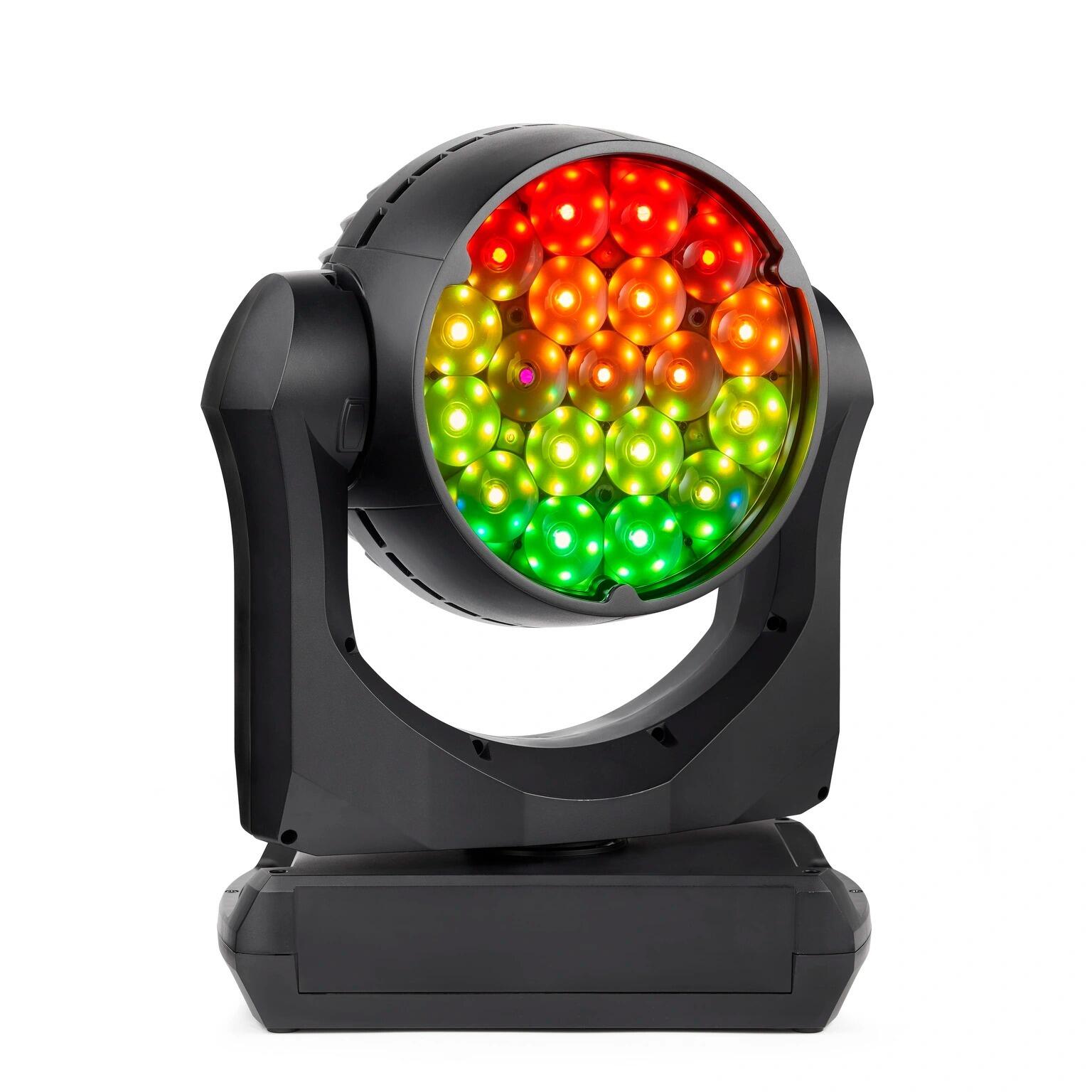

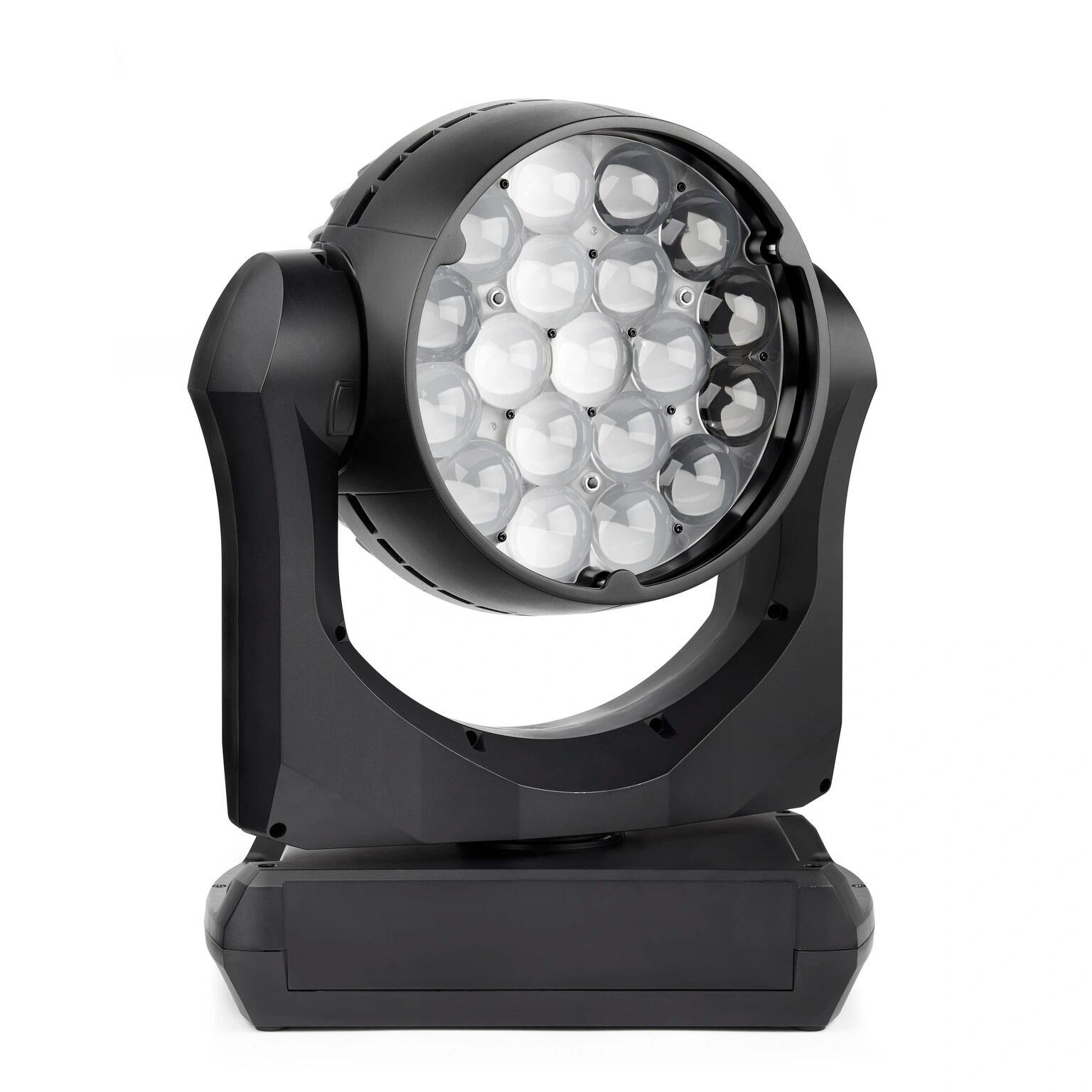

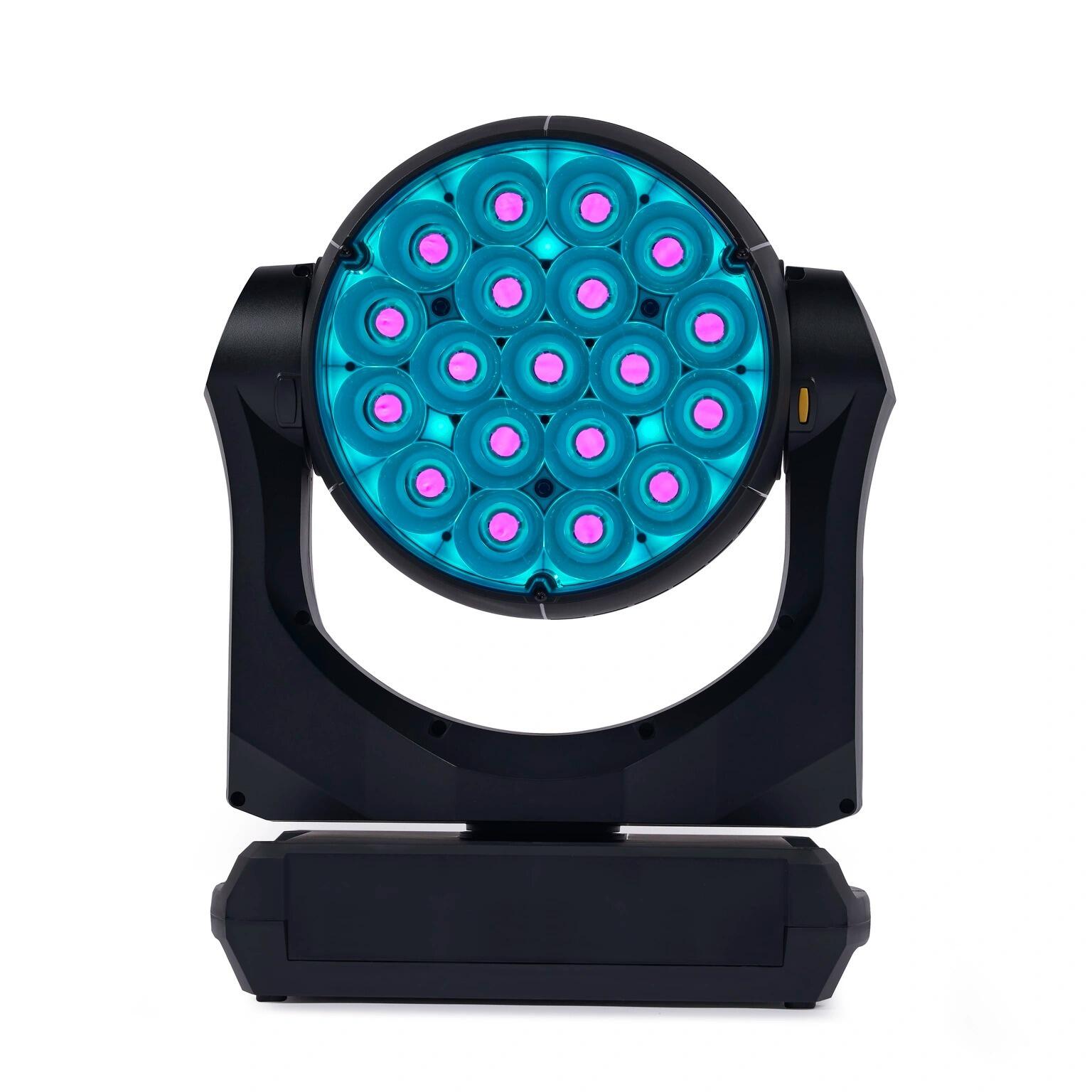

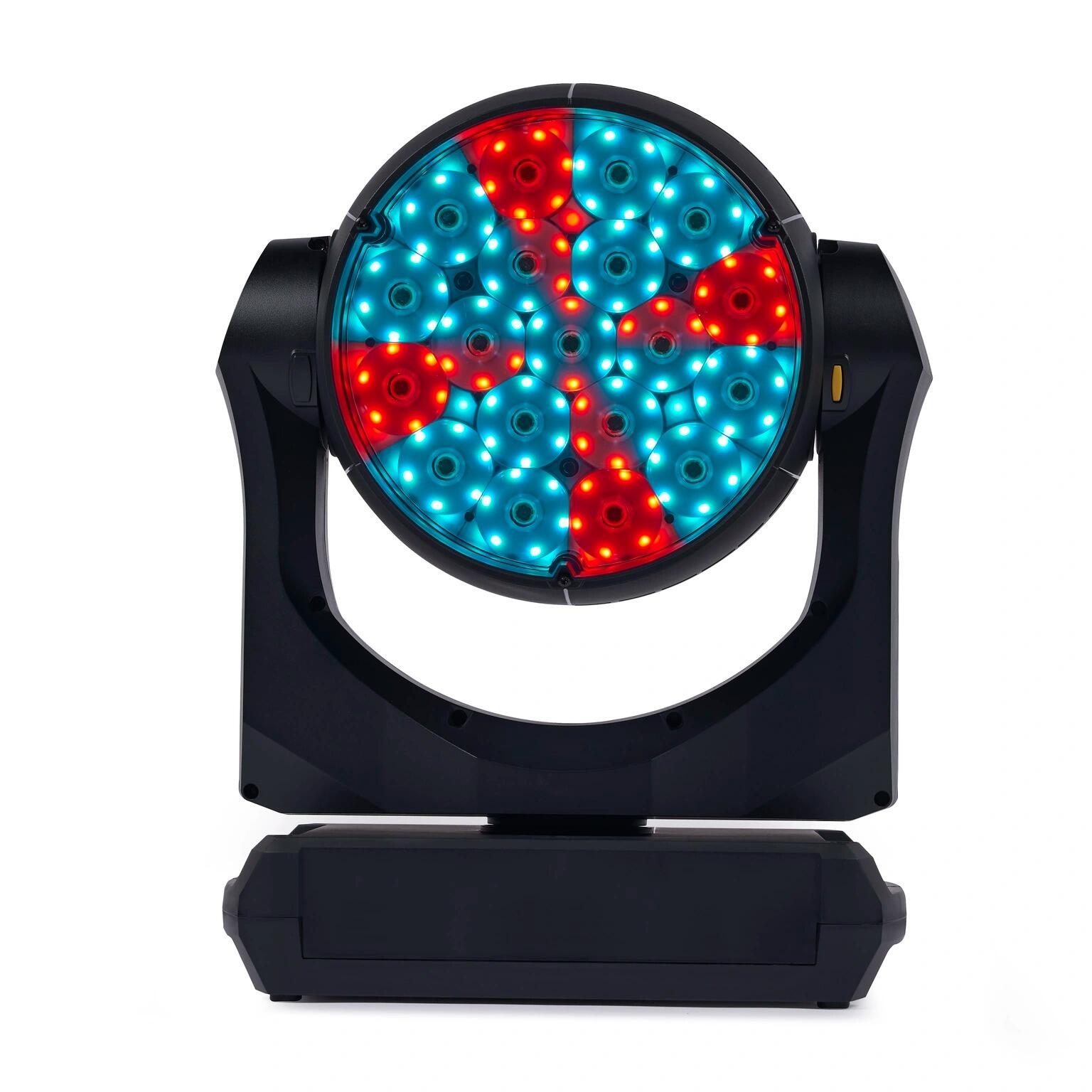

Martin MAC Aura PXL Medium Size Creative Wash Light - EPS
SKU: MAR1787
Martin Professional

The Martin MAC Aura PXL adds to the industry standard line of Martin wash lights with multi-lens and Aura backlight technology. Bigger and brighter than the MAC Aura, the PXL features significantly higher intensity and a tighter beam as well as a smaller face and less busy lens look compared to the MAC Quantum Wash. The MAC Aura PXLs bigger “bubbles” provide a more appealing look and beautiful wide wash fields.

It is also the first wash light in the market to feature individual pixel control for main beam pixels and Aura backlight with full control via DMX, Art-Net and sACN, as well as with Martin´s very own creative P3 video protocol.

The compact size and low weight, trusted Martin build quality and feature set, and simple and clever setup and control options make the MAC Aura PXL ideal for rental customers and lighting designers working in concert/touring, TV shows and corporate, as well as customers supporting the high-end nightclub market.

£5,151.00

£6,060.00

View video

Product Features
LIGHT SOURCE
- 10,500 lumens RGBW light output
- High narrow intensity: 940,000 cd

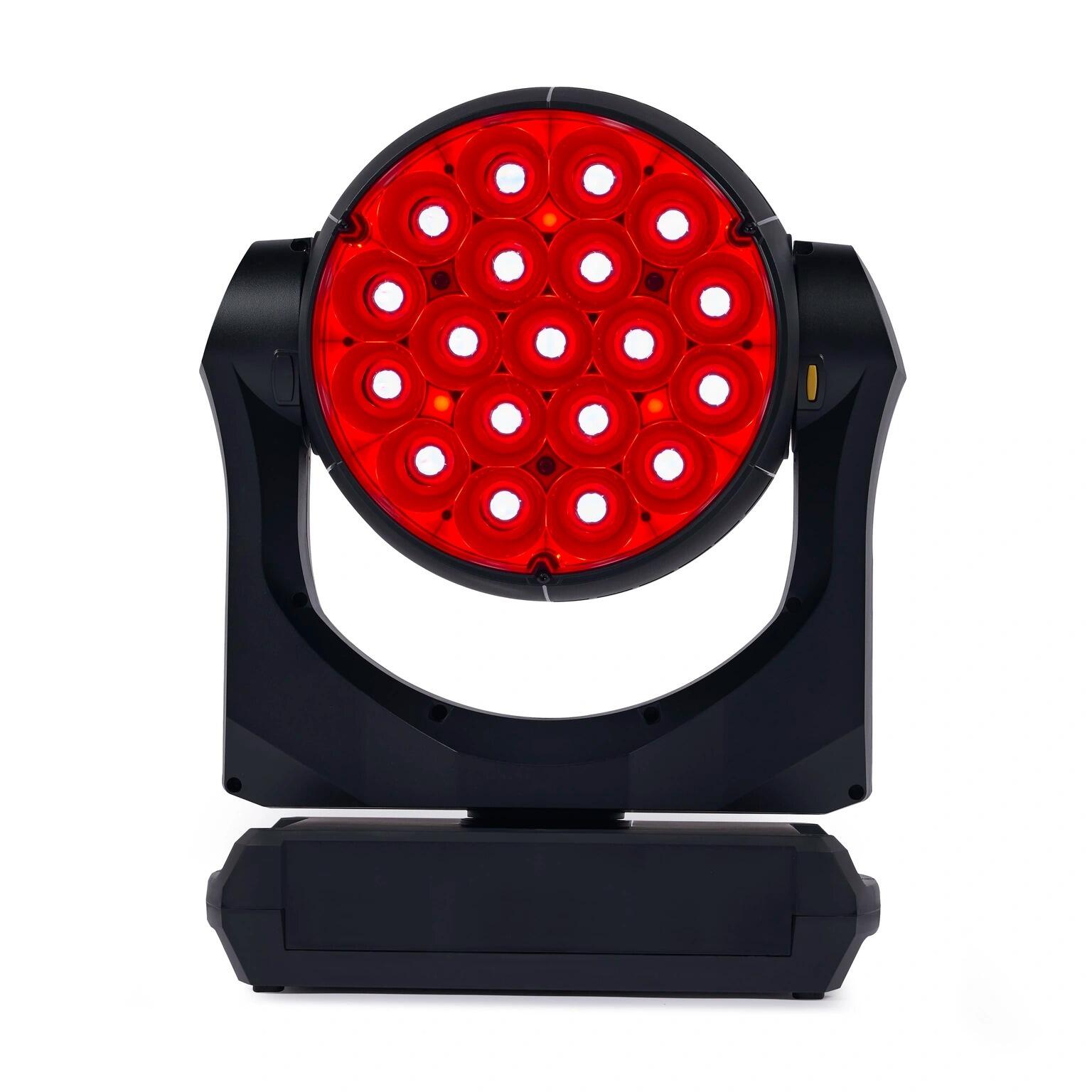

- Pixelated Beam: 19x 40W RGBW LEDs

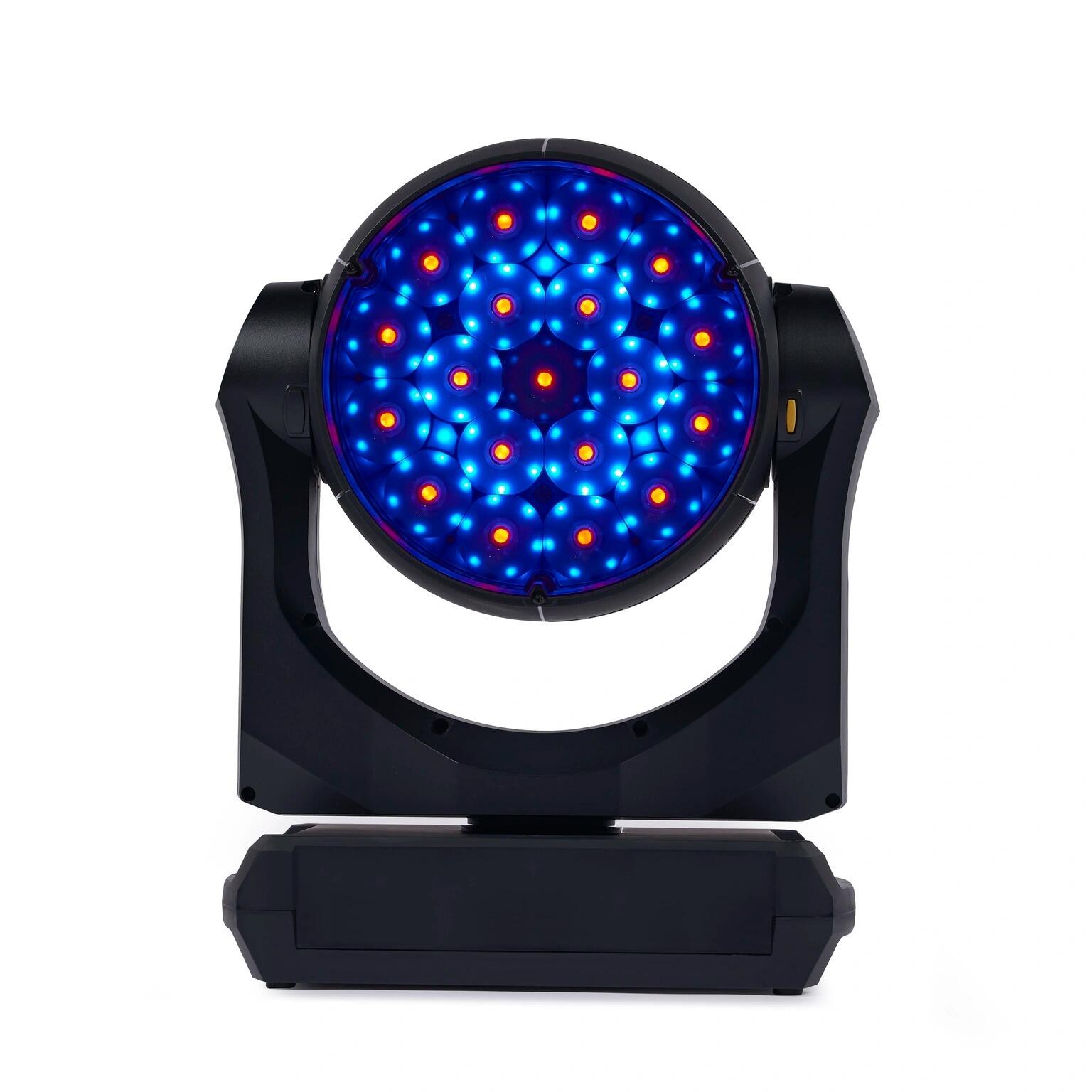

- Pixelated Aura: 141x 0.3W RGB LEDs
- Fully calibrated using Martin's Full Gamut Color Calibration
- Flicker-Free operation – LED driver frequency suitable for all kinds of camera applications
- LED Driver frequency adjustable for demanding applications
OPTICS
- Tight beam and beautiful wash field
- 6 - 59° zoom – Precise, silent and fast zoom
- Even wash field with zero hotspot
- High intensity mid-air beams
- Minor color temperature shift from center to edge
SOFTLENS ACCESSORY
- Creates a softer edge wash field
- Reduces glare from fixture lens
- Minimal impact to Aura pixel effects
- Attaches to front of fixture
- Can remain attached to fixture inside flightcase SiP
COLOR PALETTE
- RGBW color mixing with very bright and vibrant saturated colors, as well as nice pastels and white tones
- Calibrated and Extended Color Modes
- Calibrated CTC control: 2,000 - 10,000 K
- Tungsten Emulation Option
- Virtual Color Wheel
DYNAMIC EFFECTS
- More than 150 built-in FX macros with control of foreground color, background color, speed and direction
- P3 video mapping of fixture Beam pixels and/or Aura pixels
- P3 Mix allowing crossfade between video looks and DMX looks
- High-speed pan, tilt and zoom
COOLING AND NOISE
- Ultra-quiet cooling system
- Theater / Broadcast mode at just 24.6 dB(A)
- Low noise pan/tilt and effects operation
CONSTRUCTION
- Weight:15.60 kg (34.39 lbs.)
- Dimensions: 410 x 489 x 232 mm

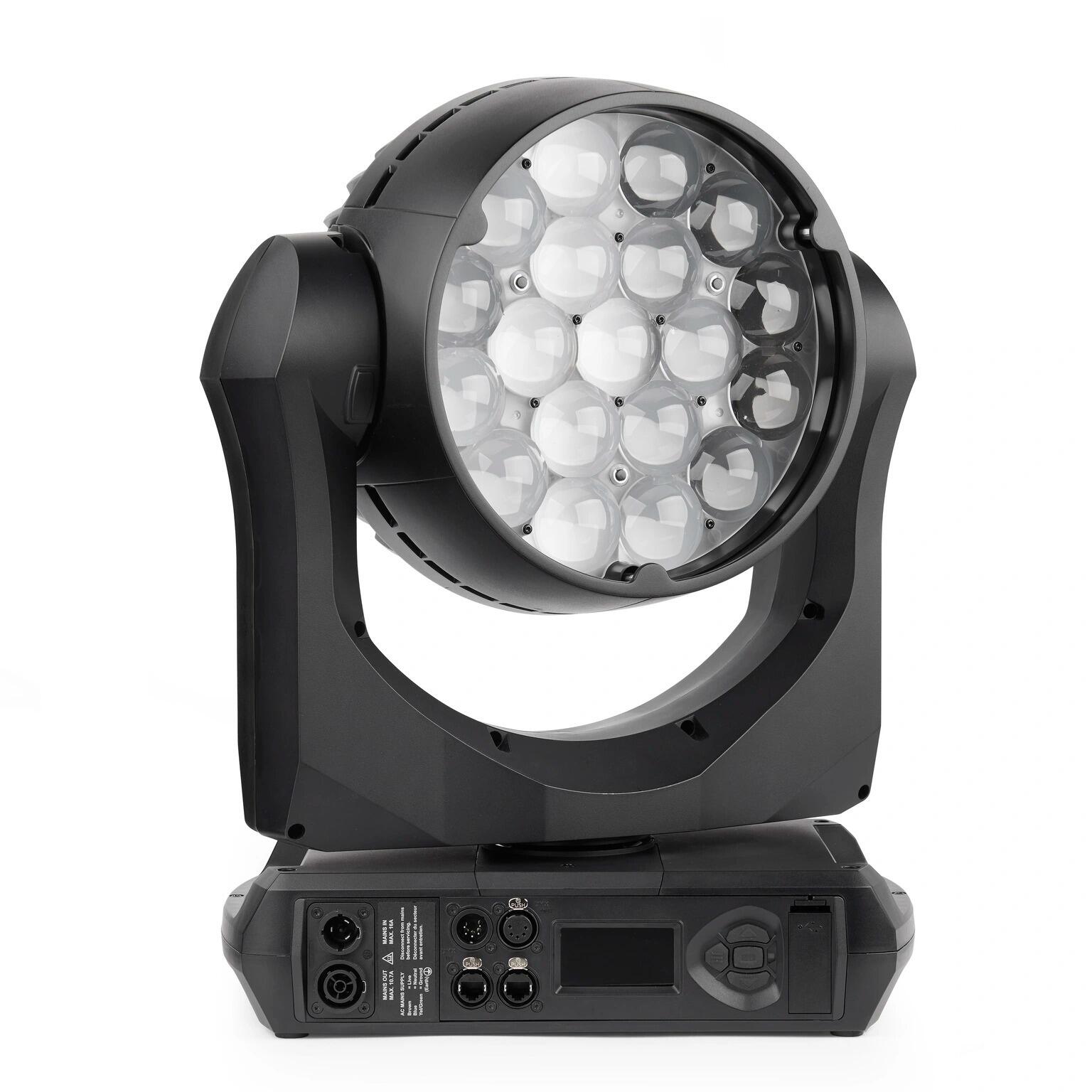

CONTROL
- Battery-powered control panel on the base
- DMX in & thru
- Ethernet in & thru, supporting Art-Net, sACN & Martin P3
- Fail-safe bypass on Ethernet ports
- RDM over DMX and RDM over Art-Net
Technical Specification
- Physical
  Width (across yoke): 410 mm (16.14 in.)
  Width (base): 385 mm (15.16 in.)
  Height (head forward): 516 mm (20.31 in.)
  Height (maximum): 544 mm (21.42 in.)
  Depth (head): 216 mm (8.50 in.)
  Depth (base): 232 mm (9.13 in.)
  Minimum center-to-center distance in side-by-side installation: 420 mm (17 in.)
  Weight: 15.60 kg (34.39 lbs)
  Dynamic Effects
  Beam Dimmer/Shutter: 0 - 100% continuous dimming, regular and random strobe, instant open and blackout
  Beam Dimming options: Choice of four dimming curves
  Beam Color Mixing: RGB(W), independently variable 0 - 100%
  Beam Color Temperature Control: Variable 2,000 – 10,000 K
  Beam Virtual Color wheel: 48 color presets, continuous rotation & random color
  Zoom: Motorized with 1:8 zoom ratio
  Pan: Motorized 540°
  Tilt: Motorized 268°
  Beam PixelMapping: individual RGB control of each of the 19 Beam pixels
  Beam P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video control
  Aura Dimmer/Shutter: 0 – 100% continuous dimming, regular and random strobe, instant open and blackout
  Aura Dimming options: Choice of four dimming curves
  Aura Color Mixing: RGB, independently variable 0 - 100%
  Aura Color Temperature Control: Variable 2,000 – 10,000 K
  Aura Virtual Color wheel: 48 color presets, continuous rotation & random color
  Aura PixelMapping: individual RGB control of each of the 141 Aura pixels
  Aura P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video control
  Pre-programmed effects: Two ranges of FX on Beam, Aura or Combination; independent or synchronized/combined; featuring foreground color, background color, speed and direction control
  LED Frequency control: Two LED PWM control rates
  Control and Programming
  Control Protocols: DMX, RDM, Art-Net, RDM over Art-Net, sACN and Martin P3
  Protocol Detection: Automatic
  DMX Modes: Compact, Basic, Extended, Ludicrous & Compact Direct
  DMX Channels: 17, 32, 89, 512 & 17
  Multi-Universe Overflow: No
  16-bit Controllable Parameters: Beam & Aura Dimming, Beam Color Mixing, Pan and Tilt
  Setting and Addressing: Display Menu, RDM, RDM over Art-Net or Martin P3
  Local User Interface: Backlit LCD Display with battery-powered operation
  Fixture identification: User-settable ID number
  DMX Compliance: USITT DMX512-A
  RDM Compliance: ANSI/ESTA E1.20
  Art-Net Compliance: Art-Net 1, 2, 3 and 4; including RDM over Art-Net
  sACN Compliance: ANSI E1.31 - 2018
  Martin P3 Compliance: P3 System Controller Software 5.1.0 or newer
  DMX/RDM Transceiver: Galvanic-isolated RS-485
  DMX/RDM Daisy-Chain Limit: 32 fixtures
  Ethernet Transceiver: 10/100Mbit (with fail-safe bypass)
  Ethernet Daisy-Chain Limit Recommendation: 50 fixtures
  Firmware Update: via USB type A memory device, via DMX using Martin Companion or via Ethernet using Martin Companion / P3 System Controller
  Optics
  Front Lens Diameter: 255 mm (10.04 in.)
  Zoom Range: 1:8
  Full Zoom Range at Half Peak (Beam Angle): 6° - 40°
  Full Zoom Range at Tenth Peak (Field Angle): 7° - 59°
  Beam Light Source: 19 x 40 W RGBW LED
  Aura Light Source: 141 x 0.3 W RGB LED
  Max. Total Beam LED Engine Power: 570 W
  Max. Total Aura LED Engine Power: 50 W
  Minimum LED lifetime: > 50.000 hours (to > 70% luminous output)*
  *Figure obtained under manufacturer's test conditions
  Photometric Data
  Light Engine Luminous Output: 19,000 lumens
  Fixture Luminous Output Wide: 10,500 lumens
  Fixture Luminous Output Narrow: 8,500 lumens
  Peak Luminous Intensity Narrow: 940,000 cd
  CCT: Variable 2,000 K – 10,000 K (+/- 200 K)
  CRI (Color Rendering Index): ≥ 73
  CQS (Color Quality Scale): ≥ 85
  TM-30 Rf (IES TM-30-15 Fidelity Index): ≥ 77
  TM-30 Rg (IES TM-30-15 Gamut Index): ≥ 117
  TLCI (Television Lighting Consistency Index): ≥ 61
  Beam LED Refresh Rate: 1,200 Hz and 19,200 Hz mode (DMX controllable)
  Aura LED Refresh Rate: 1,200 Hz and 4,004 Hz mode (DMX controllable)
  Binning: Tight color and flux binning
  Calibration: Full Gamut Color Calibration of Beam and Aura
  Color Modes: Direct Color Mode, Extended Gamut Mode and Calibrated Color Mode
  * All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient
  * All Photometric Data measured at 6500 K white
  ConstructionHousing: High-impact flame-retardant thermoplastic
  Color: BlackProtection rating: IP 20
  InstallationMounting points: 2 pairs of 1/4-turn points for 106 mm (4.17 in.) center-to-center omega bracketsLocation: IndoorOrientation: AnyMinimum distance to combustible materials: 0.2 m (7.87 in.)Minimum distance to illuminated surfaces: 2.4 m (94.49 in.)
  Connections
  AC mains power in/thru: Neutrik powerCON TRUE1
  DMX and RDM data in/thru: Neutrik 5-pin locking XLR
  Ethernet (Art-Net, sACN and Martin P3) in/thru, including fail-safe bypass: Neutrik etherCON
  Firmware from flash memory: USB 2.0 type A port
  Electrical
  AC power: 100-240 V AC nominal, 50/60 Hz
  Power supply unit: Auto-ranging electronic switch mode
  Typical half-cycle RMS inrush current at 230 V, 50 Hz: 15.9 A
  Typical earth-leakage current: 0.36 mA
  Power Factor: 0.99 @ 100 V / 120 V , 0.97 @ 208 V / 230 V / 240 V
  Max current draw: 6.4 A @ 100 V / 120 V , 2.8 A @ 208 V / 230 V / 240 V
  Typical current draw: 5.0 A @ 100 V , 4.1 A @ 120 V , 2.4 A @ 208 V , 2.2 A @ 230 V , 2.1 A @ 240 V *
  Power Consumption
  Maximum: 560 W
  Typical: 500 W *
  Idle: 81 W *
  Hibernation: 37 W *
  * Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
  Typical: full output white, no effects moving, regulated fan speed.
  Idle: no output, no effects moving, regulated fan speed.
  Hibernation: no output, motors de-energized, fans stopped, wake-up procedure to re-use fixture.
- ThermalCooling: Forced air (temperature regulated, low noise, user-definable levels)Maximum ambient temperature (Ta max.): 40° C (104° F)Minimum ambient temperature (Ta min.): 5° C (41° F)Maximum surface temperature, steady state, at 40° C ambient: 53° C (128° F)Total heat dissipation (calculated, +/- 10%): 1563 BTU/hr.
  Acoustic DataSound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output): 32.6 dB(A)Sound Pressure Level (LpA) @ 1 m (constant fan mode ultra low): 24.6 dB(A)
  EnvironmentalRoHS: CompliantREACH: CompliantWEEE: CompliantProposition 65: CompliantEfficacy (max output): 25.4 lm/WLWR*: 705 lm/kg (320 lm/lb)
  LWR = Lumen-to-Weight Ratio
  ApprovalsGlobal CB Certification/IECEE: IEC 60598-2-17 (IEC 60598-1)EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493EU EMC: EN 55015; EN 55032; EN 55035; EN 61547; EN 61000-3-3US safety: UL 1573US EMC: FCC Part 15 Class BCanadian safety: CSA C22.2 No. 166Canadian EMC: ICES-003 Class B, ICES-005 Class BAustralia/NZ: RCMUnited Kingdom: UKCAThailand: TIS
  Included Items
  Two omega brackets with 1/4 turn fasteners for rigging clamp attachment
  Multi-Language Safety and Installation Manual
