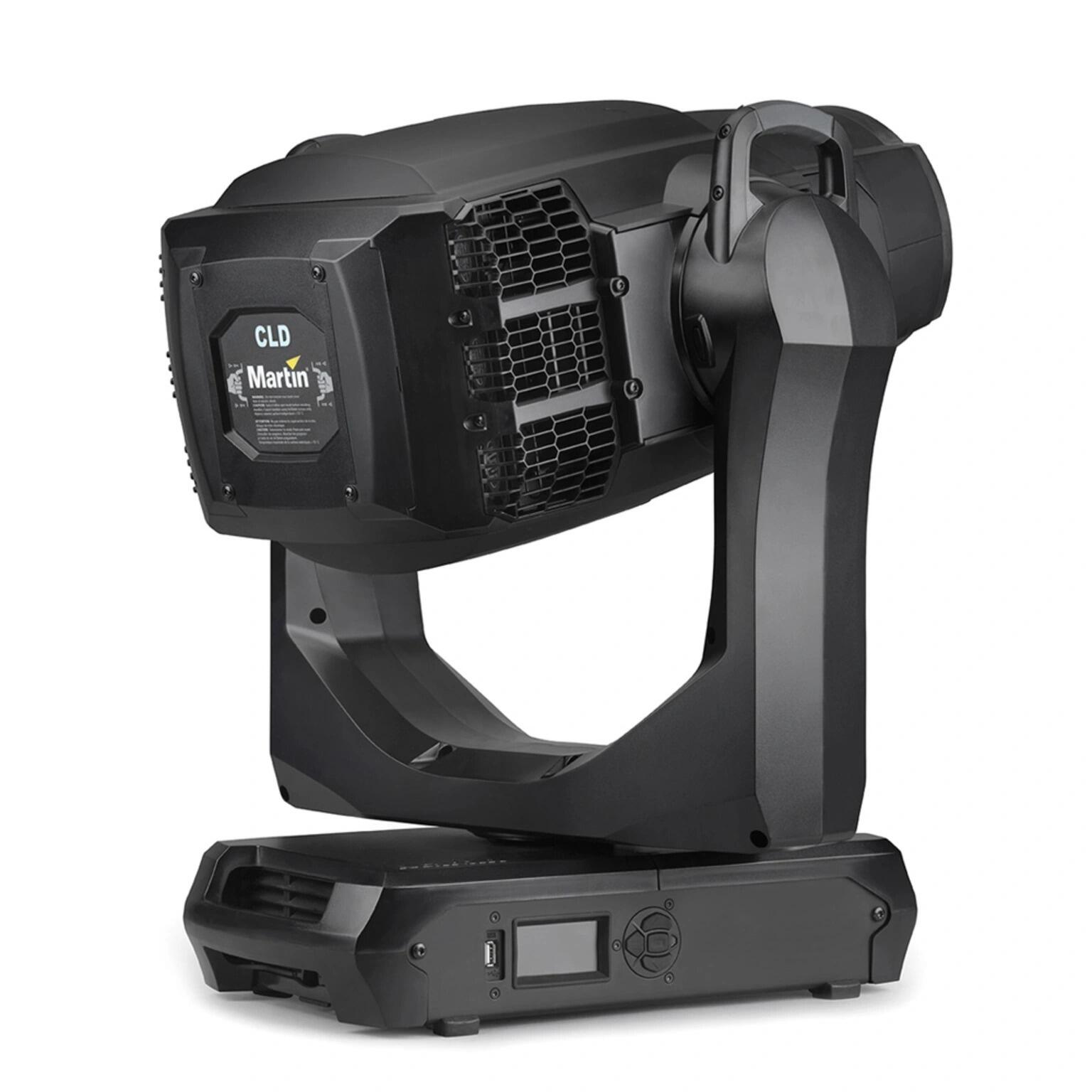

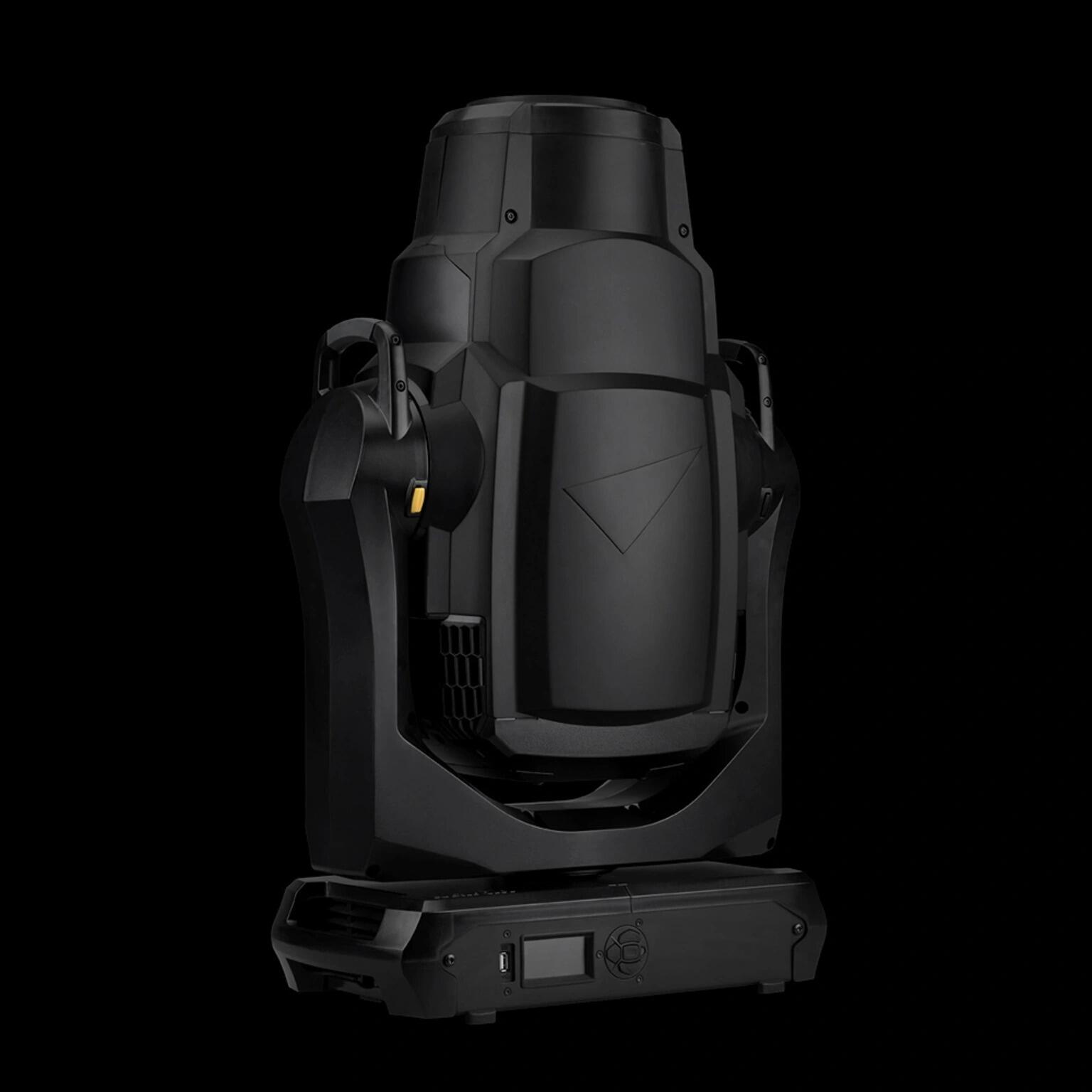

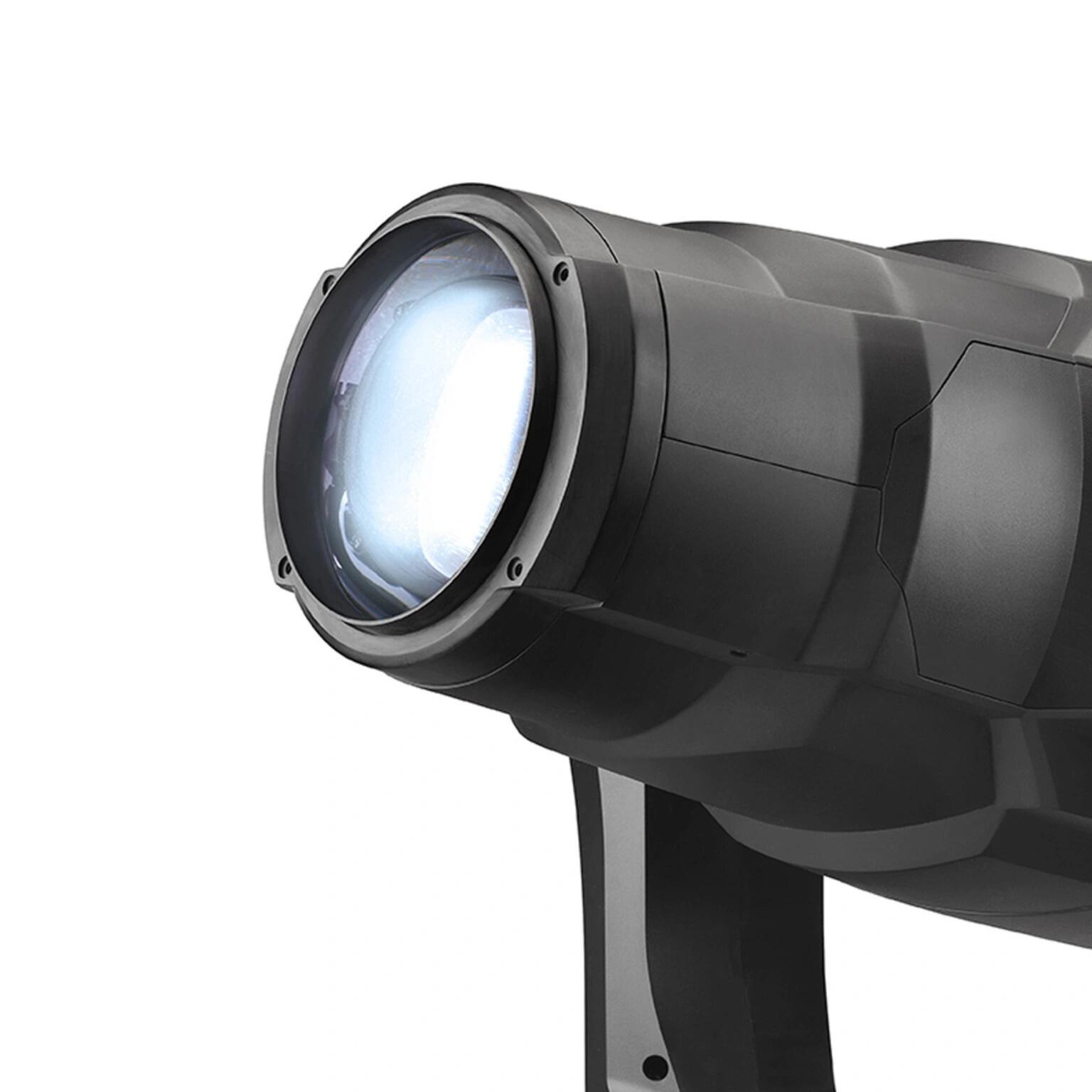

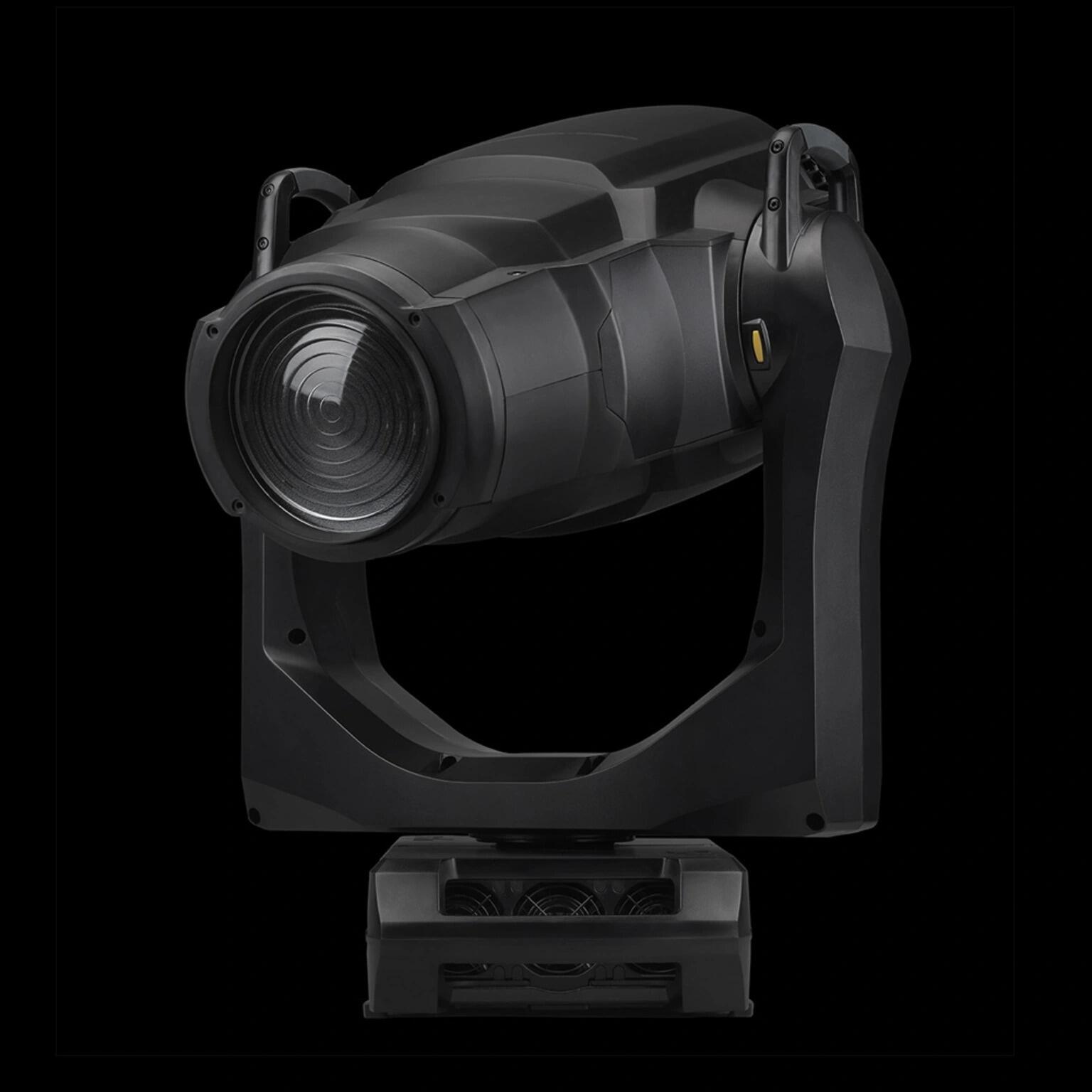

Martin MAC Encore Wash CLD High quality cold light soft edge moving head - EPS
SKU: MAR1640
Martin Professional

Designed to produce rich color and premium white light in a wide variety of applications where light quality is critical, the MAC Encore™ Wash CLD is an LED-based alternative to the MAC Viper Wash DX. The feature-packed soft edge moving head offers unparalleled 6000 K crisp, neutral daylight, and doubles as a modern replacement for generic fixtures like HMI based Fresnel fixtures, with the additional benefit of color mixing and movement.

Unparalleled 6000 K cold white light quality
Super silent cooling and effects operation
Best-in-class size/weight/performance ratio

£9,389.10

£11,046.00

View video

Product Features
- Pure white LED engine with 6000 K CCT.
- No color temperature variation during zoom and dimming.
- Flicker-free operation—LED driver frequency suitable for all camera applications.
- Whisper-silent—Combines convection and forced air cooling with user-selectable output vs. sound level control.
- Fully electronic dimmer/shutter control with various dimming curves and tungsten red-shift emulation.
- Vibrant CMY color mixing with a superior palette of colors ranging from rich, saturated primary colors to light and smooth pastel shades.
- Variable CTO—daylight to tungsten CCT control and expansion of the CMY palette that stays true to the black body curve.
- Color wheel—6 interchangeable dichroic filters + open.

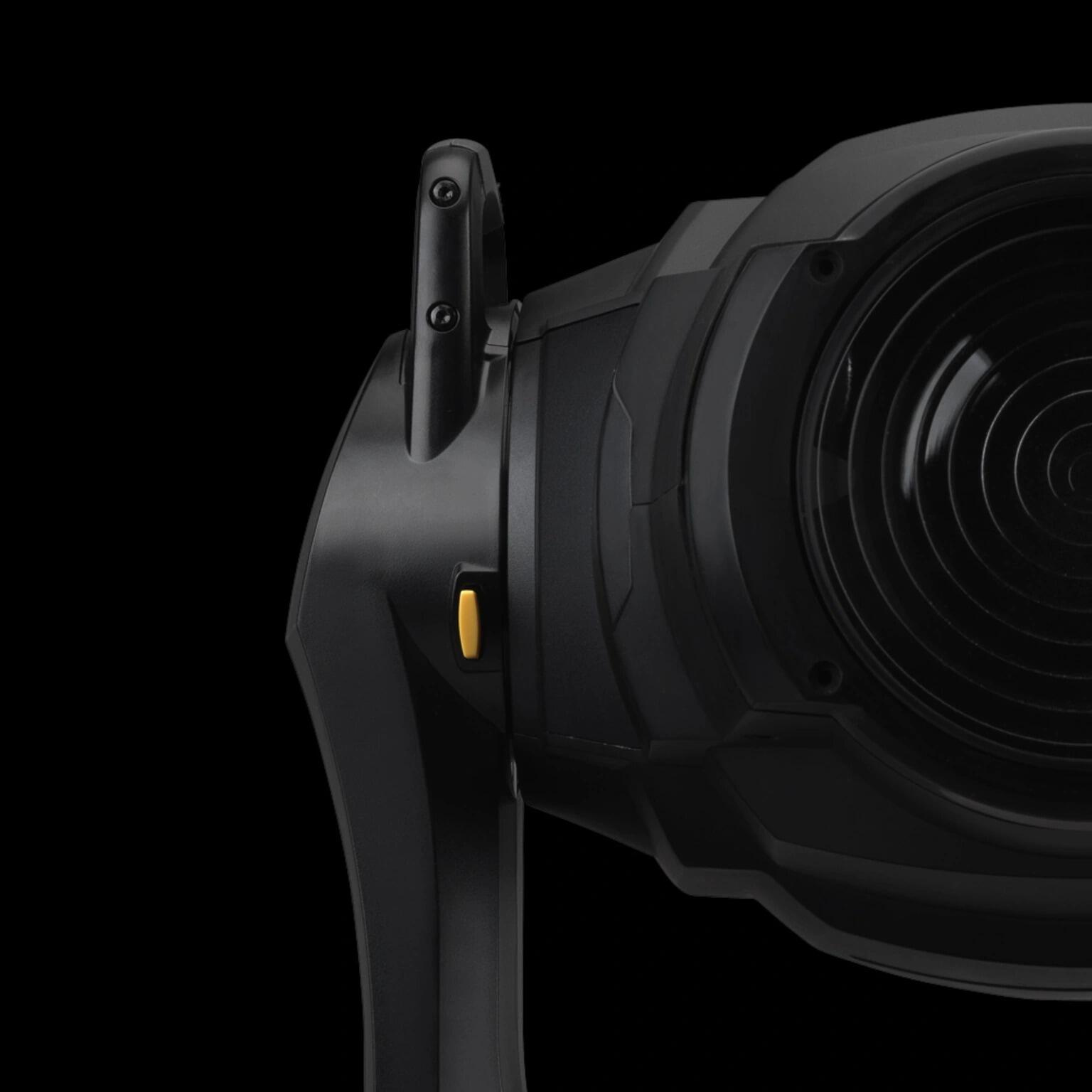

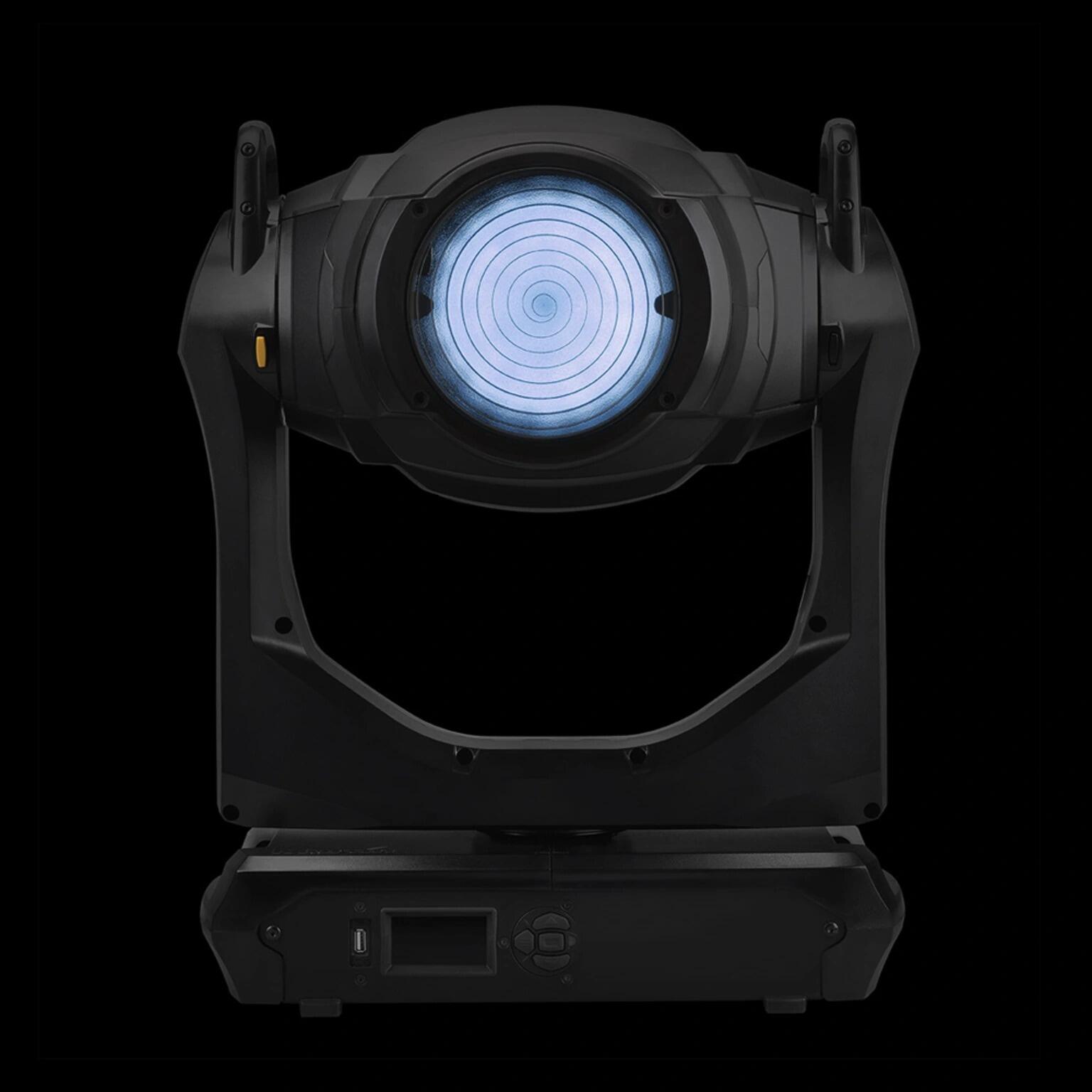

- Fresnel lens: 1:4 zoom—precise, silent and fast zoom.
- PC lens (optional): 1:5 zoom—precise, silent and fast zoom.
- Internal barndoor system with two shutter blades and iris. Shutter blades can overlap for full blackout and the entire system rotates +/- 100°. Repeats cues with great precision.
- Precise and tight iris with adjustable dynamic effects.
- Animotion™ FX System—Internal dimming effect macros for stunning 3D mid-air and projection effects.
- Super precise and silent pan/tilt movement and positioning due to 3-phase stepper motor technology and absolute position monitoring.
- Compact size—L: 452 x W: 480 x H: 745 mm / L: 17.8 x W: 18.9 x H: 29.3 in.
- Low weight—28.5 kg/62.9 lbs
Technical Specification
PhysicalLength: 452 mm (17.8 in.)Width: 480 mm (18.9 in.) across yokeHeight:
755 mm (29.8 in.) maximum
745 mm (29.4 in.) head straight up
Weight: 28.5 kg (62.9 lb.)Minimum center-to-center distance in side-by-side installation: 730 mm (28.8 in.)
Dynamic EffectsPre-programmed effects: Two ranges of FX, independent or synchronized/combinedColor mixing: CMY, independently variable 0 - 100%Color wheel: 6 x interchangeable dichroic filters + open, indexing, continuous rotation, random colorIris: Variable 0 - 100%Zoom: MotorizedColor temperature control: Variable 6000 - 2700 KBarn doors: Internal, two blades with individually controllable insertion, +/- 100° module rotationDimmer/shutter: 0 - 100% continuous dimming, regular and random strobe and pulse effects, instant open and blackoutDimming options: Choice of four dimming curvesPan: 540°Tilt: 268°Position correction system: Absolute position monitoringFocus: Range varies with zoom angle, from approx. 2 m (6.6 ft.) / 6 m (19.7 ft.) to infinity
Control and ProgrammingSetting and addressing: Control panel with backlit graphic display and jog wheel or via DMX16-bit control: Dimming, pan and tiltMovement control options: Tracking and vectorDMX channels: 24Fixture Identification: User-settable ID numberDMX compliance: USITT DMX512-ARDM compliance: ANSI/ESTA E1.20Transceiver: Opto-isolated RS-485Fixture software update: USB memory device or over DMX link
OpticsLight source: 468 W custom Martin LED engineMinimum LED lifetime: 50,000 hours (to >80% luminous output)*Zoom range with Fresnel lens (standard): 14° - 60° one-tenth peak (1:4)Zoom range with PC lens (optional): 11° - 58° one-tenth peak (1:5)*Figure obtained under manufacturer's test conditions
Photometric DataLight engine luminous output: ≥ 39,400 lumensFixture luminous output with Fresnel lens (standard): 11,000 lumensFixture luminous output with PC lens (optional): 12,000 lumensCRI (Color Rendering Index) : >80CQS (Color Quality Scale): >80TM-30 Rf (IES TM-30-15 Fidelity Index): >80TM-30 Rg (IES TM-30-15 Gamut Index): >96TLCI (Television Lighting Consistency Index): >70CCT: 6000 K (+/- 250 K)
* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.
ConstructionHousing: High-impact flame-retardant thermoplasticColor: BlackProtection rating: IP20
InstallationMounting points: 4 pairs of 1/4-turn locksLocation: Dry location only, must be fastened to surface or structureOrientation: AnyMinimum distance to combustible materials: 0.2 m (8 in.)Minimum distance to illuminated surfaces: 2.0 m (6.6 ft.)

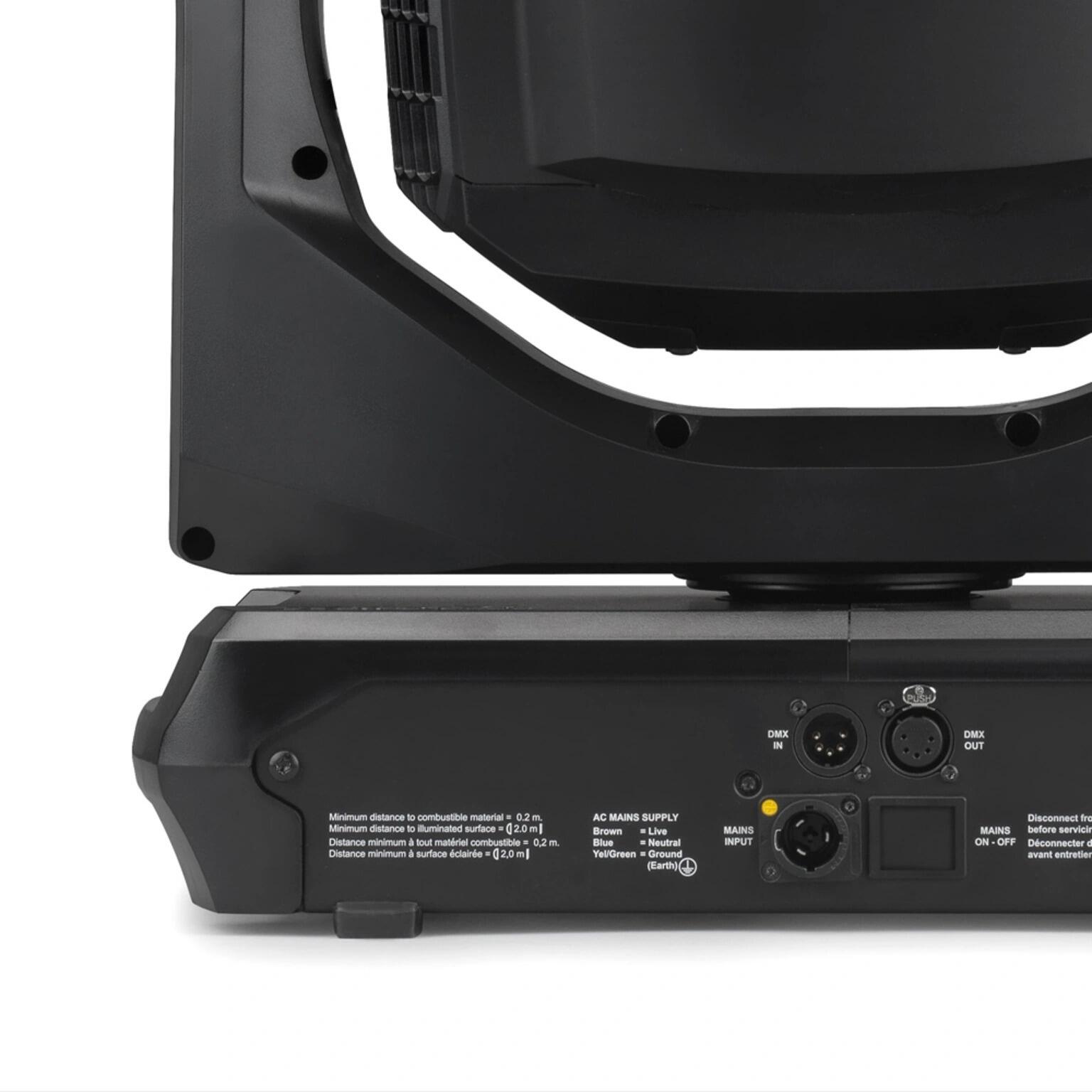

ConnectionsAC power input: Neutrik TRUE1 socket (accepts Neutrik TRUE1 NAC3FX-W connector)DMX and RDM data in/out: 5-pin locking XLR
Electrical
AC power: 120-240 V AC nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Typical half-cycle RMS inrush current at 230 V, 50 Hz: 10.3 A
Power Factor: 0.99 @ 120 V /
208
V , 0.98 @ 230 V / 240 V
Typical current draw: 5.0 A @ 120 V , 2.9 A @ 208 V , 2.6 A @ 230 V , 2.2 A @ 240 V *
Power Consumption
Typical: 596 W *
Idle: 64 W *
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Typical: full output white, no effects moving, regulated fan speed.
Idle: no output, no effects moving, regulated fan speed.

ThermalCooling: Combined convection and forced air (temperature-regulated, low noise, user-definable levels)Maximum ambient temperature (Ta max.): 40° C (104° F)Minimum ambient temperature (Ta min.): 5° C (41° F)Maximum surface temperature, steady state, at 40° C ambient: 75° C (167° F)Total heat dissipation (calculated, +/- 10%): 2000 BTU/hr.
EnvironmentalRoHS: CompliantREACH: CompliantWEEE: CompliantProposition 65: CompliantEfficacy (max output): 17 lm/wLWR*: 386 lm/kg (175 lm/lb)
LWR = Lumen-to-Weight Ratio
ApprovalsEU safety: EN 60598-2-17, EN 62471, EN62493EU EMC: EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-11, EN 61547US safety: UL 1573US EMC: FCC Part 15 Class ACanadian safety: CSA C22.2 No. E598-2-17Canadian EMC: ICES-003 Class AAustralia/NZ: RCMThailand: TIS
Included ItemsTwo omega brackets with 1/4 turn fasteners for rigging clamp attachment
