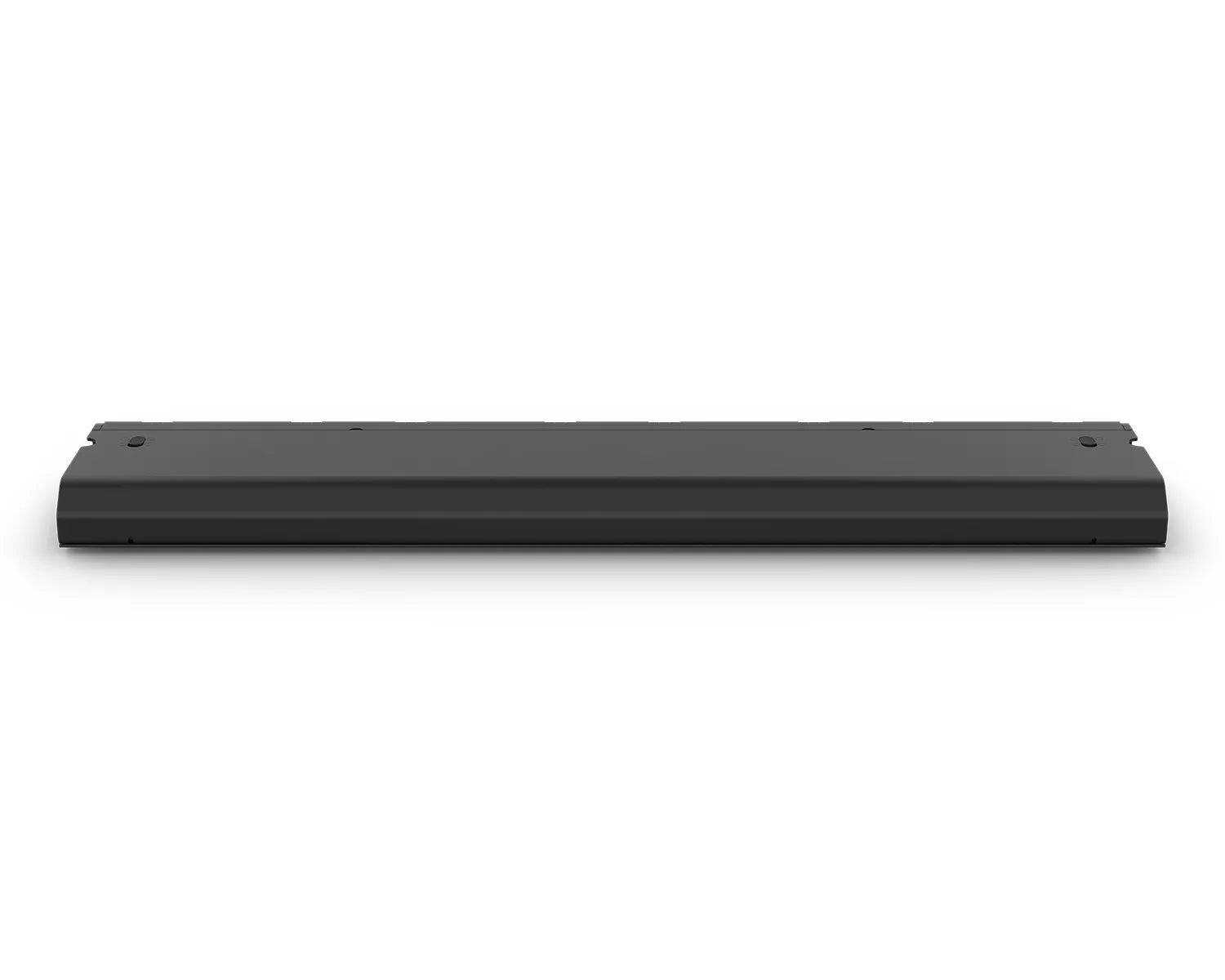

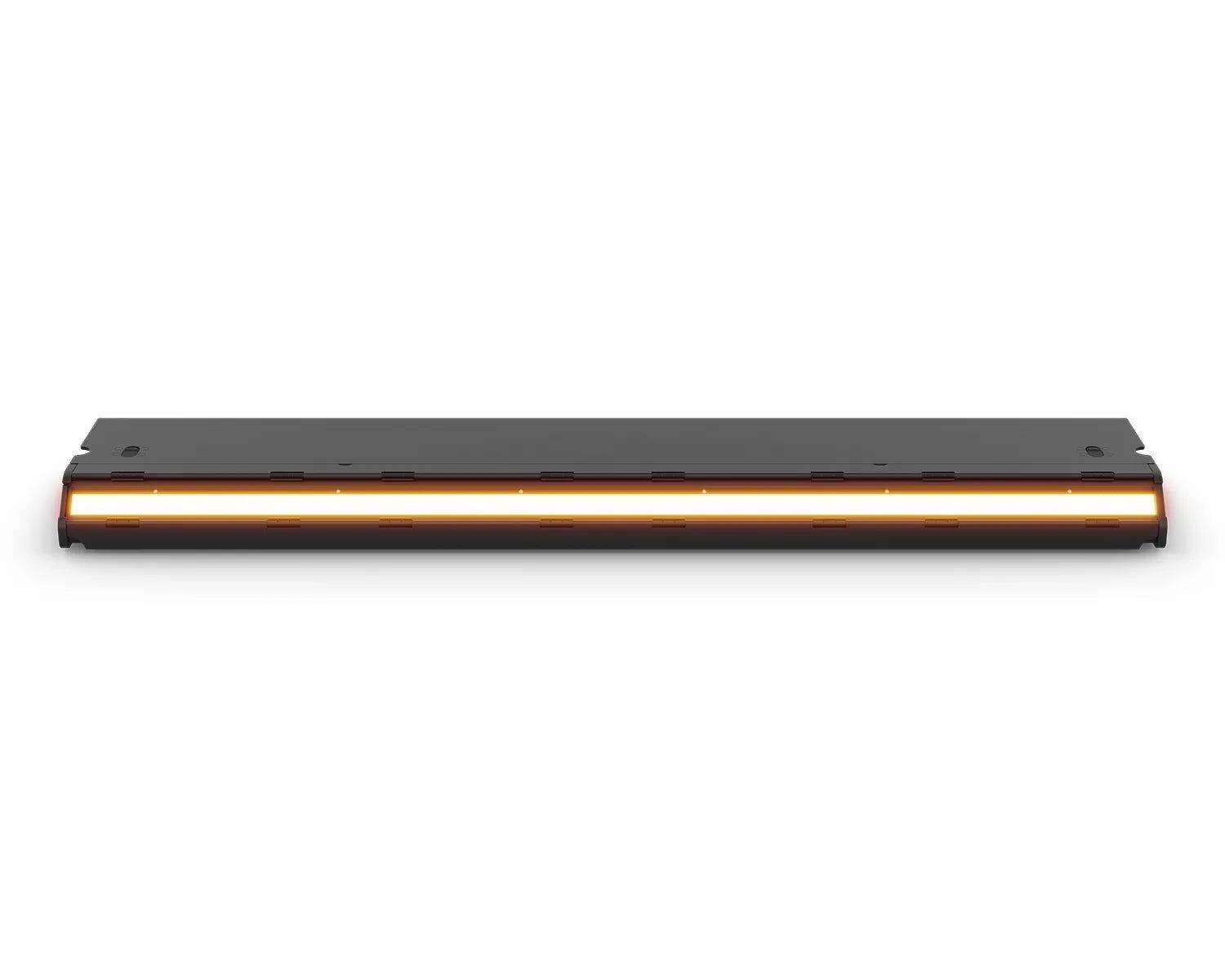

Chauvet COLORado Solo Edge 3 Low-Profile LED Footlight RGBwWL, IP65, 1000mm

SKU: COLORADOSOLOEDGE3
Chauvet Professional

Chauvet COLORado Solo Edge 3 Low-Profile LED Footlight RGBwWL, IP65, 1000mm

This low-profile 1-meter IP65-rated RGBwWL LED footlight projects high-quality white light and a full range of colour through a single-source lens designed to produce smooth, even output. Featuring fully-controllable RGB marker lights that can be used to cue talent or mark the edge of a stage, seamless end-to-end alignment, and a covered display, this elegant fixture also comes with a stealth filter that enables it to disappear when off.

Product Features

• Low-profile, 1m, IP65 rated footlight with full-colour and high-quality white light
• Single-source lens for smooth, even output with no distracting points of light and an additional “stealth” filter to help the fixture disappear when off
• Additional, fully controllable RGB marker lights can be used to cue talent or mark the edge of a stage
• Designed for end-to-end use with no gaps or distracting cable mess, and a covered display to keep everything elegant unseen

Product Specifications

Optical

• Light Source:  112 LEDs (Quintuple-colour-RGBWL) , K 20,000 hours life expectancy
• Colour Temperature (range):  2800 to 8000 K
• Colour Temperature (at full):  6600 K
• CRI (2800):  93
• Beam Angle:  111° (Horizontal)
• Beam Angle:  120° (Vertical)
• Field Angle:  134° (Horizontal)
• Field Angle:  161° (Vertical)
• Lumens:  17,698
• Illuminance (total):  221 lux @ 5 m
• PWM Frequency:  1000Hz, 2000Hz, 4000Hz, 6000Hz, 25KHz or 64KHz
• Selectable PWM:  1000Hz, 2000 Hz, 4000Hz, 6000Hz, 25KHz or 64KHz

Dynamic Effects

• Dimmer:  Electronic
• Shutter/Strobe:  Electronic
• Framing Shutters:  No
• Strobe Rate:  0 to 30Hz
• Standalone Colour Mixing:  Yes
• Colour Temperature Presets:  Yes
• Dim Modes:  4
• Dim Curves:  4
• Built-in Automated Programs:  Yes
• Customizable Programs:  Yes
• Recall Custom Programs:  Yes/No

Connections

• Power Connection:  Edison (Local) plug to Seetronic Powerkon IP65
• Power Input:  Seetronic Powerkon IP65
• Power Output:  Seetronic Powerkon IP65
• Data Connectors:  5-pin XLR
• Cable Length (power):  5 ft (1.5 m)

Control

• Control Protocol:  Art-Net, DMX, sACN
• DMX Channels:
  • 1 Cell:  5, 6, 6, 6, 6, 7, 11, 12, 12, 13, 14 or 21
  • 2 Cell:  8, 9, 9, 10, 12, 19, 21, 22, 23 or 37
  • 4 Cell:  14, 15, 15, 18, 22, 33, 37, 41,42 or 69
• Art-Net Channels:
  • 1 Cell:  5, 6, 6, 6, 6, 7, 11, 12, 12, 13, 14 or 21
  • 2 Cell:  8, 9, 9, 10, 12, 19, 21, 22, 23 or 37
  • 4 Cell:  14, 15, 15, 18, 22, 33, 37, 41,42 or 69
• Modes/Personalities:  personalities (32)
• Frequency (operating):  600Hz, 1200Hz, 2000Hz, 4000Hz, 6000Hz or 25KHz

Electrical

• Input Voltage:  100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking:  5 ; 6 units @ 120 V; 10 units @ 208 V; 11 units @ 230 V
• Power and Current:  242 W, 2.03 A @ 120 V, 60 Hz
• Power and Current:  237 W, 1.18 A @ 208 V, 60 Hz
• Power and Current:  236 W, 1.06 A @ 230 V, 50 Hz

Certifications / Qualifications

• CE, MET, ROHS
• IP Rating:  IP65, outdoor/wet, with pressure equalizing M12 GORE valve
• Temperature (Ambient):  4 °F to 113 °F (-15 °C to 45 °C)

Construction / Physical

• Dimensions:  39.37 x 8.85 x 2.51 in (1000x 225 x 64mm)
• Weight:22 lb. (10 kg)
• Exterior Colour:  Black
• Housing Material: Aluminium alloy and aluminium diecast

What's in the Box?

• COLORado Solo Edge 3
• Seetronic Powerkon IP65 power cord
• Power and Data linking cables
• Stealth Filter
• Omega bracket with mounting hardware
