Name: Martin VDO Sceptron 20 Linear LED Video batten with 20mm pixel pitch - 1000mm
Brand: Martin Professional
SKU: MAR1430
Price: 581.4 GBP
Availability: InStock

roll over the image to zoom in

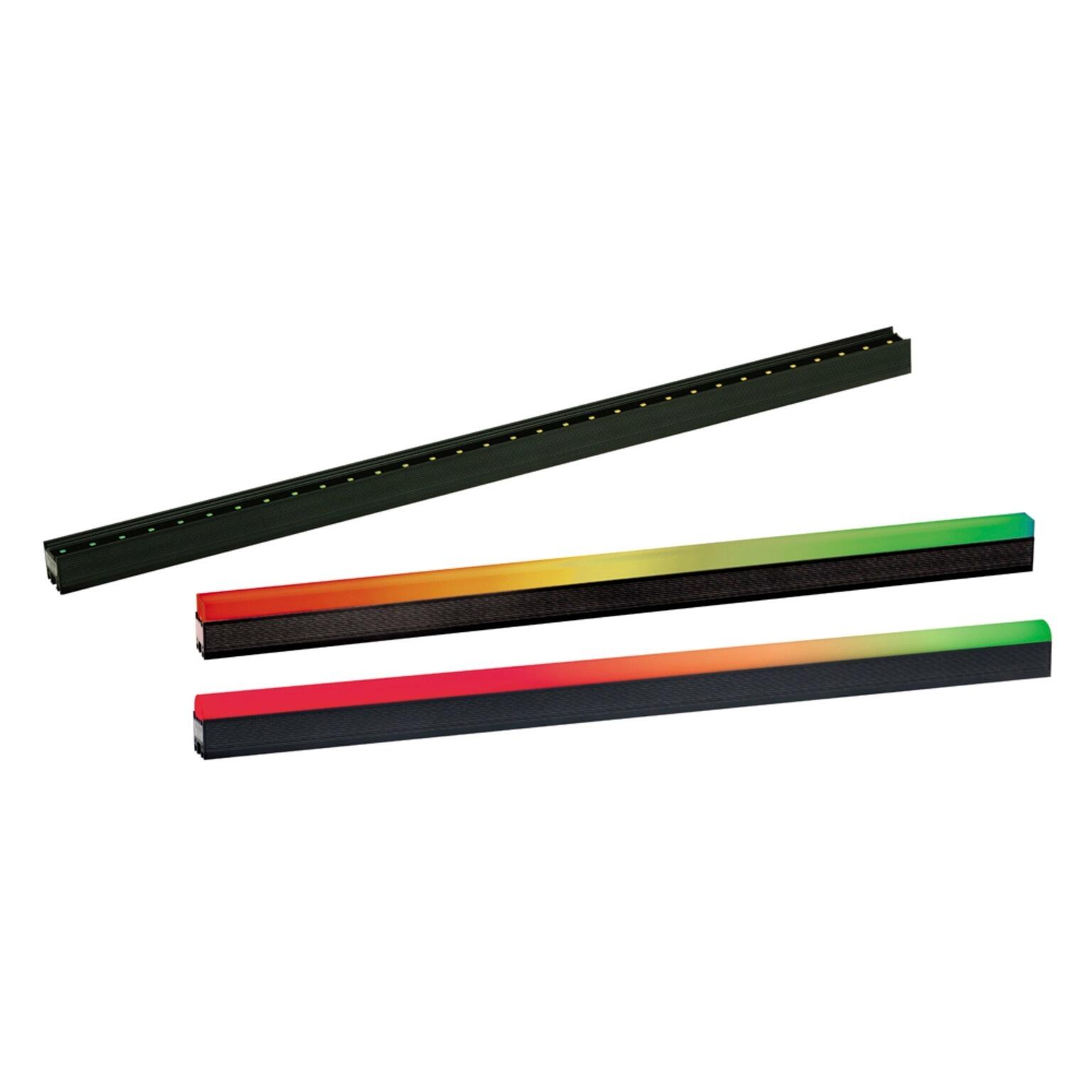

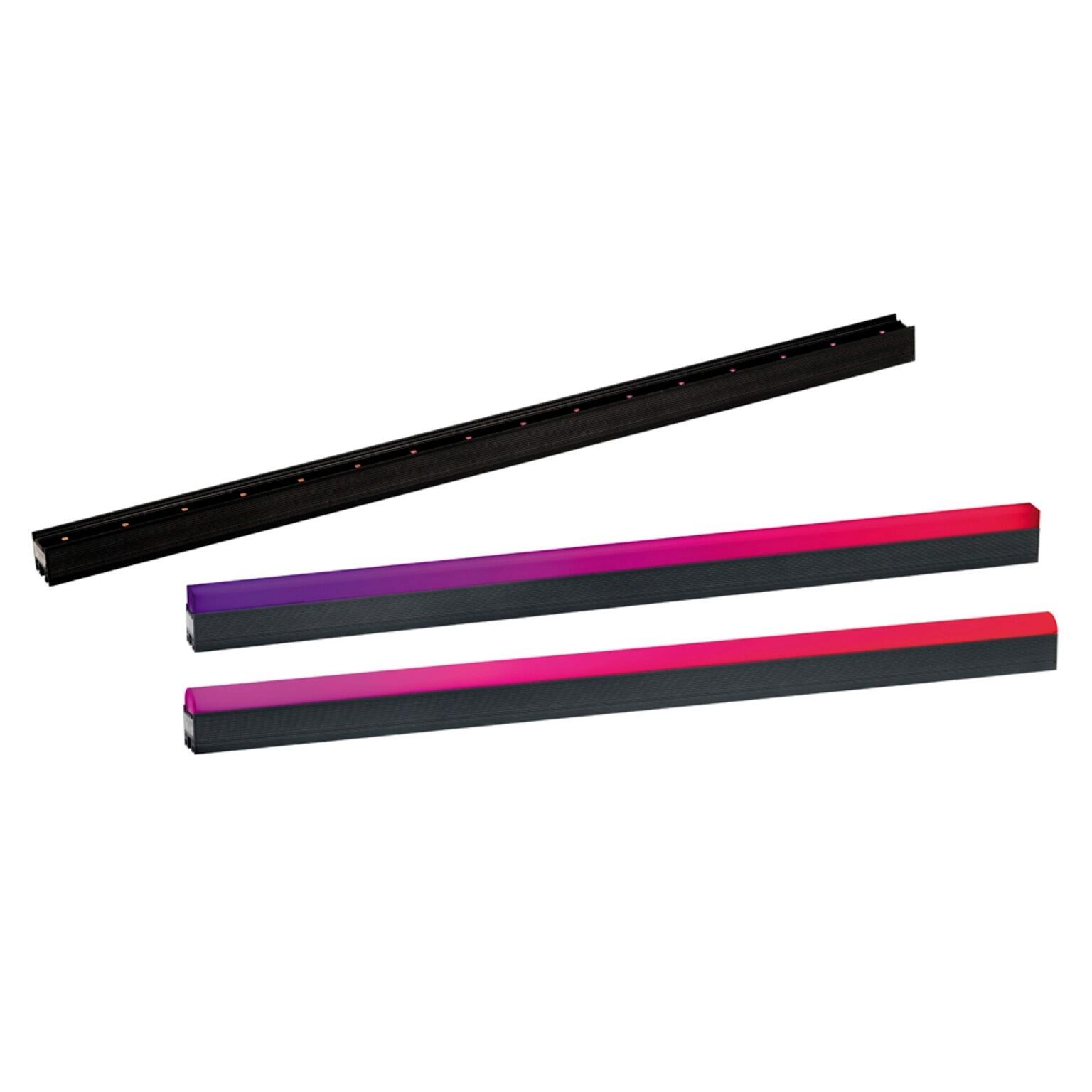

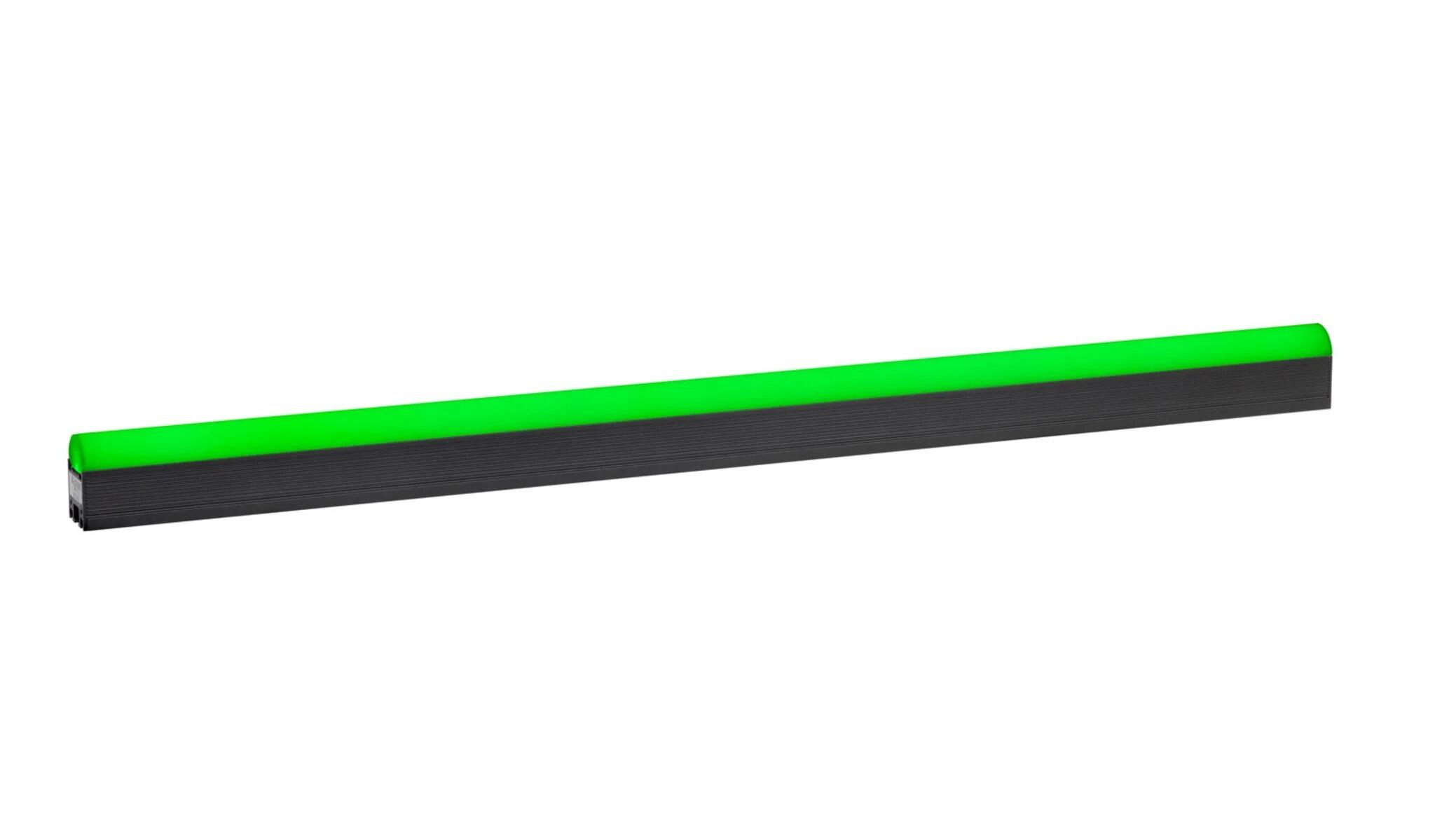

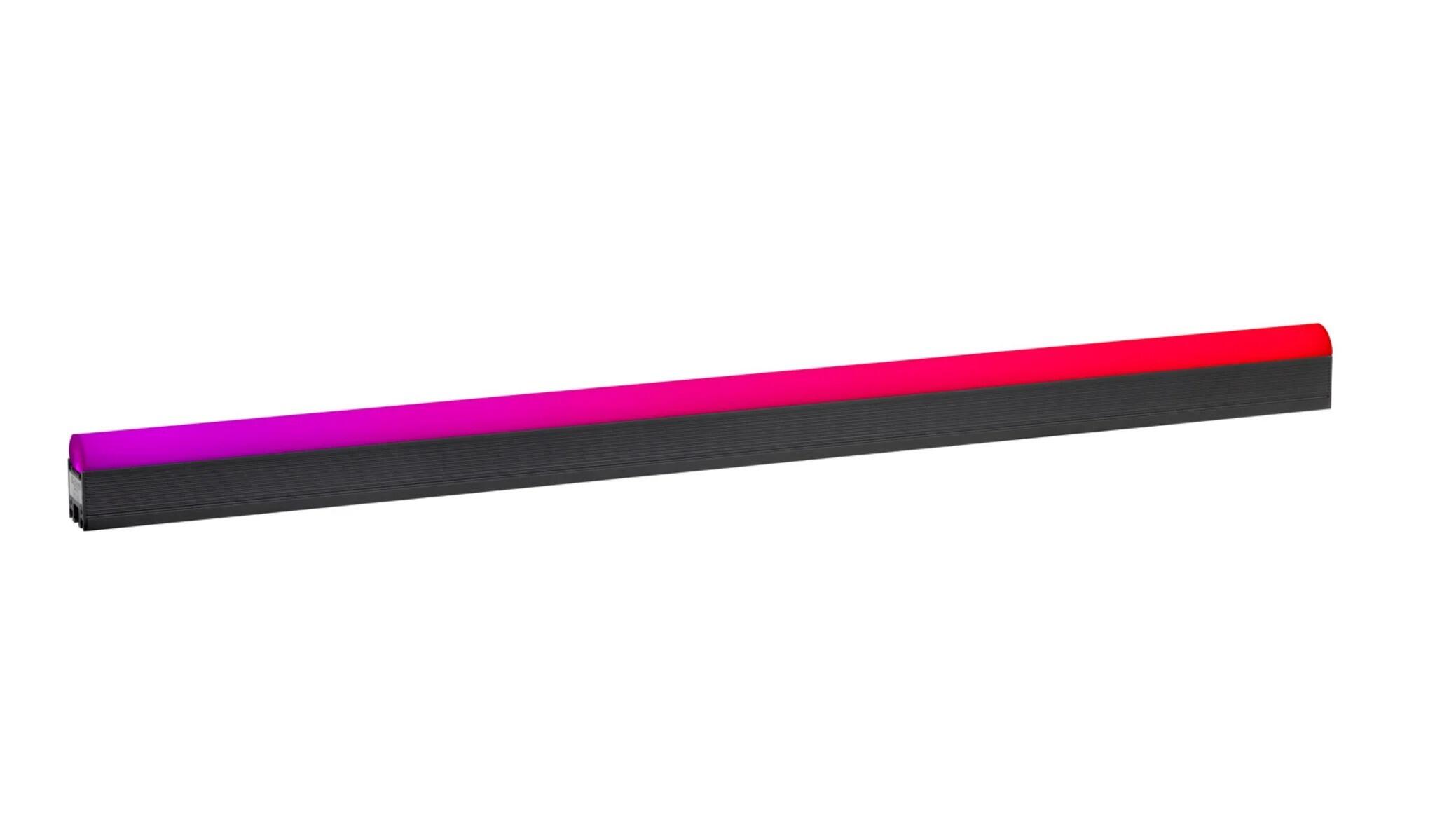

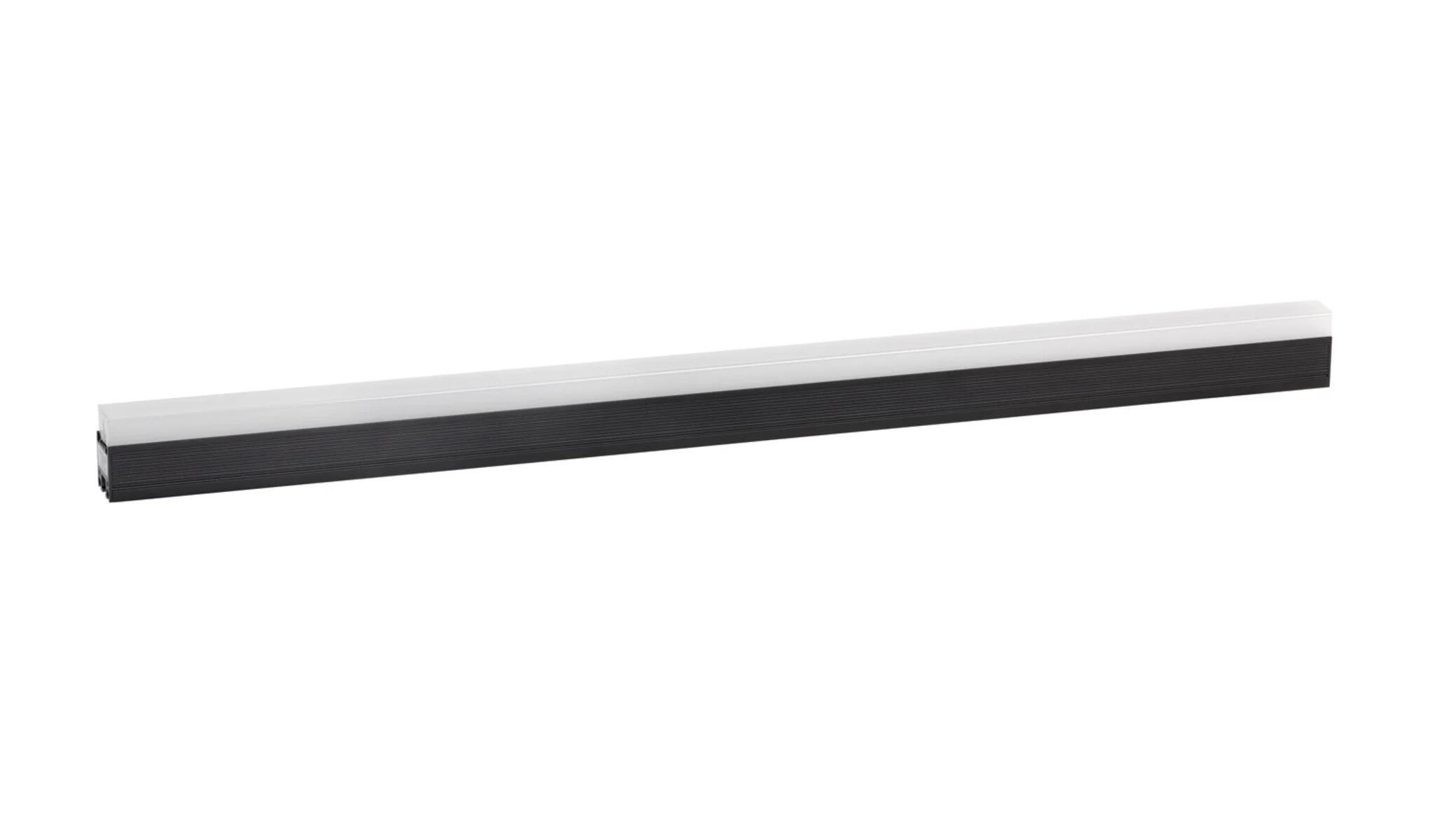

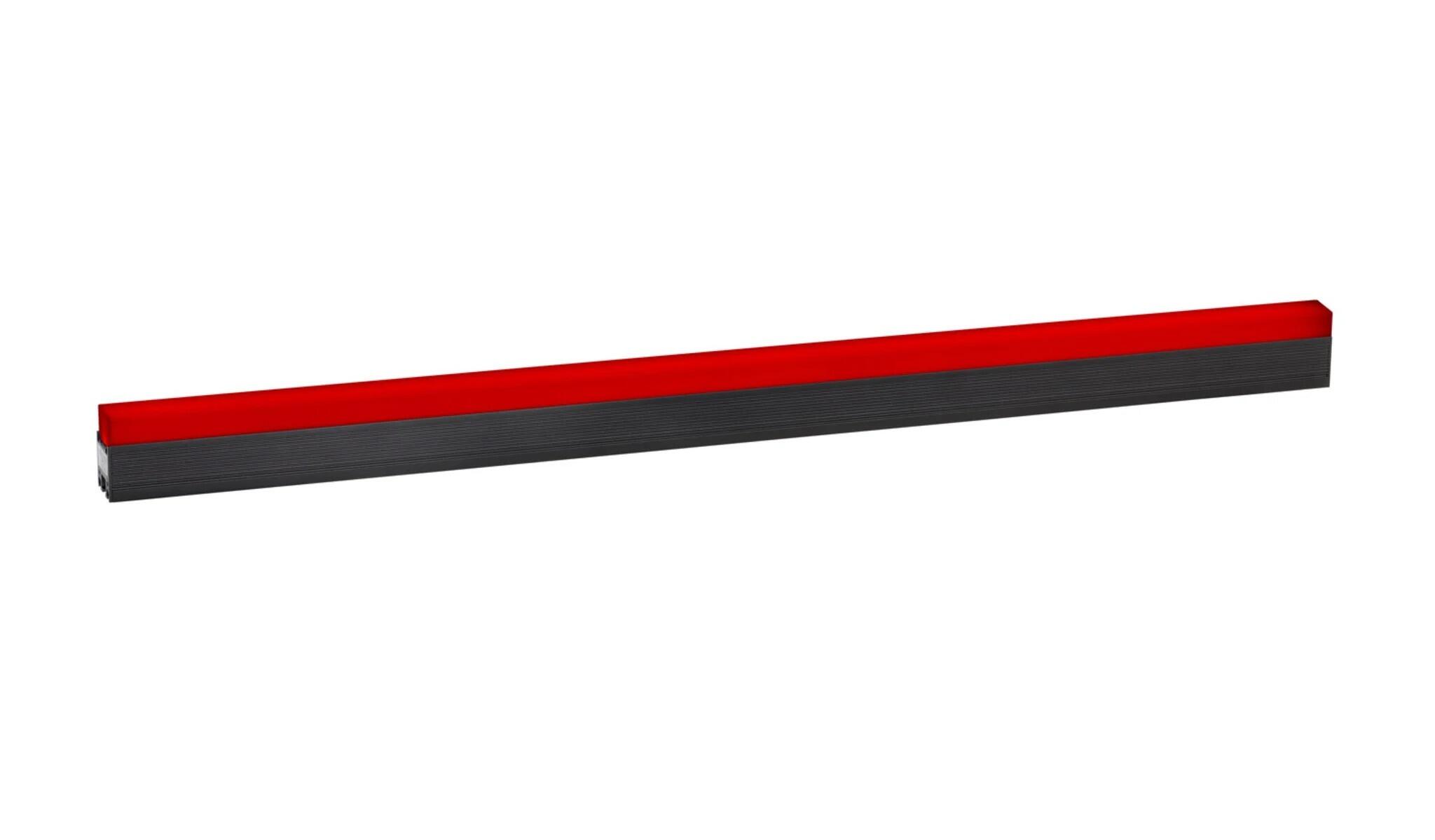

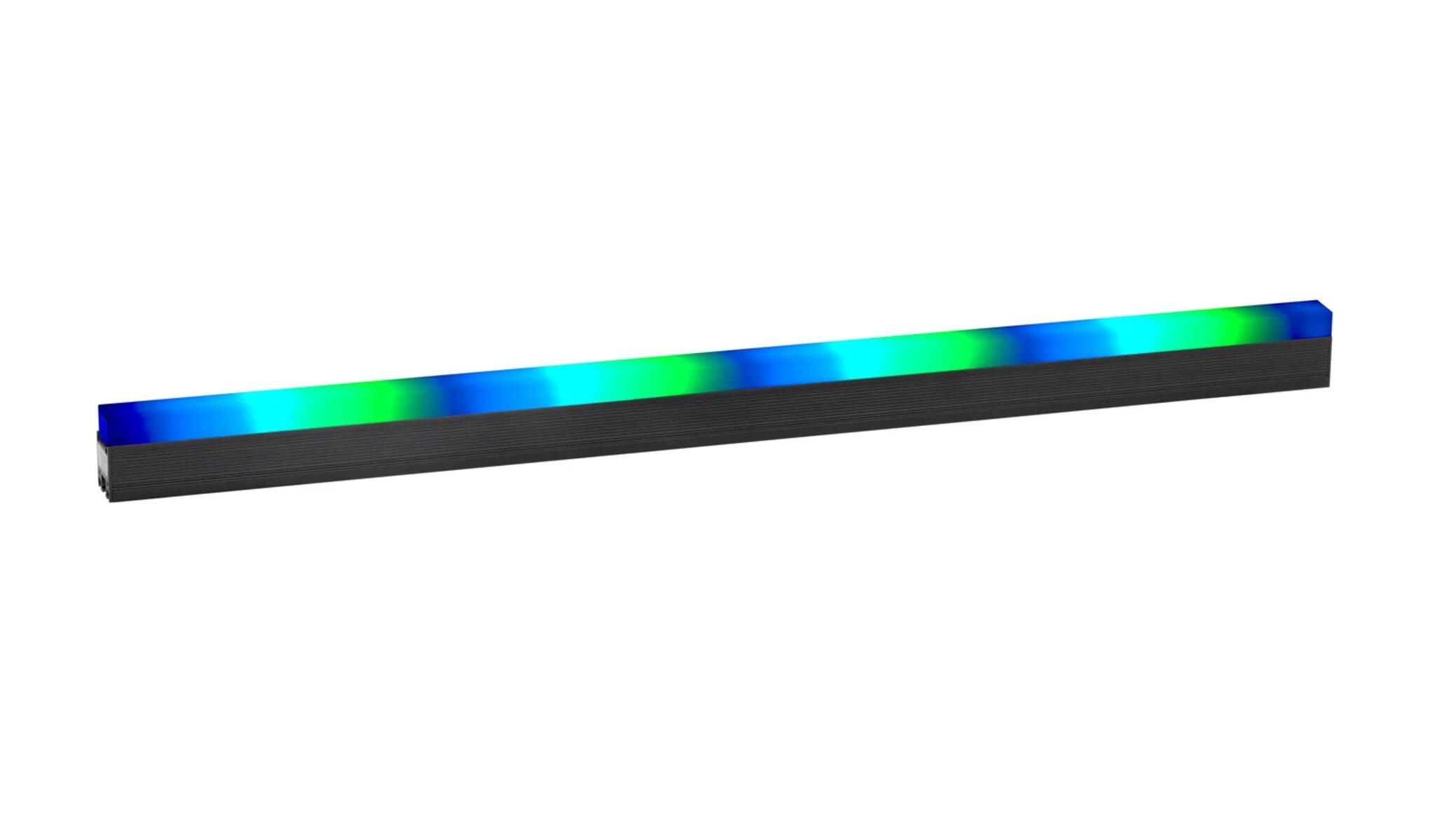

Martin VDO Sceptron 20 Linear LED Video batten with 20mm pixel pitch - 1000mm
SKU: MAR1430
Martin Professional

The VDO Sceptron 20 is a linear outdoor-rated LED video fixture for the rental market with 20 mm pixel pitch and an extensive range of optical accessories for a wide variety of looks. The VDO Sceptron 20 is driven by the Martin P3 System Controller family for easy configuration, mapping and setup, and is also backwards compatible with DMX for smaller setups. The integrated power and data cabling allows for long daisy-chains with many fixtures per cable-run, while the power supply can be located backstage (up to 50 m away) for a clean setup avoiding messy cabling and several driver boxes.

Extensive range of field-exchangeable optical accessories for a wide variety of looks
Easy setup, mapping and configuration
Bright and fully calibrated for optimal consistency
Complete range of rigging accessories available

£581.40

£684.00

View video

Product Features
- Supported by integrated power and data processor (P3 PowerPort 1500, P3 PowerPort 1000 IP or DMX PowerPort 375) and simple cabling system
- Combined power and data cabling (compatible with other products such as VDO Fatron and VDO Dotron)
- DMX Control
- P3 Control with VideoMapping
- Hybrid DMX + P3 Control (toggle in real-time between DMX, PixelMapping and VideoMapping using P3 Switch channel)
- Extensive range of built-in effects
- Intuitive mapping and addressing via P3 System Controller
- Fully brightness and color calibrated for optimal consistency between products (colors matched with VDO Fatron and VDO Dotron)
- Pixel-level brightness and color calibrated for a completely homogenous look
- High-quality 16-bit per color image processing technology
- 20 mm pixel pitch
- 125 cd per meter calibrated
- 375 lumen per meter calibrated
- Field-exchangeable diffusers and lenses
- IP65 rated for outdoor use
- Versatile rigging accessories
- Available in two lengths: 1000 mm and 320 mm
Technical Specification
PhysicalVDO Sceptron™ 20, 1000 mm model:
Length: 1000 mm (39.4 in.)
Width: 27 mm (1.06 in.)
Height without front: 28 mm (1.10 in.)
Height with standard front (Square Diffuser): 42 mm (1.65 in.)
Weight without front: 1.2 kg (2.6 lbs.)
Weight with standard front (Square Diffuser): 1.4 kg (3.1 lbs.)
Control and ProgrammingControl resolution: 16-bit (P3) or 8-bit (DMX) control of each colorControl options: Martin P3™ System Controller (via Martin P3 PowerPort™) or DMXProtocol detection: AutomaticSetting and addressing: Martin P3™ System Controller or RDM-compliant controllerColor and intensity calibration: Pixel-levelDMX compliance: USITT DMX512-ARDM compliance: ANSI/ESTA E1.20Firmware update: Via Martin P3™ System Controller
Control modes, direct DMX control: RGB, Basic, Segment and Pixel
DMX channels, direct DMX control: 3/10/13/22/55/157
Control modes, DMX via P3: P3 Intensity, P3 RGB, P3 Basic, P3 Hybrid and P3 PixelMap
DMX channels, DMX via P3: Wide range of options from 1 to 153
Control/User InterfaceDevice status: Multi-color visual indicationDevice test and reset: Magnetic pushbutton to call up local test patterns and reset device
OpticsMinimum LED lifetime: 50,000 hours (to >70% luminous output)*
*Figure obtained under manufacturer’s test conditions

Binning: Tight color and flux binningCalibration: Full Gamut Pixel Calibration
Diffuser/Lens Options:
Open Front
Flat Diffuser
Flat Smoked Diffuser
Round Diffuser
Round Smoked Diffuser
Square Diffuser (supplied standard with fixture)
Square Smoked Diffuser
Tube Diffuser
Tube Smoked Diffuser
NoBlend Diffuser 20 mm
NoBlend Smoked Diffuser 20 mm
NoBlend Diffuser 40 mm
NoBlend Smoked Diffuser 40 mm
Lens Array Narrow 20 mm
Asymmetric (Wall-Washing) Lens
All optical accessories are interchangeable and clip onto fixtures
Photometric DataColor resolution: 16 bits per color (48 bits per pixel)Viewing angle: 120° x 120° (half-peak)
Pitch (pixel center-to-center): 20.00 mm
Luminous intensity, calibrated mode: 125 cd per meter
Luminous output, calibrated mode: 375 lumen per meter
Total output, calibrated mode: 4166 nits (fixtures placed in continuous surface at 30 mm center-to-center)
LED Array VDO Sceptron 20 1000mm: 1 x 50
CCT: 6500 Kelvin
LED refresh rate - Standard Mode: 1001 Hz
LED refresh rate - High Refresh Mode: 4004 Hz
* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.
Video Processing
Brightness control
Gamma correction and control
Color temperature control
Color space control
Calibration processing
Synchronization
Signal ProtocolMartin P3 (via Martin P3™ PowerPort) or DMX
ConstructionColor: Matte blackBase: Extruded aluminum profileProtection rating: IP65RoHS compliant
InstallationMounting: Channel for M6 captive nuts on back of profileMounting options: M6 bolts, optional sliding bracket (accepts M12 bolt), half coupler, spigot adapter, linear coupler, parallel coupler, pivot coupler, floorstandOrientation: Any

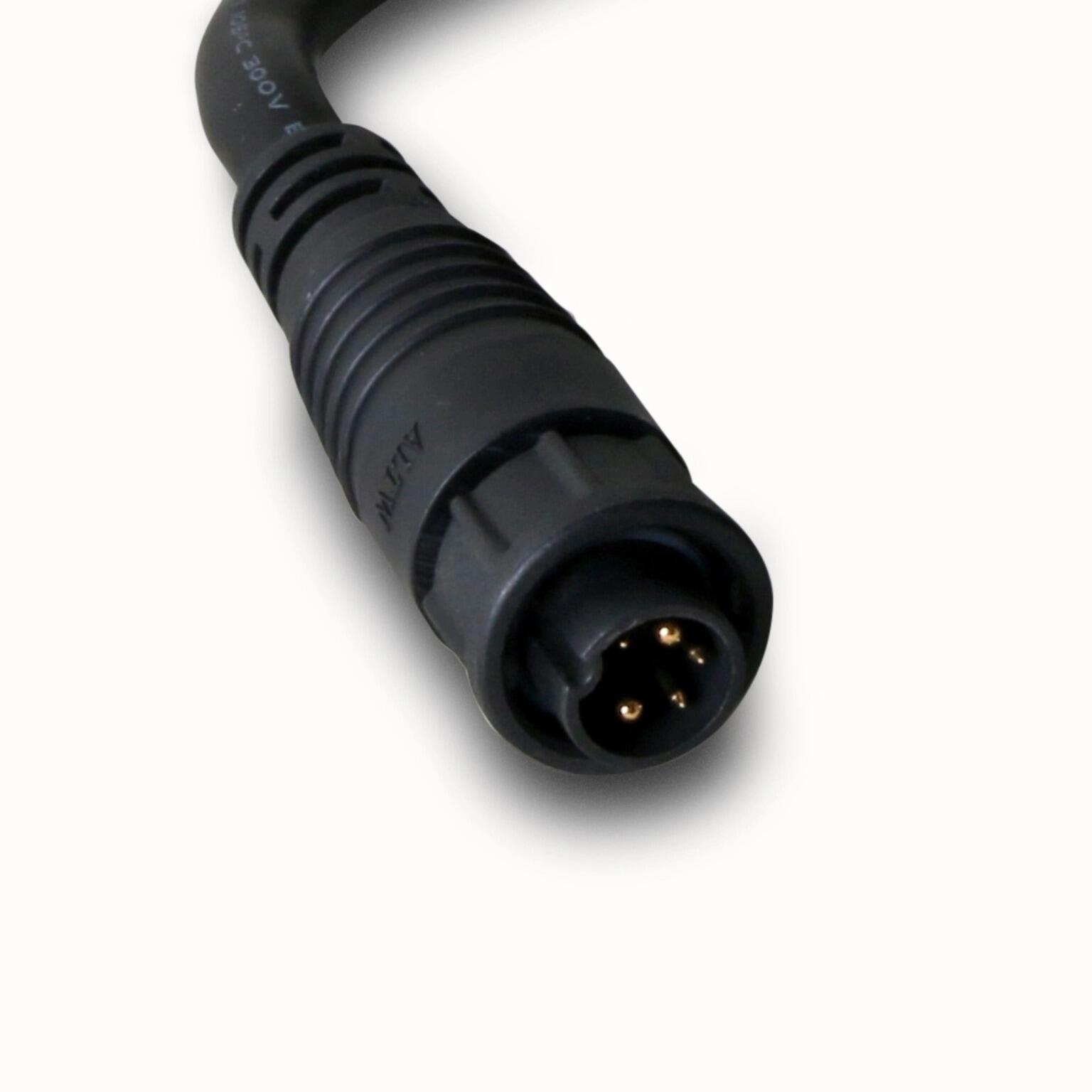

ConnectionsPower and data input: 6-pin custom (BBD) IP66-ratedPower and data thru: 6-pin custom (BBD) IP66-ratedHot plugging compatible
ElectricalNominal input voltage: 48 VDC +/- 4%Power supply options: Martin P3™ PowerPort 1500, Martin P3™ PowerPort 1000 IP, Martin™ DMX PowerPort 375, Martin™ IP66 PSU 240W or generic 48 VDC PSU Maximum power consumption, all LEDs at full intensity, VDO Sceptron™ 20, 1000 mm: 15 W
ThermalCooling: ConvectionMaximum ambient temperature (Ta max.): 55° C (131° F)Minimum ambient temperature (Ta min.): -30° C (-22° F)Total heat dissipation (calculated, +/- 10%):
VDO Sceptron™ 20, 1000 mm: 60 BTU/hr
EnvironmentalRoHS: CompliantREACH: CompliantWEEE: CompliantProposition 65: CompliantEfficacy (max output): 22.1 lm/WLWR*: 277 lm/kg (128 lm/lb)
LWR = Lumen-to-Weight Ratio
ApprovalsEU safety: EN 60950-1, EN 60950-22, EN 62471EU EMC: EN 55032, EN 55024US safety: UL 60950-1, UL 60950-22US EMC: FCC Part 15 Class ACanadian safety: CSA C22.2 No. 60950-1, No. 60950-22Canadian EMC: ICES-003 Class AAustralia/NZ: RCMIndia: BIS
