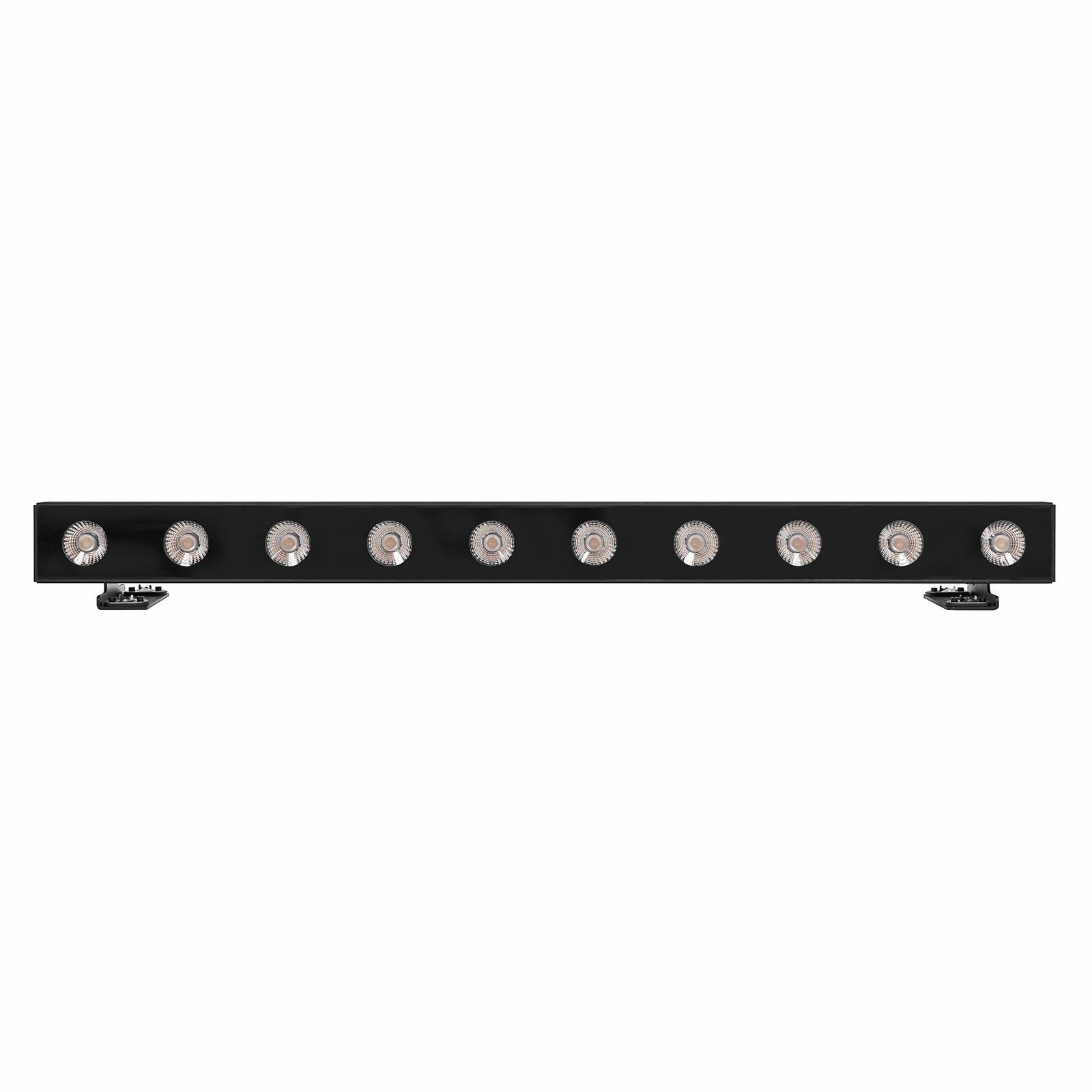

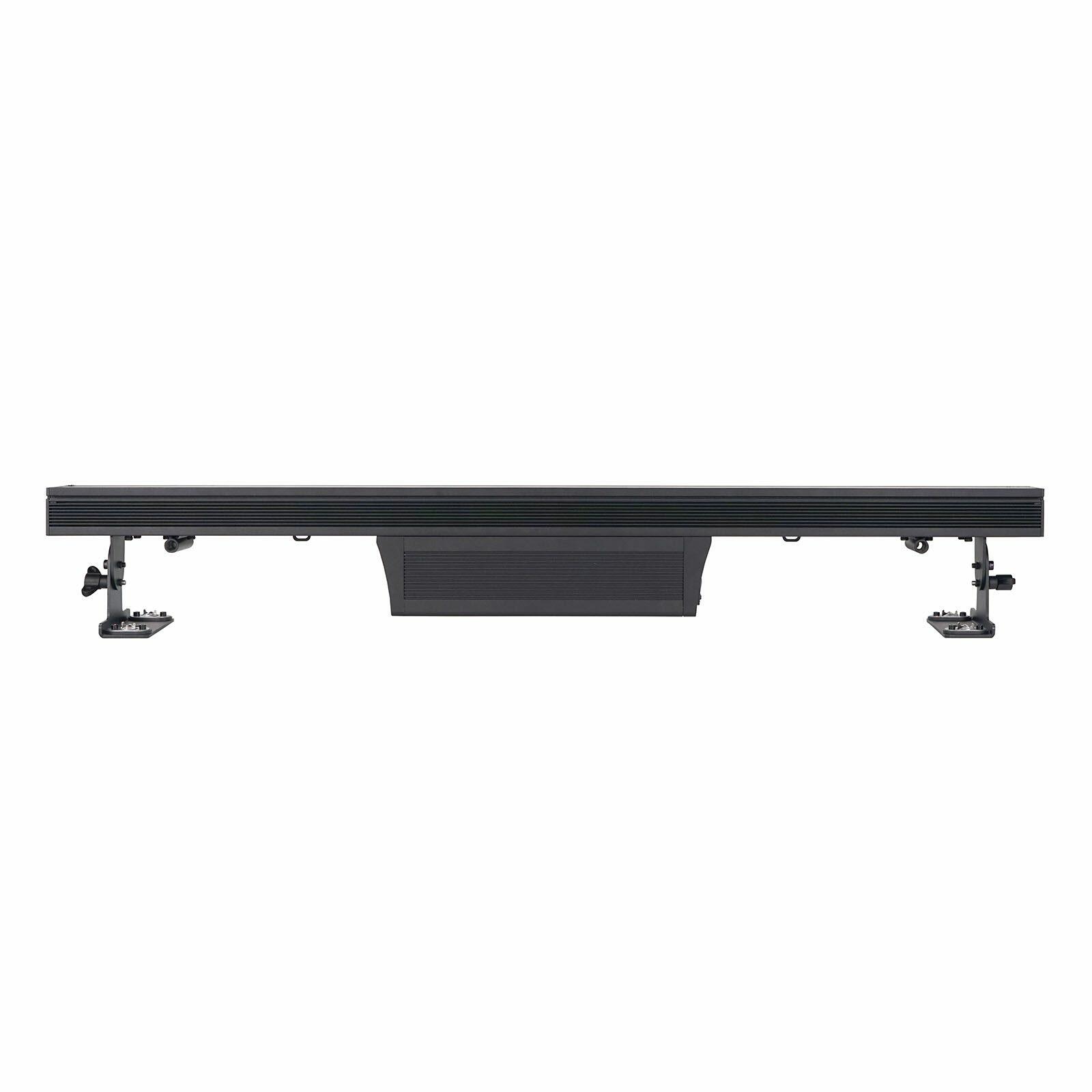

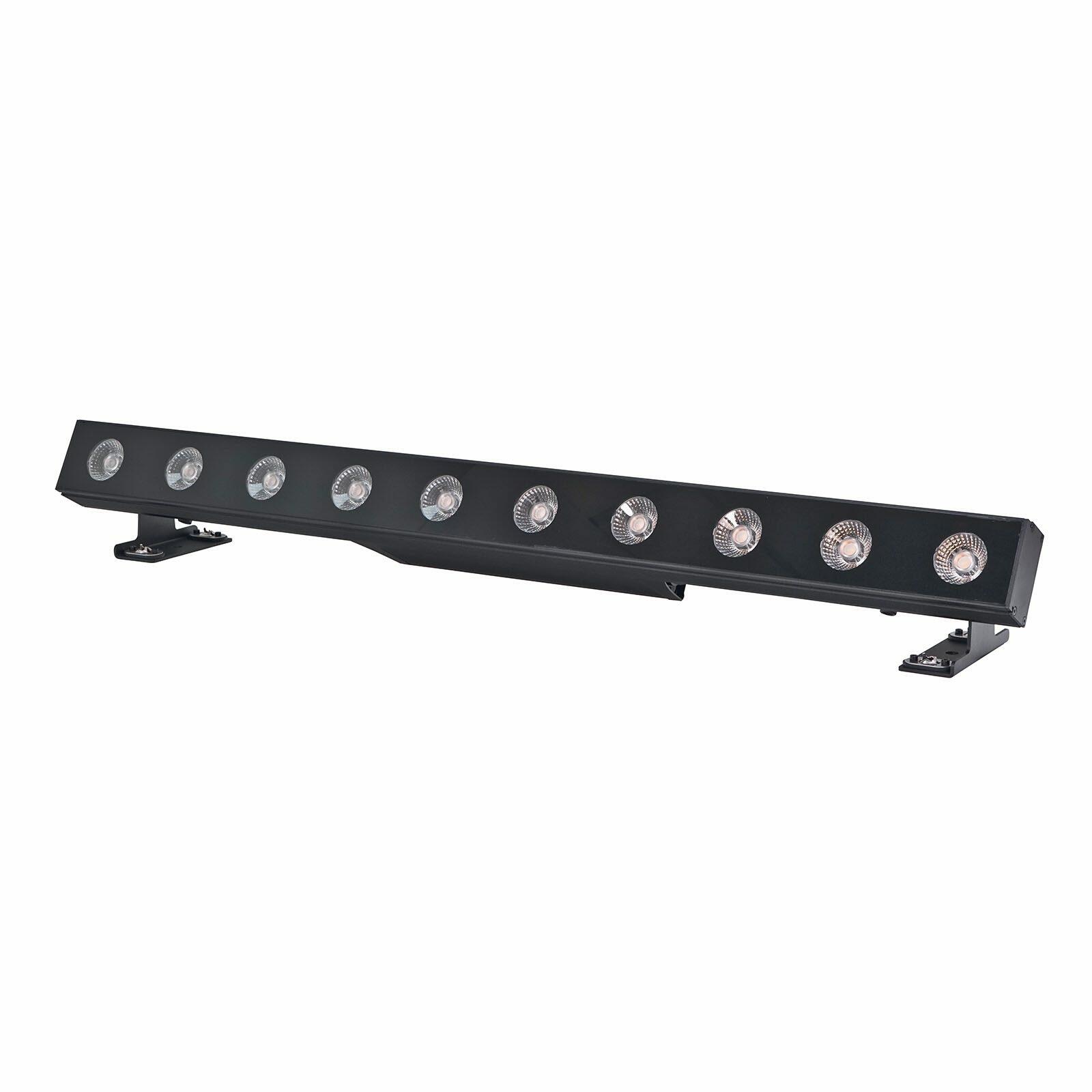

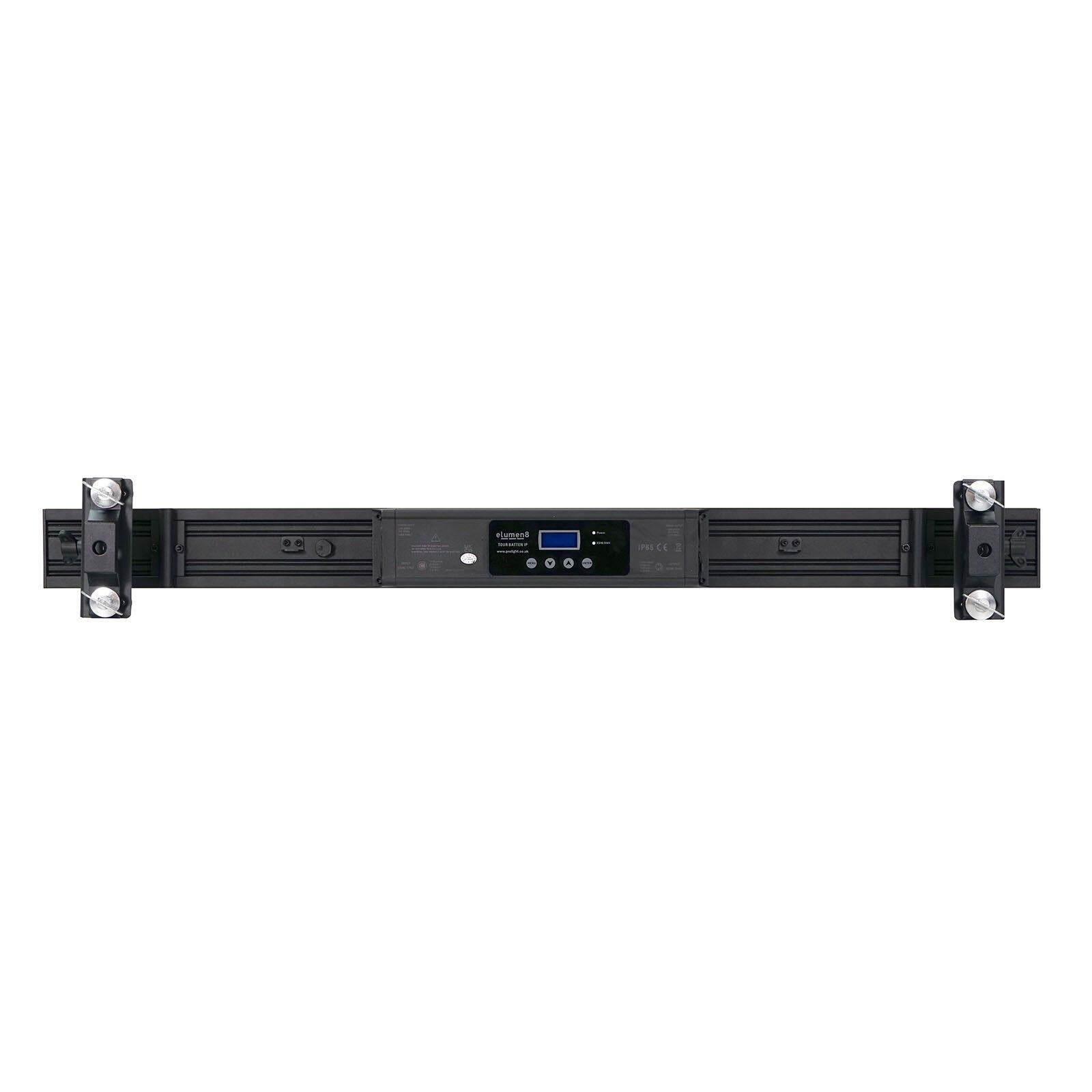

Elumen8 Tour Batten IP65
SKU:
ELUM125
eLumen8
The eLumen8 Tour Batten IP65 is a rugged, rental-ready LED batten designed for professional stage and outdoor use. Equipped with 10 x 10W tunable warm white LEDs, it delivers a variable colour temperature from 1,600K to 2,900K, perfectly emulating traditional halogen fixtures. Its automatic colour temperature shift mimics the warm fade of halogen lamps when dimmed, creating a natural, sunstrip-like effect.
With multiple DMX channel modes, built-in macros, and master/slave operation, this fixture offers versatile control options for dynamic lighting setups. The integral pivoting brackets with omega clamps allow for flexible rigging or floor-standing applications, making it ideal for touring productions, concerts, and theatrical performances.
Housed in a robust IP65-rated enclosure, the Tour Batten IP65 features PowerTwist TR1 and 5-Pin DMX inputs/outputs for seamless integration into any lighting setup. Its convection cooling ensures silent operation, making it suitable for TV and theatre applications.
- Product Features
- 10 x 10W tunable warm white LEDs (1,600K-2,900K)
- Halogen emulation with automatic colour temperature shift
- 38° beam angle with 3,320 Lux @ 2m (full on)
- 8-bit and 16-bit DMX channel modes (1/2/5/10/15 or 2/4/10/20/25)
- Static, auto-run, and master/slave operation
- Built-in macros with adjustable speed and fade times
- 0-100% dimming (8 or 16 bit) with variable strobe
- RDM (Remote Device Management) support
- Pivoting brackets with omega clamps for flexible mounting
- PowerTwist TR1 and 5-Pin DMX I/O for reliable connectivity
- Silent convection cooling for theatre and broadcast applications
- IP65-rated for outdoor use
- Technical Specification
Specification Power Consumption 98W Power Supply 100-240V, 50/60Hz IP Rating IP65 Dimensions 143mm X 1000mm X 135mm Weight 6.26kg - Downloads
