Adastra WA215 In Wall Amplifier with USB/microSD player, FM + Bluetooth - 953.132UK

SKU: 953.132UK
Adastra

Adastra WA215 In Wall Amplifier with USB / microSD player, FM + Bluetooth receiver

Compact audio controller with 2 x 15W digital amplifier built into a single gang wall plate. Powered directly from 100-240Vac mains supply, the unit can be installed into a partition wall or 47mm back box and provides a minimal yet fully functional control surface. The WA-215 has an inbuilt USB/MicroSD audio player, an FM tuner and Bluetooth receiver.

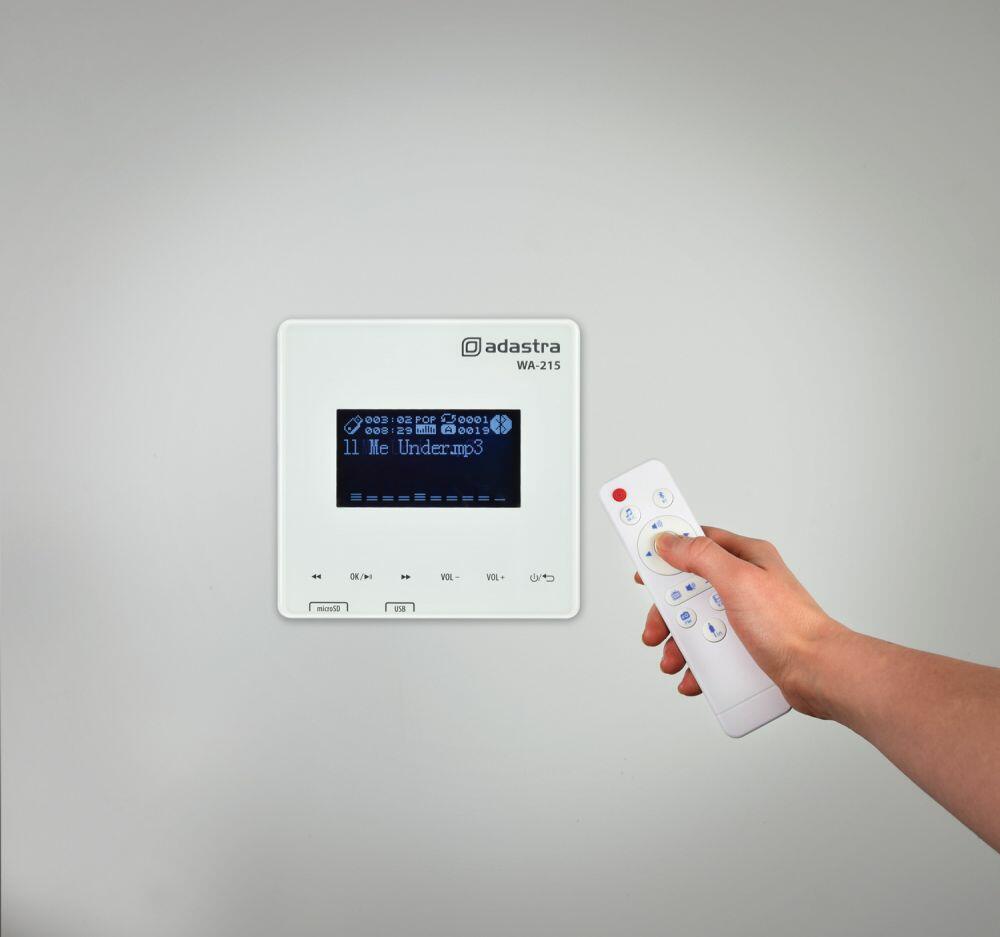

Key functions are operated from the front touch panel or by using the supplied IR remote control.

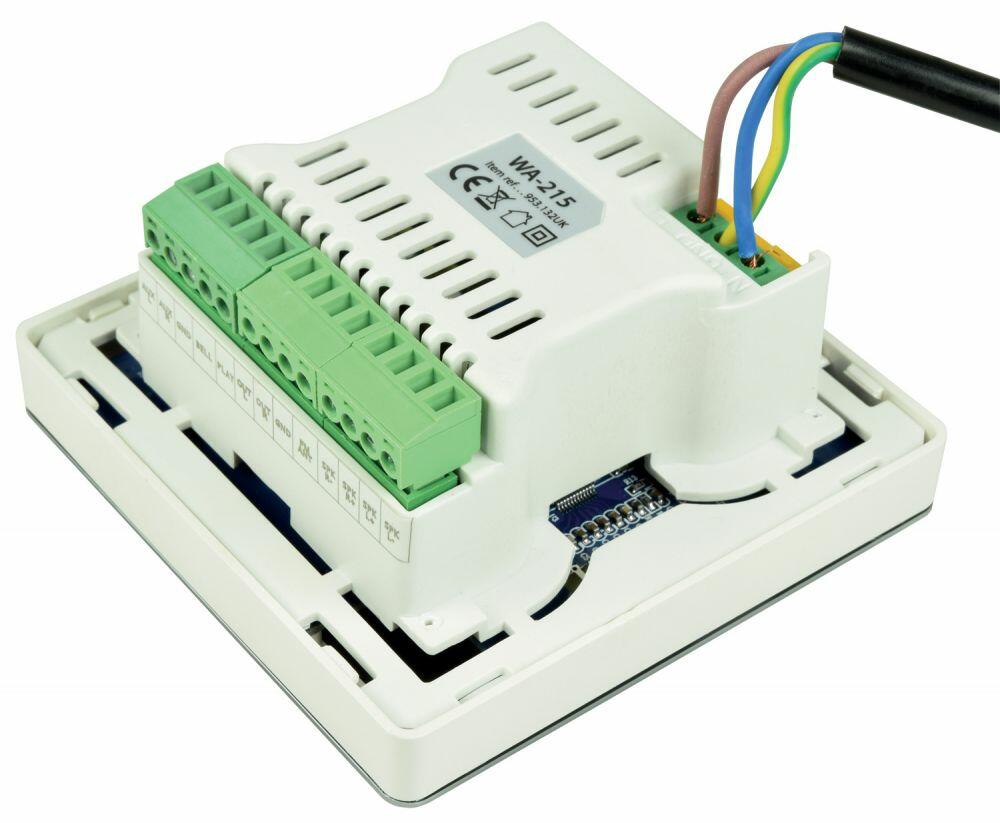

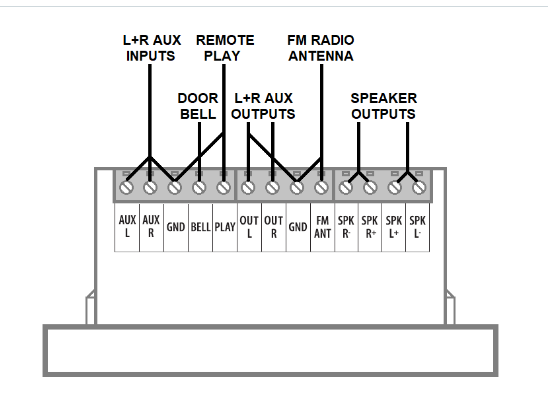

Connections for 2 speakers, mains power, FM antenna and an external line input are provided at the rear on screw terminal Euroblock connectors.

Trigger contacts are also included for media playback and in internal doorbell sound.

A complete and versatile audio solution for wall or ceiling background music speakers in the home or commercial premises.

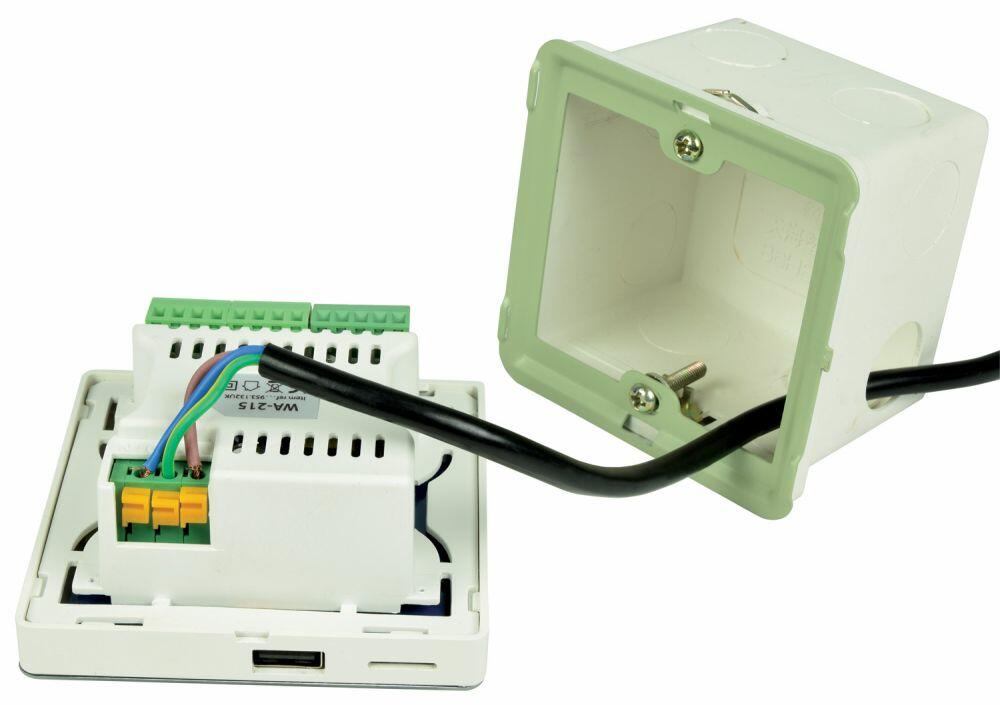

Supplied with 57mm back box and IR remote control handset.

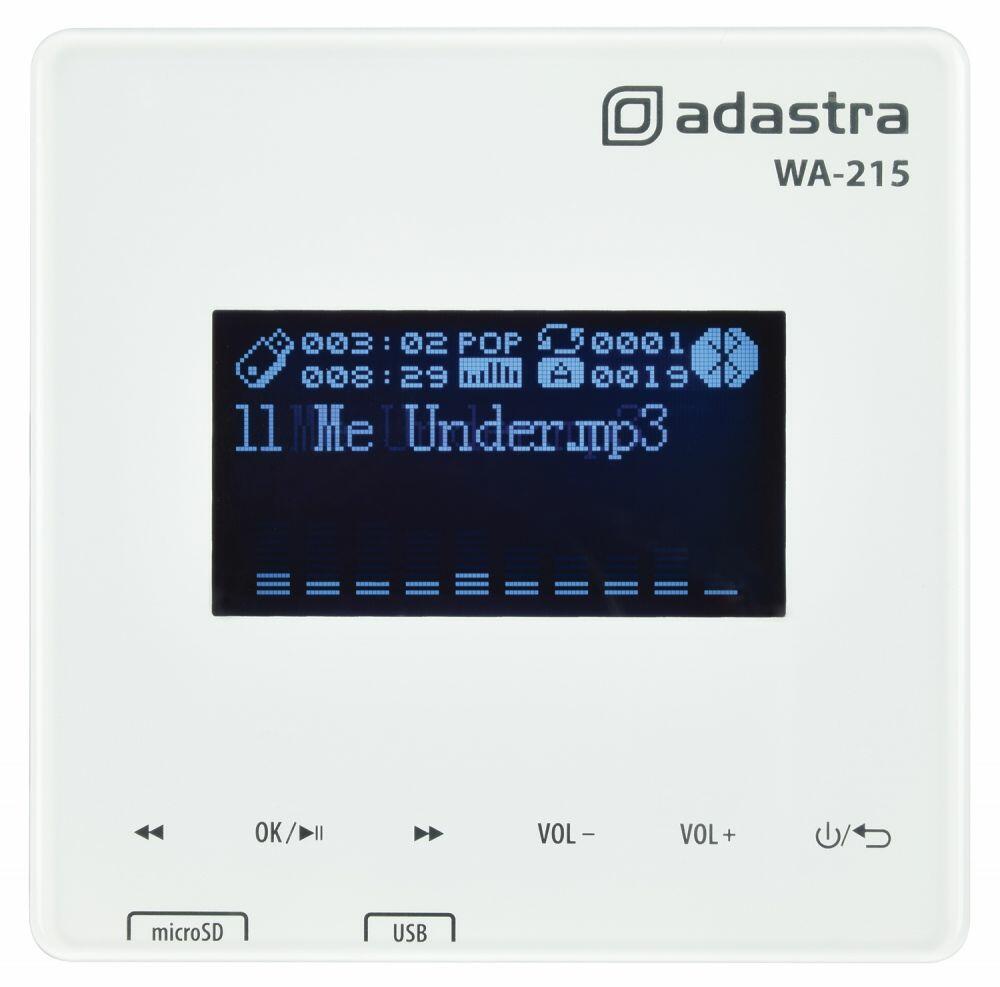

60mm backlit LCD display

Wipe clean touch control panel

Bluetooth connectivity

Built in USB/microSD player and FM tuner

Power supply100-240Vac, 50/60Hz (euroblock terminals)

Audio sourceUSB / microSD player, FM tuner and Bluetooth receiver

Audio formatmp3, wma, wav

FM : tuning range87.5 - 108MHz

Bluetooth rangeUp to 10m

Frequency response20Hz - 20kHz (,3dB)

THD<0.03% at 1kHz, 1W

S/N ratio>98dB

TriggerRemote playback and door bell (euroblock terminals)

Auxiliary inputLeft + right line in (euroblock terminals)

Mounting depth47mm (with adequate ventilation), 57mm back box supplied

Dimensions86 x 86 x 50mm

Weight150g

Bluetooth version4.1

Outputs:

2 x 15w @ 8 ohm

L+R Aux Line Level Output ( Unbalanced )
