- Citronic D1000 Class D Power Amplifier, 2 x 500w, 172.110UK
Citronic D1000 Class D Power Amplifier, 2 x 500w, 172.110UK - Citronic
roll over the image to zoom in
Citronic D1000 Class D Power Amplifier, 2 x 500w, 172.110UK
SKU:
172.110UK
Citronic
Citronic D1000 Class D Power Amplifier, 2 x 500w, 172.110UK
Stereo power amplifier in a lightweight 1U rack-mountable housing. Class-D circuit architecture efficiently converts power into impactful audio for driving medium to large speaker cabinets. Custom cool guide technology ensures consistent and reliable operation and an inbuilt limiter circuit engages at peak output to prevent speaker overload. Options for parallel and bridge mode with selectable input levels and 75Hz low cut filter allow for different confgurations to handle even the most demanding of sound reinforcement duties.
172.110UK | 172.106UK | |
|---|---|---|
| Fuse | T10A (20 x 5mm) | T8A (20 x 5mm) |
| Power rms @ 4 Ohms | 2 x 500W | 2 x 300W |
| Power rms @ 8 Ohms | 2 x 250W | 2 x 150W |
| Bridge power @ 8 Ohms | 1 x 1000W | 1 x 600W |
| Weight | 3.93kg | 3.77kg |
- Cool and efficient operation even at high output
- Compact and lightweight 1U rack format
- Switchable parallel and bridge modes
- Power supply220-240Vac, 50/60Hz (IEC)
- ModesStereo, Parallel (mono), Bridge (mono)
- Input sensitivity0.775V - 1.0V - 1.44V switchable
- Low-cut filter75Hz switchable
- Input connectionsL+R XLR female (L+R XLR male through)
- Output connectionsL+R SPK connectors (+1 for bridge mode)
- Dimensions482 x 245 x 44mm
£276.76
£339.00
Earn0
reward points
reward points
Related Products...
RCF IPS3700 Class H Power Amplifier 2x1500W @ 4? 2U
IPS Series is a range of two-way professional amplifiers that combines high quality performance and reliability with the latest power amplifications t...
£911.04£1,138.80View details
Wharfedale DP 4035 Class D 4 Channel Power Amplifier
Key Features Super light weight - Only 8.14kg 4 channel configuration Power Output 8 : 4 x 350w 2 x 1190w@...
£778.06£819.00View details
TOA VX-015DA VX-3000 Series Amplifier Module, 150w
TOA VX-015DA VX-3000 Series Amplifier Module, 150w Power level: 150W Low loss modular class D amplifiers Modules to be mounted in the frame units Can ...
£486.00£540.00View details
Wharfedale XR2500 Amplifier,
Wharfedale XR2500 AmplifierThe Wharfedale XR2500 is a 2-channel power amplifier that can deliver up to 750W of output power per channel; perfect for s...
£362.90£382.00View details
Citronic H2400 Hybrid Power Amplifier, 2 x 900w @ 4ohm 172.125UK
Citronic H2400 Hybrid Power Amplifier, 2 x 900w @ 4ohm 172.125UKLightweight power amplifiers in a 19 rack-mountable housing for generating high sound ...
£454.50£539.00View details
TOA VP-2421 INCL VX-2000 Series Power Amplifier 1 x 420 Watt, with 1 x VP-200VX fitted
The VP-2421 Power Amplifier features a 420 W-by-1 channels configuration, and uses the VP-200VX Power Amplifier Module per channel.Power configuration...
£1,150.20£1,278.00View details
W Audio EPX 1200 2 X 600W Power Amplifier
W Audio have designed the EPX Series power amplifiers to work perfectly with most loudspeaker systems. These power amplifiers feature several power ou...
£301.62£317.50View details

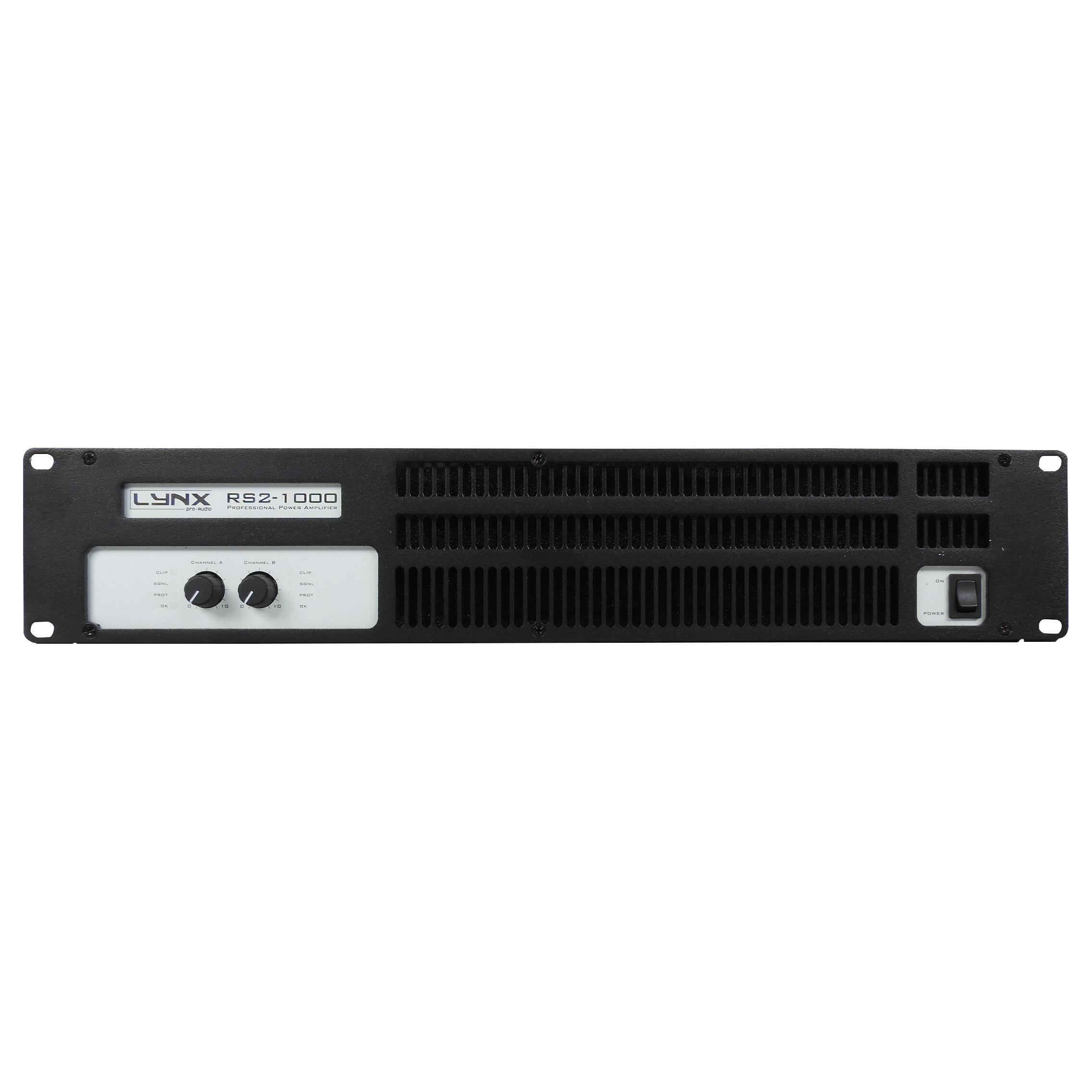

Lynx Pro-Audio RS2-1000 2 x 500W Power Amplifier
A range of lightweight 2 or 4 channel power amplifiers designed to meet the demands of installation or touring. The RS Series is based on an inverted ...
£774.58£806.86View details
QTX Q600 power amplifier 2 x 300W
Stereo workhorse power amplifiers with multiple input and output connection options. Designed for accurate and reliable service for venues, DJs and pe...
£149.26£179.00View details
Crown CDi 2|1200BL DriveCore Power Amp 2x1200W + BLU Link 2U
Crown CDi 2|1200BL DriveCore Power Amp 2x1200W + BLU Link 2UThe CDi DriveCore Series is an evolution in amplification, providing an impressive mix of ...
£2,928.00£4,182.00View details
NJS Stereo Slave Amplifier 2 x 230w @ 4ohm
NJS003 Stereo Power AmplifierA series of stereo power amplifiers with independent left and right volume controls. Unbalanced jack inputs, and 4 Pole s...
£150.00£200.00View details
Wharfedale MP 2800 MKII Amplifier, Black
Wharfedale MP 2800 MKII Amplifier, Black
£660.25£695.00View details

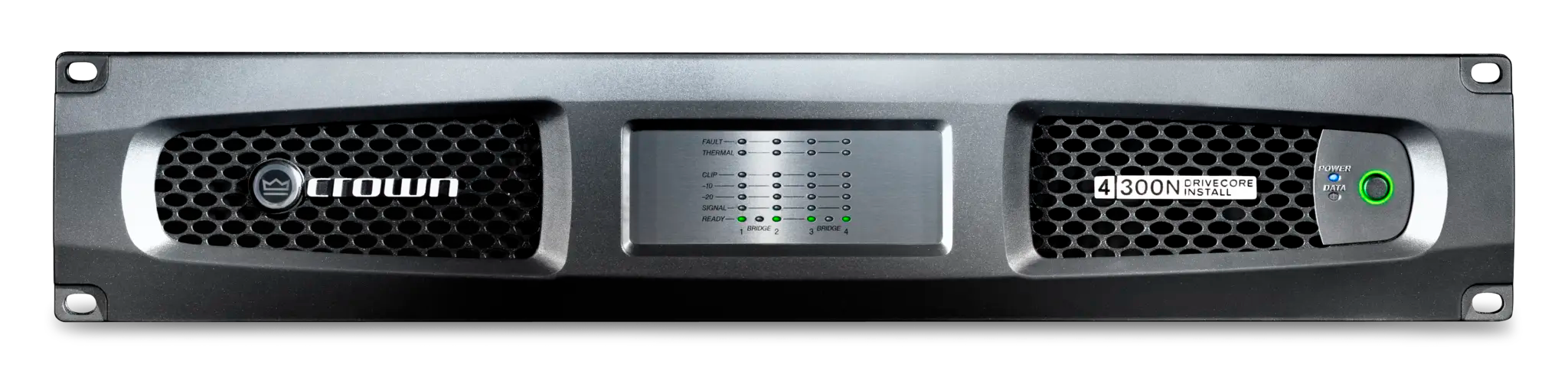

Crown DCi4|300N Four-channel, 300W @ 4Ohms Power Amplifier with BLU link, 70V/100V / EN 54-16
