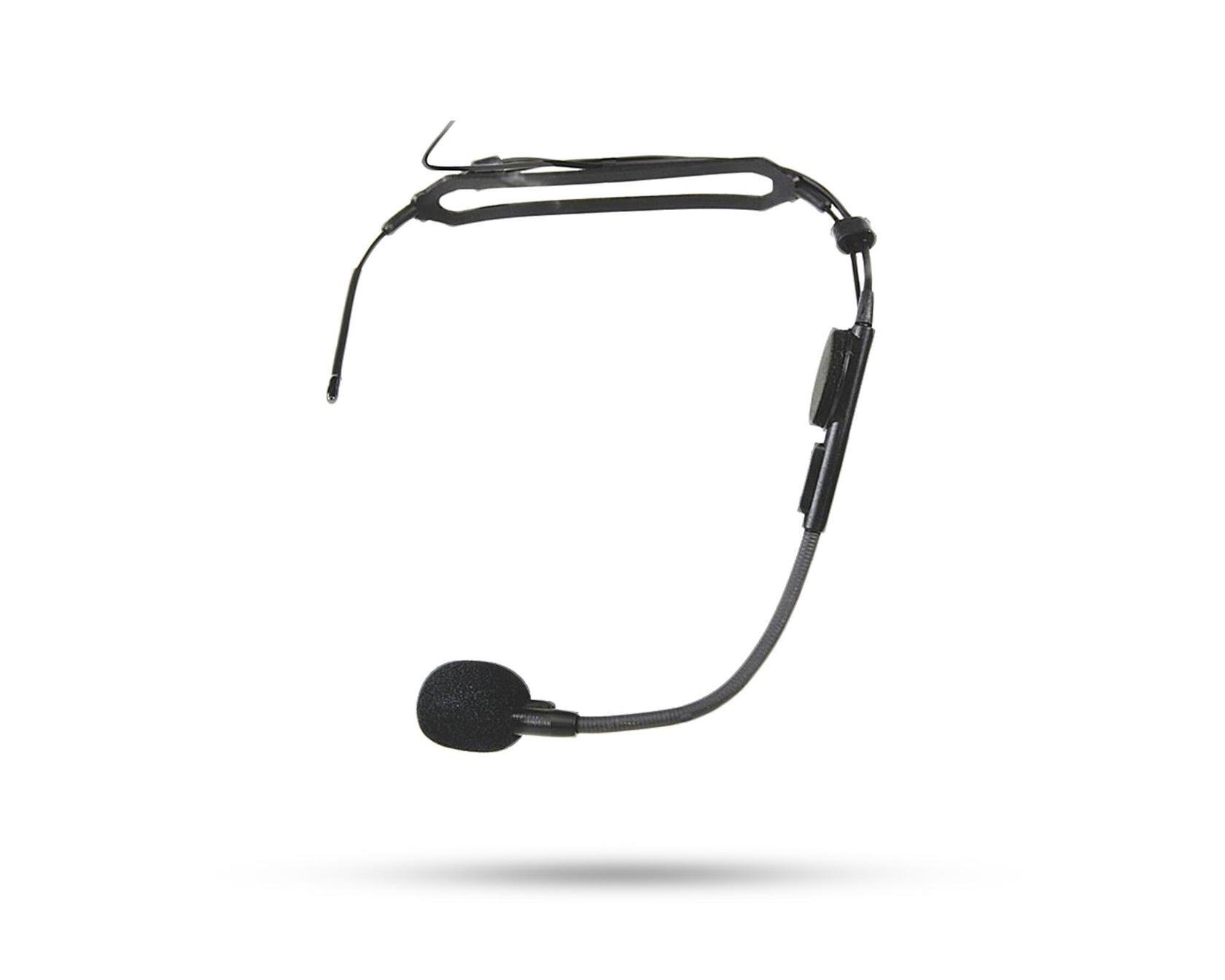

Trantec S4.10A UHF Headworn System with HM33 Head Microphone

SKU:
Trantec

Trantec S4.10-A-EB-GG3 - UHF 4 Frequency Standard Headset Radio Microphone System (MIC-SJ33)

Available in the following frequencies Band D (CH70) or Band G (CH38)

• 16 selectable frequencies available
• Up to 10 simultaneous channels
• Fully synthesised PLL quartz tuning technology
• Receiver LED’s show AF peak level, RF level & diversity channel A or B
• Diversity operation with detachable antenna
• Professional metal enclosure
• 19” rack mount option for one or two receivers

Receiver

• Diversity Reception: Antenna Diversity
• Sensitivity: 10uV at 45dBA, S/N
• Squelch: Tone SQ, Carrier SQ, Noise SQ
• Audio Frequency Response: 50Hz - 1.5kHz
• Audio Output Level: Balanced (XLR socket): -20dBu Unbalanced (1/4" jack socket): 10dBu
• Power Supply: 12 V DC 500mA
• Dimensions: 215(W) x 39(H) x 102(D)mm (excluding antenna and BNC)
• Weight: 480g

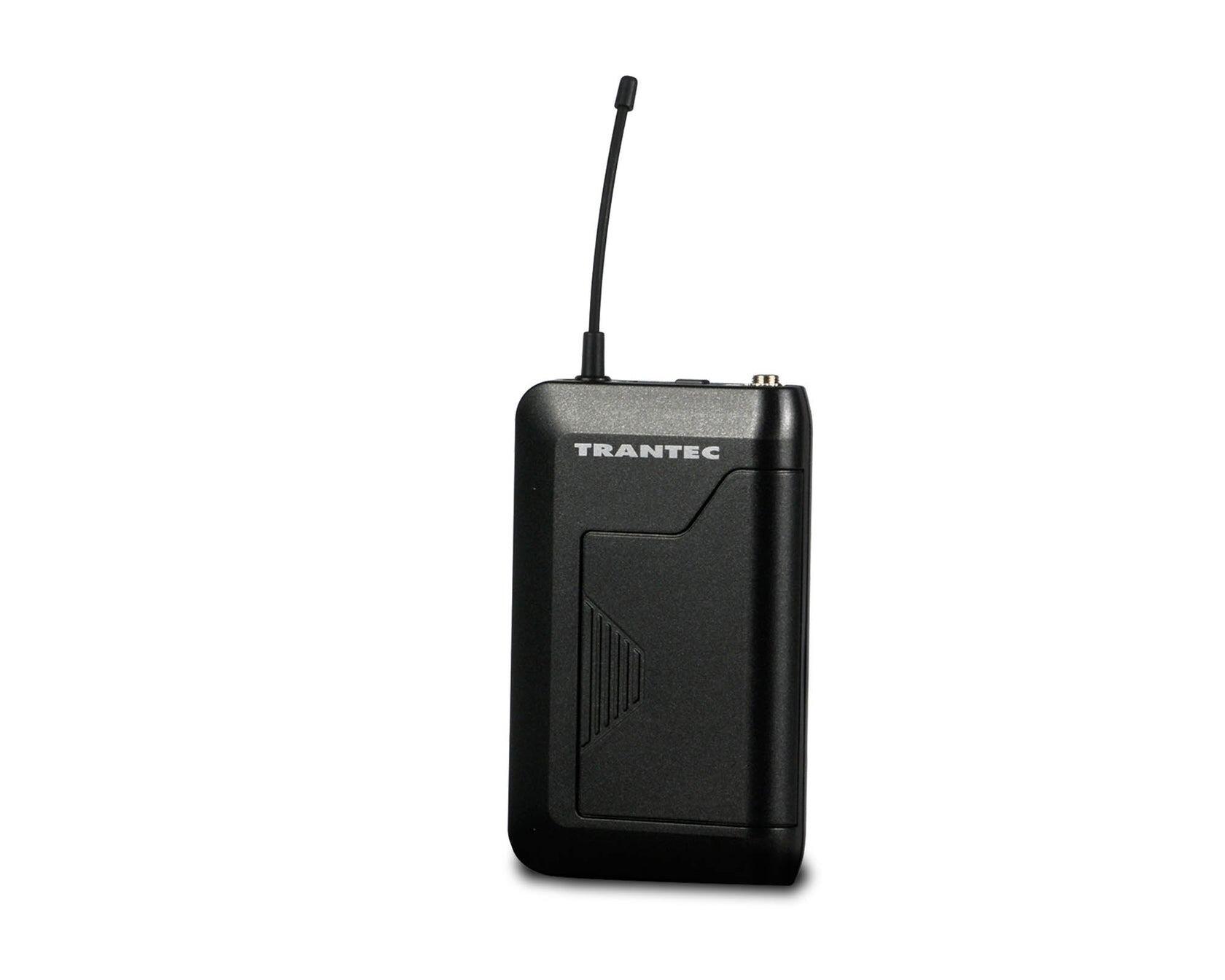

Beltpack Transmitter

• RF Carrier Power: 10mW
• Audio Frequency Response: 50Hz - 1.5kHz
• Audio Input Level: -6dBV max., mic gain 0dB
• Battery Life: Approx. 10 hours
• Power Supply: 1 AA size alkaline battery 1.5V
• Finish: Resin, coating
• Dimensions: 62(W) x 100(H) x 25(D)mm
• Weight: 85g with battery
