Showtec Pixelbar 16Q6 RGBWA+UV LED Batten (41308)
Showtec Pixelbar 16Q6 RGBWA+UV LED Batten (41308)

roll over the image to zoom in

Showtec Pixelbar 16Q6 RGBWA+UV LED Batten (41308)

Showtec Pixelbar 16Q6 RGBWA+UV LED Batten (41308)

SKU: 41308
Showtec

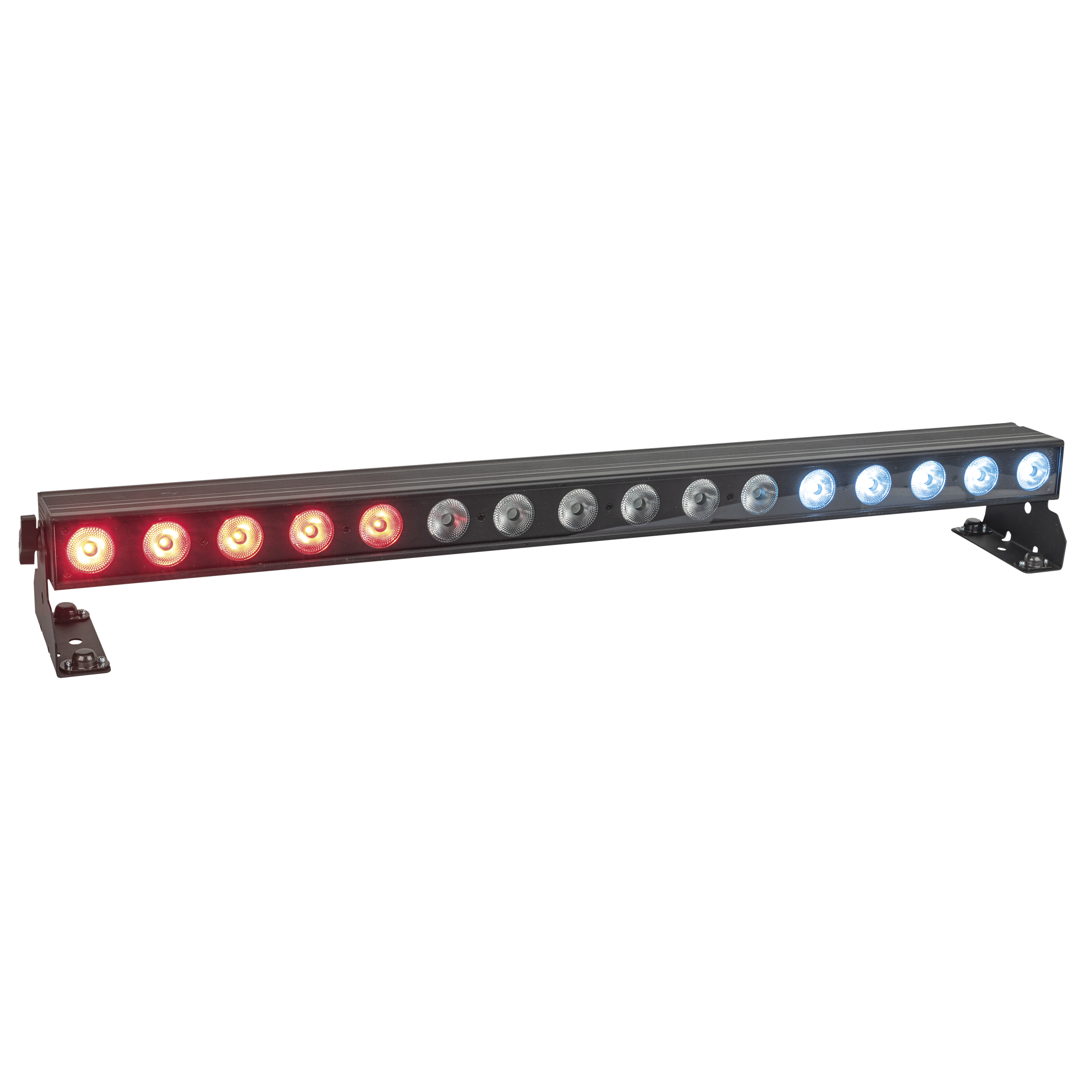

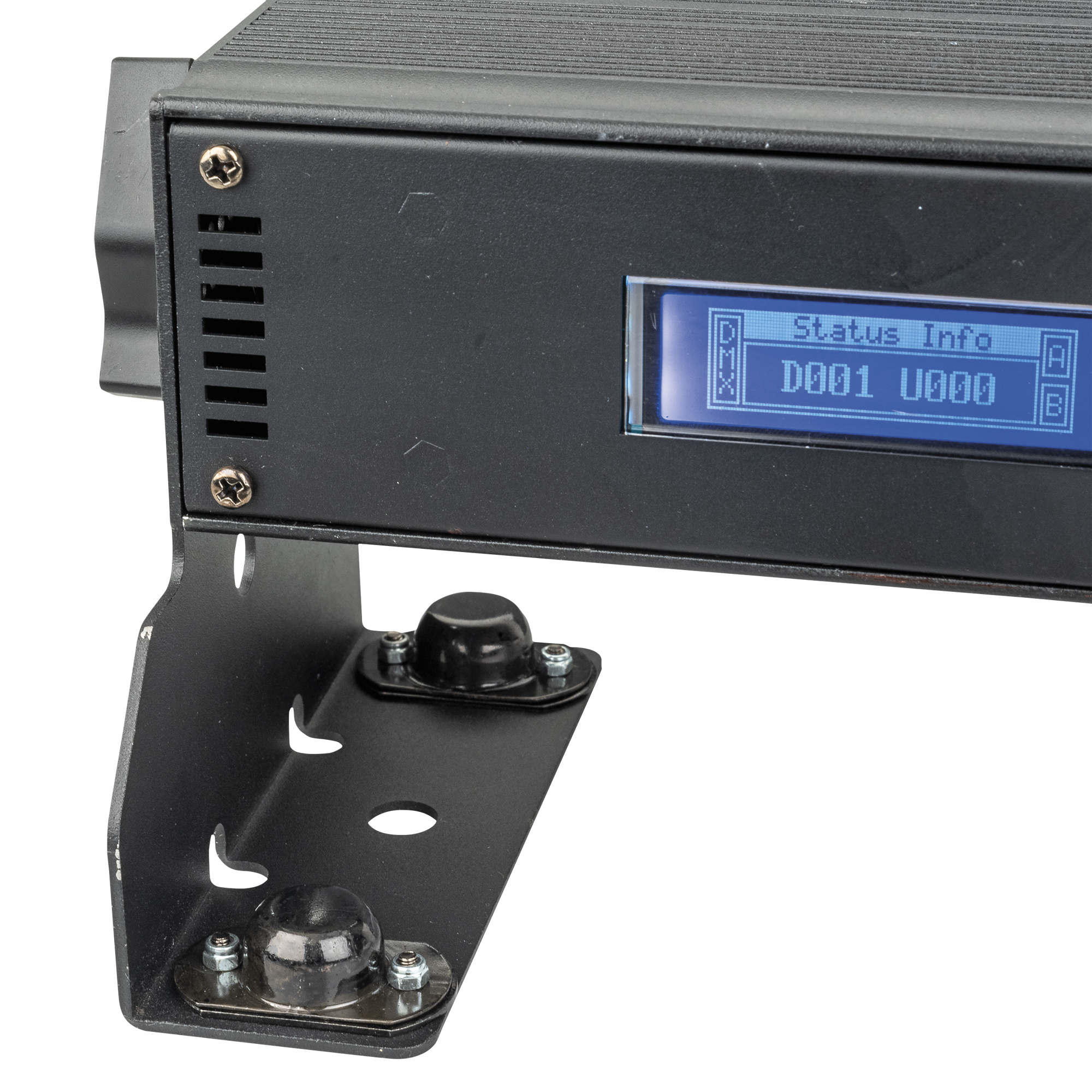

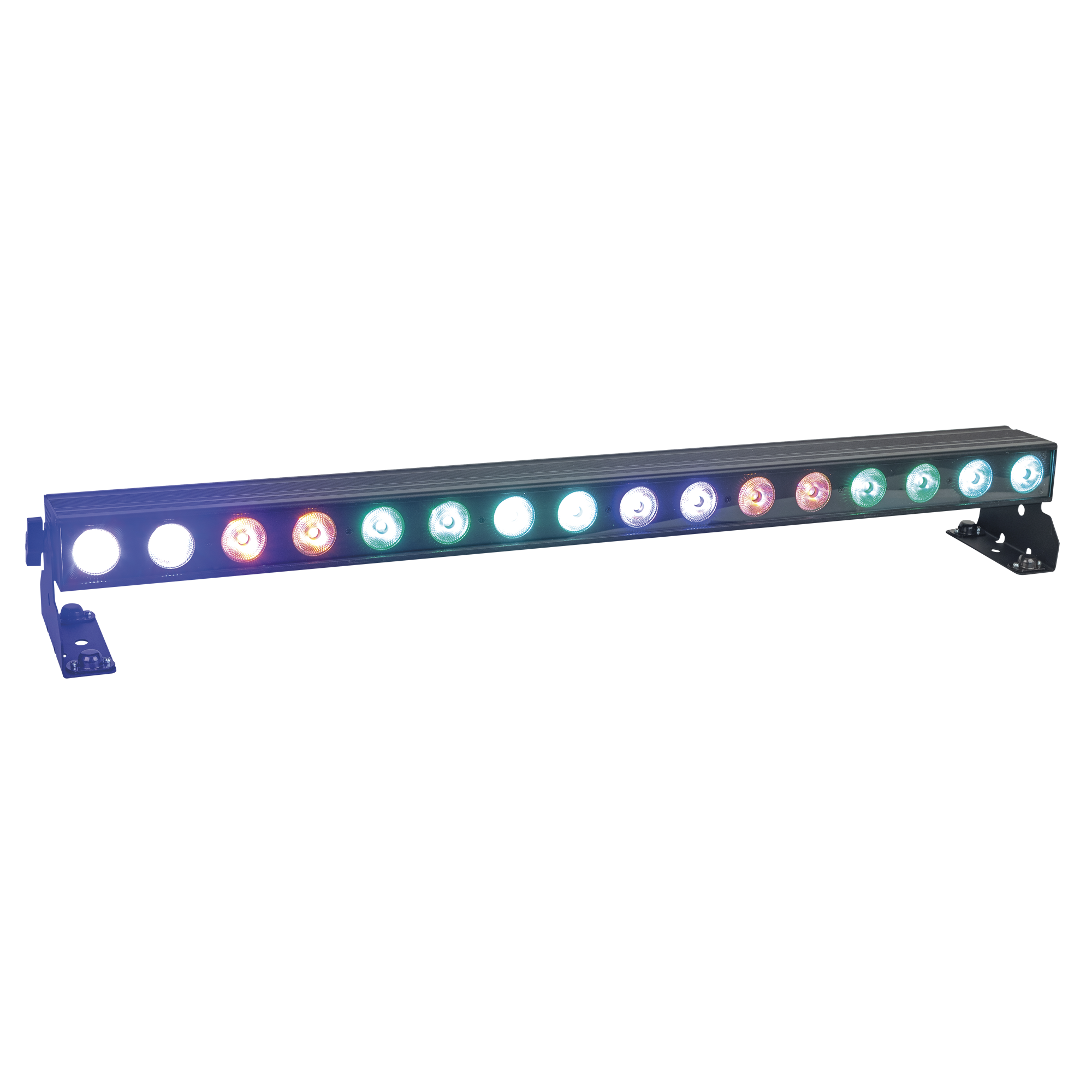

The Showtec Pixelbar 16Q6 is a cost-effective LED bar with 16x 6-in-1 RGBWA-UV LEDs. In order to ensure complete control, this batten offers full pixel control in 101 channel mode to create beautiful colour flows, but can also be controlled in 6, 8.12 and 96 HSV & HSI modes for more basic use. With the RGBWA-UV LEDs, it is possible to create both saturated and pastel colours. The UV colour makes the Pixelbar suitable for special FX in combination with UV colours. A clear LCD display with an intuitive menu structure makes setting up as easy as ABC. Multiple mounting positions make rigging easy, allowing creative setups.

Source
Light Source Type
LED
Light Source Quantity
16
Light Source Power
10 W
LED Colour Type
RGBWAUV
Refresh Rate
12000 Hz
Luminous Flux (Total)
4020 lm
Optical
Beam Angle (Horizontal)
25 °
Beam Angle (Vertical)
25 °
Control and Programming
Control Mode
Art-Net, Auto, DMX, Manual, Master Slave, Stand Alone
DMX Channels
6, 8, 12, 96, 101
Protocols
Art-Net, DMX
Display
LCD
Dynamic Effects
Dimmer
0-100 %
Strobe
0-25 Hz
Electrical Specifications and Connections
Power Supply
100-240 V AC 50/60 Hz
Power Consumption
170 W
Power Connector In
Power Pro Blue
Power Connector Out
Power Pro Grey
DMX Connector
XLR 3P In/Out, XLR 5P In/Out
DMX Connector In
XLR 3P, XLR 5P
DMX Connector Out
XLR 3P, XLR 5P
Data Connector In
RJ45
Data Connector Out
RJ45
Mechanical Specifications
Length (mm)
1047 mm (41.22″)
Width (mm)
136 mm (5.354″)
Height (mm)
146.5 mm (5.768″)
Weight
6.5 kg (14.33 lb)
IP Rating
IP20 (indoor use only)
Housing
Aluminium
Colour
Black
Product Properties
Cooling
Convection
Rigging
Mounting Options
Bracket, Floor, Quick-Lock, Wall
Safety Attachment
Yes
Thermal Specifications
Maximum Ambient Temperature
40 °C (104 °F)
Included Items
Included Cables
powerCON cable
Included Accessories
User Manual
Included Rigging
Bracket
£471.11
£554.24
View video
Earn0
reward points
Add To Your Wishlist

Oh No! This product is out of stock. Would you like to know when it's avaliable again?
