Global Truss F34 Standard Spindle Foot (4 into 1 + screwjack)

SKU: GLF34SPINDLE
Global Truss

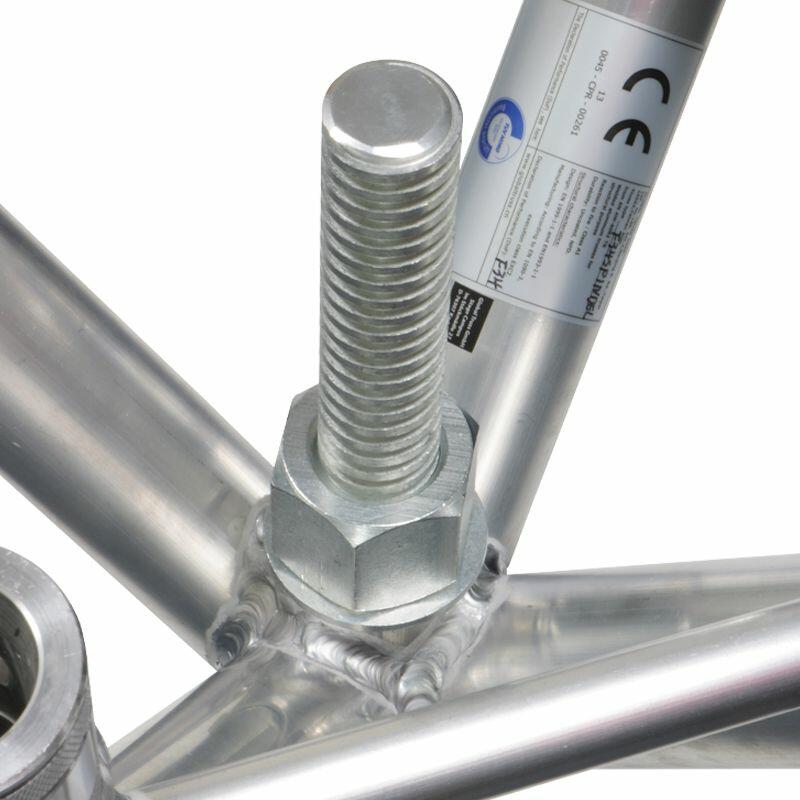

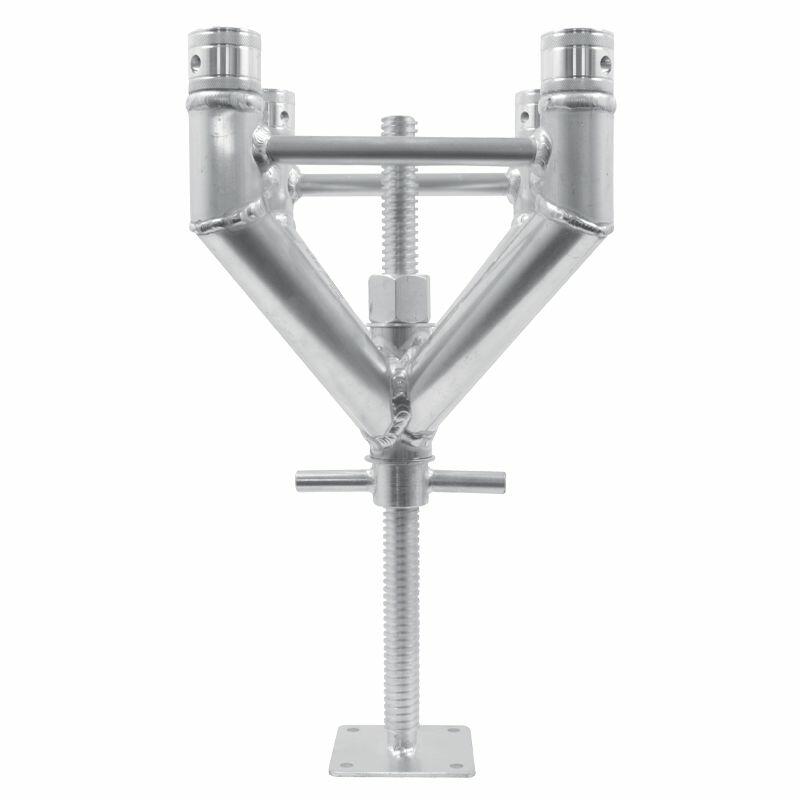

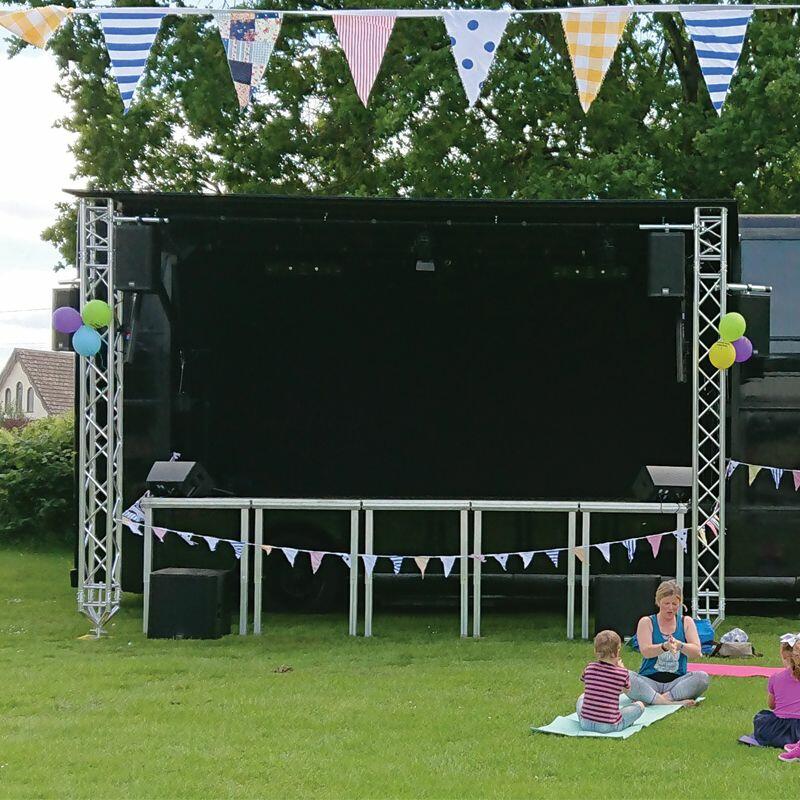

This height adjustable (35-70cm) Standard F34 threaded spindle base is used as an alternative to a base plate in uneven floor situations, allowing for the variable height adjustment of truss verticals with the easy-to-use screw jack. The spindle base is commonly used for constructions including stage roof systems and exhibition stands where the base beneath the construction is not level.
Features

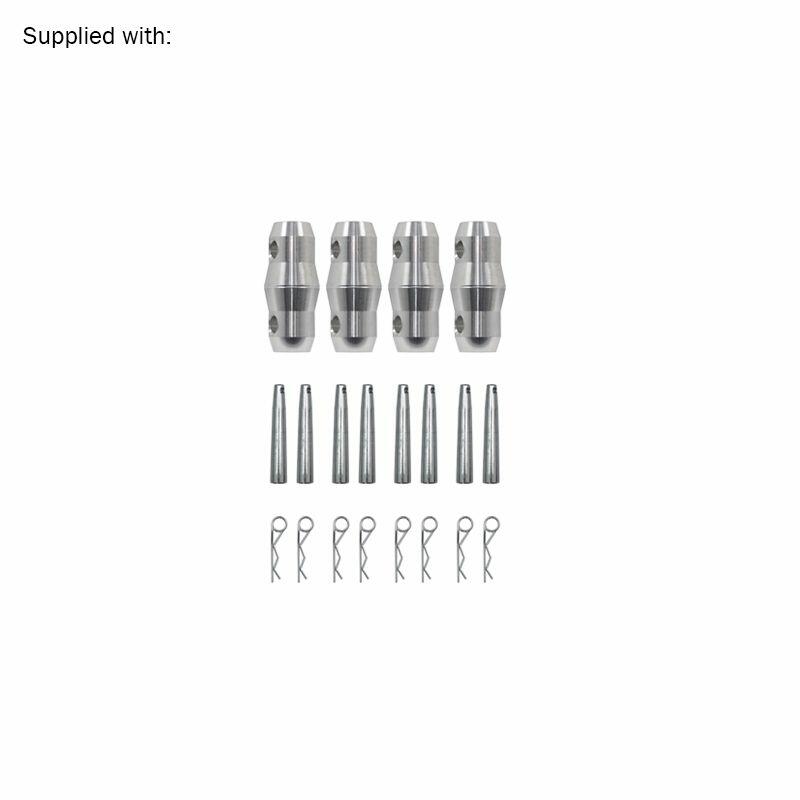

Supplied with 4 conical connectors, 8 bullet pins and 8 R clips, 2mm wall thickness aluminium, 1000kg static load capacity (indoor, zero side load), Supplied with 500mm screw jack

Specification:

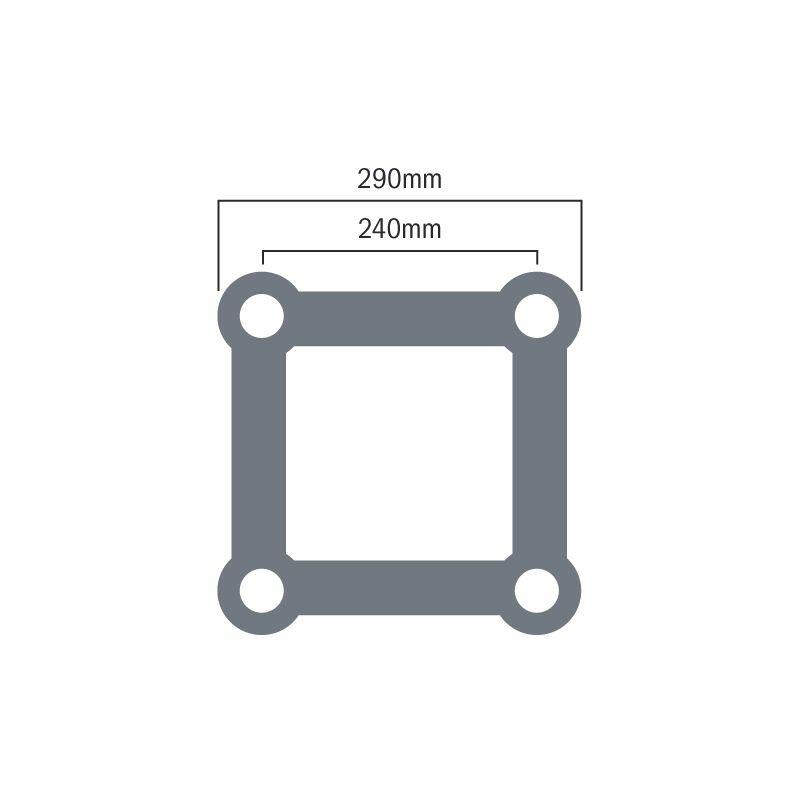

Truss diameter: 290mm, Tube diameter: 50mm, Dimensions: 290x290mm, 350mm high (without the screw jack), Weight: 5.6kg

---
