Global Truss F34 PL CA-3 Ground Support Box Sleeve Aluminium

SKU: GLF34SLEEVEPL
Global Truss

Raise the roof with Global Truss! The Global Truss aluminium CA-3 truss sleeve is designed to work in conjunction with the aluminium Top Pulley and Steel Ground Support Base to enable the simple lifting of the roof of a stand or cross bar. The CA-3 sleeve block slides over the F34PL truss, with conical points on all 4 sides. Supplied with 8 pieces of PL half conical, which may be interchanged with Standard half conicals if required. Additional half conicals available separately.
Features

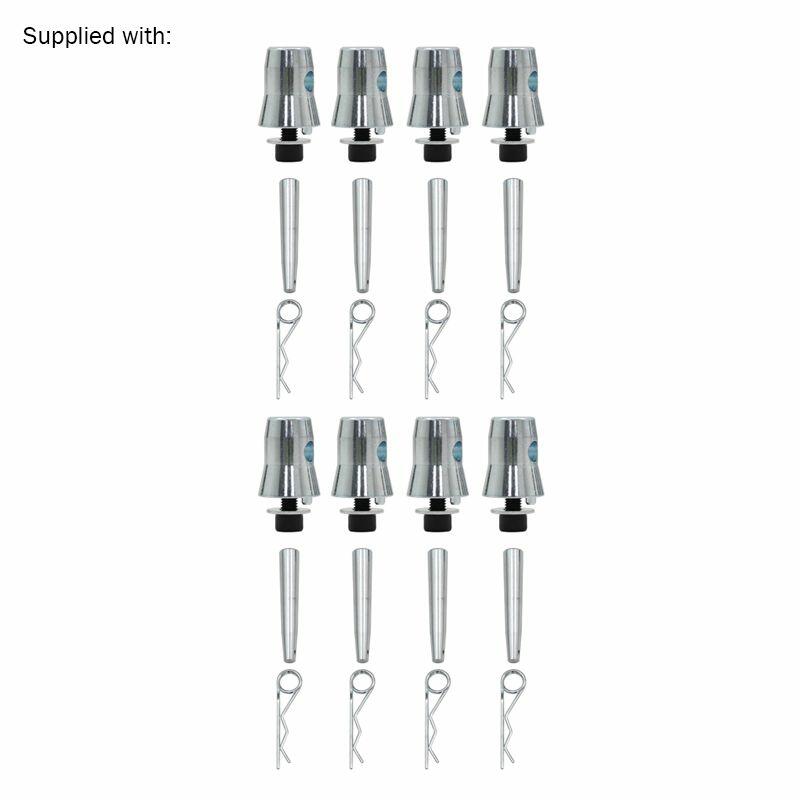

Supplied with 8 x Half Conicals, Pins and RClips

Specification:
Max load lifted with one side used: 1450kg, Max load lifted with 4 sides used: 3360kg, Dimensions: 480 x 500 x 500mm, Weight: 35.0kg

---
