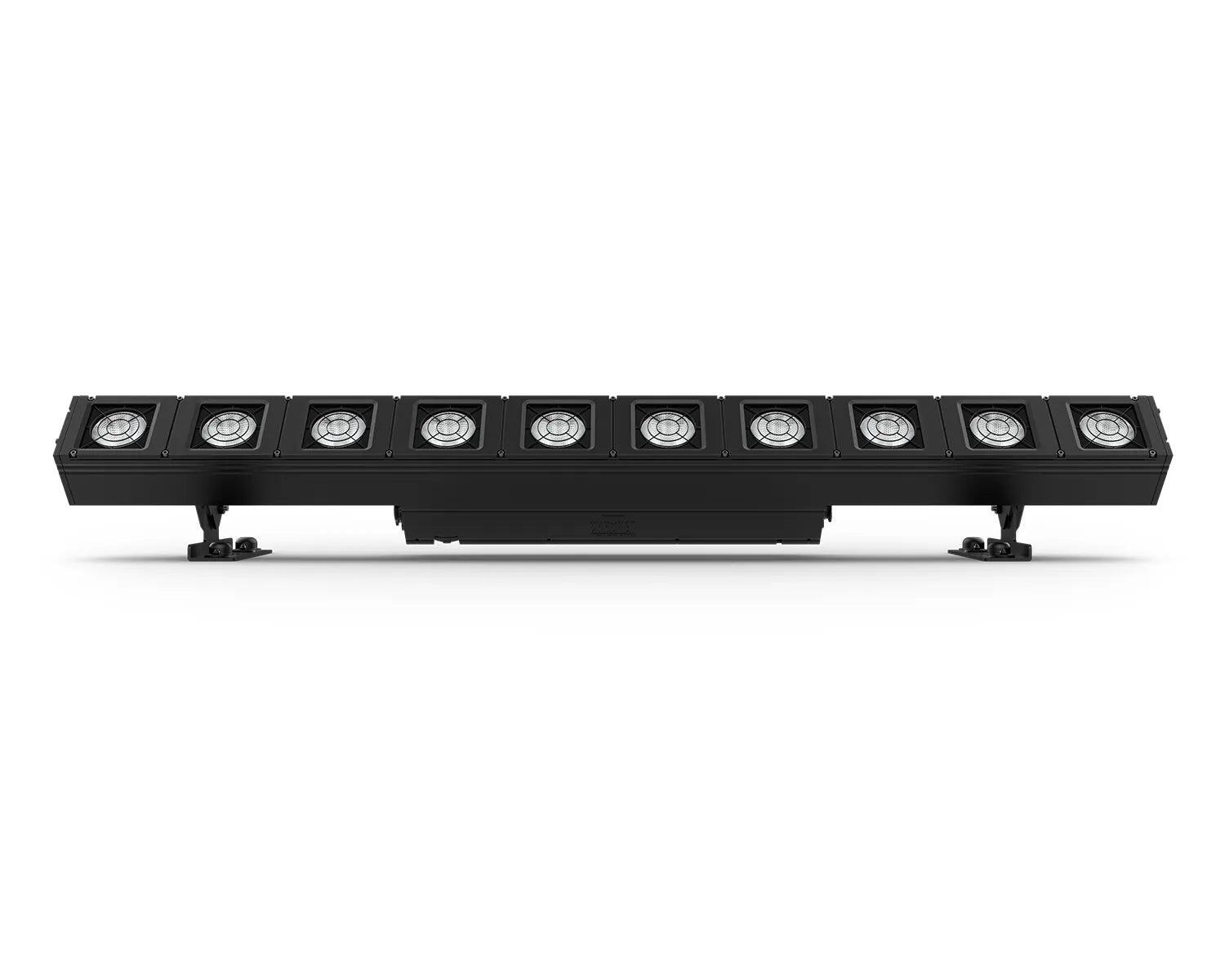

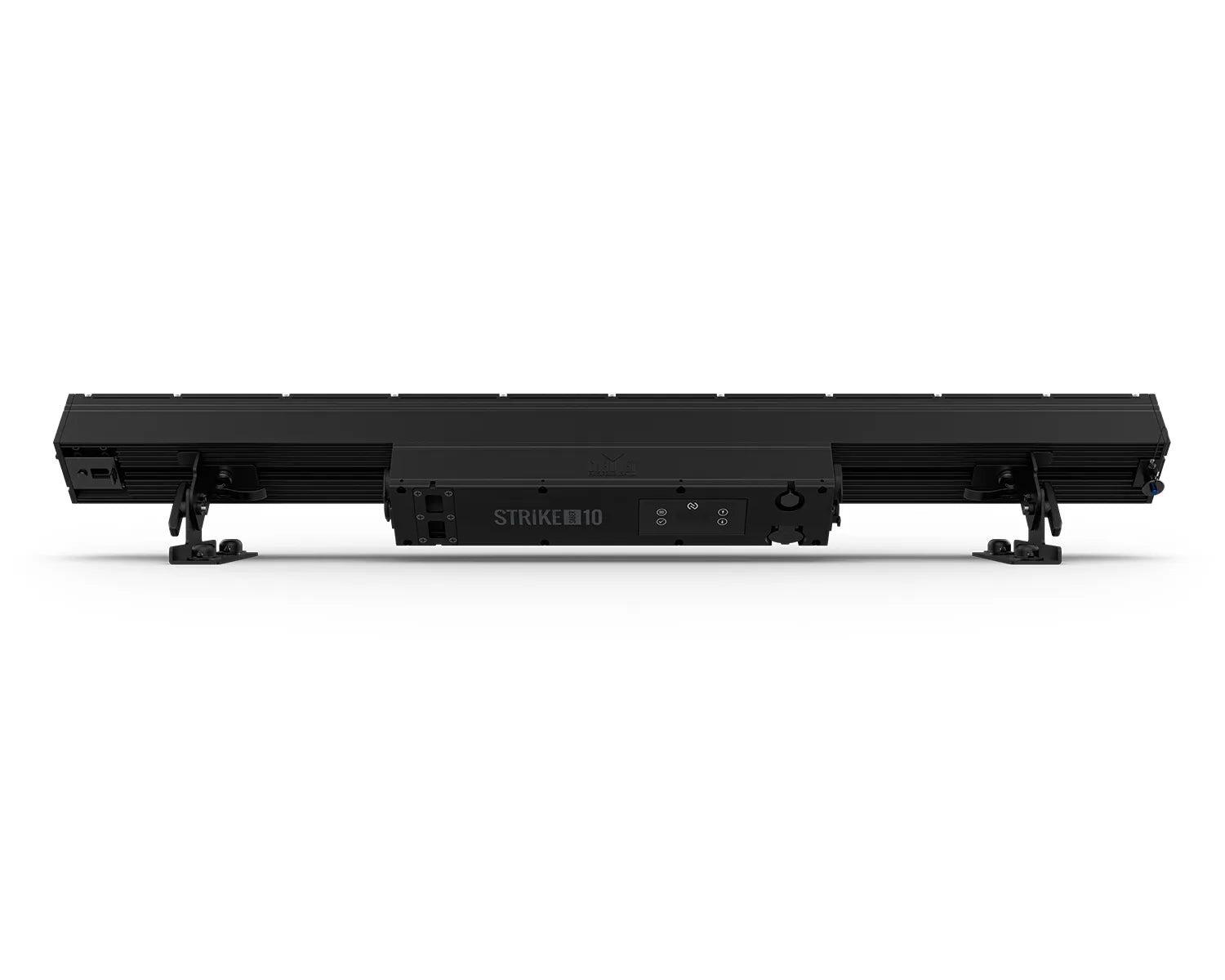

Chauvet STRIKE Saber 10 LED Blinder/Wash Batten WarmWhite/Amber LEDs IP65

SKU: STRIKESABER10
Chauvet Professional

Chauvet STRIKE Saber 10 LED Blinder/Wash Batten WarmWhite/Amber LEDs IP65

The newest member of our tour-dominating STRIKE family is a ten-cell pixel-mappable IP65-rated WW/Amber batten that delivers the golden look of classic tungsten with emulated “red shift” that perfectly mimics the warmth of incandescent dimming. STRIKE Saber 10 is a blinder bright enough to dazzle the world’s largest arenas and its fast tool-free end-to-end interlocking system make it tour-ready. High CRI tunable warm white light and adjustable floor mount feet also make it a superb footlight. Whether strobing, chasing, or washing a scene in the warmest amber-white hues, its 16-bit dimming and selectable PWM produces the smoothest looks, live or on camera.

• Intense fully IP65 10-cell batten perfect as a blinder, footlight, or tunable warm-white wash
• Emulated “red shift” to mimic incandescent fixtures perfectly.
• 16-bit dimming control for smooth, perfect fades
• Strobe functionality for high-impact effects on-the-fly
• Pixel mappable for intense chase and strobe effects
• End to end easy rigging.
• NFC Chip in built
• Easy to use OLED display
• Adjustable Pulse Width Modulation (PWM)
• RDM (Remote Device Management) for added flexibility

Optical

• 10 LEDs (Warm White/Amber)
• Colour Temperature (at full):  2792 K
• CRI:  92.9
• TLCI:  91
• Beam Angle vertical:  20.9
• Beam Angle horizontal:  20.9
• Field Angle vertical:  25.1
• Field Angle horizontal:  25.1
• Lumens:  5,959
• Illuminance:  1686 lux @ 5 m
• Selectable PWM:  600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

Dynamic Effects

• Dimmer:  Electronic
• Strobe:  Electronic
• Strobe Rate:  0 to 26.7 Hz
• Dim Modes:  4
• Built-in Automated Programs:  Yes

Connections

• Power Connection:  Edison (Local) plug to Seetronic Tru1
• Power Input Seetronic Tru1
• Power Output:  Seetronic Tru1
• Data Connectors:  5-pin XLR
• Cable Length (power):  5 ft (1.5 m)

Control

• Control Protocol:  DMX, RDM
• DMX Channels:  1, 3, 6, 13, 22, 26Ch1 or 26Ch2
• Modes/Personalities:  6 personalities (1Ch, 3Ch, 6Ch, 13Ch, 22Ch, 26Ch1, 26Ch2)

Electrical

• Input Voltage:  100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking:  6 units @ 110 V; 16 units @ 208 V; 1 units @ 230 V
• Power and Current:  183 W, 1.83 A @ 100 V, 60 Hz
• Power and Current:  181 W, 1.52 A @ 120 V, 60 Hz
• Power and Current:  178 W, .86 A @ 208 V, 60 Hz
• Power and Current:  177 W, .78 A @ 230 V, 50 Hz
• Power and Current:  178 W, .75 A @ 240 V, 60 Hz

Certifications / Qualifications

• CE, MET
• IP Rating:  IP65
• Temperature (Ambient):  -4 °F to 113 °F (-20 °C to 45 °C)

Construction / Physical

• Dimensions:  39.3 x 3.08 x 6.18 in (1000 x 78.4 x 157 mm)
• Weight:  14.6 lb. (8 kg)
• Exterior Colour:  Black
• Housing Material:  Aluminium alloy, Aluminium die-cast

Whats in the Box?

• STRIKE Saber
• Seetronic Powerkon – Bare Wire
