- Doughty T57366 - Pipe To Pipe Coupler 90 Degree 500mm - Black
Doughty T57366 - Pipe To Pipe Coupler 90 Degree 500mm - Black - Doughty Engineering
roll over the image to zoom in
Doughty T57366 - Pipe To Pipe Coupler 90 Degree 500mm - Black
SKU:
T57366
Carriage is approximately 2 to 4 working days on this Brand
Doughty Engineering Doughty T57366 - Pipe To Pipe Coupler 90 Degree 500mm - Black
The Doughty T57366 Aluminium Pipe to Pipe 90 Degree Coupler 500mm is part of a range of high-quality aluminium couplers designed for secure right-angle connections. Featuring a 500mm length of 48mm aluminium tube with low-profile half couplers welded to each end, it is suitable for 48mm to 51mm diameter tubes. Ideal for suspending tubes or trussing in stage, film, and event rigging applications.
Available in a black powder coat, with a polished silver version also available (see T57365).Â
Custom sizes and finishes are available upon request.
TUV APPROVED
£115.04
£140.36
Earn0
reward points
reward points
- Technical Specification
Specification WLL 200kg - VERTICAL LOADS ONLY Finish Black Tube Diameter 48 - 51mm Clamp Width 50mm Length 500mm Materials Main Body - AW6082 T6 Aluminium
Roll Pins - Stainless Steel
Eyebolt Assy - Grade 8.8Max Tightening Torque 30Nm Weight 1.70kg Approvals TUV Approved
Related Products...
Doughty T194070 - Sleeve Joint
Doughty T194070 - Sleeve JointDoughty Sleeve Joint An inline external tube connector for joining two tubes of the same diameter. This fitting is...
£23.23£28.36View details
Doughty T16700 - Pipeclamp Double Swivel Combination
Doughty T16700 - Pipeclamp Double Swivel CombinationDoughty Pipeclamp Double Swivel Combination A complete double swivel with the swivel connectors...
£26.52£32.36View details
Doughty T194017ADJ - Swivel Elbow/Tee Combination
Doughty T194017ADJ - Swivel Elbow/Tee CombinationDoughty Swivel Elbow/Tee Combination A complete single swivel. The swivel has a travel of approxim...
£36.28£44.26View details
Doughty T17622 - Pipeclamp Angled Railing Base Flange
Doughty T17622 - Pipeclamp Angled Railing Base FlangeDoughty Pipeclamp Angled Railing Base Flange An adjustable structural base fitting for vertica...
£21.07£25.69View details
Doughty T194025 - Swivel Side Outlet Combination
Doughty T194025 - Swivel Side Outlet CombinationDoughty Swivel Side Outlet Combination A 90 degree tee with a swivel fitting attached at 90 degrees
£49.72£60.66View details
Doughty T194010 - Long 90 Degree Crossover
Doughty T194010 - Long 90 Degree CrossoverDoughty Long 90 Degree Crossover A 90 degree crossover fitting. Ideal applications are for racking sys...
£40.74£49.70View details
Doughty T13300 - Pipeclamp Plastic Stop End Grey
Doughty T13300 - Pipeclamp Plastic Stop End GreyDoughty Pipeclamp Plastic Stop End Grey A plastic stop end to fit 48mm dia tubes. Tube Diameter: 48mm ...
£0.89£1.08View details
Doughty T194011E - Corner (Slimline) With Through Tube
Doughty T194011E - Corner (Slimline) With Through TubeDoughty Corner (Slimline) With Through Tube A 90 degree corner fitting with through tube. ...
£24.94£30.43View details
Doughty T12800 - Pipeclamp 3 Way 90 Degree Elbow
Doughty T12800 - Pipeclamp 3 Way 90 Degree ElbowDoughty Pipeclamp 3 Way 90 Degree Elbow A three way enclosed 90 degree corner joint. Tube Diamet...
£17.08£20.83View details

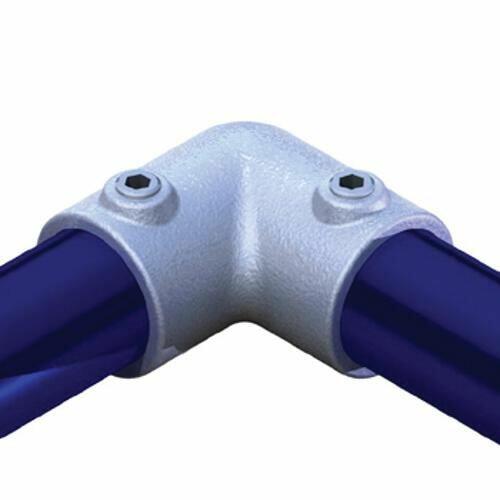

Doughty T17629 - Pipeclamp Angled Elbow 4 - 10 Degree
Doughty T17629 - Pipeclamp Angled Elbow 4 - 10 DegreeDoughty Pipeclamp Angled Elbow 4 - 10 Degree Elbow joint between two tubes.
£16.98£20.71View details
Doughty T1250001 Pipe Clamp 90 Deg Elbow (Black)
Doughty T1250001 Pipe Clamp 90 Deg Elbow (Black)A galvanised steel fitting designed to provide a 90 degree corner.
£15.02£18.31View details
Doughty T194030 - Adjustable Crossover
Doughty T194030 - Adjustable CrossoverDoughty Adjustable Crossover Used in pairs to create angle between 85 - 235 degrees. A central through tub...
£76.68£93.56View details
Doughty T24910 Scaffold Fixed Finial Coupler (48Mm) (Colour May Vary Silver To Gold)
Doughty T24910 Scaffold Fixed Finial Coupler (48Mm) (Colour May Vary Silver To Gold)
£9.11£10.51View details
Doughty T57345 - Parallel Pipe To Pipe Coupler 500mm - Silver
Doughty T57345 - Parallel Pipe To Pipe Coupler 500mm - SilverThe Doughty T57345 500mm Aluminium Pipe to Pipe Coupler is a robust and versatile solutio...
£109.97£134.18View details
Doughty T57340 - Parallel Pipe To Pipe Coupler 250mm - Silver
Doughty T57340 - Parallel Pipe To Pipe Coupler 250mm - SilverThe Doughty T57340 250mm Aluminium Pipe to Pipe Coupler is a robust and versatile solutio...
£102.92£125.58View details
Doughty T14700 - Pipeclamp Internal Swivel Tee
Doughty T14700 - Pipeclamp Internal Swivel TeeDoughty Pipeclamp Internal Swivel Tee An internal swivel tee used in conjunction with other Pipeclamp...
£11.86£14.46View details

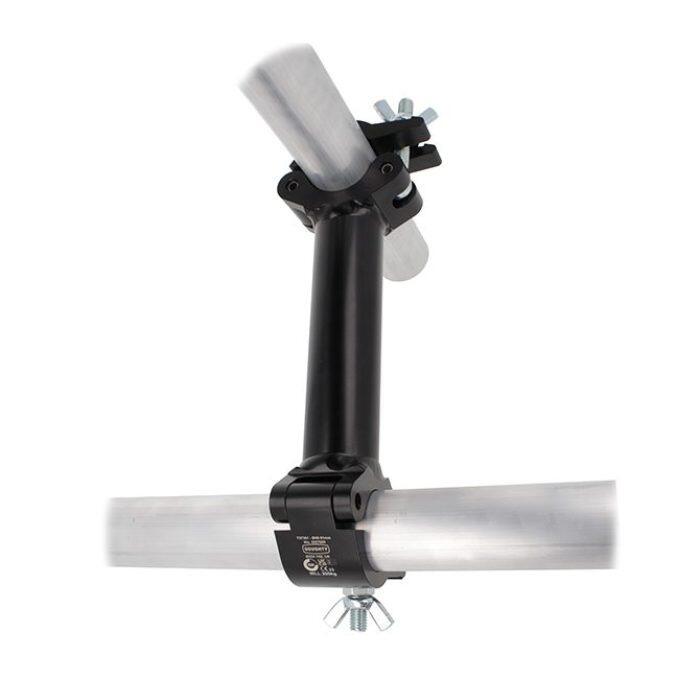

Doughty T57371 - Pipe To Pipe Coupler 90 Degree 750mm - Black
