Doughty T57340 - Parallel Pipe To Pipe Coupler 250mm - Silver
SKU:
T57340
Carriage is approximately 2 to 4 working days on this Brand
Doughty Engineering Doughty T57340 - Parallel Pipe To Pipe Coupler 250mm - Silver
The Doughty T57340 250mm Aluminium Pipe to Pipe Coupler is a robust and versatile solution for suspending tubes or trussing. This coupler consists of a 250mm length of 48mm aluminium tube with a low-profile half coupler welded to each end, making it suitable for 48mm to 51mm diameter tubes. Designed for secure and reliable connections, it is ideal for a wide range of rigging applications. A black powder-coated version is also available (see T57341).
Custom sizes and finishes are available to special order.
TUV APPROVED
£102.92
£125.58
Earn0
reward points
reward points
- Technical Specification
Specification WLL 200kg - VERTICAL LOADS ONLY Finish Silver Tube Diameter 48 - 51mm Clamp Width 50mm Length 250mm Materials Main Body - AW6082 T6 Aluminium
Roll Pins - Stainless Steel
Eyebolt Assy - Grade 8.8Max Tightening Torque 30Nm Weight 1.25kg Approvals TUV Approved
Related Products...
Doughty T194016 - Clamp On Tee
Doughty T194016 - Clamp On TeeDoughty Clamp On Tee A 90 degree clamp on tee used to make alterations or upgrades to existing structures without hav...
£52.00£63.44View details
Doughty T16900M - Pipeclamp Swivel Base Section (Male)
Doughty T16900M - Pipeclamp Swivel Base Section (Male)Doughty Pipeclamp Swivel Base Section (Male) A non structural male locating flange. 1...
£6.98£8.52View details
Doughty T1310001 Pipe Clamp Base Flange (Black)
Doughty T1310001 Pipe Clamp Base Flange (Black)A galvanised steel fitting designed to provide a positional wall or base fixing. Not recommended for u...
£13.57£16.55View details
Doughty T16100 - Pipeclamp Crossover 90 Degree
Doughty T16100 - Pipeclamp Crossover 90 DegreeDoughty Pipeclamp Crossover 90 Degree A 90 degree crossover fitting. Ideal applications are for racki...
£9.90£12.07View details
Doughty T12500 - Pipeclamp Elbow 90 Degree
Doughty T12500 - Pipeclamp Elbow 90 DegreeDoughty Pipeclamp Elbow 90 Degree A 90 degree elbow joint between two tubes. Tube Diameter: 48mm
£12.17£14.86View details
Doughty T13200 - Pipeclamp Railing Base Flange
Doughty T13200 - Pipeclamp Railing Base FlangeDoughty Pipeclamp Railing Base Flange A structural base plate for all aspects of vertical tube supp...
£15.12£18.46View details
Doughty T194102 - Rackmaster Centre Fitting
Doughty T194102 - Rackmaster Centre FittingDoughty Rackmaster Centre Fitting A 90 degree crossover fitting with inside upright tube. Ideal appli...
£44.50£54.29View details
eLumen8 Scaffold Tube Joiner, 48mm - Black (CLAM70B)
eLumen8 Scaffold Tube Joiner, 48mm - Black (CLAM70B)The eLumen8 Aluminium 48mm Scaffold Tube Joiner is designed for securely joining standard 48.3mm s...
£25.25View details
Doughty T13000 - Pipeclamp Two Socket Cross
Doughty T13000 - Pipeclamp Two Socket CrossDoughty Pipeclamp Two Socket Cross (Adjustable Center 30 - 60 Degree)
£26.77£32.66View details
Doughty T194009 - 3 Way 90 Degree Elbow
Doughty T194009 - 3 Way 90 Degree ElbowDoughty 3 Way 90 Degree Elbow A three way enclosed 90 degree corner joint. Tube Diameter: 48mm
£37.97£46.32View details

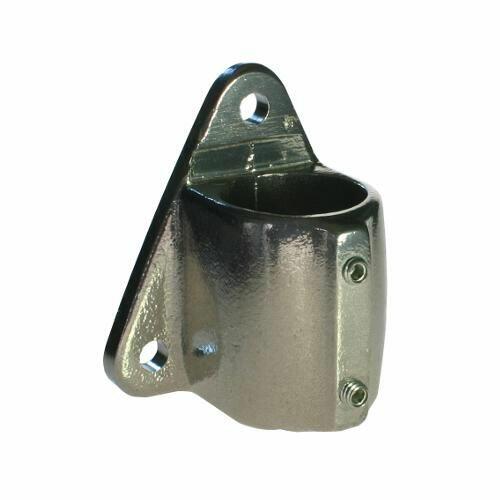

Doughty T194050 - Side Support
