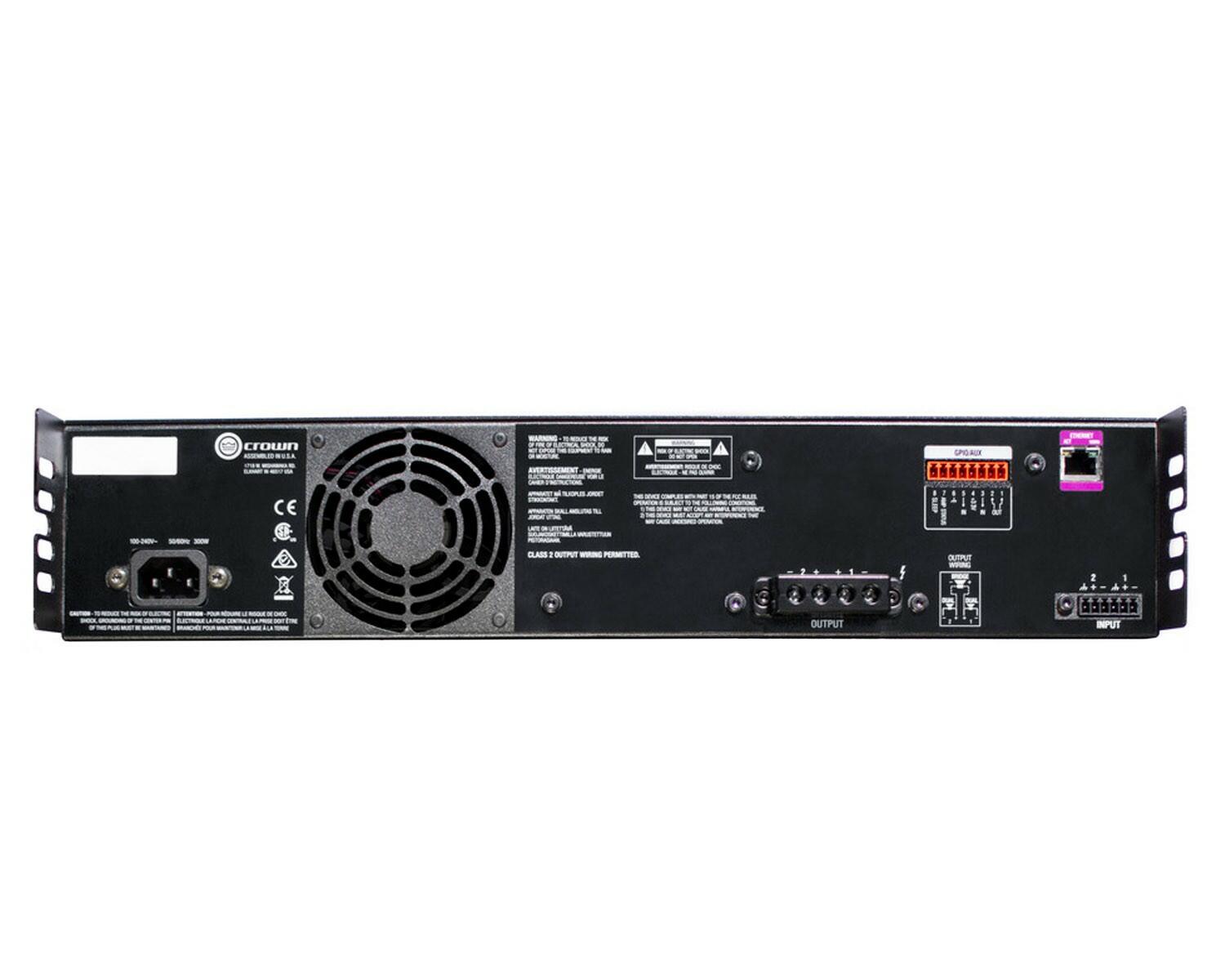

Crown CDi 2|300BL Power Amplifier
SKU:
CRO0340
Crown
The CDi DriveCore Series is a cost-effective amplifier line based upon Crown DCi platform technology and provides a power amplifier solution that captures industry trends of higher channel density & feature-rich design at a reasonable cost with integrated DSP and front panel display. Representing the continued development of Crown's installation amplifiers, it has similar features to DCi but is tailored to meet the needs of a selective market segment that requires a balance of features, price, and performance. Features such as 100Vrms and 4 channel amplifiers will appeal to international markets. All models have network capability, and each model has an analog and an analog + BLU link version, making this series a high-value but affordable option for contractors.
- Convenient and flexible advanced features, modern energy-efficient design, and easy to use
- Proven advanced technology at an affordable price
- Low-impedance functionality (4Ohm/8Ohm) and High-impedance 70V and 100V output without transformers
- Universal Power Supply enables flexible use for audio installations worldwide
| Channels | 2 |
| Sensitivity (for full rated power at 8 ohms) | 0.7V RMS |
| Rated Power Output (per channel @ 4 ohms) | 300W |
| Analog Input Signal to Noise Ratio (ref. rated power, 100V, 20Hz - 20kHz) at 8 ohms) | > 104dB |
| THD (full rated power, 20 Hz - 20 kHz) | 0.35% |
| Damping Factor (20 Hz to 100 Hz) | > 1000 |
| Frequency Response (8, 20 Hz - 20 kHz) | +/-0.5dB |
| Crosstalk (below rated power) 20 Hz to 1 kHz | > 80dB |
| Input Impedance (nominally balanced, nominally unbalanced) | 20 kOhm balanced, 10 kOhm unblanced |
| Dimensions (inches) (W x H x D) (depth not including 1.3 inch front panel protrusion) | 19 x 3.5 x 12.25 |
| Weight | 16.13 lbs (6.6 kg) |
| Power Supply Connector | Standard IEC type 320 inlet for detachable connector 100 240V~ |
reward points
Related Products...
Inter M DPA600S 1x 600W 100v Power Amplifier 2U
View details
Inter-M DPA300D - 2x 300W 100v Power Amplifier 2U
View details
Inter-M DPA300S - 1x 300W 100v Power Amplifier 2U
View details
Crown CDi 4|300BL Power Amplifier
View details
Adastra RMS605 Amplifier 100V 5 x 60W - 953.152UK
View details
Inter-M DPA1200S - 1x 1200W 100v Power Amplifier 2U
View details
BiAmp T20IP Waterproof Transformer 8 ohms to 100V Tapped to 20/10/5/2.5W
View details
Eagle P648XA, PAB6000 Series 100V Line Slave Amplifier, 120w
View details
Adastra RS240 slave amplifier 100V - 953.121UK
View details
Lab Gruppen CA2402 Commercial Amplifier with Direct Drive 2 x 240W 100V
View details
Crown CDi 4|1200 Power Amplifier
View details
Crown CDi 4|600 BL Power Amplifier
View details
Adastra US60 Compact 100V Slave Amp - 953.196UK
View details
Crown DCi8|300 Power Amplifier
View details
Eagle P648XB, PAB6000 Series 100v Line Slave Amplifier, 240w
View details

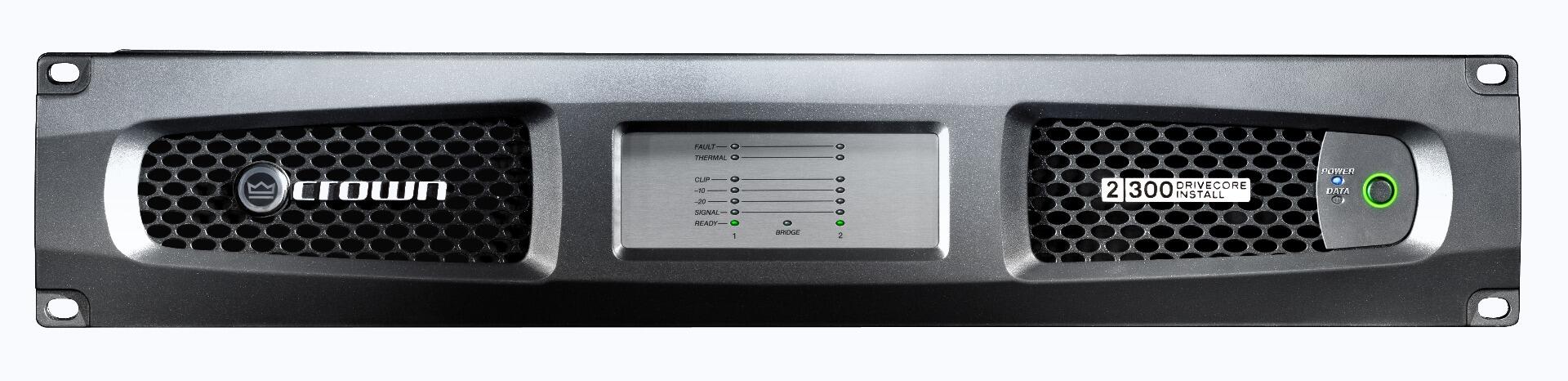

Crown DCi2|300 Power Amplifier
View details
Inter-M DPA600D - 2x 600W 100v Power Amplifier 2U
View details
Crown CDi 4|1200 BL Power Amplifier
View details
Cloud CA2500 Auto Power Sharing Amplifier 4/8ohm 100v 2 x 500w 2U
View details

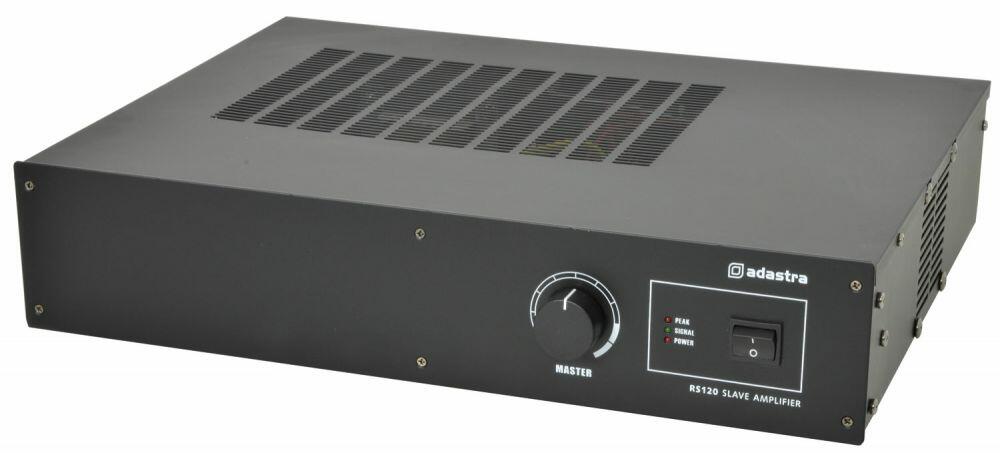

Adastra RS120 RS120 slave amplifier 100V - 953.120UK
