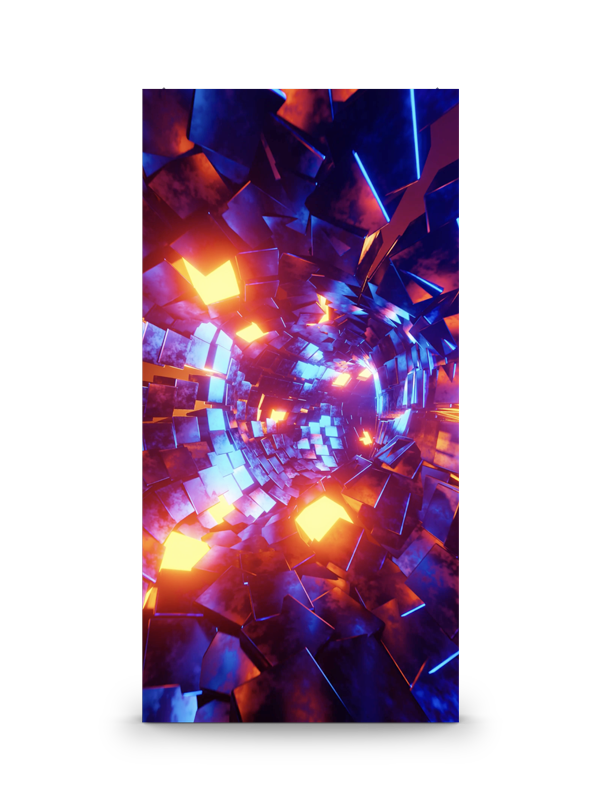

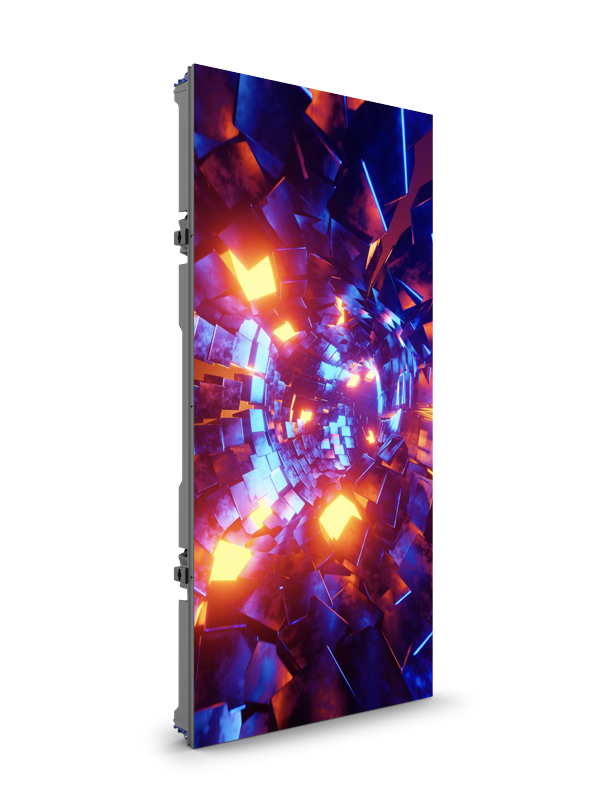

Chauvet Professional REM 3IP LED Video Panel 3.9mm Pixel Pitch / 5000 NITS 4-Pack IP65 - POA

SKU: CHAUPRO REM3IPX4
Chauvet Professional

REM 3IP is a bright 4500 NITS indoor/outdoor hybrid video wall solution with a 3.9mm pitch, integrated convex/concave curving capabilities, and universal magnetic LED modules. Its DCI-P3 colour gamut LEDs offer 26% more colour possibilities compared to standard sRGB/Rec.709 LEDs. With high-speed 7680Hz LED drivers, A10s Pro Novastar Receiving cards, and low latency, REM 3IP offers top-tier performance and signal processing for outdoor rental markets as well as offering high quality indoor performance for live stages and events.

• 3.9 mm pitch, high resolution, modular, indoor/outdoor hybrid video panel
• Map and scale your wall with the Novastar MX40 Pro sender
• Universal, magnetic LED modules for easy replacement and servicing
• Magnetic-assisted hanging integrated into frames makes building a screen fast and easy with minimal labor/effort required
• REM 3IP offered in two physical sizes: 1 m x 0.5 m, 0.5 x 0.5 m (special order)
• Integrated curving capabilities for concave and convex configurations
• Spring-loaded corner protection for safe transportation and handling
• Operating in the DCI-P3 colour space and driven via the premium A10s Pro receiver card from Novastar, black body LEDs accurately reproduce video at 22-bit+ grayscale and a wide colour gamut
• High performance LED drivers deliver 7,680 Hz refresh rate for camera-friendly operation in high-demand applications
• Low latency and HDR10 supported for VR/XR studio, live applications
• Design allows for overhead hanging, ground stacking, and wall mounting, maximized for multiple applications
• Specialized anti-reflective coating applied to the front of LED modules ensures optimal viewing comfort
• Ground support/stacking system available in scalable road case-GROUNDSUPPORT2KIT

Optical

• Light Source: ?32,768 LEDs (tri-colour RGB) SMD 2121, 100,000 hours life expectancy
• Color Wavelength: ?red (615 to 630 nm), green (520 to 535 nm), blue (465 to 480 nm)
• Color Space: ?DCI-P3
• Viewing Angle (H/V): ?140/140
• Calibrated Illuminance: ?4,500 NITS (calibrated)
• Maximum Illuminance: ?>5,000 NITS (calibration disabled)
• Grayscale: ?22-bit+
• Receiver Card : ?A10s Pro
• Drive Type : ?1/16
• Pixels: ?128 x 256
• Pixel Pitch: ?3.9 mm
• Minimum Viewing Distance: ?7.5 ft (2.3 m)
• Pixel Density: ?65,536/m2
• Display Refresh Rate: ?7,680 Hz (S-PWM)

Construction/Physical

• Dimensions: ?19.69 x 39.37 in (500 x 1000 mm)
• Weight: ?31.2 lb (14.15 kg)
• Threaded Bolt: ?M10, 1.5
• Exterior Color: ?Black
• Housing Material: ?Aluminum ADC12
• LED Module Material: ?Glass fi lled Polycarbonate
• Maximum vertical hang: ?11 panels

Connections

• Power Connection: ?Edison (local) plug to Seetronic powerKON
• Power Input: ?Seetronic powerKON
• Power Output: ?Seetronic powerKON
• Data Connectors: ?Seetronic etherKON
• Cable Length (signal extension): ?4 ft (1.2 m)
• Cable Length (power): ?4 ft (1.2 m)
• Cable Length (power extension): ?6 ft (1.8 m)

Control

• Control Protocol: ?Novastar VMP platform
• Recommended Processor/Driver: ?Novastar MX40 Pro
• Panel Resolution (L x H): ?128 x 256
• Maximum Panels/Novastar MX40 Pro (20 ports): ?
• HDR off , 24 Hz
  • 8-bit video source: ?50/port, up to 1,000/Processor/Sender
  • 10-bit video source: ?37/port, up to 740/Processor/Sender
  • 12-bit video source: ?25/port, up to 500/Processor/Sender
• HDR off , 30 Hz
  • 8-bit video source: ?40/port, up to 800/Processor/Sender
  • 10-bit video source: ?30/port, up to 600/Processor/Sender
  • 12-bit video source: ?20/port, up to 400/Processor/Sender
• HDR off , 60 Hz
  • 8-bit video source: ?20/port, up to 400/Processor/Sender
  • 10-bit video source: ?15/port, up to 300/Processor/Sender
  • 12-bit video source: ?10/port, up to 200/Processor/Sender
• HDR off , 120 Hz
  • 8-bit video source: ?10/port, up to 200/Processor/Sender
  • 10-bit video source: ?7/port, up to 140/Processor/Sender
  • 12-bit video source: ?5/port, up to 100/Processor/Sender
• HDR off , 144 Hz
  • 8-bit video source: ?8/port, up to 160/Processor/Sender
  • 10-bit video source: ?6/port, up to 120/Processor/Sender
  • 12-bit video source: ?4/port, up to 80/Processor/Sender
• Maximum Panels Tall/ Novastar MX40 Pro: ?(adjust input/source resolution as needed): ?
  • 4 @ 1080 height
  • 5 @ 1344 height
  • 6 @ 1680 height
  • 8 @ 2160 height
• Maximum Panels Wide/ Novastar MX40 Pro: ?
• (adjust input/source resolution as needed):
  • 15 @ 1920 wide resolution
  • 30 @ 3840 wide resolution
  • 64 @ 8192 wide resolution

Electrical

• Input Voltage: ?100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: ?5 units @ 120 V; 10 units @ 208 V; 11 units @ 230 V
• Power and Current: ?300 W, 2.5 A @ 120 V, 60 Hz
• Power and Current: ?300 W, 1.44 A @ 208 V, 60 Hz
• Power and Current: ?300 W, 1.3 A @ 230 V, 50 Hz

Certifications/Qualifications

• CE, MET, FCC
• MET Listing Number: ?E113093-1110, E113093-1125
• US Safety: ?UL 60950-1
• Canadian Safety: ?CSA C22.2 No. 60950-1
• IP Rating: ?IP65/IP54
• Thermal Dissipation @120V: ?1,024 BTU per hour
• Thermal Dissipation @ 208V: ?1,024 BTU per hour
• Thermal Dissipation @ 230V: ?1,024 BTU per hour
• Operating Temperature: ?-4 F to 122 F (-20 C to 50 C)
