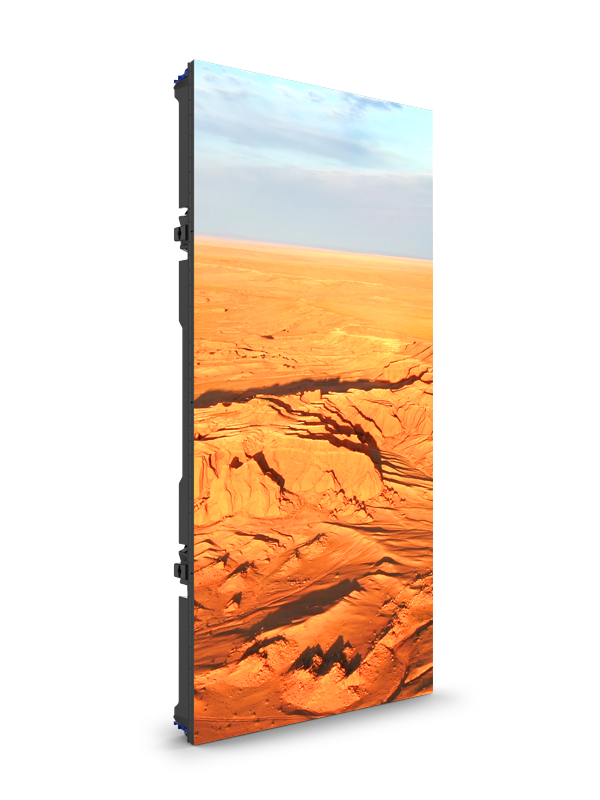

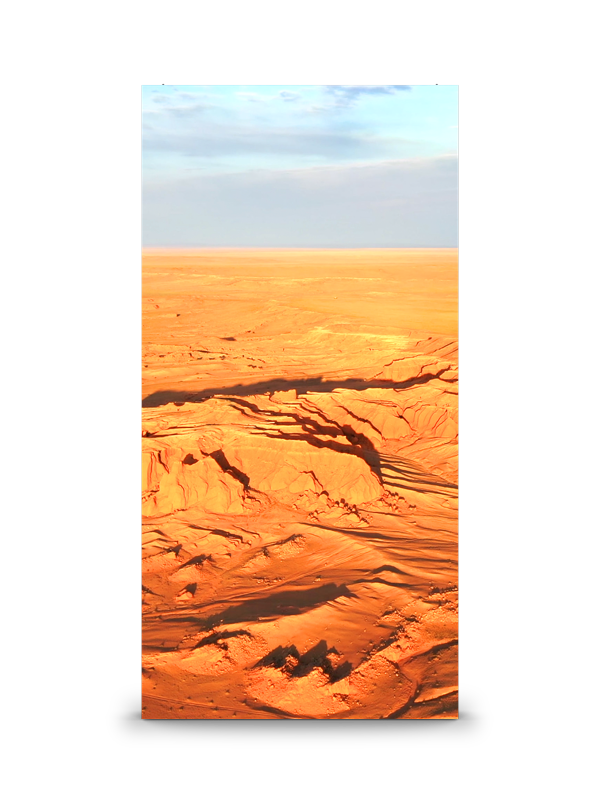

Chauvet Professional REM 1 LED Video Panel 1.9mm Pixel Pitch / 1000 NITS 4-Pack - POA

SKU: CHAUPRO REM1X4
Chauvet Professional

REM 1 is a high-resolution 800 NITS indoor video wall solution with a 1.9mm pitch, integrated convex/concave curving capabilities, and universal magnetic LED modules. Its DCI-P3 colour gamut LEDs offer 26% more colour possibilities compared to standard sRGB/Rec.709 LEDs. With high-speed 7680Hz LED drivers, A10s Pro Novastar Receiving cards, and low latency, REM 1 offers top-tier performance and signal processing for VR/XR applications, exhibits, houses of worship, installations and indoor events.

• 1.9 mm pitch, ultra-high resolution, modular, indoor video panel
• Map and scale your wall with the Novastar MX40 Pro sender
• Universal, magnetic LED modules for easy replacement and servicing
• Magnetic-assisted hanging integrated into frames makes building a screen fast and easy with minimal labour/effort required
• REM1 offered in two physical sizes: 1 m x 0.5 m, 0.5 x 0.5 m (special order)
• Integrated curving capabilities for concave and convex configurations
• Spring-loaded corner protection for safe transportation and handling
• Operating in the DCI-P3 colour space and driven via the premium A10s Pro receiver card from Novastar, black body LEDs accurately reproduce video at 22-bit+ grayscale and a wide colour gamut
• High performance LED drivers deliver 7,680 Hz refresh rate for camera-friendly operation in high-demand applications
• Low latency and HDR10 supported for VR/XR studio, live applications
• Design allows for overhead hanging, ground stacking, and wall mounting, maximized for multiple applications
• Specialized anti-reflective coating applied to the front of LED modules ensures optimal viewing comfort
• Ground support/stacking system available in scalable road case-GROUNDSUPPORT2KIT

Optical

• Light Source: 131,072 LEDs (tri-colour RGB) SMD 1212, 100,000 hours life expectancy
• LED Colour Wavelength: red (620 to 625 nm), green (510 to 535 nm), blue (485 to 475 nm)
• Colour Space: ?DCI-P3
• Viewing Angle (H/V): ?140/140
• Calibrated Illuminance: ?800 NITS (calibrated)
• Maximum Illuminance: ?>1,000 NITS (calibration disabled)
• Grayscale: ?22-bit+
• Receiver Card: ?A10s Pro
• Drive Type: ?1/21
• Pixels: ?256 x 512
• Pixel Pitch: ?1.9 mm
• Minimum Viewing Distance: ?7.5 ft (2.3 m)
• Pixel Density: ?262,144/m2
• Display Refresh Rate: ?7,680 Hz (S-PWM)

Construction/Physical

• Dimensions: 19.69 x 39.37 in (500 x 1000 mm)
• Weight: 31.2 lb (14.15 kg)
• Threaded Bolt: M10, 1.5
• Exterior Colour: Black
• Housing Material: Aluminium ADC12
• LED Module Material: Glass fi lled Polycarbonate
• Maximum vertical hang: 11 panels

Connections

• Power Connection: ?Edison (local) plug to Seetronic powerKON
• Power Input: ?Seetronic powerKON
• Power Output: ?Seetronic powerKON
• Data Connectors: ?Seetronic etherKON
• Cable Length (signal extension): ?4 ft (1.2 m)
• Cable Length (power): ?4.6 ft (1.4 m)
• Cable Length (power extension): ?6 ft (1.8 m)

Control

• Control Protocol: ?Novastar VMP platform
• Recommended Processor/Driver: ?Novastar MX40 Pro
• Panel Resolution (L x H): ?256 x 512
• Maximum Panels/Novastar MX40 Pro (20 ports):
• HDR off , 24 Hz
  • 8-bit video source: ?12/port, up to 240/Processor/Sender
  • 10-bit video source: ?9/port, up to 180/Processor/Sender
  • 12-bit video source: ?6/port, up to 120/Processor/Sender
• HDR off , 30 Hz
  • 8-bit video source: ?7/port, up to 140/Processor/Sender
  • 10-bit video source: ?7/port, up to 140/Processor/Sender
  • 12-bit video source: ?5/port, up to 100/Processor/Sender
• HDR off , 60 Hz
  • 8-bit video source: ?5/port, up to 100/Processor/Sender
  • 10-bit video source: ?3/port, up to 60/Processor/Sender
  • 12-bit video source: ?2/port, up to 40/Processor/Sender
• HDR off , 120 Hz
  • 8-bit video source: ?2/port, up to 40/Processor/Sender
  • 10-bit video source: ?1/port, up to 20/Processor/Sender
  • 12-bit video source: ?1/port, up to 20/Processor/Sender
• HDR off , 144 Hz
  • 8-bit video source: ?2/port, up to 40/Processor/Sender
  • 10-bit video source: ?1/port, up to 20/Processor/Sender
  • 12-bit video source: ?1/port, up to 20/Processor/Sender
• Maximum Panels Tall/ Novastar MX40 Pro: (adjust input/source resolution as needed):?
  • 2 @ 1080 height
  • 3 @ 1344 height
  • 3 @ 1680 height
  • 4 @ 2160 height
• Maximum Panels Wide/ Novastar MX40 Pro: (adjust input/source resolution as needed):
  • 7 @ 1920 wide resolution
  • 15 @ 3840 wide resolution
  • 32 @ 8192 wide resolution

Electrical

• Input Voltage: ?100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: ?7 units @ 120 V; 12 units @ 208 V; 14 units @ 230 V
• Power and Current: ?240 W, 2.0 A @ 120 V, 60 Hz
• Power and Current: ?240 W, 1.15 A @ 208 V, 60 Hz
• Power and Current: ?240 W, 1.04 A @ 230 V, 50 Hz

Certifications/Qualifications

• CE, MET, FCC
• MET Listing Number: E113093-1110, E113093-1125
• US Safety: UL 60950-1
• Canadian Safety: CSA C22.2 No. 60950-1
• IP Rating: IP30, dry location
• Thermal Dissipation @ 120V: 819 BTU per hour
• Thermal Dissipation @ 208V: 819 BTU per hour
• Thermal Dissipation @ 230V: 819 BTU per hour
• Operating Temperature: -4 F to 122 F (-20 C to 50 C)
