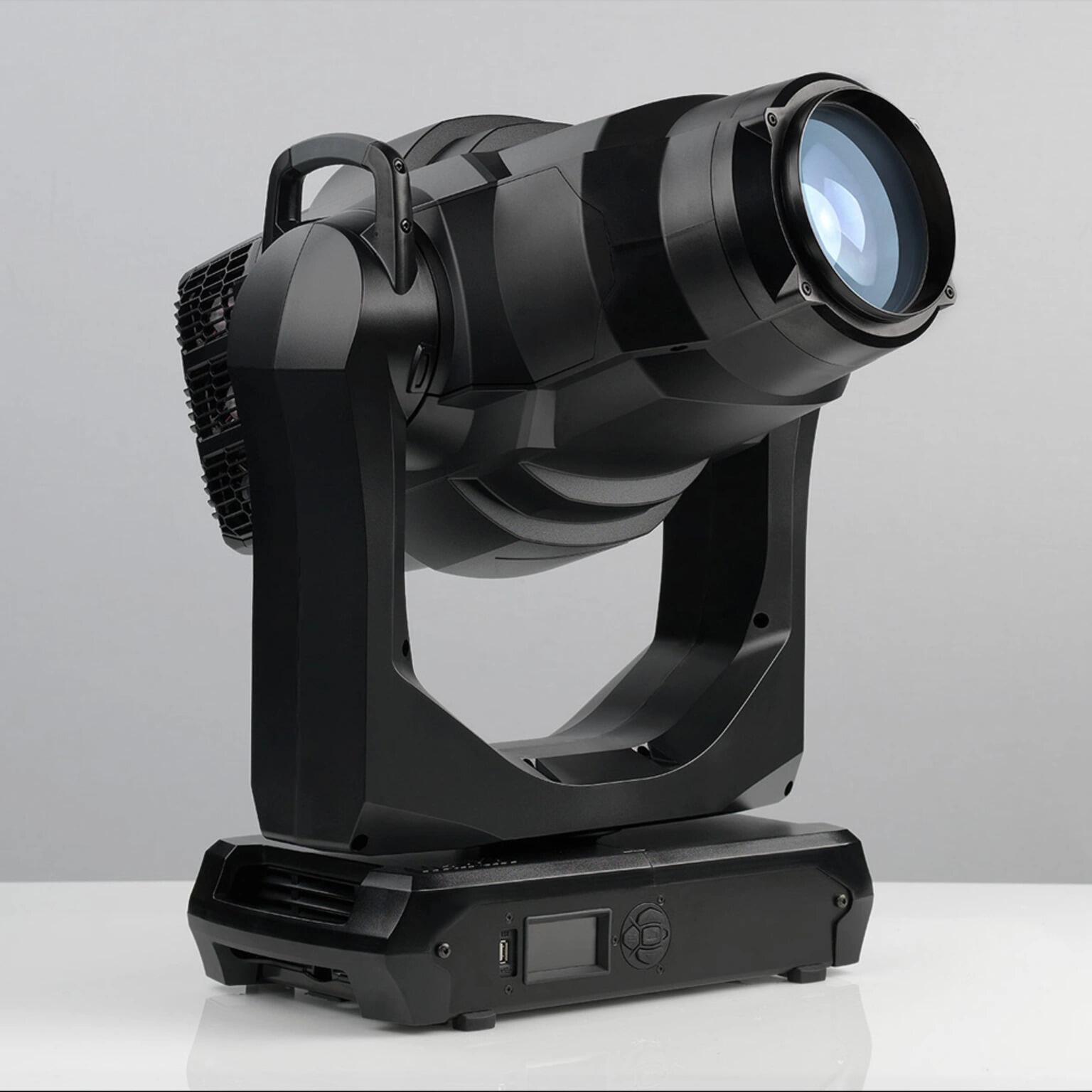

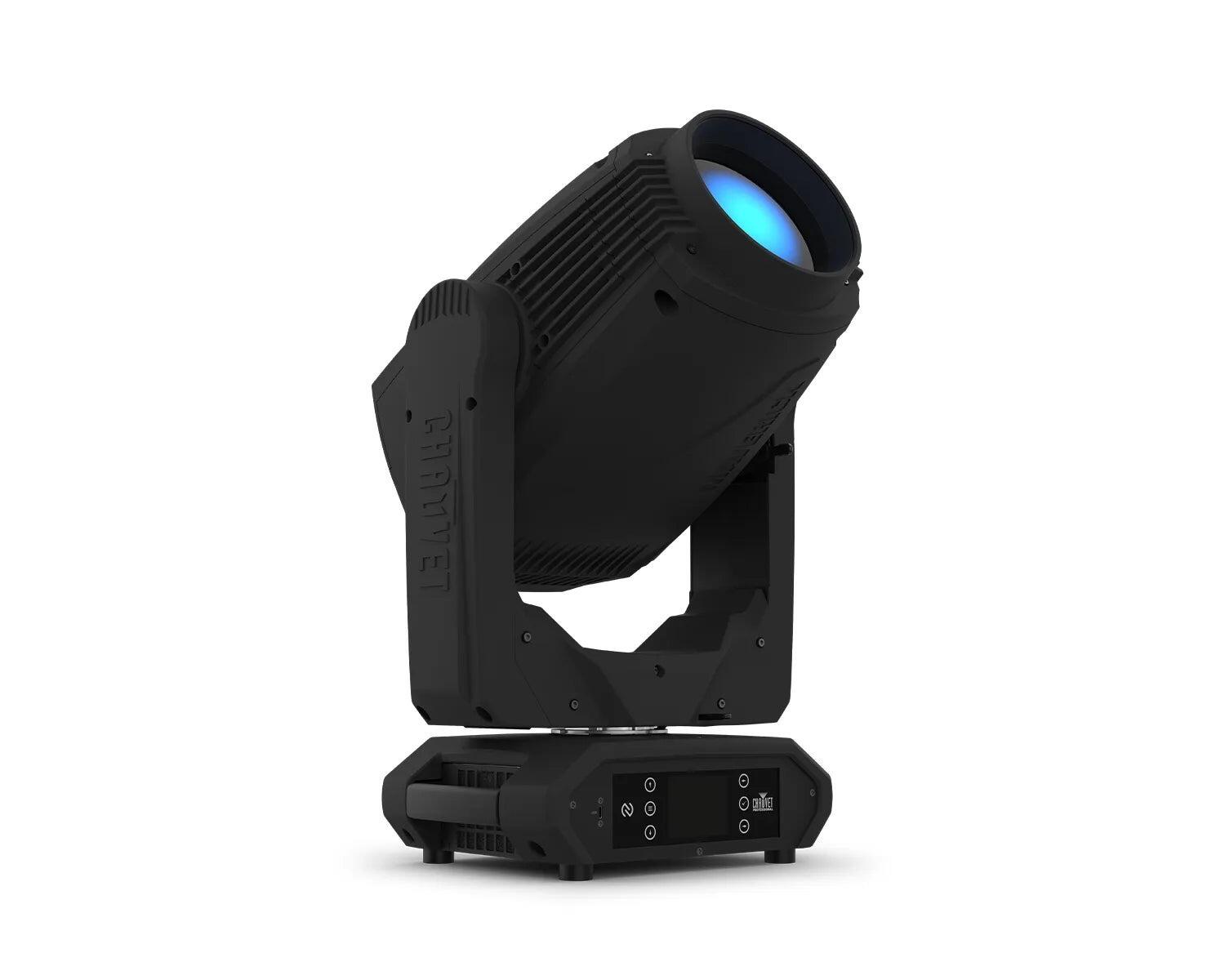

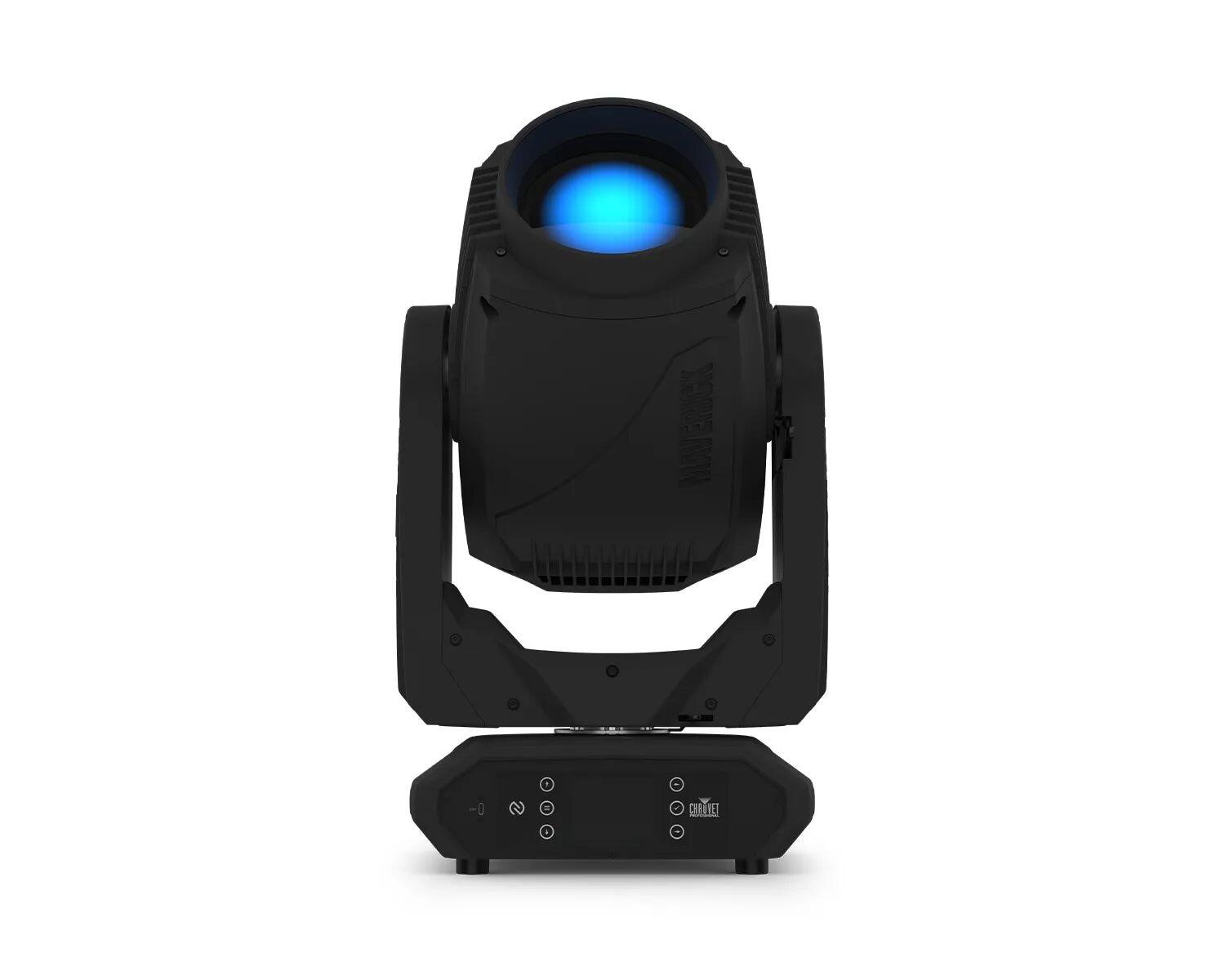

Chauvet Pro Maverick Force X SPOT, LED, CMY Colour Mixing 520W

SKU: CHAUPRO MAVERICKFORCESSPOT
Chauvet Professional

This fast lightweight powerhouse combines the latest Maverick series technical advancements to achieve 17,325 lumens of output in a design that maintains a flat field of focus all the way from its narrow 3.5° beam to a broad 57.7° spot. Colour calibration and gobo selection comes matched to other Force fixtures in the rig and its wheelhouse includes a variable CMY colour mixing system renowned for its real reds, colour wheel with CRI and CTB filters, static and rotating gobo wheels, five-facet prism, iris, and frost. With superb dimming performance, an expansive 18:1 zoom, and a full armoury of features, Maverick Force X Spot is a compact LED moving spot ready for a wide range of short and long throw applications. Take control with DMX, RDM, sACN, Art-Net, or W-DMX.

Product Features:

• Fully featured, compact and lightweight 520 W LED yoke spot fixture including CMY colour mixing, a colour wheel, zoom optics, and two gobo wheels: one rotating, and one static
• 16-bit dimming of master dimmer for smooth control of fades
• 65,000 PWM for use with the fastest frame cameras, but still maintains fantastic dimming
• Variable CMY colour mixing system to create a wide pallet of colours
• DMX, WDMX, sACN, and Art-Net for full flexibility of control options
• RDM-enabled for remote addressing and trouble shooting
• 3.5° to 57.7° zoom range for variable beam sizes
• Iris, 5-facet prism, and frost for beam control
• True-1 compatible power input
• Three setup menu presets and preset sync for cross loading to multiple like fixtures for easy shop setup
• USB slot for software uploads
• Battery backup display with auto-rotate depending on fixture orientation
• Failsafe Ethernet connectivity allows data to pass even if fixture power is lost
• NFC for quick/easy fixture setup in the shop or in the field

Product Specification

Optical

• Light Source:  1 LEDs (CW) 520 W, (4.2 A), 6462 K, 50,000 hours life expectancy.
• Colour Temperature (at full):  6462 K
• Front lens diameters:  145 mm
• CRI:  72.2
• CRI with CRI filter:  91
• Beam Angle:  3.5° to 51.3°
• Field Angle:  3.7° to 56.3°
• Cutoff Angle:  3.9° to 57.7°
• Zoom Range:  3.5° to 57.7°
• Lumens - Output:  17,325
• Illuminance (3.5°):  93,084 lux @ 5 m
• Illuminance (57.7°):  1,135 lux @ 5 m
• Selectable PWM:  600Hz, 1500Hz, 2000Hz 65000Hz

Dynamic Effects

• Pan and Tilt:  540°/270°
• Pan and Tilt Ranges:  540°, 360°, 180° pan/270°, 180°, 90° tilt
• Colours:  7 (including CRI and CTB filters) + white, split colours, continuous scroll at variable speeds
• Colours:  CMY Wheels
• Colour Macros:  # macros
• Gobos (1):  9 + open (9 metal), rotating, continuous scroll at variable speeds
• Gobos (2):  7 + open (1 metal + 6 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
• Gobo Size:  Gobo Wheel 1 (rotating):  24 mm (outside), 14 mm (image), 1.1 mm (max. thickness)
• Dimmer:  Electronic
• Shutter/Strobe:  Electronic
• Zoom:  Motorised
• Focus:  Motorised
• Frost:  Motorised
• Iris:  Motorised
• Prism:  5 Facets, motorised, rotating
• Strobe Rate:  0 to 25 Hz
• Move-in-Black:  Yes
• Dim Curves:  5

Construction / Physical

• Dimensions:  14.21 x 9.40 x 25.43 in (361 x 239 x 646 mm)
• Weight:  44.2 lbs. (20 kg)
• Exterior Colour:  Black
• Housing Material:  Aluminium die-cast, High-impact flame-retardant polymer, Steel

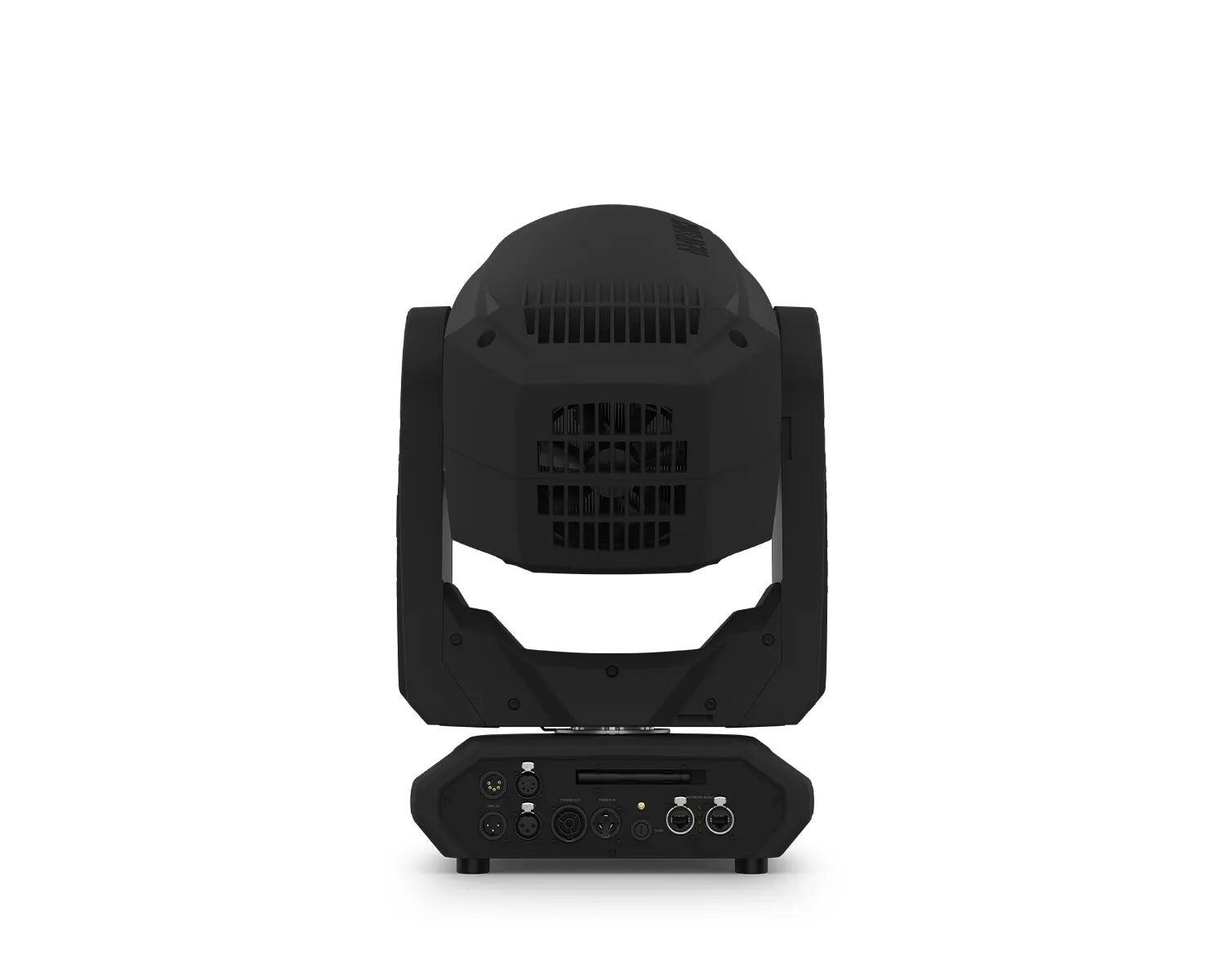

Connections

• Power Connection:  Edison plug to Seetronic Powerkon IP65
• Power Input:  Seetronic Powerkon IP65
• Power Output:  Seetronic Powerkon IP65
• Data Connectors:  3- and 5-pin IP65 XLR, Seetronic etherCON
• Cable Length (signal):  5 ft (1.5 m)

Control

• DMX Channels:  22 or 29
• Art-Net Channels:  22 or 29
• Modes/Personalities:  2 personalities (22, 29)

Electrical

• Input Voltage:  100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking:  2 units @ 120 V; 4 units @ 208 V; 5 units @ 230 V
• Power and Current:  554 W, 4.64 A @ 120 V, 60 Hz
• Power and Current:  541 W, 2.68 A @ 208 V, 60 Hz
• Power and Current:  542 W, 2.44 A @ 230 V, 50 Hz

Battery

• Battery type:  Lithium Ion
• Rechargeable:  Yes
• Battery Charge Time:  5 hours
• Battery Life:  1 hours
• Battery Power:  3.7 V, 500 mAh

Certifications / Qualifications

• CE, MET, FCC, UKCA
• IP Rating:  IP20, dry location
• Temperature (Ambient):  -4 °F to 113 °F (-20 °C to 45 °C)

What's in the Box?

• Maverick Force X Spot
• Seetronic Powerkon power cord
• Omega brackets with mounting hardware
