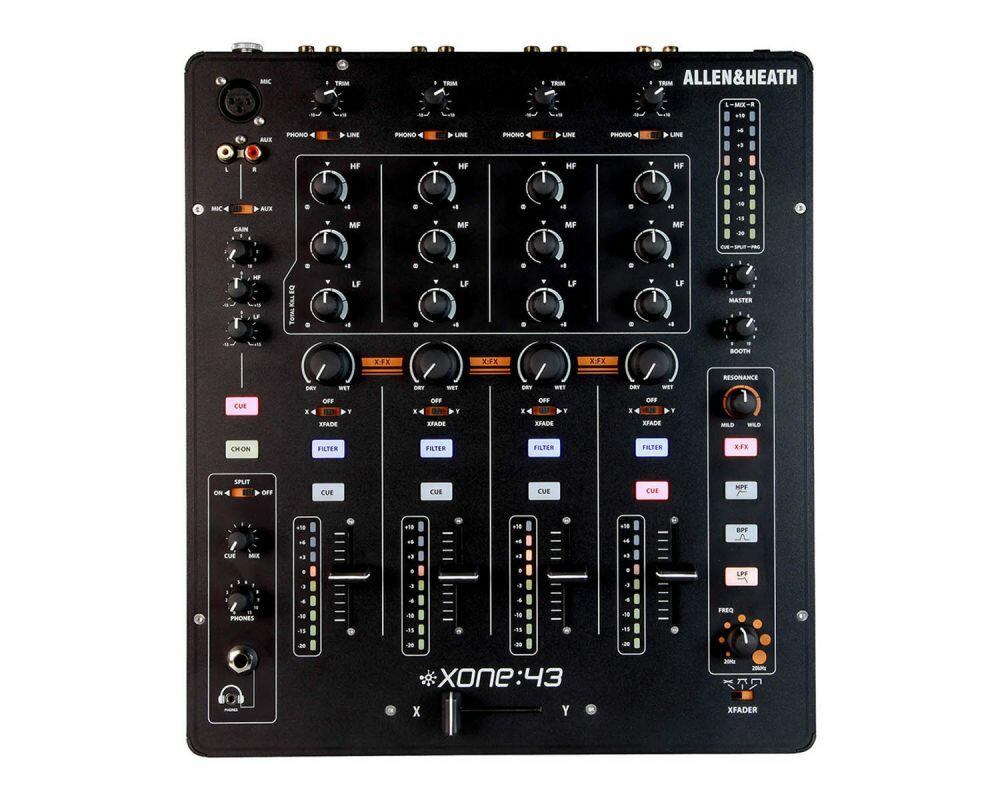

XONE 43 4Ch Analogue Club & DJ Mixer & 3 Band EQ

4 Channel Analogue DJ Mixer.

Created for DJs and electronic music purists, Xone:43 is a 4+1 channel DJ mixer that offers the very best of analogue audio quality, including the legendary Xone filter with resonance control, 3 band EQ, crossfader with three curve settings and X:FX for send/return to your favourite FX unit.

The crossfader has three switchable curve settings for blending or scratching styles and can be easily replaced or upgraded to a custom Innofader for ultimate crossfader performance.

With balanced XLR main outputs, independent booth and record outputs, Xone:43 excels in the club and in high end personal DJ setups.

• 4 channels with phono/line inputs
• VCF Filter system low-pass, high-pass and band-pass filters plus frequency and resonance controls
• 3-band EQ
• External FX loop (Send/Return) system with dry/wet control per channel
• Mic input on balanced XLR, with 2-band EQ
• Balanced main mix out on XLR
• Independent booth out
• Record out
• 3.5mm and 1/4 headphone outputs
• Touring grade build quality
• Super smooth VCA channel faders
• User changeable crossfader
• Innofader compatible
• Crossfader curve switch
• 20dB pro standard headroom
• 9-segment signal level monitoring

General

• Nom / max output levels:
  • Main Mix +4dBu +27dBu
  • Booth 0dBu +22dBu
  • X:FX Send 0dBu +20dBu
  • Record Out 0dBu +20dBu
• Internal headroom: Channels +20dB
• Frequency response: +/-0.5dB 20Hz - 20kHz
• Distortion: < 0.05% THD+noise @1kHz
• Crosstalk: < -83dB inter-channel
• Residual noise:
  • Mix 1 -89dBu
  • Booth -93dBu
  • X:FX -77dBu
  • Rec -92dBu
• Mix noise:
  • Mix 1 -82dBu
  • Booth -84dBu
  • X:FX -77dBu
  • Rec -87dBu
• Channel meters: Peak reading 9 LED -20dB to +10dB
• Main meters: Peak reading 9 LED -20dB to +10dB
• Mic EQ: 2-Band +/-12dB
• Channel EQ: 3-Band +6dB / total kill
• Channel fader: 45mm stereo VCA, < -85dB shutoff
• Crossfader: 45mm stereo VCA - replaceable
• Filters: Stereo VCF, analogue
• Consumption: 30W max

Physical & Dimensions

• Width: 320mm
• Height: 110mm
• Depth: 370mm
• Weight: 5.1kg
