Allen & Heath XONE 23 DJ Mixer

Allen & Heath XONE 23 DJ Mixer - Allen & Heath

Name: Allen & Heath XONE 23 DJ Mixer
Brand: Allen & Heath
SKU: alh XONE:23
Price: 351.492 GBP

roll over the image to zoom in

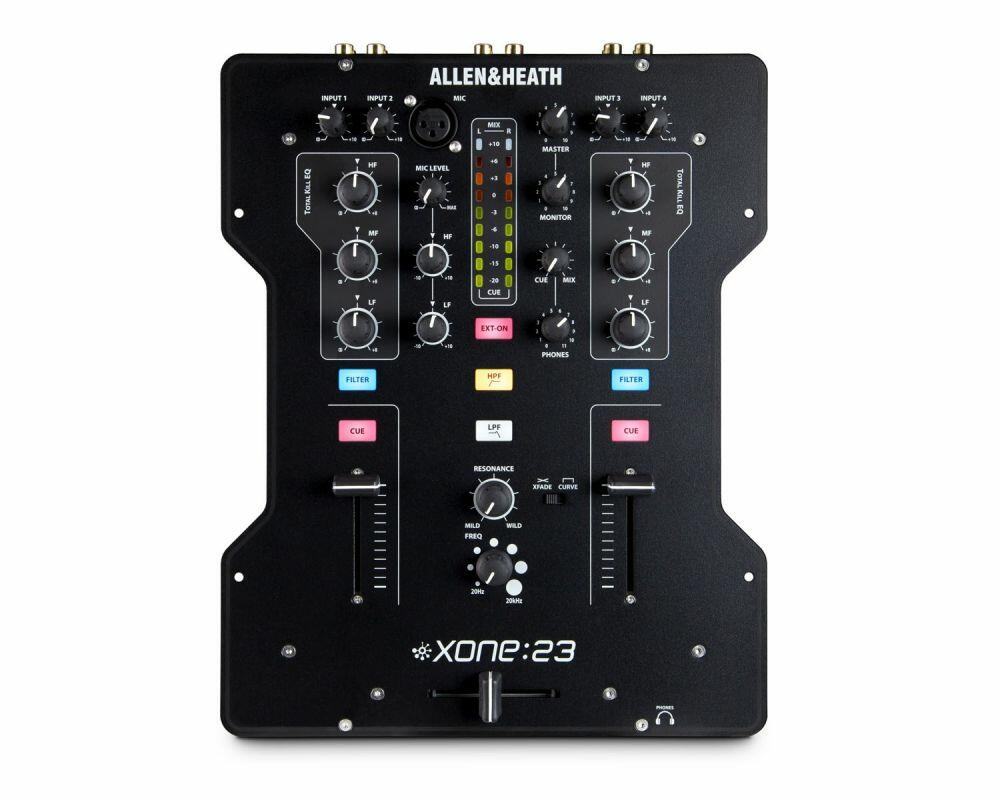

Allen & Heath XONE 23 DJ Mixer
SKU: alh XONE:23
Product Discontinued - Please contact us for alternatives

Allen & Heath

XONE 23C DJ Mixer 2+2 Input & 96kHz 24 Bit USB Soundcard

High Performance DJ Mixer and Soundcard.

The Xone:23C brings together the best of digital DJing and conventional mixing in a compact accessible format.

This high performance DJ mixer is equipped with a premium quality, 4 stereo channel 96kHz 24bit internal soundcard and offers plug n play connection via X:LINK to Xone:K series controllers, making it perfect for performers looking to combine the convenience of digital DJing and recording with the hands-on control and visual appeal of a real mixer.

Xone:23C includes an enhanced version of the legendary Xone filter with resonance control, VCA faders, 3 band total kill EQ, illuminated switches, crossfader curve selector and styling inspired by the flagship Xone:DB4.

2+2 channels with dual phono/line inputs
VCF Filter system low-pass + high-pass filters plus frequency and resonance controls
3-band true total kill EQ
External FX loop
Mic input on balanced XLR, with 2-band EQ
Balanced main mix out on XLR
Independent booth out
Record out
3.5mm and 1/4 headphone outputs
Touring grade build quality
Super smooth VCA channel faders
User changeable crossfader
Innofader compatible
Crossfader curve switch
20dB pro standard headroom
Ultra low distortion
2mm Steel face plate
9-segment signal level monitoring

Inputs:
- Phono:?RCA 47K/330pF 7mV-100mV
- Line:?RCA 20K ohm -10 to +20dBu
- FX RTN:?RCA 10K ohm 0 to +20dBu
- Mic:?XLR <2K ohm -42 TO 12dBu
Outputs:
- Main Mix:?Balanced XLR 100 ohms +4dBu +28dBu
- Monitor:?RCA 100 ohms -2dBu +22dBu
- Record:?RCA 100 ohms -2dBu +19dBu
- FX SND:?RCA 100 ohms -2dBu +19dBu
- Headphones:?3.5mm and 1/4TRS Jacks 1 ohm 200mW RM?200mW RMS into 30 ohms
Performance
- Distortion: Main Mix:?out +10dBu 0.01% THD+N
- Noise:?22-22Khz Main Mix out unity -85dBu un-weighted
- Fader shut off:?Channel fader >-80dB
- Xfade shut off:?Xfader >-80dB
- Frequency Response: 10Hz to 50kHz +/-0dB
Width: 240mm
Height: 106mm
Depth: 314.2mm
Weight: 2.7kg
