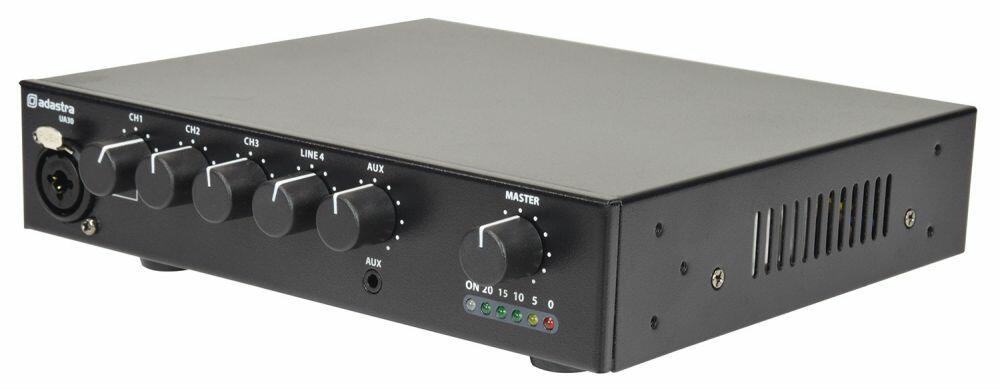

Adastra UA30 Compact 5ch 100V MixerAmp - 953.183UK

SKU: 953.183UK
Adastra

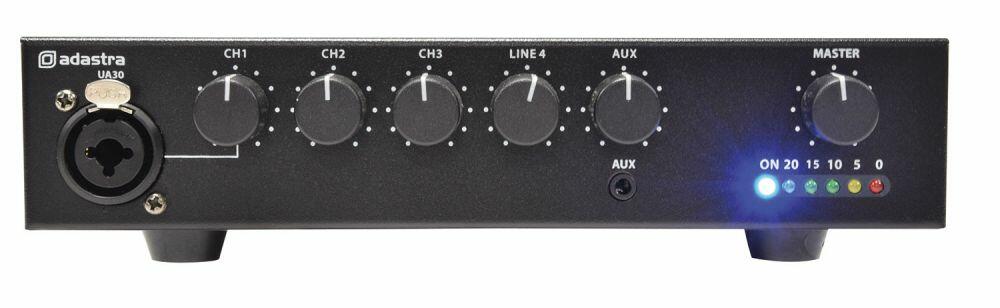

100V mixer-amplifiers with an integral mixer in a half width 1U housing. 3 switchable mic/line inputs, an RCA line input and a 3.5mm Aux input are governed by front panel volume controls and a Master output control. Mono output to either 100V line or 8 ohms speaker load is connected via a removable screw terminal connector on the rear panel. Supplied with rack-mounting hardware which can be configured to mount a single unit against a wall or under a worktop. Designed as a versatile solution for small to medium PA installations.

24V fire alarm mute contacts

Supplied with hardware for rack-mounting 2 units

5 input channels

100V line or 8 Ohms operation

Switchable +20V phantom power CH1

Power supply170-264Vac, 50Hz (IEC)

Amplifier : constructionClass D + transformer output

InputsMic/line (combo), 2 x mic/line (6.3mm), line (RCA), aux (3.5mm)

Line output2 x RCA (mono)

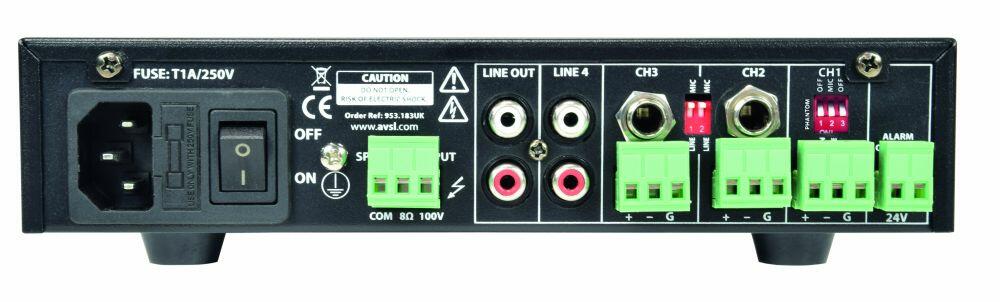

Speaker outputEuroblock terminals: 100V / 8 Ohms / Com

Mute24V relay contacts

THD<0.4% @ 1kHz

Input impedance1k Ohms (mic/line)

Input sensitivity-10dB (line), -45dB (mic)

SNR80dB (line), 75dB (mic)

Frequency response100Hz - 18kHz

Phantom power+20V CH1 (XLR or rear terminals)
