Zenith MH 212 FOH Speaker 800W Dual 12 Inch

SKU: SPEA80
Zenith

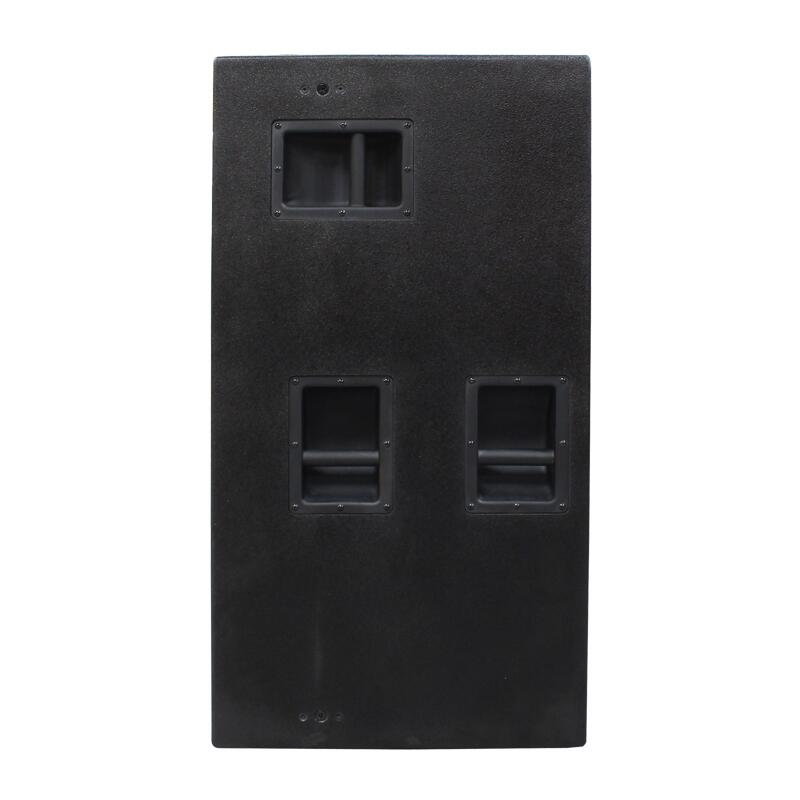

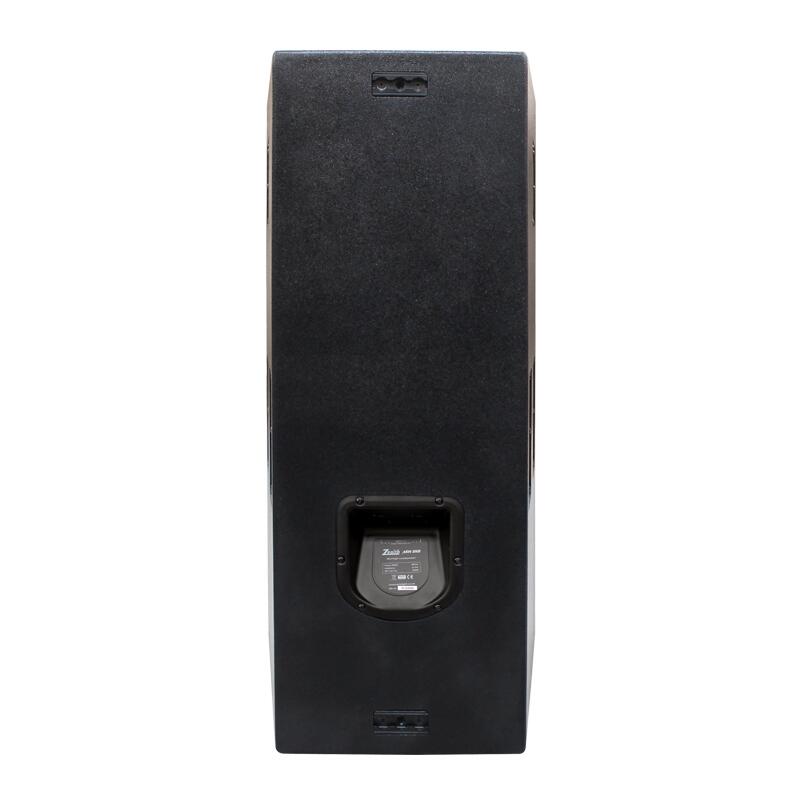

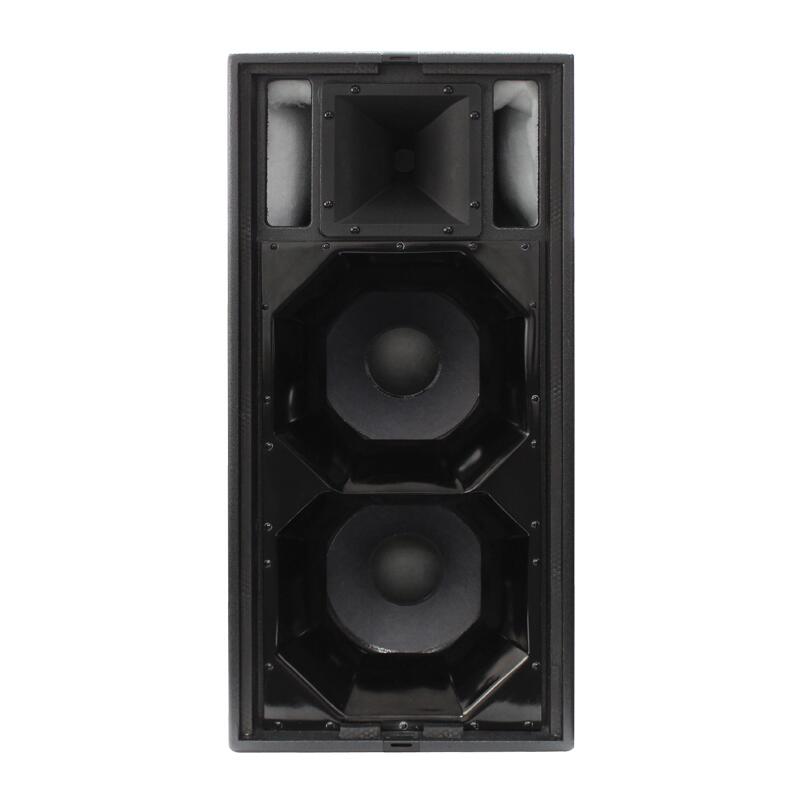

High SPL mid/high enclosure suited to FOH and side fill applications featuring two 12'' die-cast aluminium chassis, mounted in a braced composite flare, together with a 1.4'' titanium compression HF driver arranged in a three way, semi horn loaded configuration. The enclosure is constructed from robust birch ply coated with a hard-wearing and durable polyurethane paint finish. It is also fitted with rigging points, steel bar handles, wheel board mounting hardware, rubber feet and a recessed speakON connector plate making it ideal for rental or installation.

Continuous power: 800W RMS

Peak power: 3200W

Maximum calculated SPL: 138dB

Sensitivity (1W/1m): 103dB

Frequency range (10dB): 50Hz 18kHz

Frequency range (3dB): 60Hz 16kHz

Crossover frequency: 600Hz and 1.6kHz

Horizontal coverage: 80 Degree

Vertical coverage: 50 Degree

LF transducers: 2 x 12'' (75mm voice coil)

HF transducer: 1.4'' (35.5mm voice coil)

Nominal impedance: 4Ohm

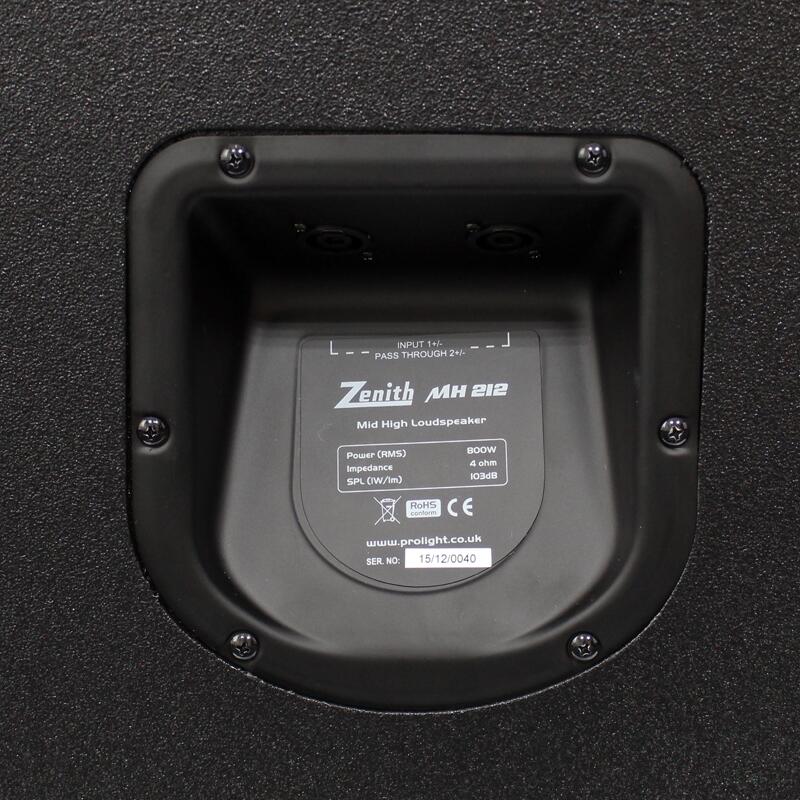

Connections: 2 x speakON connectors

Mounting options: 6 x M10 rigging points

6 x Penn Elcom flying track rigging points

Dimensions: 1021 x 490 x 535mm

Weight: 57kg
