Zenith LSP204 Loudspeaker Processor

SKU: PROC06

Product Discontinued - Please contact us for alternatives

Zenith

Built around a powerful processor core, the Zenith LSP loudspeaker management systems offer a wide variety of features allowing the sound technician to adjust delay, dynamics, routing, crossover and EQ either from the easy to use interface on the front panel or via the Windows based PC editing suite. The processor is pre-loaded with a range of standard presets for basic systems including 2-way stereo, each of these maybe copied, edited and saved into user presets, or alternatively the sound technician may may create and store their own. The user may backup or duplicate presets via the PC editing suite.

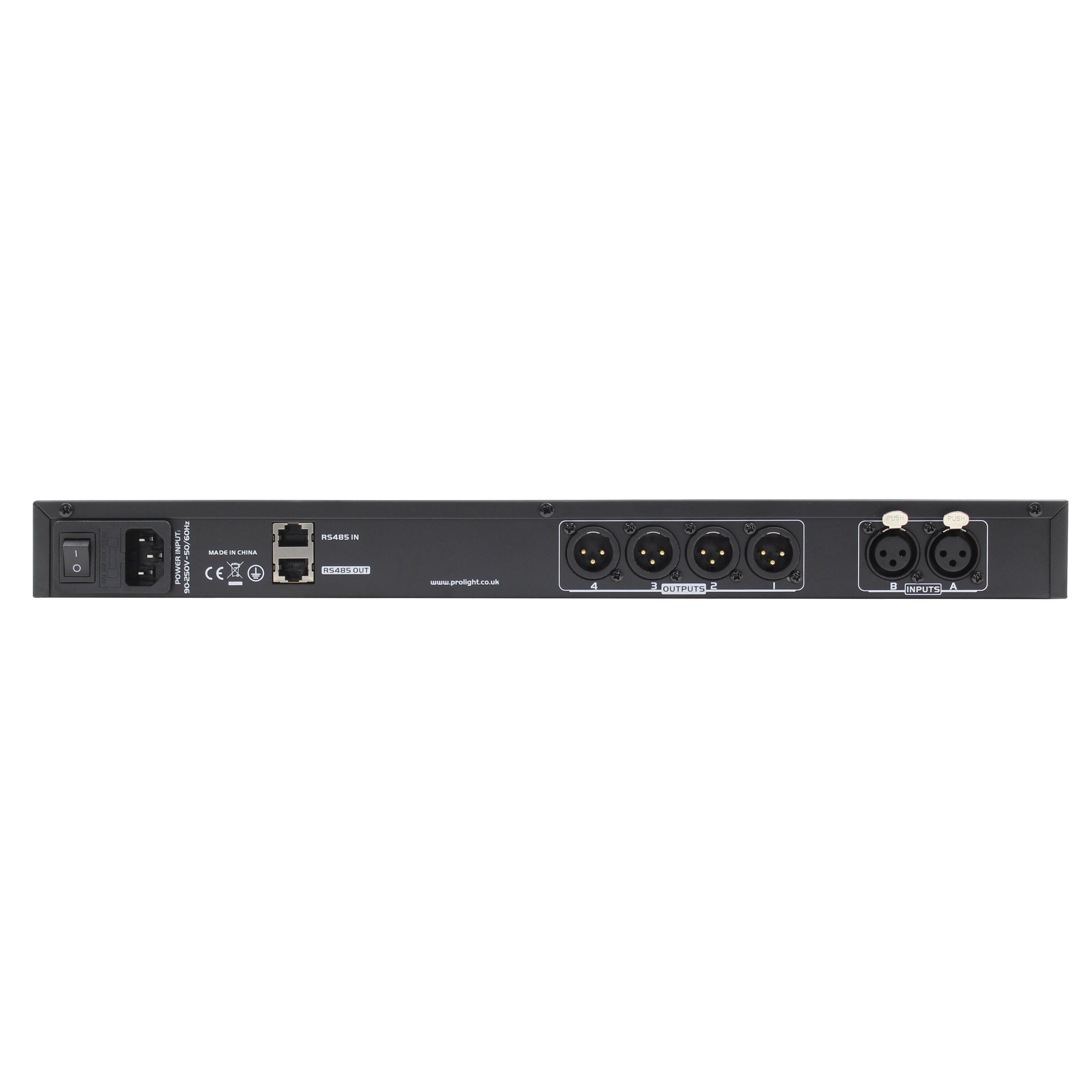

LSP204 2 XLR inputs

4 XLR out LSP408 4 XLR inputs

8 XLR out

24bit DSP with high performance AD/DA converters

48kHz sampling rate

Input/output level control with 40dB to +12dB range in 0.1dB increments

7 band PEQ (parametric EQ) for each input and each output Each EQ features parametric

low shelf 6dB

low shelf 12dB

high shelf 6dB and high shelf 12dB

PEQ frequency range: 19.7Hz thru 21.9kHz

gain range 30dB to +15dB

bandwidth: 0.017 to 4.750 octave

Output high pass and low pass filter

each filter has multiple slopes and types

Filter slopes: 12dB/Oct

24dB/Oct

36dB/Oct

48dB/Oct

Filter types: Butterworth

Bessel or LinkwitzRiley

Up to 1 second of delay for each input and output

switchable and selectable

Compressor for each input and output with adjustable threshold

ratio

attacktime

releasetime and knee type

Phase reverse for each input and output

Copy function allows settings to be copied between channels

Multichannel parameters can be set simultaneously via the channel linking function

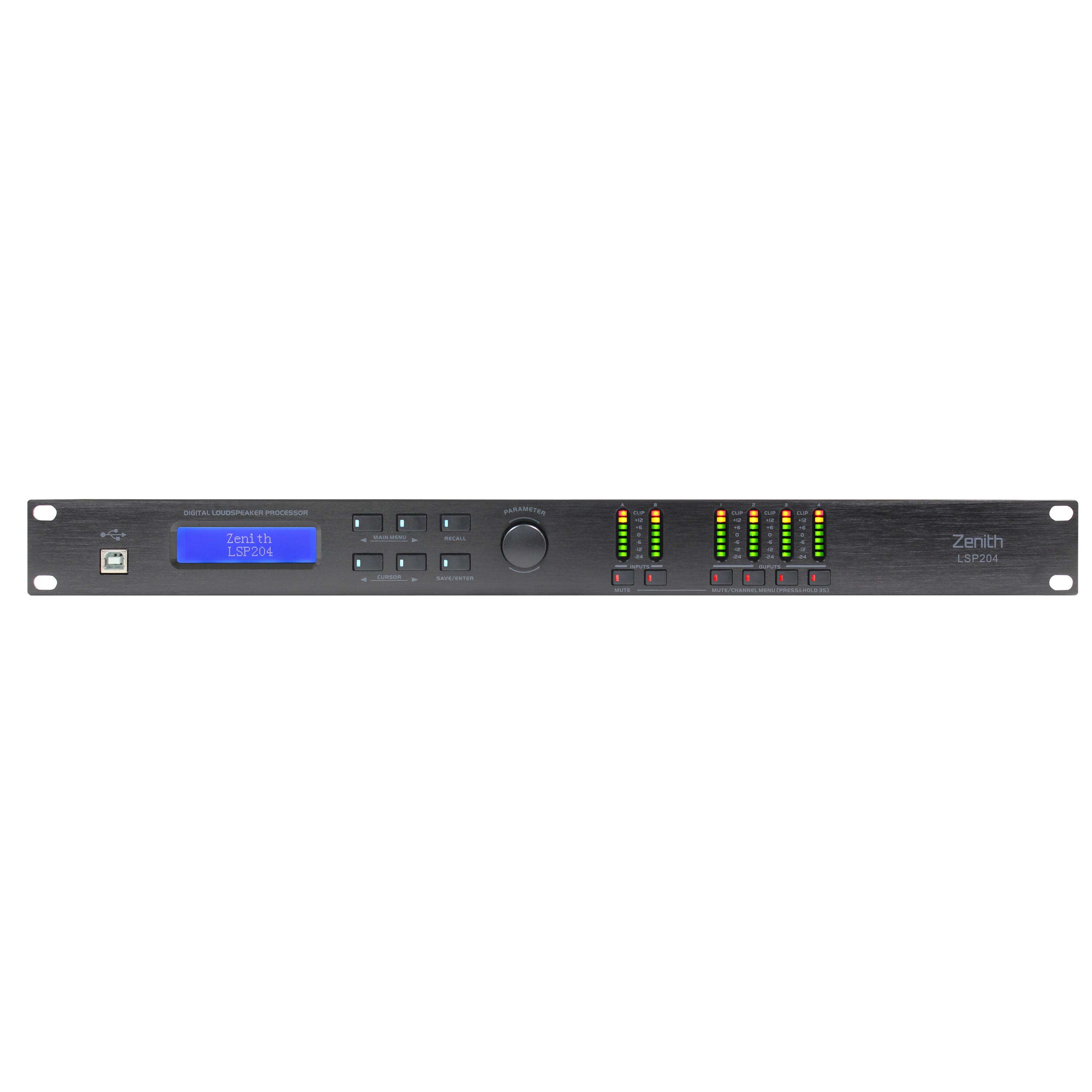

Jog wheel control for parameter adjustment

132 x 32 pixel LCD display

7 segment LED level indicator for each input and output

User friendly and intuitive Windows PC software on USB flash drive

Power supply 90~250V

AC 50/60Hz

Dimensions 45 x 482 x 158mm

Weight 2.0kg
