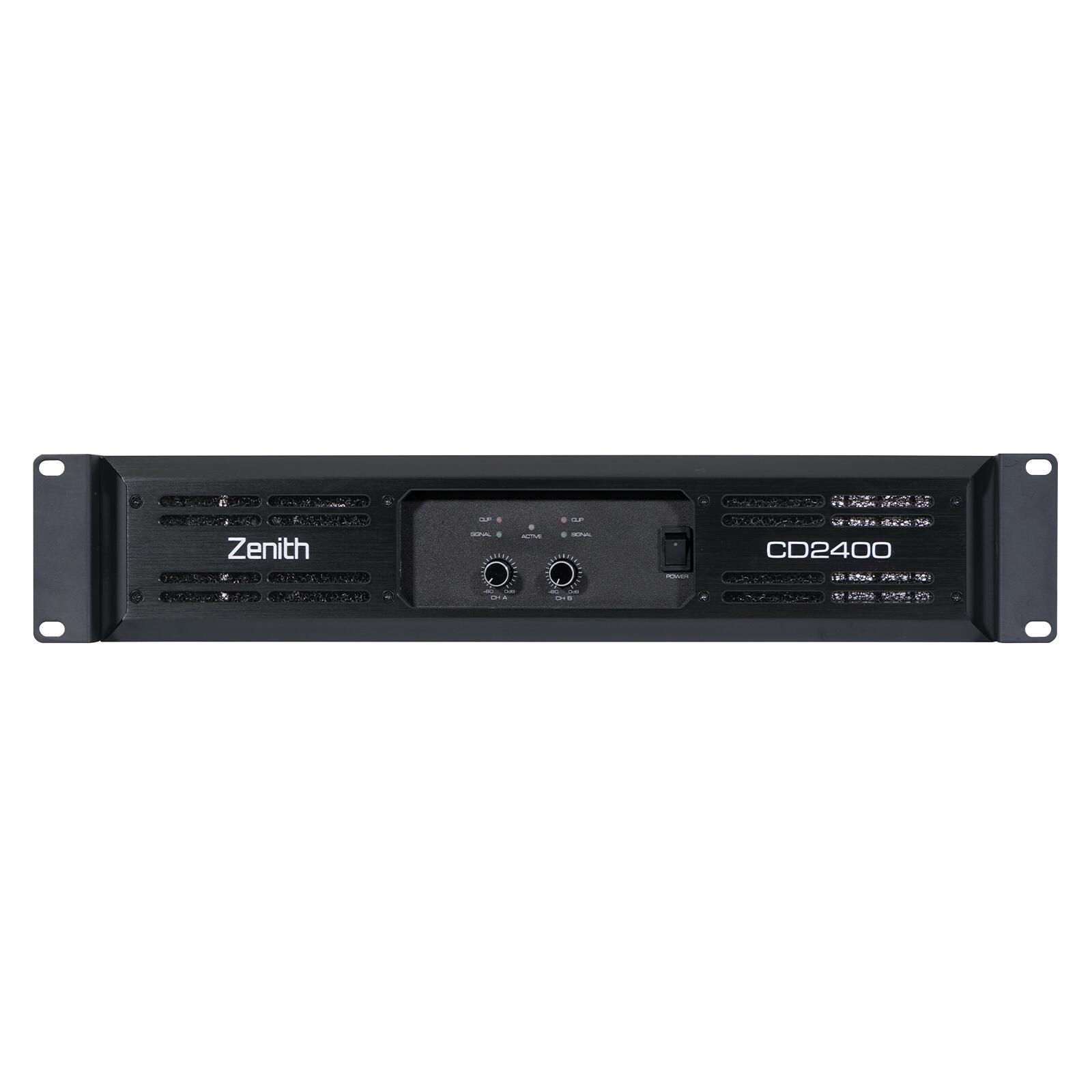

Zenith CD2400 Power Amplifier

SKU: AMP10

Product Discontinued - Please contact us for alternatives

Zenith

The CD series feature high output power, outstanding sound quality and superior stability for a wide range of installed sound systems as well as portable live sound applications. Available in two and four channel versions and with an RMS wattage of up to 8000W this series feature class D technology in a compact 2U package. Automatic clip limiting along with high efficiency tunnel cooling and DC fans ensure reliability time after time.

Power output @ 8Ohm: 2 x 400Wrms

Power output @ 4Ohm: 2 x 700Wrms

Power output bridge @ 8Ohm: 1 x 1200Wrms

Frequency response: 20Hz to 20kHz

Input sensitivity: 0.775V

32dB or 26dB

Damping factor: 250

Slew rate: 12V/uS

Min. Load impedance (Stereo): 4Ohm

Min. Load impedance (Bridge): 8Ohm

Protection circuits: Soft start

limit

thermal

short circuit

overload

DC fault protection and AC power supply fuse

LED indicators: Active

signal and clip

Input connections: 2 x XLR sockets

1 x powerCON input

Output connections: 2 x speakON connectors

Additional features: Switchable stereo

parallel and bridge

Power supply: 220240V AC 50/60Hz

Power consumption: 250W (1/8 power @ 8*Ohm)

Dimensions: 88 x 483 x 460mm

Weight: 8kg
