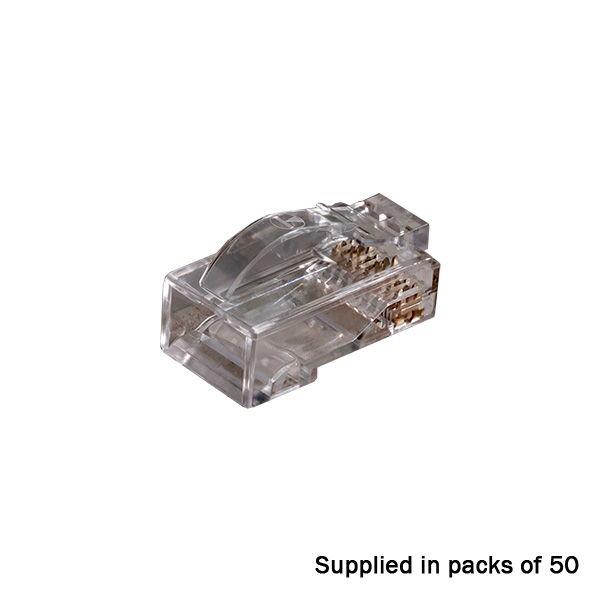

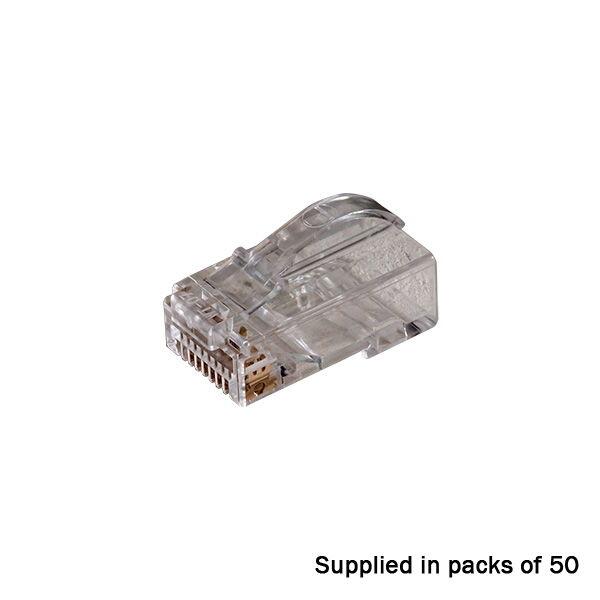

TUK RJ45 Crimp plugs CAT6 Unshielded Arc-latch Pack of 50
SKU:
CONN1304
TUK
Our Category 6 UTP snagless RJ45 8p8c arc latch plug avoids the need for an anti-snag from the strain relief boot; leads can more easily be removed from panels or sockets without the encumbrance of rubber boots. Strain relief boots can be omitted without risking snagging.
Unshielded Compliant with Category 6 patch cord standard Snagless arc latch design avoids tangling and breakage of latch Three prong pin fits stranded or solid cores 23 – 26 AWG / 0.573 – 0.404mm with insulation OD 0.98 – 1.05mm Suitable for termination of solid or stranded UTP cables with sheath O.D. of 5.5 – 6.5mm Two piece design with 2 up 6 down configuration to maintain separation
Net weight (including primary packaging): 82g Dimensions: 145 x 55 x 40mm (cardboard carton of 50) Colour: Transparent Materials: Housing: Polycarbonate UL94V-2 Contact blade: Copper alloy Contact pin: 50”µ/1.27µm gold plating
