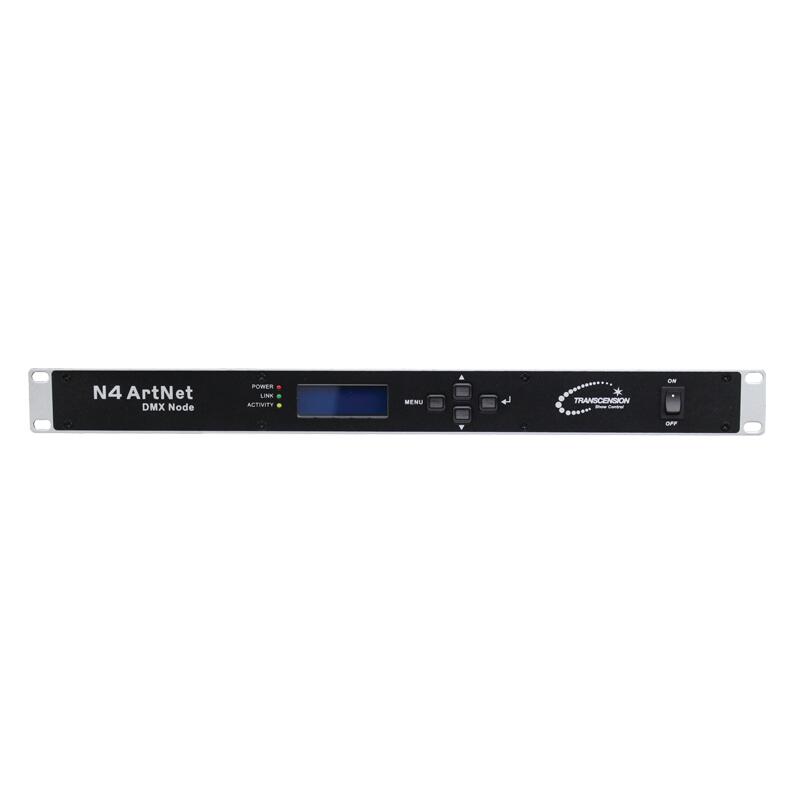

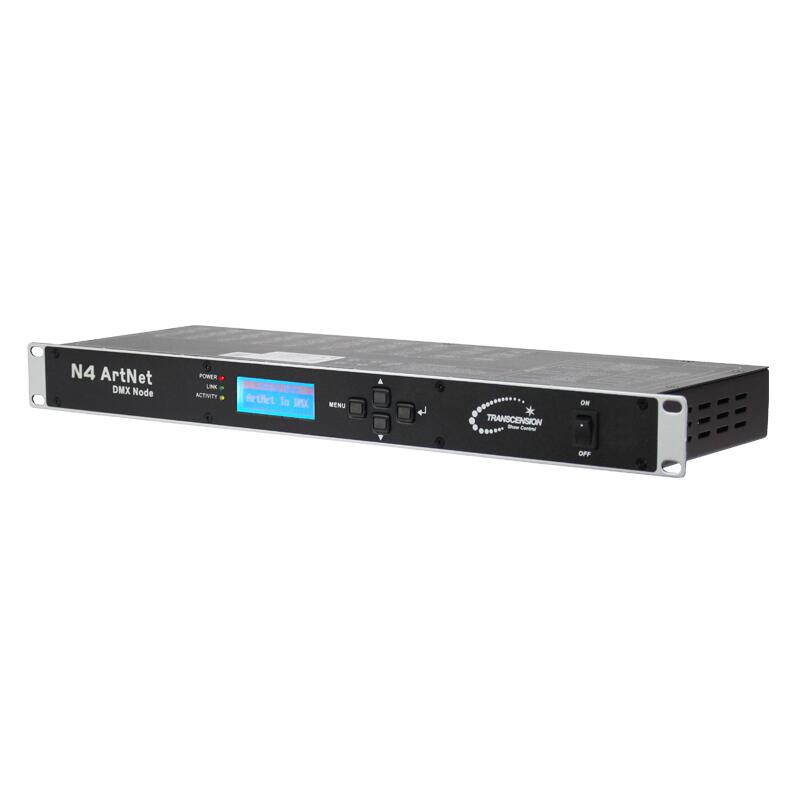

Transcension N4 Art-net/DMX Node MKII

SKU: CONT25

Product Discontinued - Please contact us for alternatives

Transcension

Multi-purpose, four universe DMX processor featuring three modes of operation: Art-NetT to DMX node, four universe DMX to Art-NetT processor or DMX splitter/buffer.

ArtNetT input/throug via etherCONT RJ45

2048 channels

4 push button menu with LCD display

6 user presets

10/100M LAN interface

Supports TCP/IP protocol

Manual IP address selection

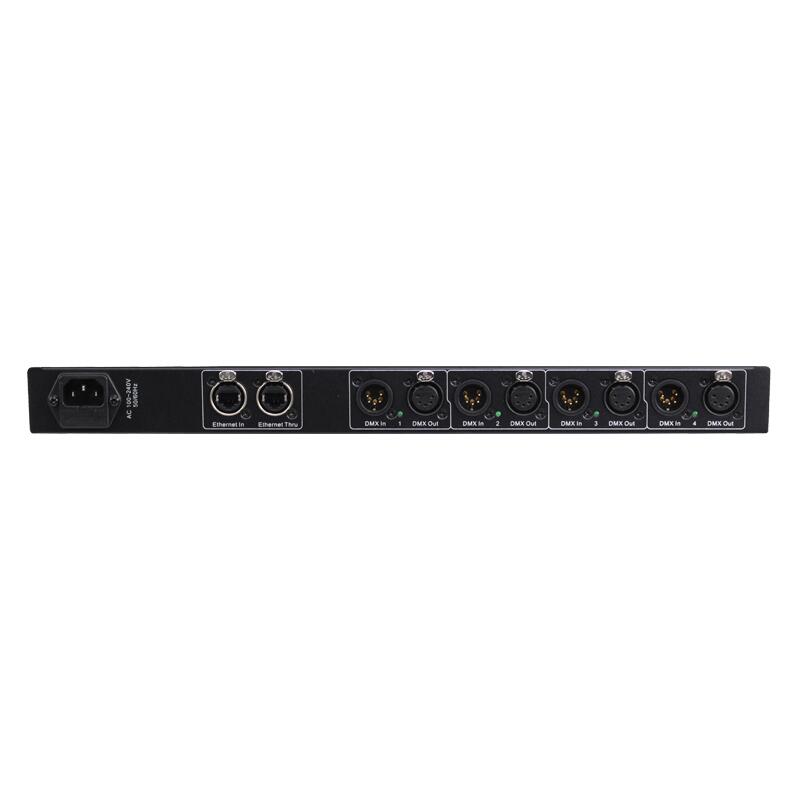

Four DMX512 outputs

four DMX inputs via 5 Pin XLR

RDM Support

Electronically isolated inputs and outputs

IEC power input

19''/1U rack mountable

Power supply: 100~240V 50/60Hz

Dimensions: 45 x 484 x 152mm

Weight: 1.98kg
