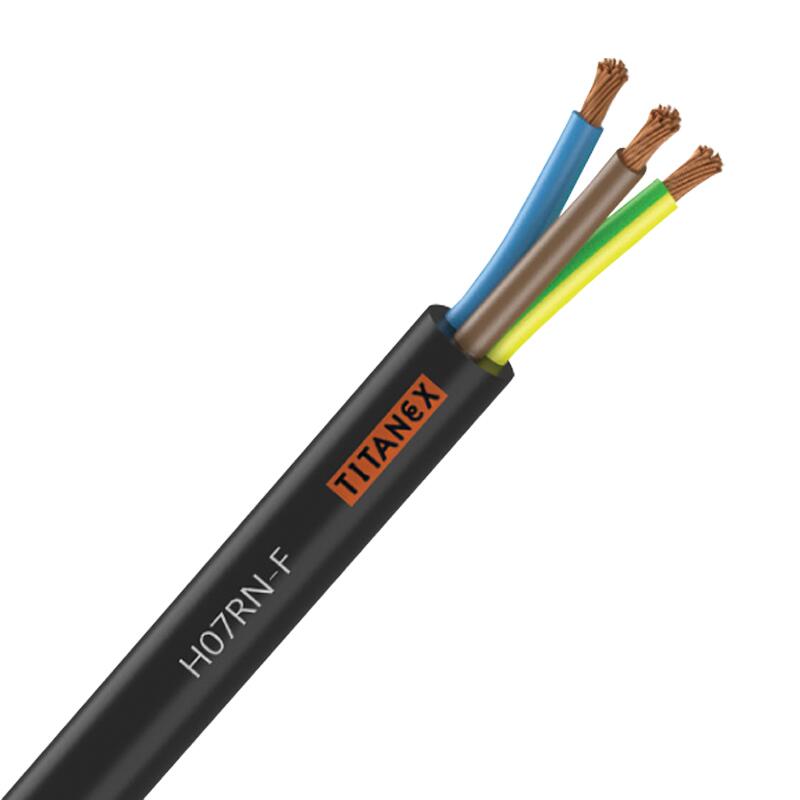

Titanex H07-RNF 2.5mm 18 Core Rubber Cable -200 Metres

SKU: CABL333B
Titanex

For more than 50 years the TITANEX cable range has been recognised as the best choice for mobile and fixed installations in industrial environments. Robust yet flexible, the TITANEX H07RN-F rubber cable range offers exceptional performance, ease-of-use, and withstands the toughest of conditions, such as hard-wearing environments, extreme temperatures and most chemicals. They are also suitable for public areas and temporary events such as festivals, concerts or sports competitions, where the cable is often laid directly on the ground with no protection.

Oil resistant

flame retardant according to IEC/EN 6033212 standard

Chemical resistant crosslinked elastomer insulation

Bare copper conductors

Operating temperature

range 25 to 55 DegreeC

Maximum conductor temperature in service 90 DegreeC

Commonly used with Socapex type 19pin connections

Cross section: 2.5mm

Perm current rating open air: 14A

Max outer diameter: 30.9mm

Weight per km: 1018kg
