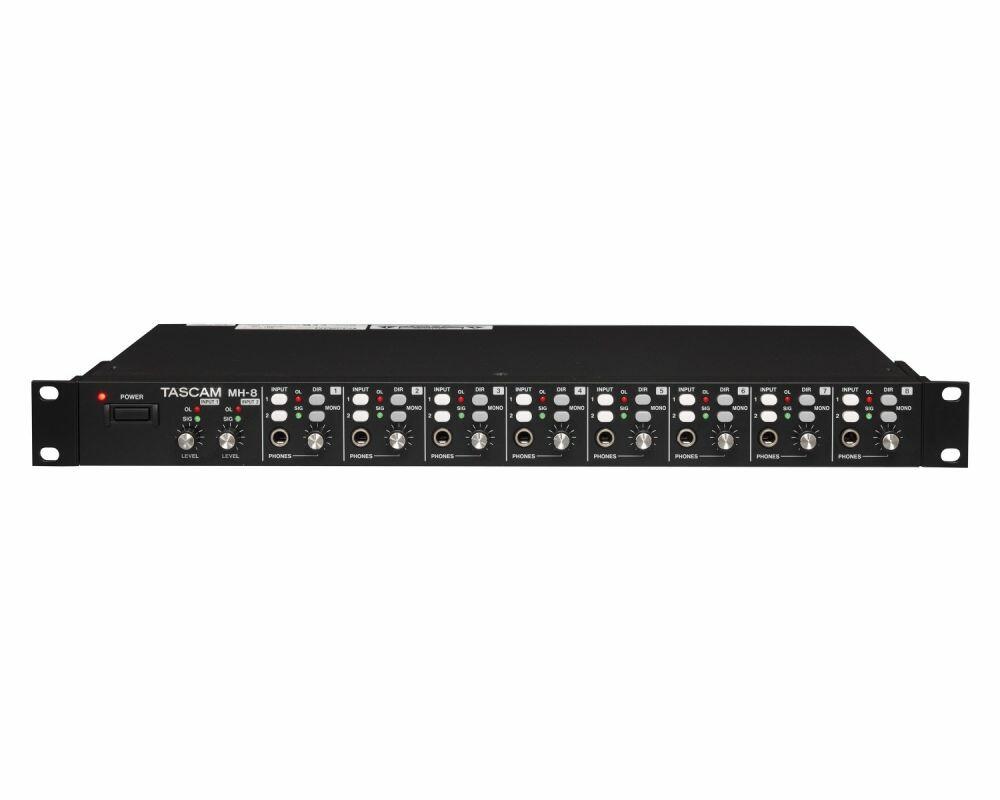

Tascam MH-8 8CH Stage/Studio Stereo Headphone Amplifier 2in 8out 1U

SKU: TAS MH-8
Tascam

The MH-8 is the ideal headphones amplifier for studio, stage and installation. Each of the eight stereo outputs delivers 250 mW per side with three switchable sources available. Two stereo inputs can be shared to any of the outputs, and individual stereo direct inputs are available for each of the eight channels. A headphones channel can use any one of these inputs, or mix several together. And a set of fold-back outputs allows the user to chain other MH-8s into a system.The MH-8 is housed in a rugged, rack-mountable metal chassis with built-in power supply (no AC adaptor), ground terminal and ground-lift switch for many years of safe and reliable operation.
High-power headphones amplifier with flexible signal routing
Ground terminal and ground lift switch on rear panel
Easy replaceable fuse
1U rack-mountable chassis
8 channels for one pair of stereo headphones each
2 stereo inputs assignable to each headphones channel (input 1: balanced XLR/TRS, input 2: balanced XLR / unbalanced RCA)
Input level control, signal presence and overload LEDs on both stereo inputs
Additional switchable direct stereo input (balanced TRS) on each headphone channel (left input can be used for mono signals)
High output power (250 mW + 250 mW for each headphone)
Level control, signal presence and overload LEDs on each headphone channel
Each channel switchable to mono

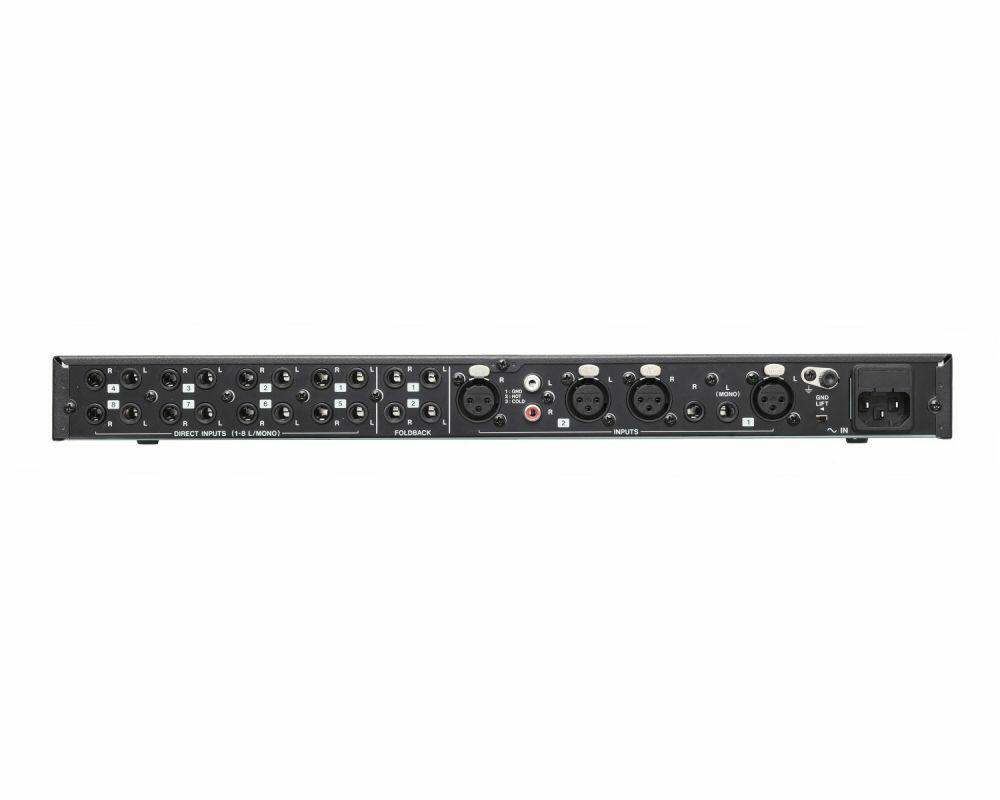

Foldback outputs allow stereo input signals 1 and 2 to be looped through to other units

Colour Black
Product Dimensions (mm) 44x482x280
Supplier Ref. MH-8
Packaging Boxed
Net weight (kg) 3
Item priced per 1
Paper weight (kg) 1.8
Gross Weight (Packaged) (kg) 4.8
Packaged dimensions (HxWxL mm) 144x546x392
Product EAN 4907034114511
Packaged Height (cm) 44
Packaged Depth (cm) 280
Transport dimensions (mm) 144x546x392
Packaged Width (cm) 482

---
