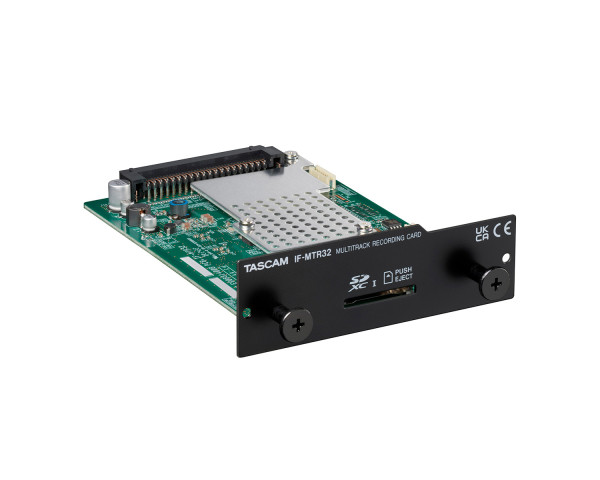

Tascam IF-MTR32 32 Track Multitrack Recording card for SonicView 16 / 24

SKU: TAS IF-MTR32
Tascam

The IF-MTR32 multitrack recording card, turns a Tascam Sonicview 16 or Sonicview 24 digital mixer into a powerful recording console for broadcast, production and recording studios, live/relay broadcast and recording, a wide variety of fixed installation applications, as well as the recording of bands and live events.

With the addition of the optional IF-MTR32 card, your Tascam Sonicview becomes a mixing and multi-track recording console capable of recording up to 32 tracks at 48 kHz or up to 16 tracks at 96 kHz directly to an SDXC card – all with the same 32-bit precision used in Sonicview mixers.

£863.99
£959.99
Earn0
reward points
Add To Your Wishlist

Oh No! This product is out of stock. Would you like to know when it's avaliable again?

  • Product Features

    Product Features

    • Optional expansion card to add a 32-track audio recorder to a Sonicview 24 or Sonicview 16 mixing console
    • Simultaneous recording/playback of up to 32 audio tracks (48 kHz) or 16 audio tracks (96 kHz)
    • Recording medium: SDHC, SDXC (up to 512 GB)
    • File format: BWF
    • Supported bit depths up to 32 bit
    • Auto Routing to simplify channel/track assignments
    • Virtual Soundcheck mode
    • Punch in/out (overdub) with up to 32 tracks (automatic with rehearsal, or manual)
    • Pre-Record (up to two seconds)
    • Auto-Record (recording begins/ends depending on input level)
    • Marks (saved with BWF audio file)
    • Repeat (take, project, I-O)
    • Import tracks from DAWs or other IF-MTR32 (BWF format)
    • Automatically saves and closes files every 60 seconds to prevent data loss
    • Instant sound output after starting playback (≤100 ms)
    • Fully controllable by Tascam Sonicview including GPIO, footswitch and User keys
  • Technical Specification

    Product Specifications

    Multi-track recorder

    • Max simultaneous recording/playback tracks:  32 (48 kHz), 16 (96 kHz) (simultaneous punch-in/out with all available tracks)
    • Undo/Redo:  1 step
    • Record functions:  Pre-recording (2 seconds), Auto-recording, Marks
    • File protection:  Auto-saving every 60 seconds
    • Sampling rate:  48 kHz, 96 kHz
    • Bit depth (recording):  24 bit, 32 bit
    • Bit depth (playback):  16 bit, 24 bit, 32 bit

    SD card

    • Type:  SDHC, SDXC (UHS I or higher)
    • Capacity:  up to 512 GB

    Other

    • Dimension (W × H × D):  107 mm × 34 mm × 157 mm
    • Weight:  0.13 kg
