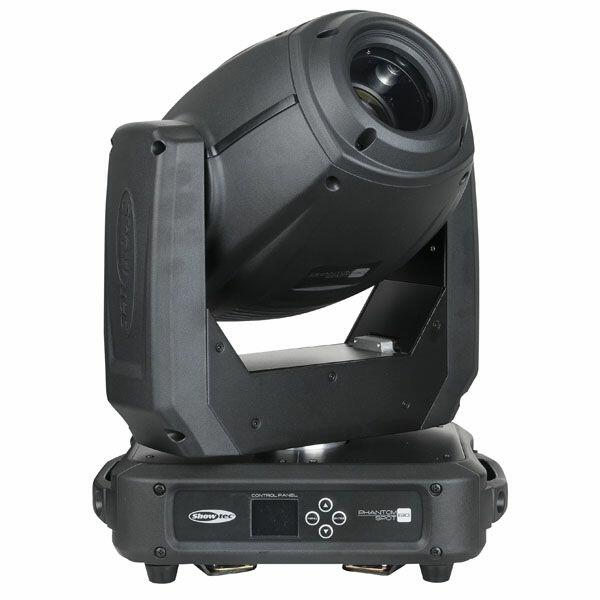

Showtec Phantom 130 Spot (40072)

SKU: 40072
Showtec

The Phantom is Back!

Showtec Phantom – the household name in the entertainment lighting industry is back with a new series of extremely reliable and versatile fixtures.
And not just its exterior looks better; technically updated to the latest specifications, without compromising reliability, these fixtures now offer more and better functionalities than ever before.
Razor sharp beams, colourful matrix effects or spectacular gobo imagery, a Showtec Phantom will, just as any true superhero, never disappoint you.

Spot 65 and 130, 3R Beam, 3R Hybrid or Matrix FX:
Showtec Phantom – the choice of heroes!

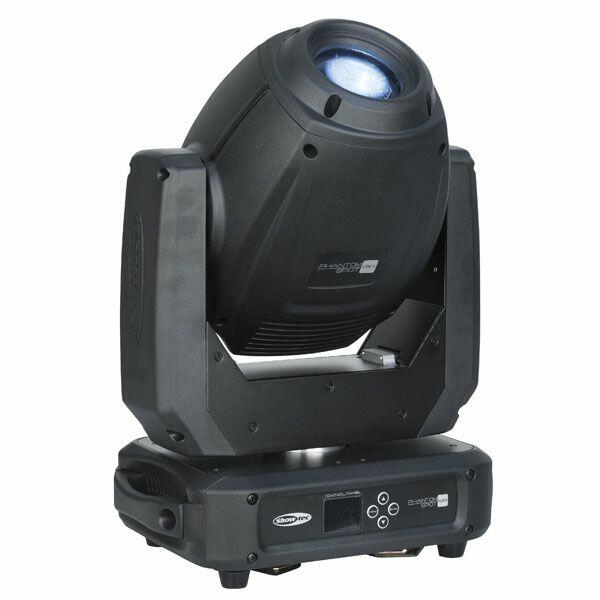

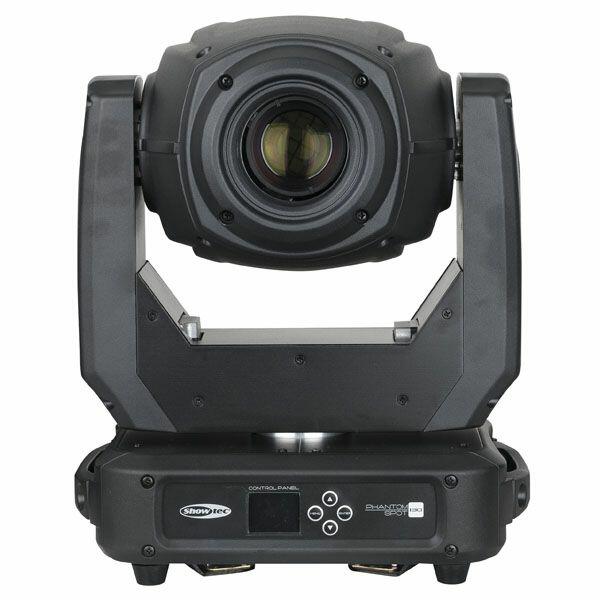

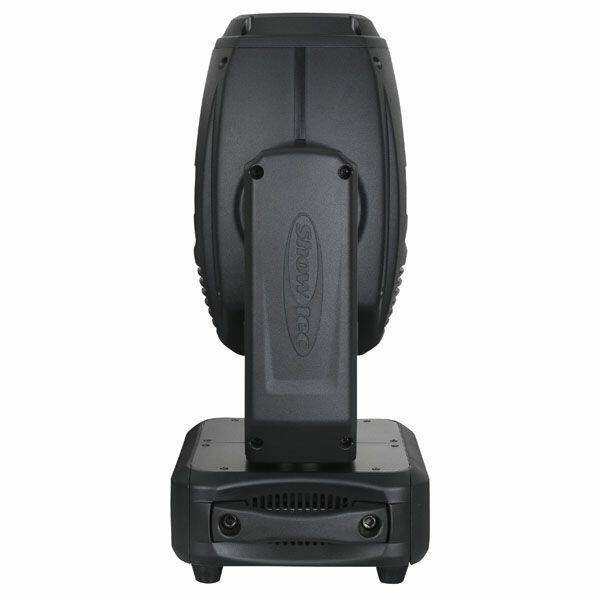

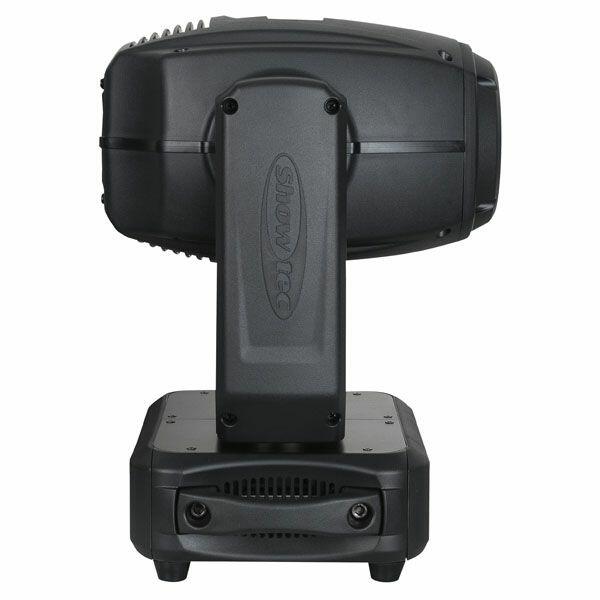

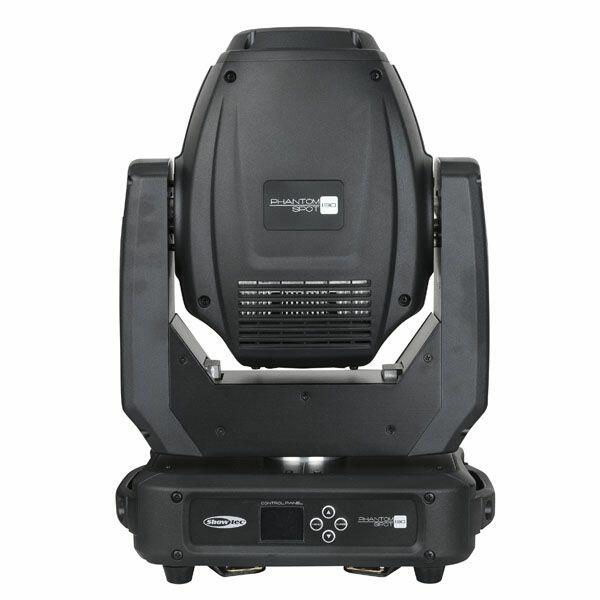

The Showtec Phantom 130 LED Spot is a medium sized, but very powerful moving head, suitable for a variety of venues and applications.

This stylishly designed fixture contains a 130 watt white LED light-source, providing an extremely high light output. Fixed and rotating gobo wheels (7 gobos each), seven dichroic-filters + white, the colour wheel and circular and rotating prisms, are all on board. Together with the motorized focus and mechanical zoom, this makes a highly versatile moving head.

Like all Phantom fixtures, this spot can be controlled by DMX512 but is also capable of operating in stand-alone mode (Auto, Sound and Manual).
Compact, lightweight and versatile; the Phantom 130 LED Spot definitely is a sensible choice for your entertainment lighting needs.

The Showtec Phantom series, a household name in the entertainment lighting industry, are a range of very reliable fixtures with low power consumption and high performance. Taking into account today’s lighting demands, this series offers a range of modern fixtures such as Spot, Wash, Beam, Matrix FX, and Hybrid.
Razor sharp beams, colourful matrix effects or spectacular gobo imagery, a Showtec Phantom will, just as any true superhero, never disappoint you.

Optional W-DMX Module

The Wireless DMX Upgrade for Phantom 130 is an upgrade set which includes all the necessary components for receiving wireless DMX in a 2,4GHz band, compatible with our Wireless Solutions DMX Transmitters.
The receiver must be linked and unlinked by the transmitter in order to communicate. It is possible to link multiple receivers to one transmitter.
The presence of the wireless communication is indicated by the blinking data symbol in the display.

This upgrade contains an external omnidirectional antenna to ensure the best possible signal strength in a crowded ether.

Light Source Type: Led
Light Source Quantity: 1
Light Source Power: 130 W
Light Source System: COB
Led Colour Type: CW
Lux @ 5m: 5200 lx
Lumen Total: 5200 lm
Beam Angle Circular (min): 12 °
Beam Angle Circular (max): 21 °
Zoom Minimum: 12 °
Zoom Maximum: 21 °
Focus: Motorized
Control Mode: DMX / Sound / Master Slave / Manual / Auto
DMX Channels: 12 / 16
Protocols: DMX
Display: LCD
Dimmer: 0-100%
Strobe: 0-20Hz
Prism 1: 6 Facet
Prism 2: 5 Facet
Prism Overlay: No
Prism Index & Rotate: Yes
Colour System: Colour Wheel
Colour Wheel Index & Rotate: Yes
Dichrois Colorwheel 1: 7 + Open
Gobo System: Glass + Metal
Gobo Wheel Index & Rotate: Yes

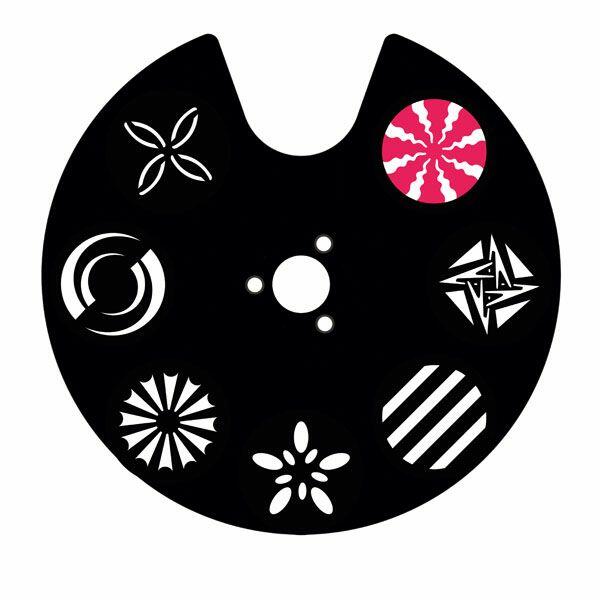

Gobos Wheel 1: 7 + Open

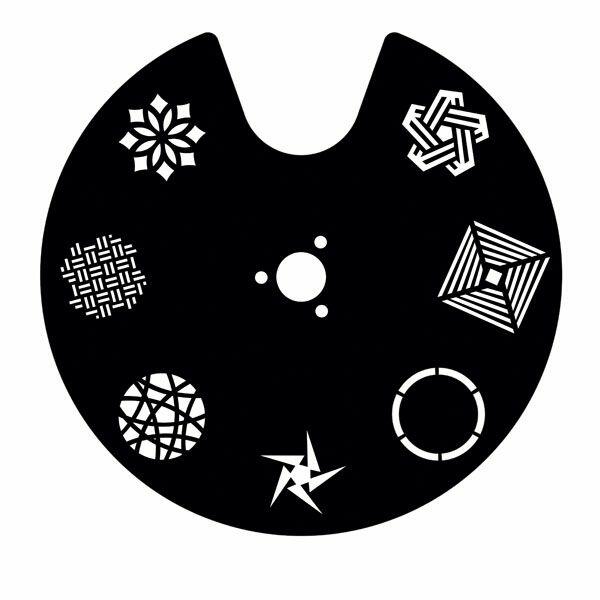

Gobos Wheel 2: 7 + Open
Gobo Size: 24 mm
Image Size: 20 mm
Pan: 540 °
Tilt: 270 °
Pan/Tilt Resolution: 16 bit
Power Supply: 100-240VAC 50-60Hz
Power Consumption: 300 W
Fuse: 5 A

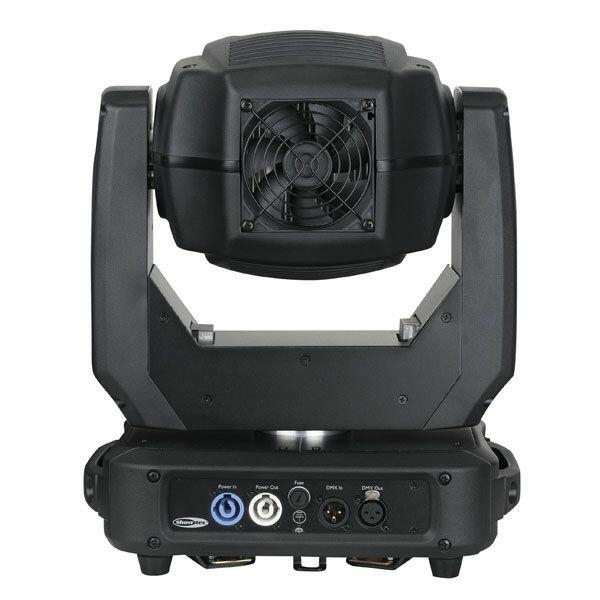

Power Connector in: ProPower Blue
Power Connector out: ProPower Grey
DMX Connector in: XLR 3P
DMX Connector out: XLR 3P
Length (mm): 321 mm
Height (mm): 462 mm
Width (mm): 211 mm
Weight: 13 kg
IP Rating: IP20(indoor use only)
Housing: Metal / Plastic
Colour: Black
Cooling: Axial fan

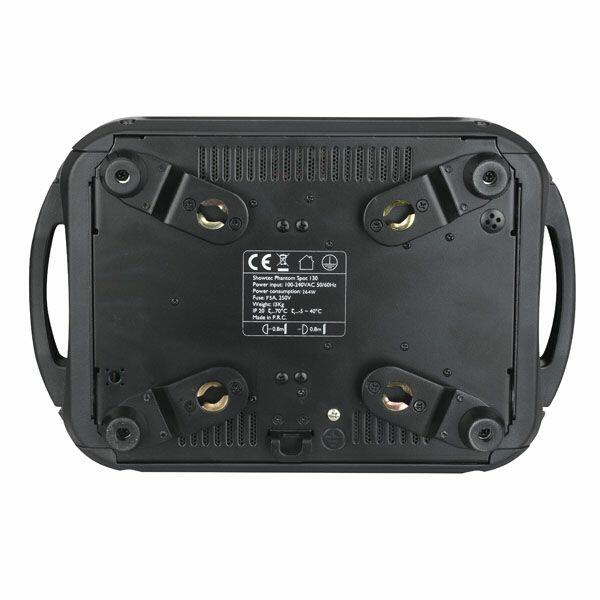

Mounting Options: Quick Lock
Maximum Ambient Temperature: 40 °C
Reference Standard: CE
Included Cables: PowerCon cable
Included Rigging: Quick Lock Bracket
