Showtec Booster Pro 3 Pole DMX (50788)
SKU:
50788
Showtec
Showtec Booster Pro 3 Pole DMX

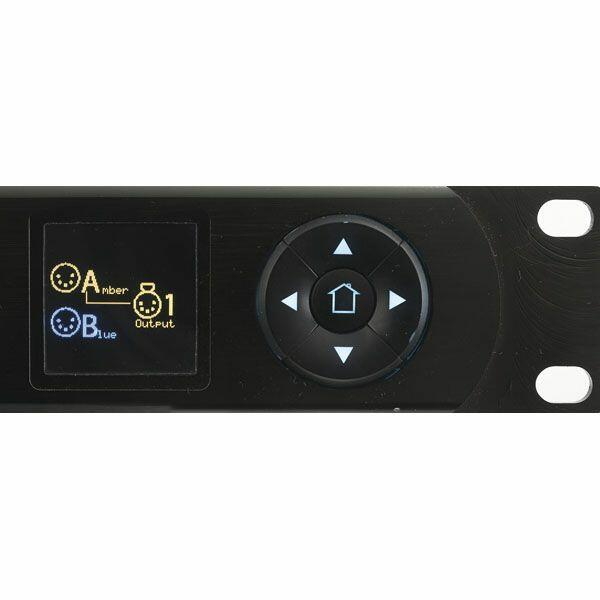

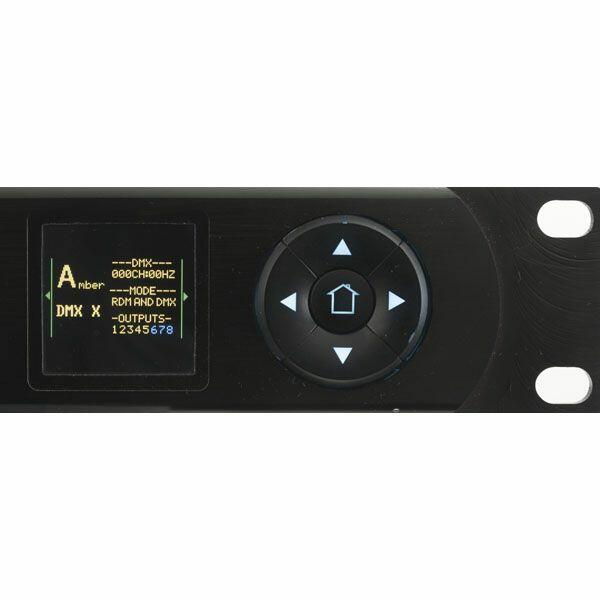

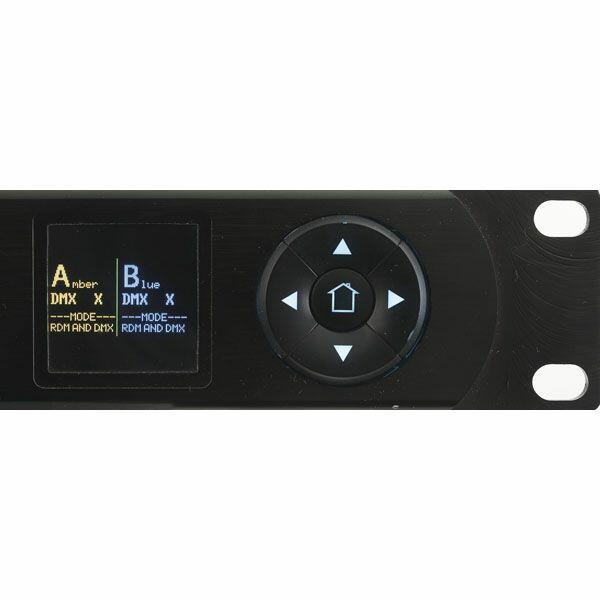

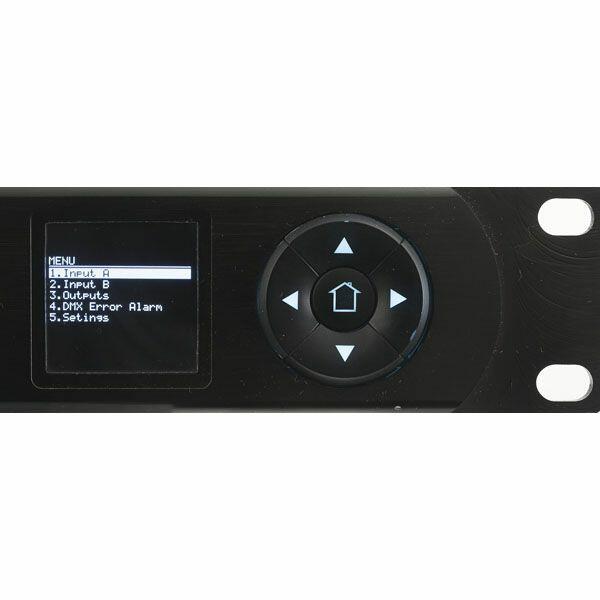

The Booster Pro is the ultimate DMX tool which should be in the equipment rack of each rental company or installation. The Booster Pro is an optical isolated DMX Splitter and Booster. The Booster Pro has 2 inputs which can be patched to 8 selectable output (for each output you can patch input A or B). The Booster Pro is fully RDM compatible and offers real-time DMX monitoring. For specialist applications the DMX timing can be adjusted. Furthermore each output of the Booster Pro has a monitoring function which controls the status of the connected cables real-time. In case of any failure an acoustical signal will warn the user. The intuitive OLED display lets you set all the different functions fast and easily.
Input connectors: 3 pole Male XLR Connectors
Output connectors: 3 pole Female XLR Connectors
Power Input: 100~240VAC, 50/60Hz
Power connector: Powercon Input
Dimensions: 483 x 140 x 46mm
Weight: 3,4 Kg
Protocol: DMX-512 USITT, RDM
Functions: Realtime DMX Monitoring, DMX Framerate display, Selection of DMX modes and Framerates, Cable checker, Optical isolation on all outputs, DMX Boost function
