Showtec ACT Flood 200 RGBAL (34042)

roll over the image to zoom in


Showtec ACT Flood 200 RGBAL (34042)

SKU: 34042
Showtec

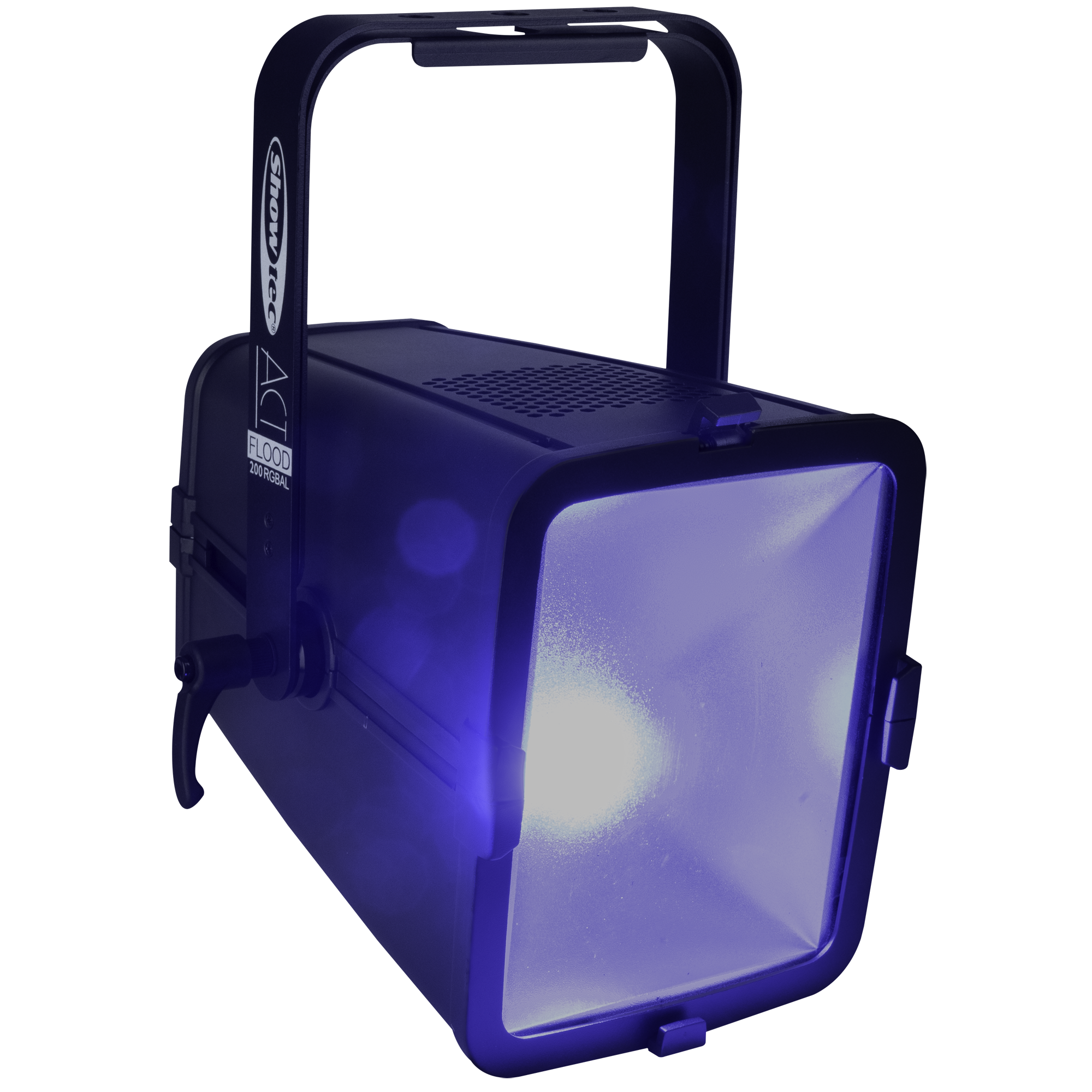

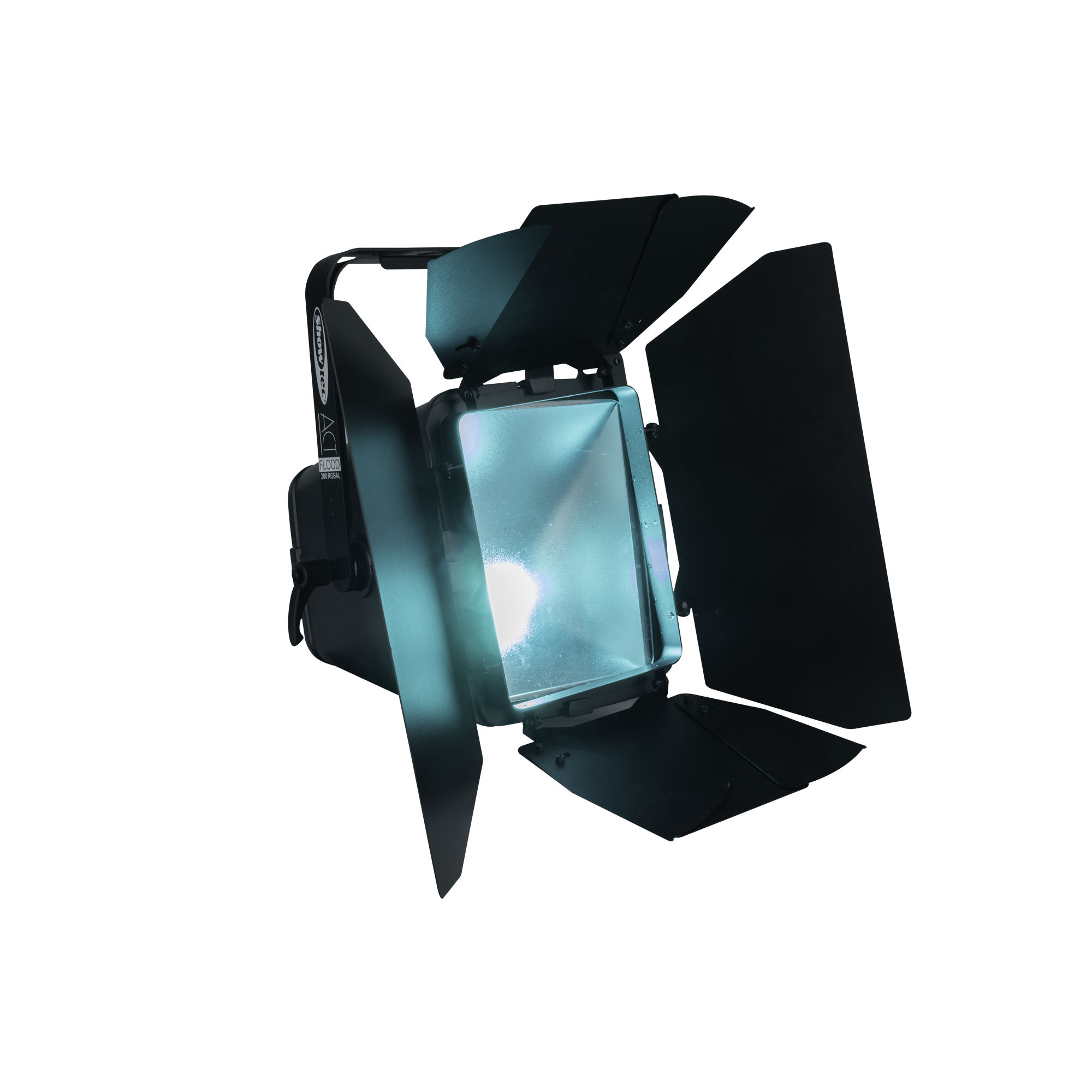

The Showtec ACT Flood 200 RGBAL is a 200-watt RGBAL LED flood light designed with theatrical applications in mind. It projects a bright, soft field of coloured light and has a fixed beam angle of 90° x 105°. Thanks to its high CRI rating, colours under the light are rendered accurately. The colour temperature can be adjusted between 2,800 K and 10,000 K, further expanding the creative possibilities for lighting designers. With dimmer and preset colour controls on board, the ACT Flood 200 RGBAL can be controlled manually, as well as with DMX. An eight-leaf barndoor is included for easy beam shaping.

Source
Light Source Type
LED
Light Source Quantity
1
Light Source Power
200 W
LED Colour Type
R, G, B, A, L
Refresh Rate
1200 Hz
Illuminance @ 2 m
1011 lx
Illuminance @ 3 m
530 lx
Luminous Flux (Total)
5704 lm
CRI
93
Minimum CCT
2800 K
Maximum CCT
10000 K
Optical
Beam Angle (Horizontal)
90 °
Beam Angle (Vertical)
105 °
Control and Programming
Control Mode
DMX, Manual
DMX Channels
5, 8, 12
Protocols
DMX, RDM
Display
OLED
Dynamic Effects
Dimmer
0-100 %
Electrical Specifications and Connections
Power Supply
100-240 V AC 50/60 Hz
Power Consumption
205 W
Fuse
3.15 A
Power Connector In
Power Pro Blue
Power Connector Out
Power Pro Grey
DMX Connector
XLR 3P In/Out
DMX Connector In
XLR 3P
DMX Connector Out
XLR 3P
Mechanical Specifications
Length (mm)
280 mm (11.024″)
Width (mm)
258 mm (10.158″)
Height (mm)
304 mm (11.969″)
Weight
4.3 kg (9.48 lb)
IP Rating
IP20 (indoor use only)
Housing
Aluminium
Colour
Black
Rigging
Mounting Options
Bracket, Floor
Product Properties
Cooling
Convection
Thermal Specifications
Maximum Ambient Temperature
45 °C (113 °F)
Included Items
Included Cables
Power Pro Cable
Included Accessories
Barndoor

£465.91
£548.14
