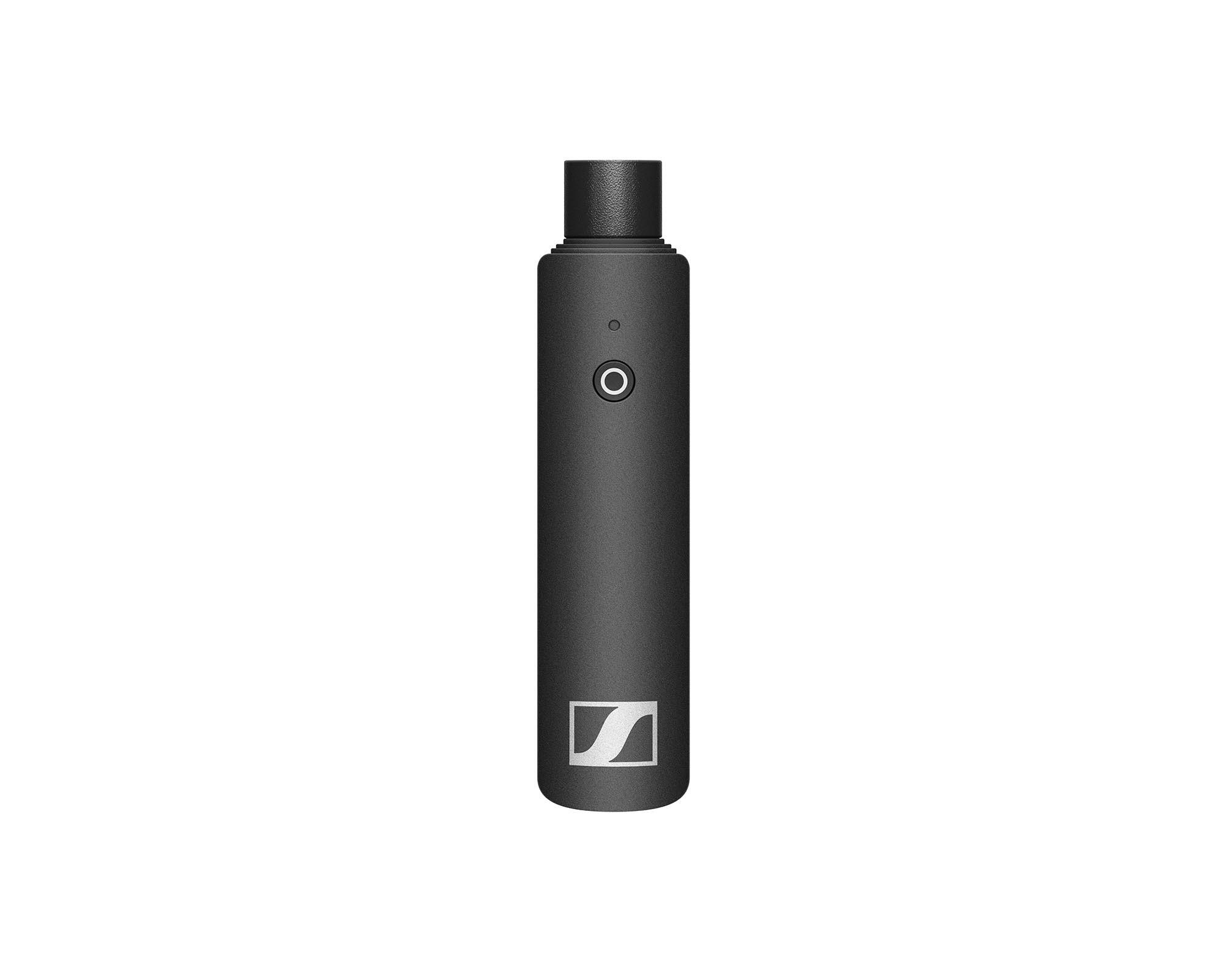

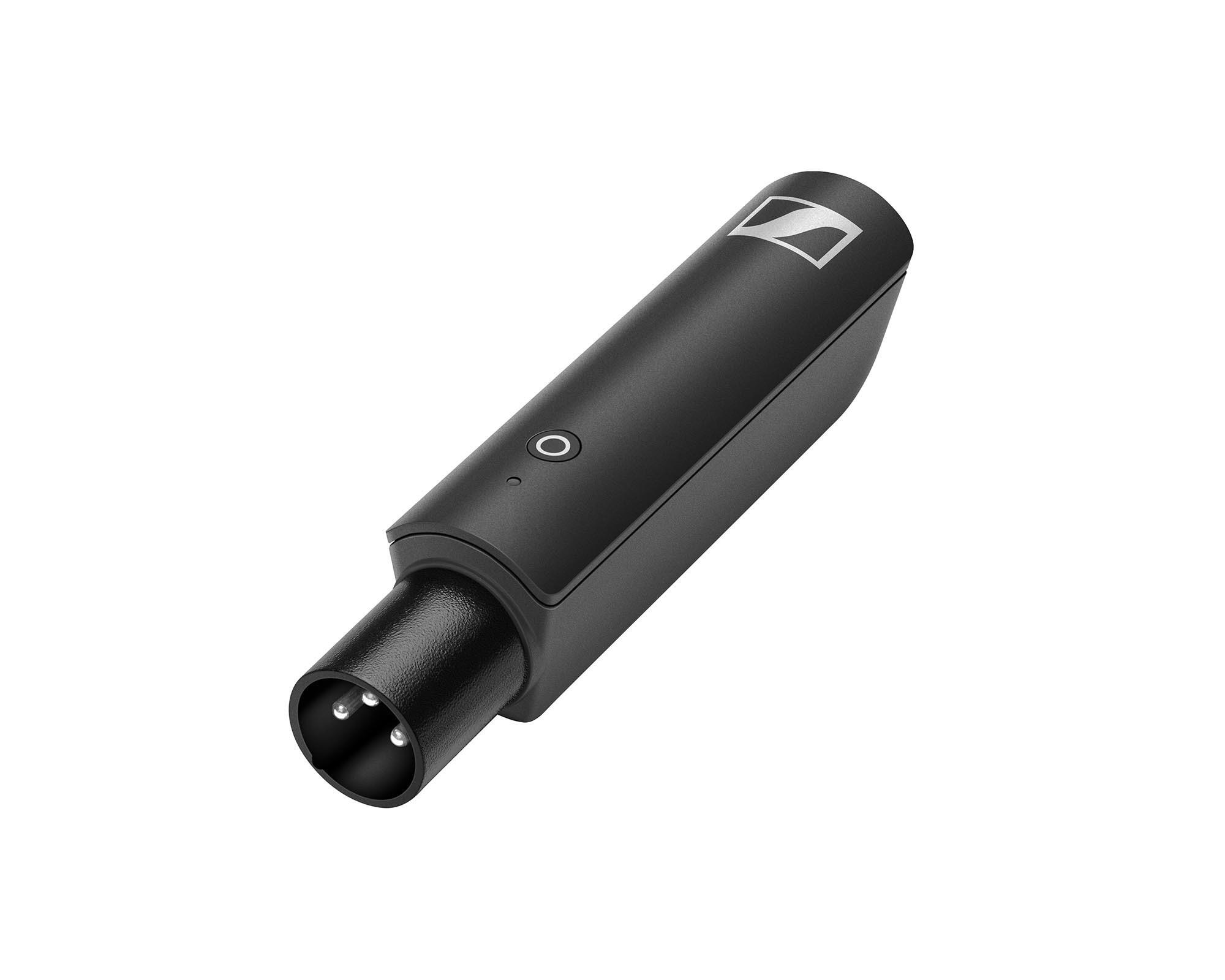

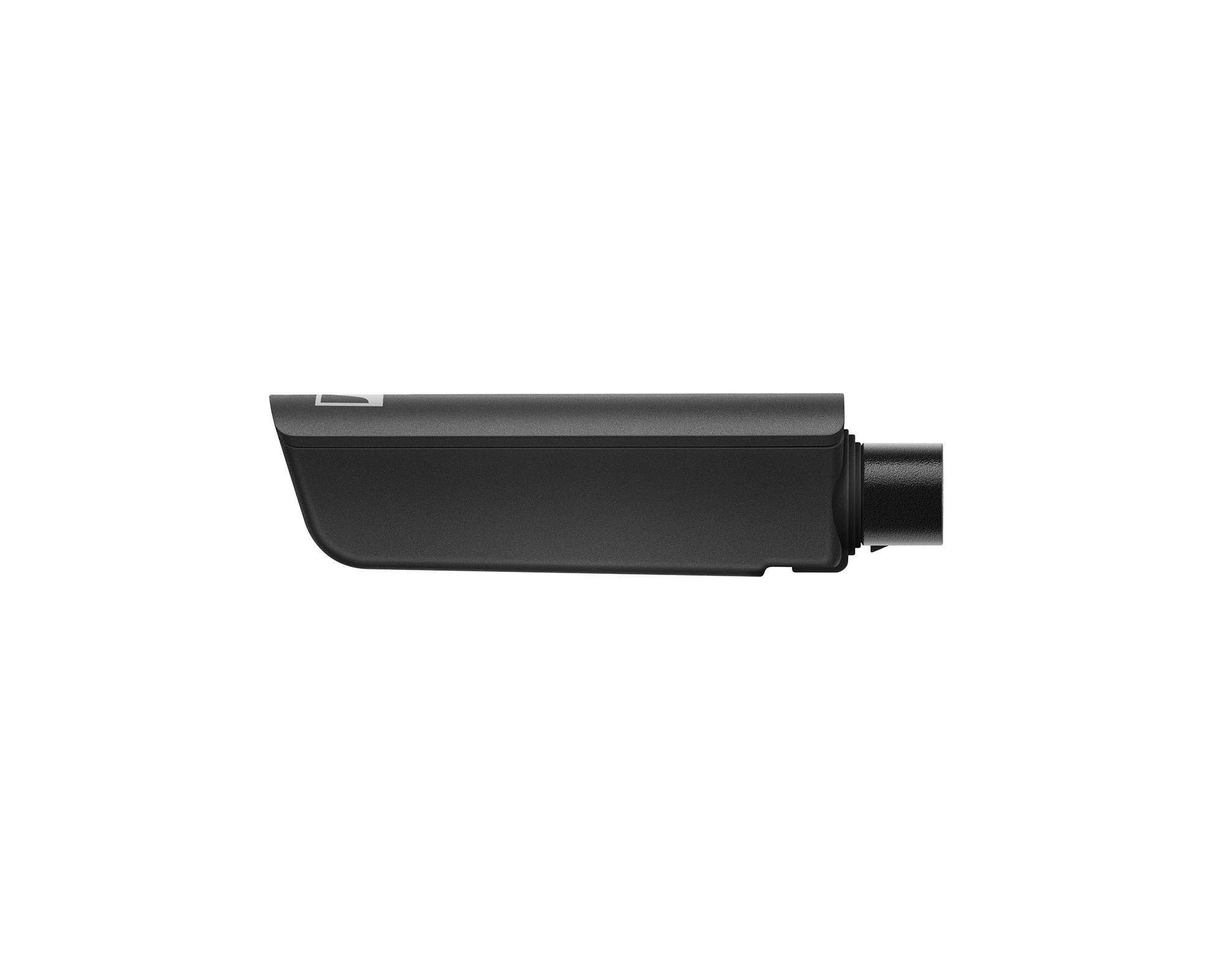

Sennheiser XSWD XLR Male Receiver with Male XLR Output 2.4GHz

SKU: sen 508497
Sennheiser

XS Wireless Digital presents a one-touch ease-of-use wireless audio system that utilizes a digital 2.4 GHz transmission to seamlessly link audio sources.

Product Features

• One touch ease-of-use
• 2.4 GHz digital transmission for worldwide operation
• 75m range (250ft) in optimal conditions
• Up to 5 hours battery life on a single charge
• Switch between multiple transmitters linked to one receiver
• Configure any combination of transmitters and receivers
• Mute from either transmitter or receiver

Product Specifications

• Dimensions:
  • XSW-D XLR FEMALE TX: approx. 102 x 24 x 28 mm
  • XSW-D MINI JACK TX: approx. 86 x 24 x 28 mm
  • XSW-D INSTRUMENT TX: approx. 122 x 24 x 28 mm
  • XSW-D XLR MALE RX: approx. 109 x 24 x 28 mm
  • XSW-D MINI JACK RX: approx. 86 x 24 x 28 mm
  • XSW-D INSTRUMENT RX: approx. 122 x 24 x 28 mm
  • XSW-D PEDALBOARD RX: approx. 130 x 82 x 51 mm
• THD, total harmonic distortion:  < 0.1 %
• Charging time:  typ. 3 h
• Audio output:  max. 12 dBu
• Operating temperature:  -10 °C to +55 °C (14 °F to 131 °F)
• Signal-to-noise ratio:  ≥ 106 dB
• Operating time:  up to 5 h
• Modulation:  GFSK with TDMA
• Battery Specification:  Li-Ion
• Capacity:  850 mAh
• Codecs:  aptX® Live
• Frequency range:  2,400 - 2,483.5MHz
• Max. Input voltage:  typ. 5.0 V
• Transmission power:  max. 10 mW
• Voltage:  3.7 V
• Operating relative humidity:  95 % (non-condensing)
• Latency:  < 4 ms
• Temperature Range:  0 °C - 60 °C (32 °F - 140 °F)
• Audio frequency response:
  • 3.5 mm Jack/XLR: 80 - 18,000 Hz
  • 6.3 mm Jack: 10 - 18,000 Hz
