Seetronic XLR IP65 3-Pin Chassis Male Black J3F2CWB

SKU: CONN1423
Seetronic

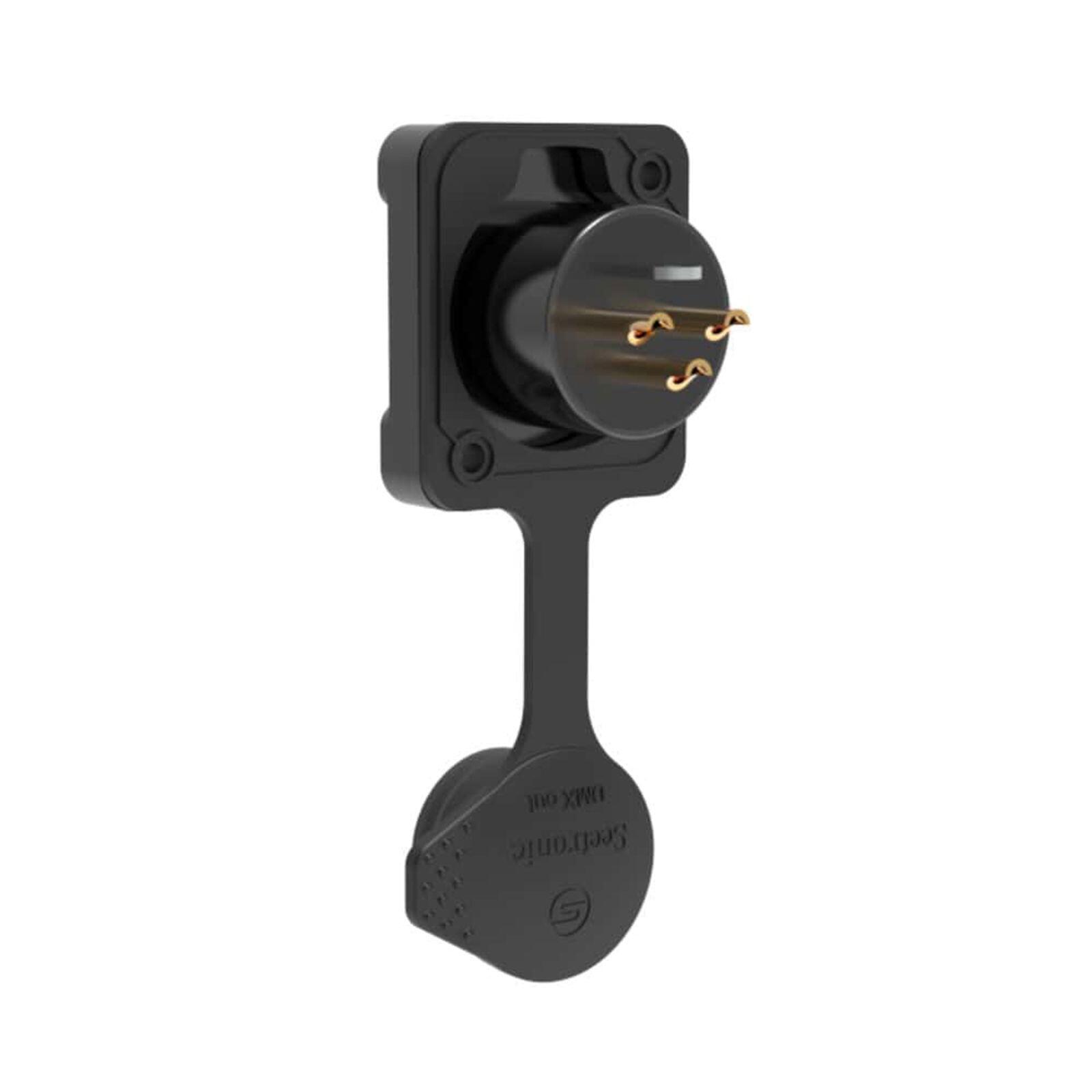

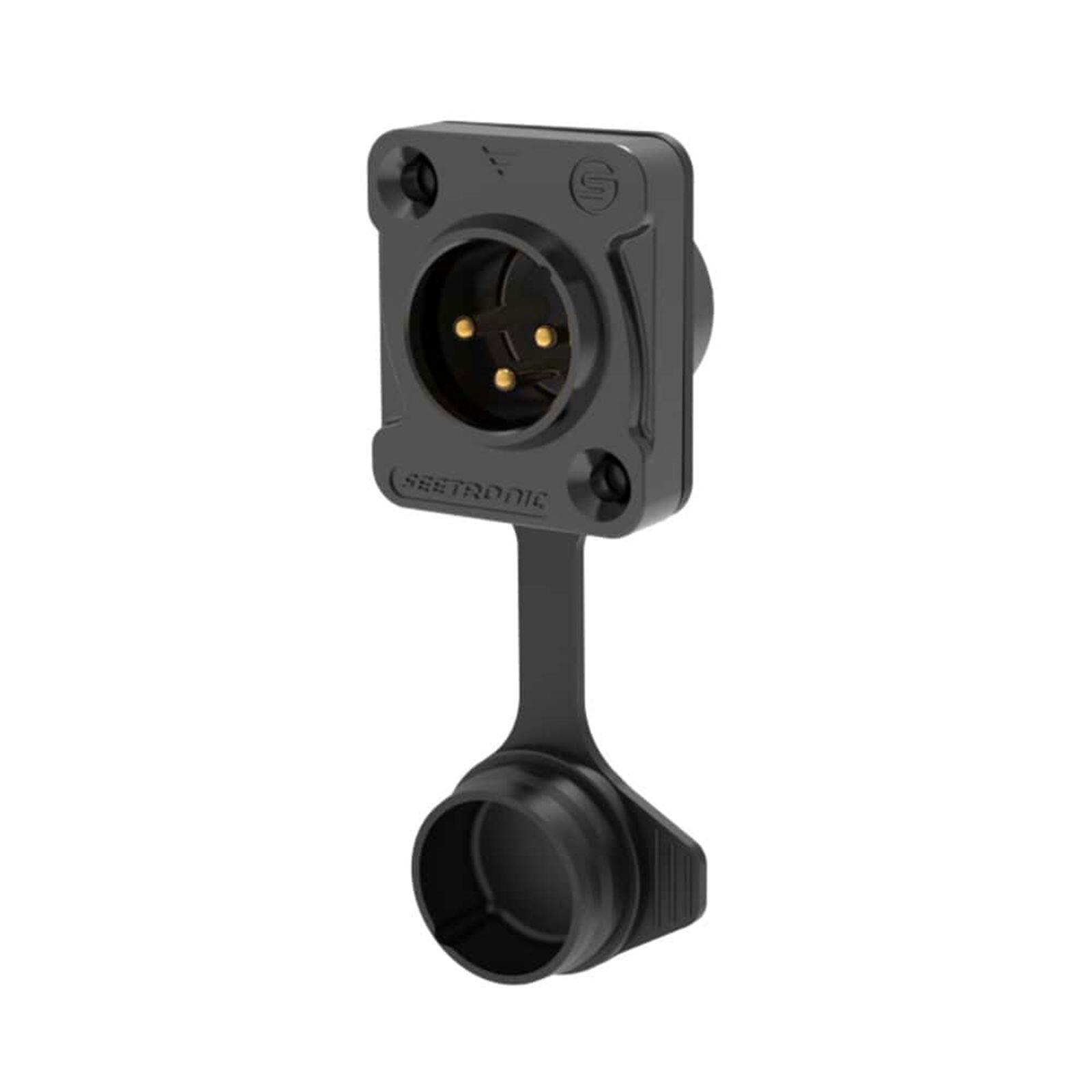

The Seetronic J3F2C‑W‑B is the industry's first IP65-rated front-mount 3‑pin XLR male chassis connector. Designed for demanding environments it features a black zinc-alloy D-shell gold-plated contacts airtight rear sealing and a pre-attached hinged protective cap. Engineered for outdoor lighting and audio systems it delivers secure and splash-resistant connectivity in panel-mount applications.
IP65-rated when capped or mated—dust-tight and splash-resistant

Black-plated zinc-alloy D-shell housing; front-panel mounting

Gold-plated copper-alloy contacts with ≤ 5 mΩ contact resistance

Capacitance ≤ 4 pF for clear and stable signal transmission

Airtight rear sealing withstands 0.2 MPa air pressure

Rated for 16 A per contact; < 50 V operating voltage

Durability: > 1000 mating cycles; insertion/withdrawal force ≤ 20 N

Operating temperature: –30 °C to +80 °C

Flame rating: UL94 HB; compliant with IEC 61076‑2‑103 and IEC 68‑2‑20

• Connector Type: 3‑pin XLR male chassis connector (D-size front-mount)
• Contact Resistance: ≤ 5 mΩ
• Capacitance: ≤ 4 pF
• Dielectric Strength: 1500 V DC
• Insulation Resistance: > 10 GΩ
• Rated Current: 16 A per contact
• Rated Voltage: < 50 V
• Insertion/Withdrawal Force: ≤ 20 N
• Mechanical Life: > 1000 mating cycles
• Materials: Housing – black-plated zinc alloy; Insert – PA; Contacts – gold-plated Cu alloy
• Operating Temperature: –30 °C to +80 °C
• Protection Rating: IP65 (sealed when capped or mated)
• Certifications: IEC 61076‑2‑103; Solderability per IEC 68‑2‑20; Flame rating UL94 HB Pre-attached IP65-rated hinged rubber protective cap
• Front-panel sealing gasket (included)

---

£0.00

£5.86
