Seetronic RJ45 Cable Housing Black SE8MC-02-30-LOD-B

SKU: CONN1458
Seetronic

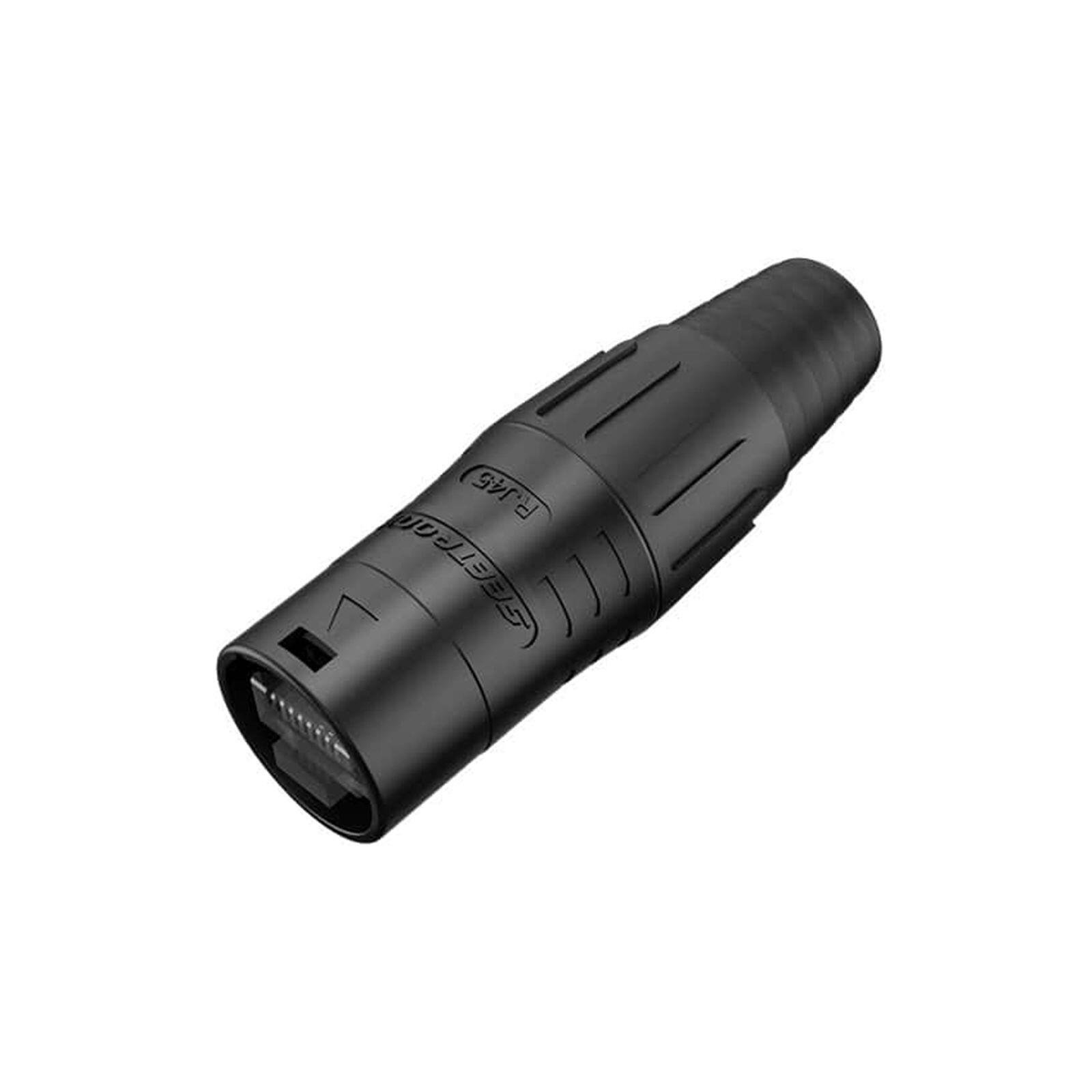

The Seetronic SE8MC‑02‑30‑B‑LOD is a heavy-duty RJ45 cable carrier connector with a black-plated die-cast zinc alloy housing engineered for harsh outdoor and industrial environments. This IP65-rated assembly accepts cables 7.5–9mm OD supports both dovetail and standard RJ45 plugs and ensures a secure weatherproof Ethernet connection.

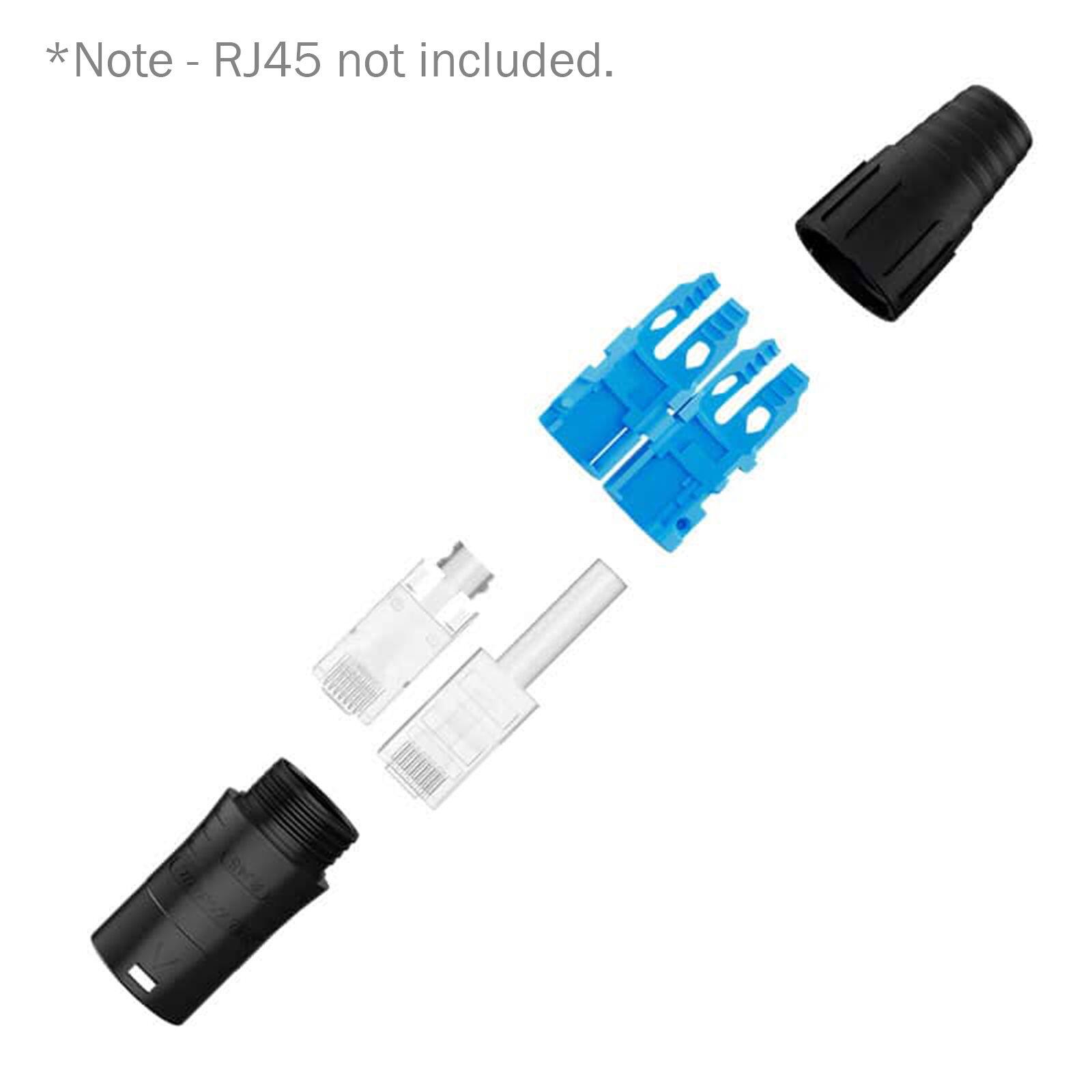

Robust RJ45 cable carrier with black-plated die-cast zinc alloy housing IP65-rated sealing for harsh outdoor use Supports standard and dovetail-clip RJ45 plugs (RJ45 plug not included) Compatible with cables 7.5–9mm OD Latch-lock design prevents accidental disconnects Supplied with boot cable clip and housing in individual packaging

Connection Type: RJ45 (male) Cable Length: 30cm Cable OD Compatibility: 7.5–9mm Locking Mechanism: Latch lock Material: Black-plated zinc alloy housing PA boot Ingress Protection: IP65 Insertion/Withdrawal Force: ≤20N Service Life: >1000 mating cycles Operating Temperature: –30°C to +80°C
