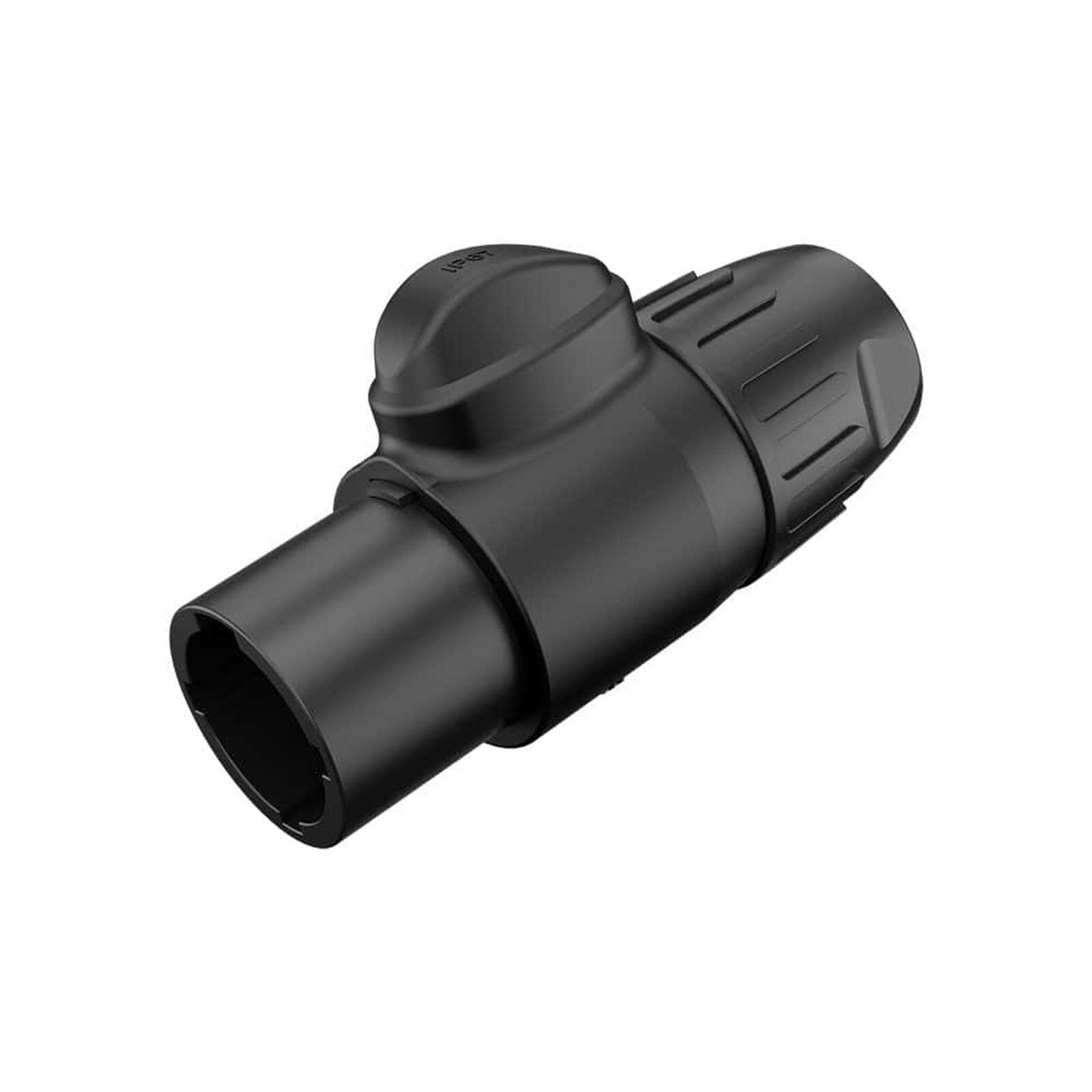

Seetronic PowerTwist TR1 IP67 Male Black SAC3MX-67

SKU: CONN1401
Seetronic

The Seetronic SAC3FX‑67 is a rugged female connector from the PowerTwist TR1 IP67 series. Featuring a secure locking mechanism three-core (line neutral earth) wiring and dual-seal construction it supports up to 20 A/300 V AC. Designed for tough environments this connector is ideal for stage lighting and power distribution applications and mates perfectly with SAC3MX‑67 and SAC3MPX‑67 plugs.

• Part of Seetronic’s PowerTwist TR1 IP67 series
• Lockable 3-core female connector (L N PE) with secure latch
• IP67-rated for outdoor use and wet environments
• Dual-seal design enhances moisture and dust resistance
• Mates with SAC3MX‑67 and SAC3MPX‑67 power plugs
• High current rating: 20 A/300 V AC (UL) 16 A/250 V AC (VDE)
• Certified to UL498 UL50E IEC61984 GB/T 34989

• Series: PowerTwist TR1 IP67
• Contacts: 2 + PE
• Rated Current/Voltage: 20 A/300 V AC (UL); 16 A/250 V AC (VDE)
• Contact Resistance: ≤ 5 mΩ
• Dielectric Strength: 4000 V DC (1600 V AC/min)
• Insulation Resistance: > 1000 MΩ
• Cable Diameter: 7–11 mm; Max conductor size: 2.5 mm²
• Terminals: Screw-type
• Housing: Polyamide (UL94‑V0); Contacts: Silver-plated copper alloy
• Protection Rating: IP67
• Operating Temperature: −30 °C to +80 °C
• Service Life: > 500 mating cycles
• Certifications: UL498 UL50E (E356932) IEC61984 GB/T 34989

---
