Seetronic PowerTwist Blue/Grey Chassis Connector SAC3MPA-02

SKU: CONN1080
Seetronic

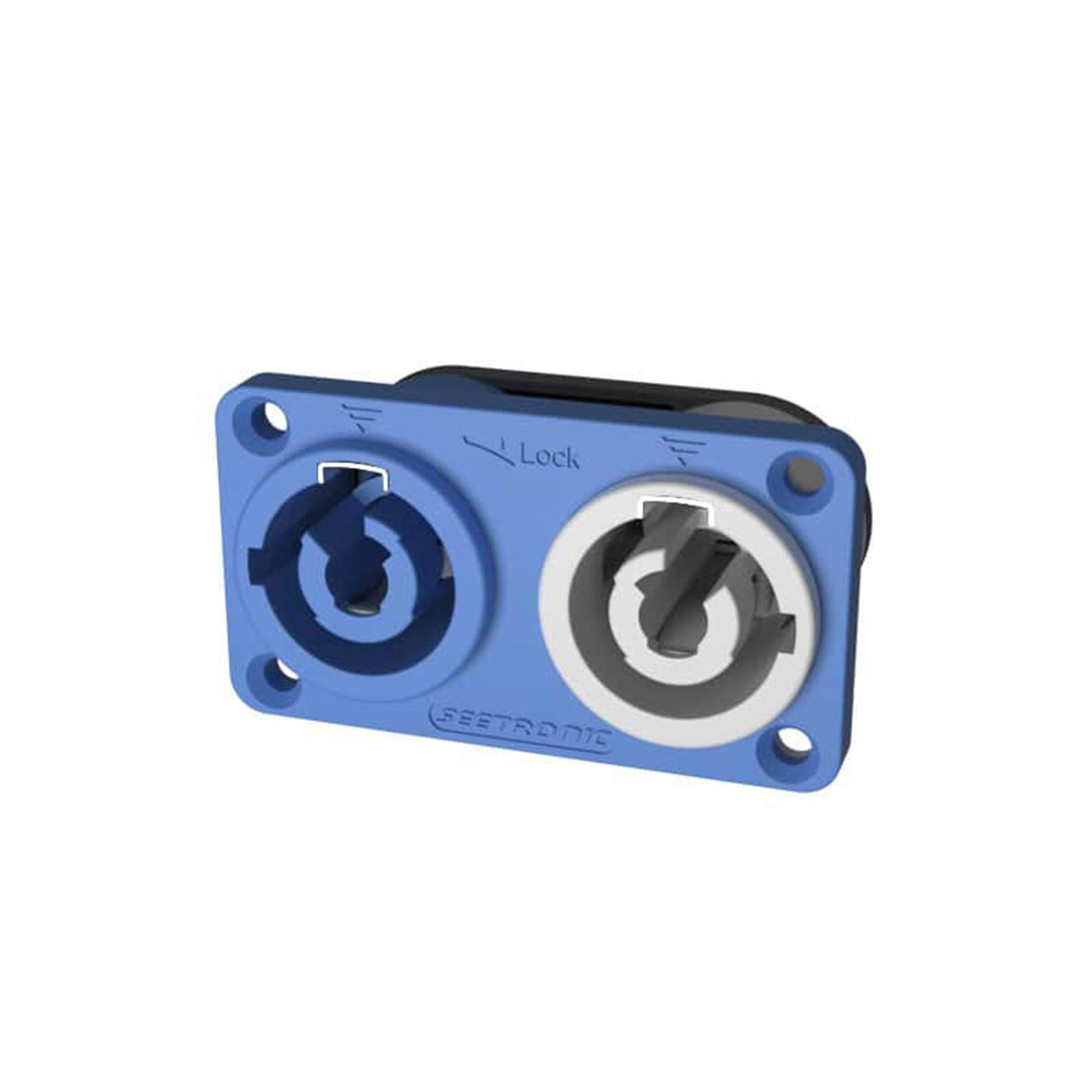

The SAC3MPA02 is an indoor-rated locking “Power Twist” socket combining both power inlet and outlet on a single panel connector. Designed for reliable power distribution it features a robust quick-lock mechanism and durable build—perfect for live applications stage event setups and studio installations. It mates with Seetronic SAC3FCA/SAC3FCB plugs and supports up to 20 A at 250 V AC.
Integrated inlet and outlet power connections Locking quick-twist mechanism 20A / 250V AC rating 2+PE contacts ≤5mΩ contact resistance Durable silver-plated Cu-alloy contacts >1000 mating cycles –30°C to +80°C; UL1977 & IEC61984 compliant
Contacts: 2+PE (protective earth) Rated Current: 20A Rated Voltage: 250V AC Contact Resistance: ≤5mΩ Dielectric Strength: 4000V DC Insulation Resistance: ≥1000MΩ Service Life: >1000 mating cycles Cable Size: up to 2.5mm² Housing: PA silver-plated Cu-alloy contacts Operating Temp: –30°C to +80°C Standards: UL1977 IEC61984 Panel Mount: Front install 0.5Nm screw torque

---
